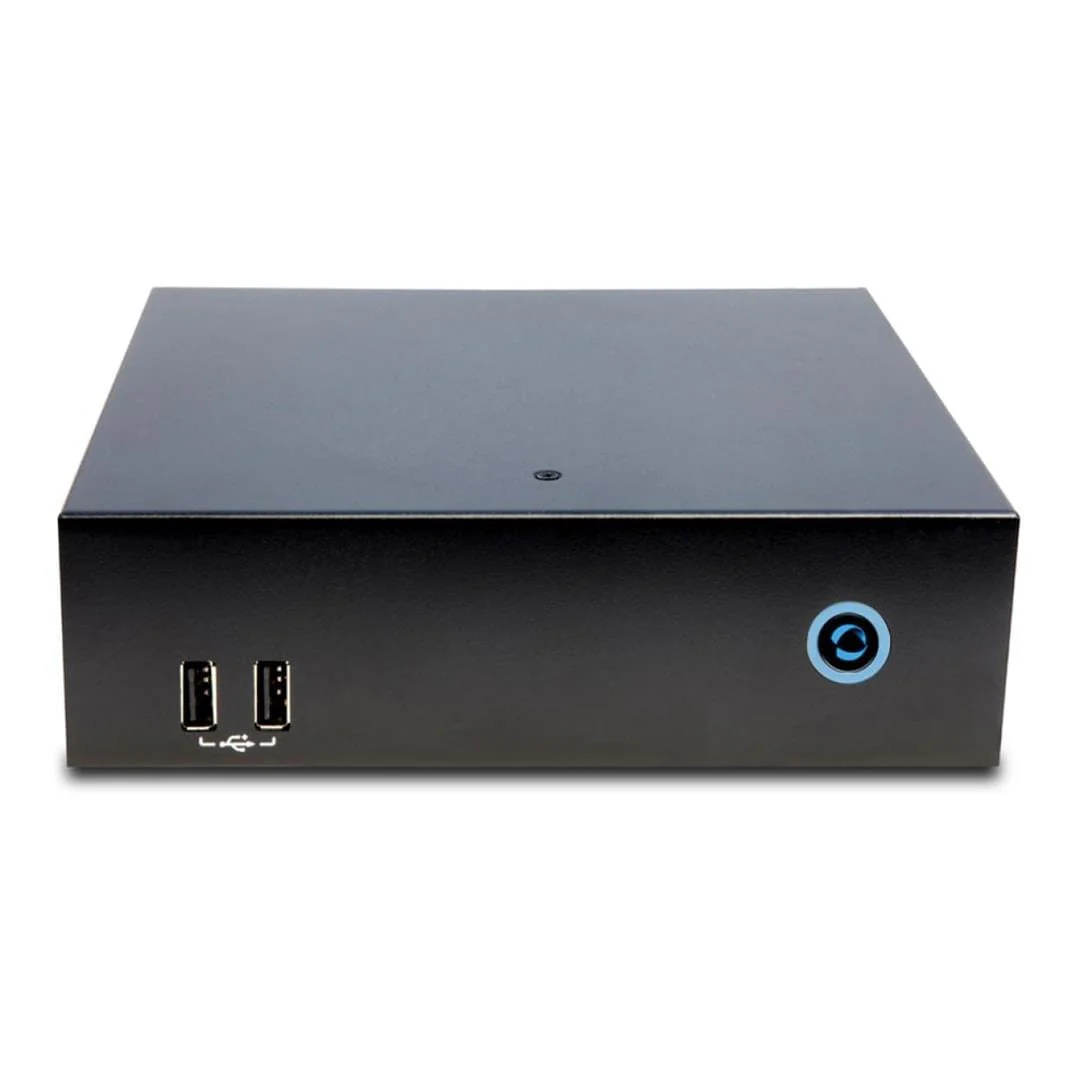

Aopen DE6200 AMD Ryzen Digital Signage Player

Aopen DE6200 AMD Ryzen Digital Signage Player

The DE6200 with AMD Radeon HD graphics creates a new visual experience for digital signage.

UHD (4k) content playback

This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k).

Multi-output video wall solution

This player is a multi-output solution. Computing devices with this feature are the perfect backbone for video walls and other multi-screen solutions. These include symmetrical and asymmetrical video walls, depending on software and content.

Tripple output player

Tripple output player, for solutions with three displays. These mid or high range computing devices have multiple outputs, and are therefore perfect for multi-display digital signage and menu boards.

AMD platform

The DE6200 is based on the AMD platform. More specifically on the AMD Embedded R-Series Merlin Falcon platform. This computing device is capable of driving three screens. Therefore, it's perfect for multiple screen retail and QSR solutions.

Integrated HEVC/H.265 10bit codec

These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps.

Watchdog Timer

With the Watchdog timer, your solution is running at the highest uptime possible. When the Watchdog timer is included in your critical application, the Watchdog is the ultimate failsafe. As soon as the hardware timer reaches zero, the system will reboot.

AOPEN intelligent Control Unit (AiCU)

AOPEN Intelligent Control Unit (AiCU) is built for global enterprise brands, AiCU enables network operators with an intelligent device management solution that automates industrial and commercial applications. AiCU brings cloud service and advanced embedded device control technology together into a single dashboard.

Specifications:

Dimensions (W x H x D): 166 x 48 x 157 mm

Volume: 1.25L

Weight: 1.12 kgs (2.46 lb)

CPU: AMD EMBEDDED R-SERIES “Merlin Falcon”CPU RX-421BD, 2.1 GHz to 3.4 GHz, Quad core

AiCU: Compatible

Memory:

• Channel: Dual Channel
• Type: DDR4 SO-DIMM x 2
• Data rate: 1600/2400
• Max Memory: 16G (based on OS support)

Graphics: AMD Radeon R7 series HD Graphics

Expansion:

• M.2 slot x1, 2242 (key B for 4G/SSD)
• M.2 slot x1, 2242 (key B for SSD)
• M.2 slot x1, 2230 (key E for wifi)

Audio: Type: Realtek HD Audio ALC269Q, Channel: Stereo

LAN: Realtek Gigabit Ethernet RTL8111H x1, 10 / 100 / 1000 Mbps

Storage: 2.5" SATA HDD Bay x 1, M.2 SSD x 1

Front Panel I/O: USB 2.0 Port x 2

Rear Panel I/O:

• DC Jack x 1
• HDMI Port x 3 (HDMI2.0x1)
• USB 3.0 Port x 4
• RJ45 LAN Jack x 1
• Legacy RS232 Serial Port (COM Port) x 1
• Audio Set Line-Out x 1 Mic-In x 1
• Upgrade for Antenna Port x 2
• Extend power SW x1

CPU Thermal Module: AOPEN Thermal Module

WatchDog Timer: 1 ~ 255 SEC./ min

Adapter: 90W (19V, 4.74A) AC Adapter

Warranty: 2 Years

MTBF: 50,000hrs

Operating Temperature: 0 ~ 50ºC

Storage Temperature: -30 ~ 60ºC

Relative Humidity: 95% RH (50ºC non-Condensing)
