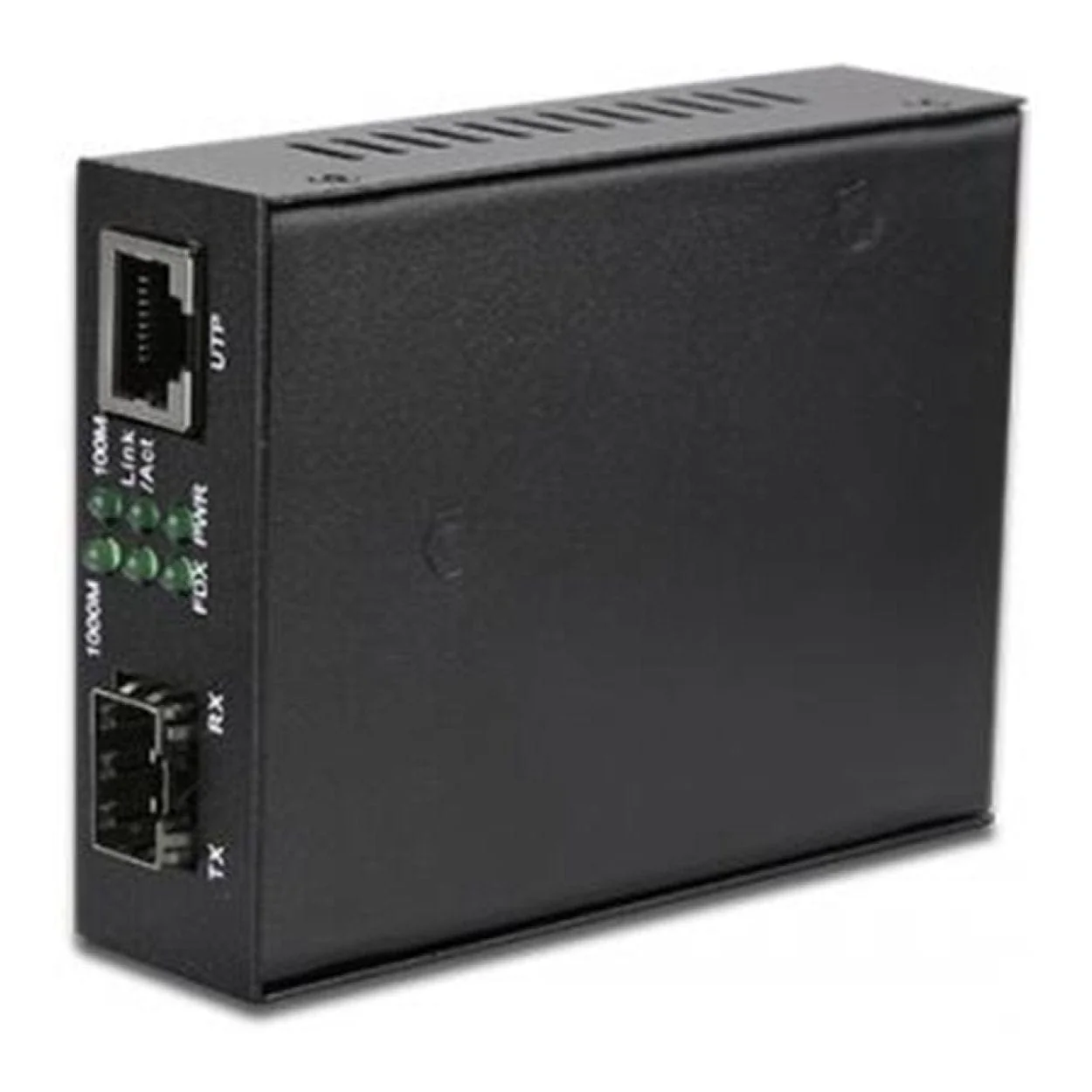

Apache 1G Fibre Media Converter EM1100SSXX

Apache 1G Fibre Media Converter EM1100SSXX

10/100/1000Mbase-T to SFP Media Converter

Apache series Gigabit Ethernet SFP fiber media converters bridge the gap between copper and fiber infrastructures. The SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion applications which require flexibility in transmission rates, working distances and fiber network types which can be realized by simply changing the hot-plug-and-play SFP.

• High flexibility with hot plug-and-play SFP
• 1600byte super data packet transmission
• Full duplex-flow control, Half duplex-back pressure
• Link fault pass through (LFPT)
• Full- positioned LEDs to indicate power and network status

Specifications:

Standard: IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE- -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree

10/100/1000BASE-T STP or UTP Category 5/5e/6 cable (Max. 100m)

Conversion Mode / Delay Time Store-and-Forward < 10us, straight-through<0.9us

Flow control Full duplex-flow control, Half duplex-back pressure

RJ-45 Port Auto-MDI/MDIX

Fiber Connector: LC (duplex), LC/SC (simplex)

Wavelength: 1310/1550nm

Dimensions: 70mm(W) x 93mm(D) x 25mm(H)

Net weight: 0.16kg

Gross weight: 0.42kg

Input Voltage: DC 5V1A with External power adapter

Power Consumption: <2.5W

MTBF: 50,000 hours

BER: <1/1000000000

MAC Address Table: 1K

Buffer Size: 1M

Operating Temperature: 0℃~50℃
