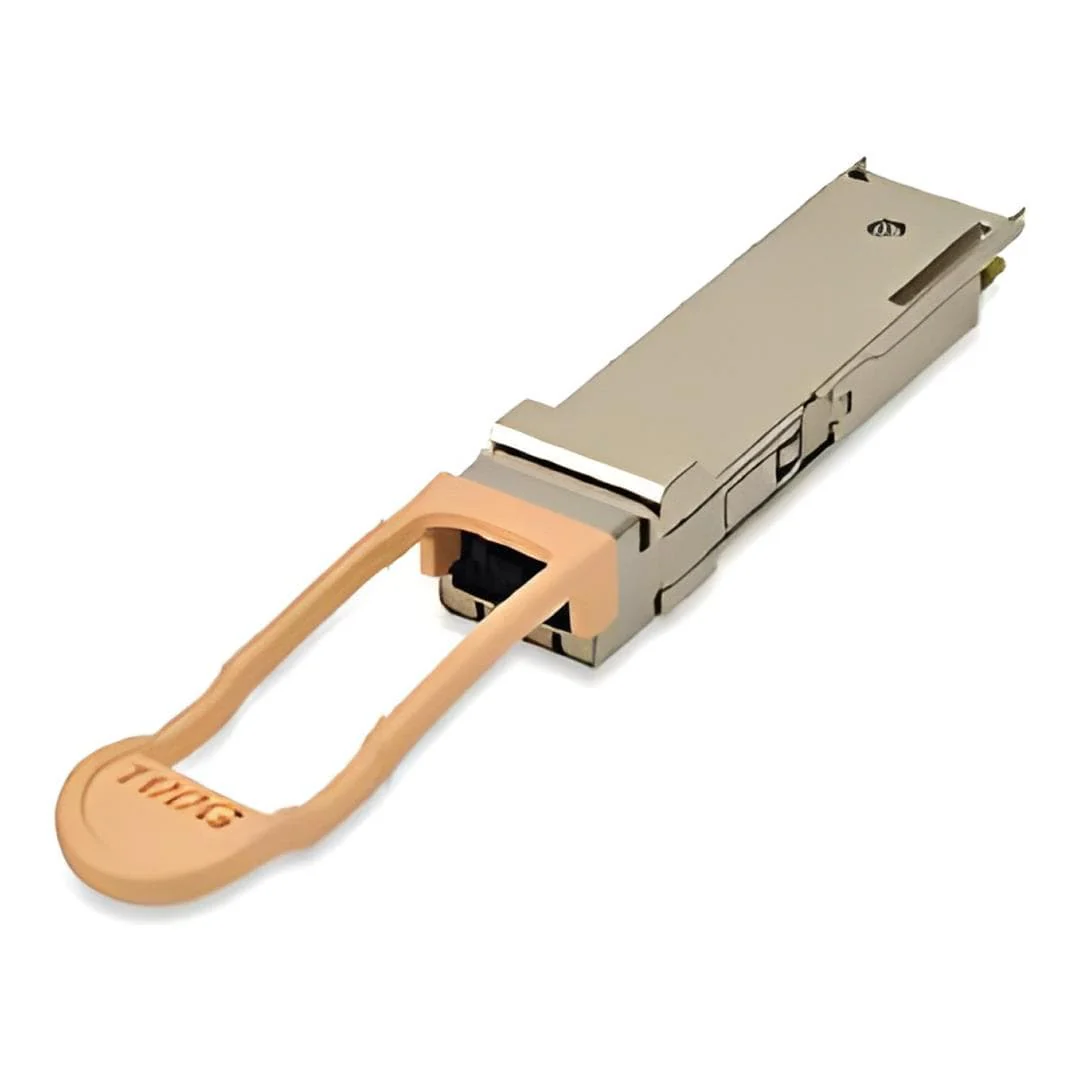

Apache QSFP 100G SR Multi-mode Network Transceiver MMA1B00C100DAP
The QSFP 100G SR is a 4ร25Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with data rate at 25.78Gbps each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
Features:
- Compliant with IEEE Std 802.3bm
- Compliant with SFF-8665
- Transmission data rate up to 25.78125 Gbps Data rate per channel
- High Reliability 850nm VCSEL technology
- Electrically hot-pluggable
- Single +3.3V power supply
- Case temperature range: 0 ~ +70รขโฦ
- Maximum power consumption 2.5W
- Single MPO12 connector
- RoHS complaint
Applications:
- 100GBASE-SR4 Ethernet links
- Data centers
Description
Apache QSFP 100G SR Multi-mode Network Transceiver MMA1B00C100DAP
The QSFP 100G SR is a 4ร25Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with data rate at 25.78Gbps each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
Features:
- Compliant with IEEE Std 802.3bm
- Compliant with SFF-8665
- Transmission data rate up to 25.78125 Gbps Data rate per channel
- High Reliability 850nm VCSEL technology
- Electrically hot-pluggable
- Single +3.3V power supply
- Case temperature range: 0 ~ +70รขโฦ
- Maximum power consumption 2.5W
- Single MPO12 connector
- RoHS complaint
Applications:
- 100GBASE-SR4 Ethernet links
- Data centers
