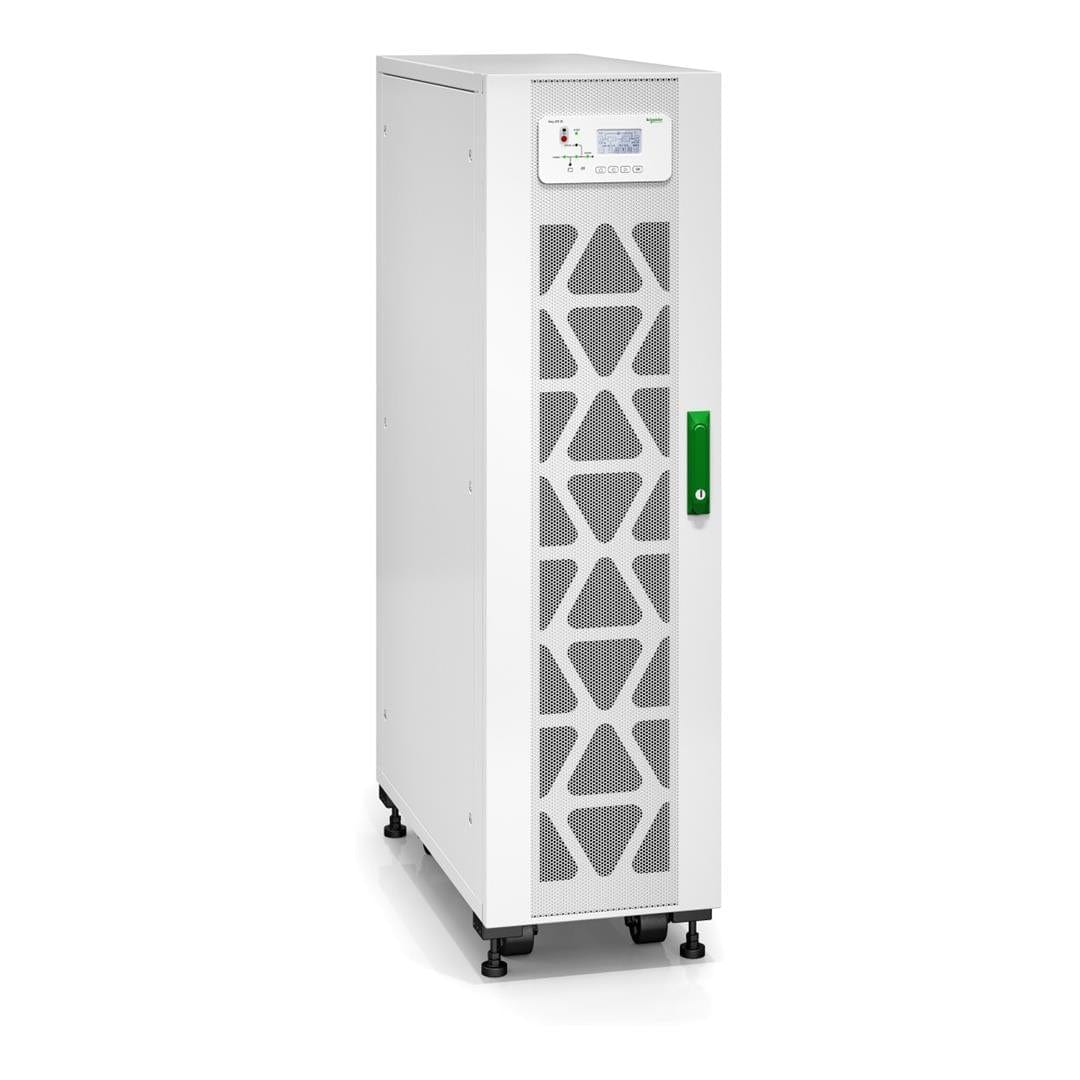

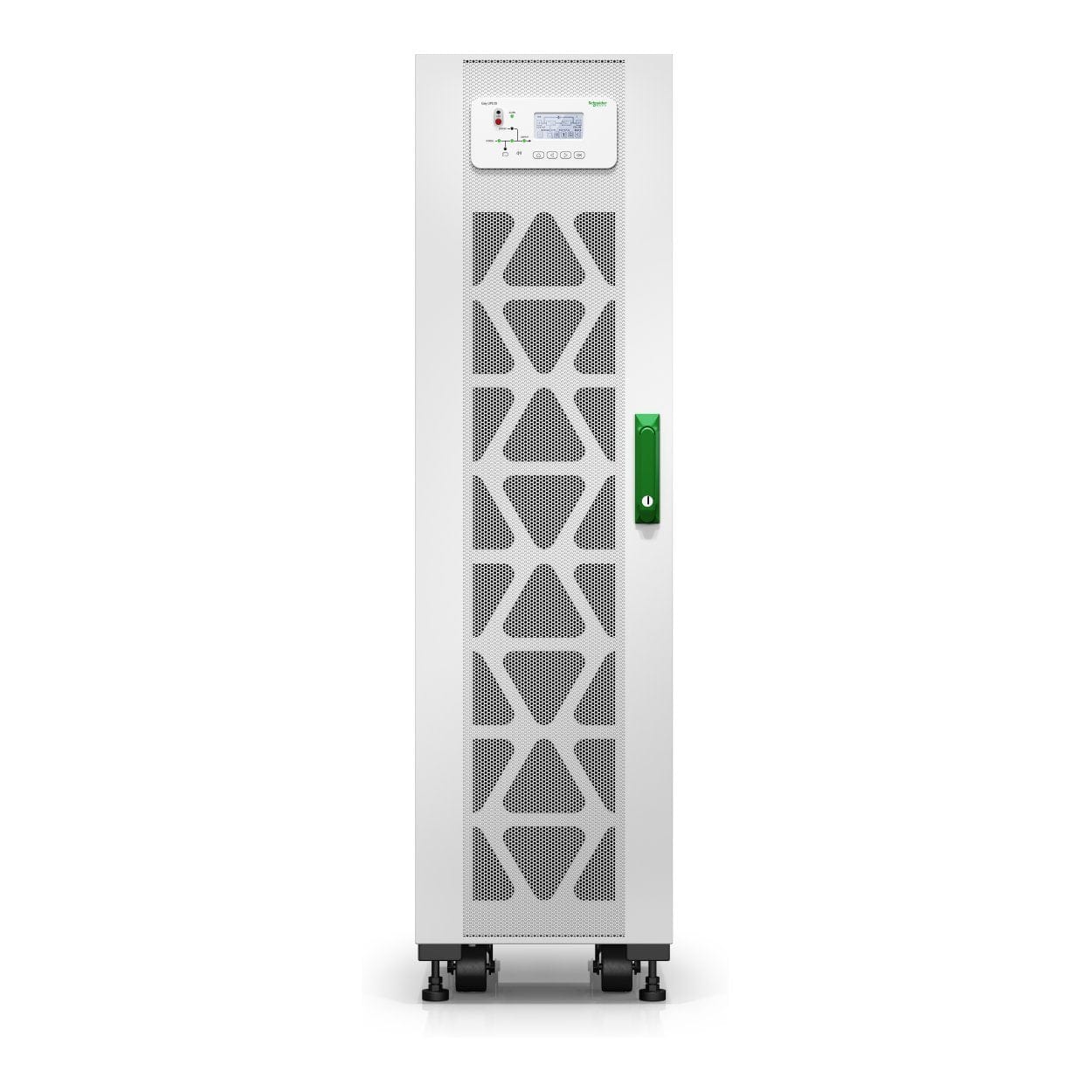

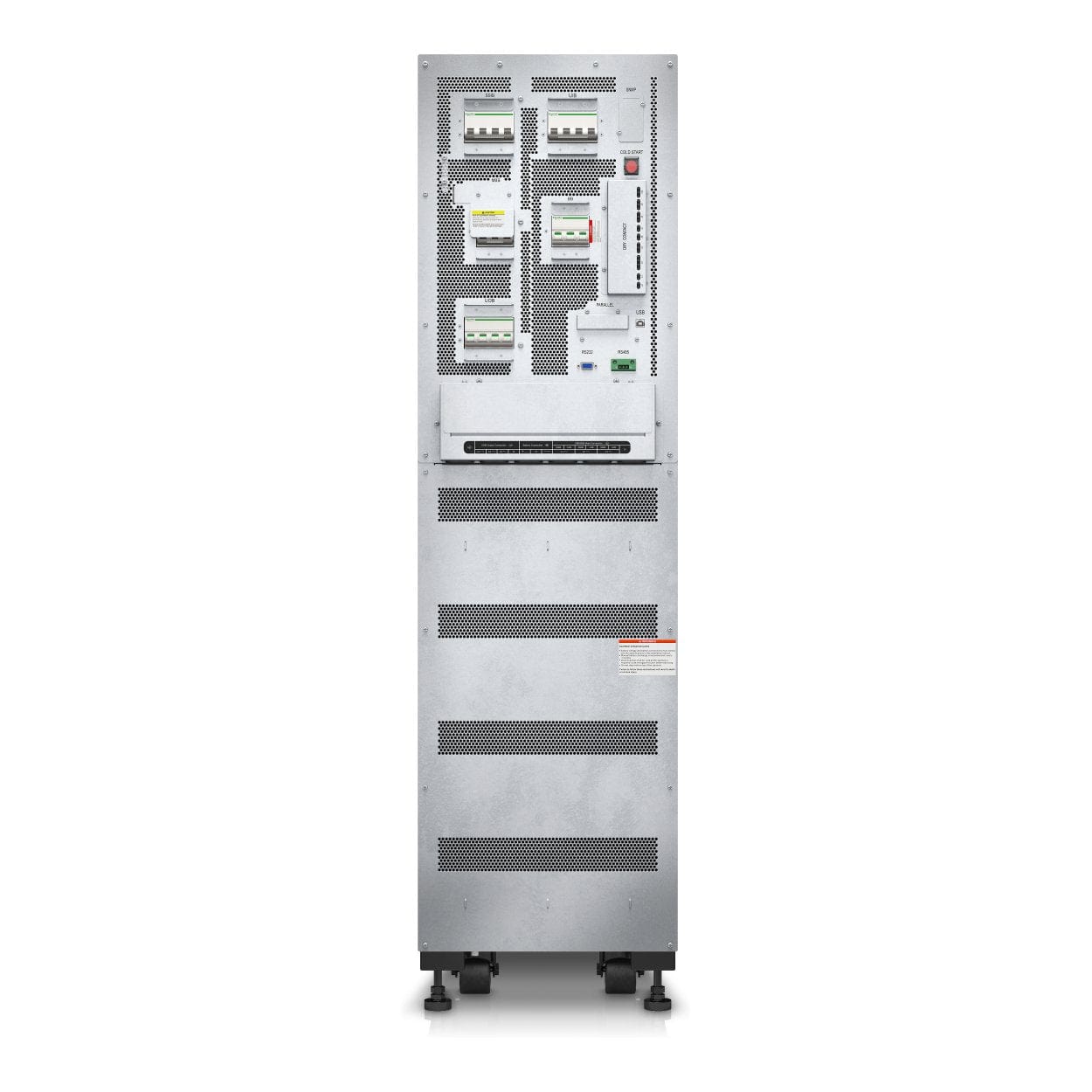

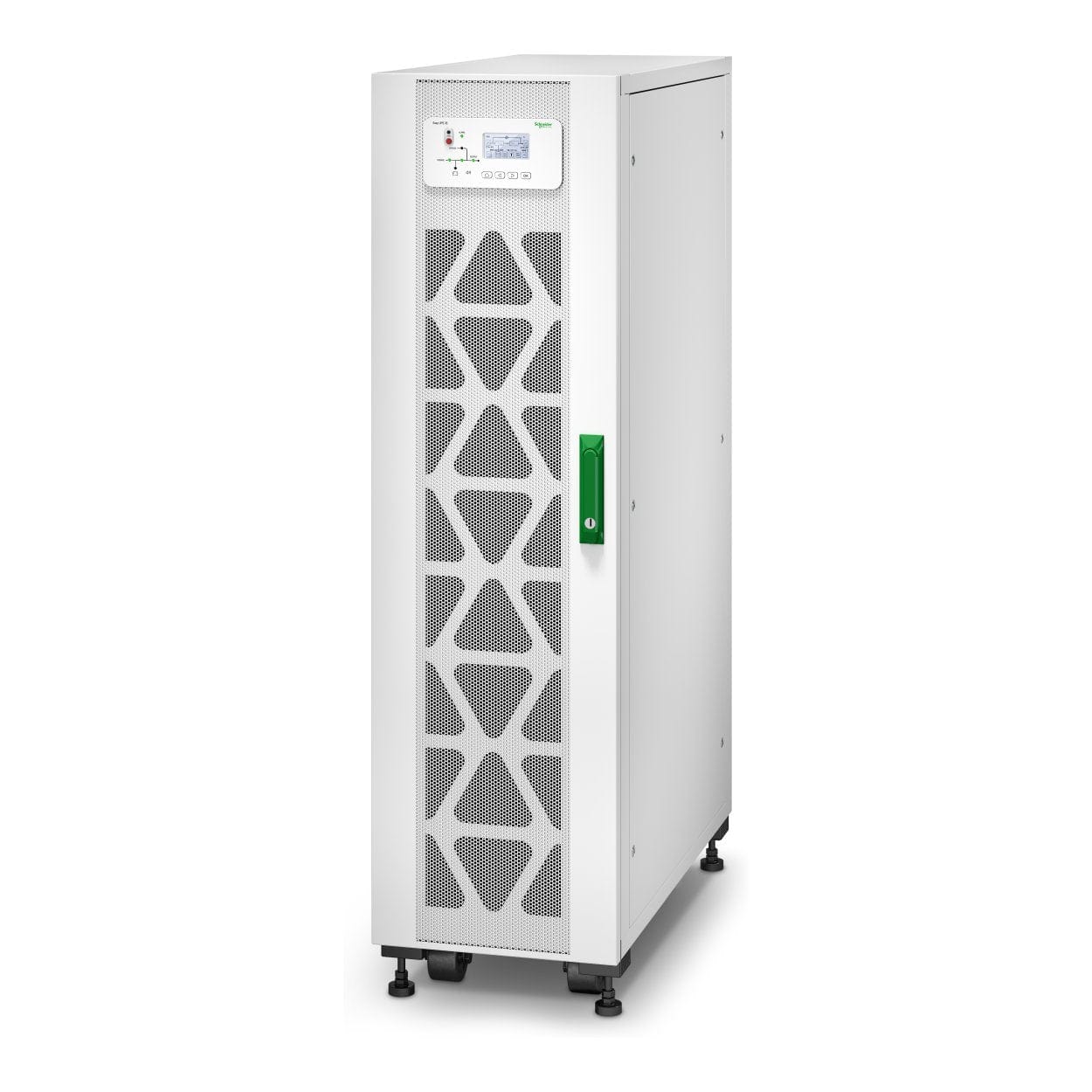

APC Easy 3S 20kVA 20000W Double-conversion Online UPS E3SUPS20KHB1
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.
Features:

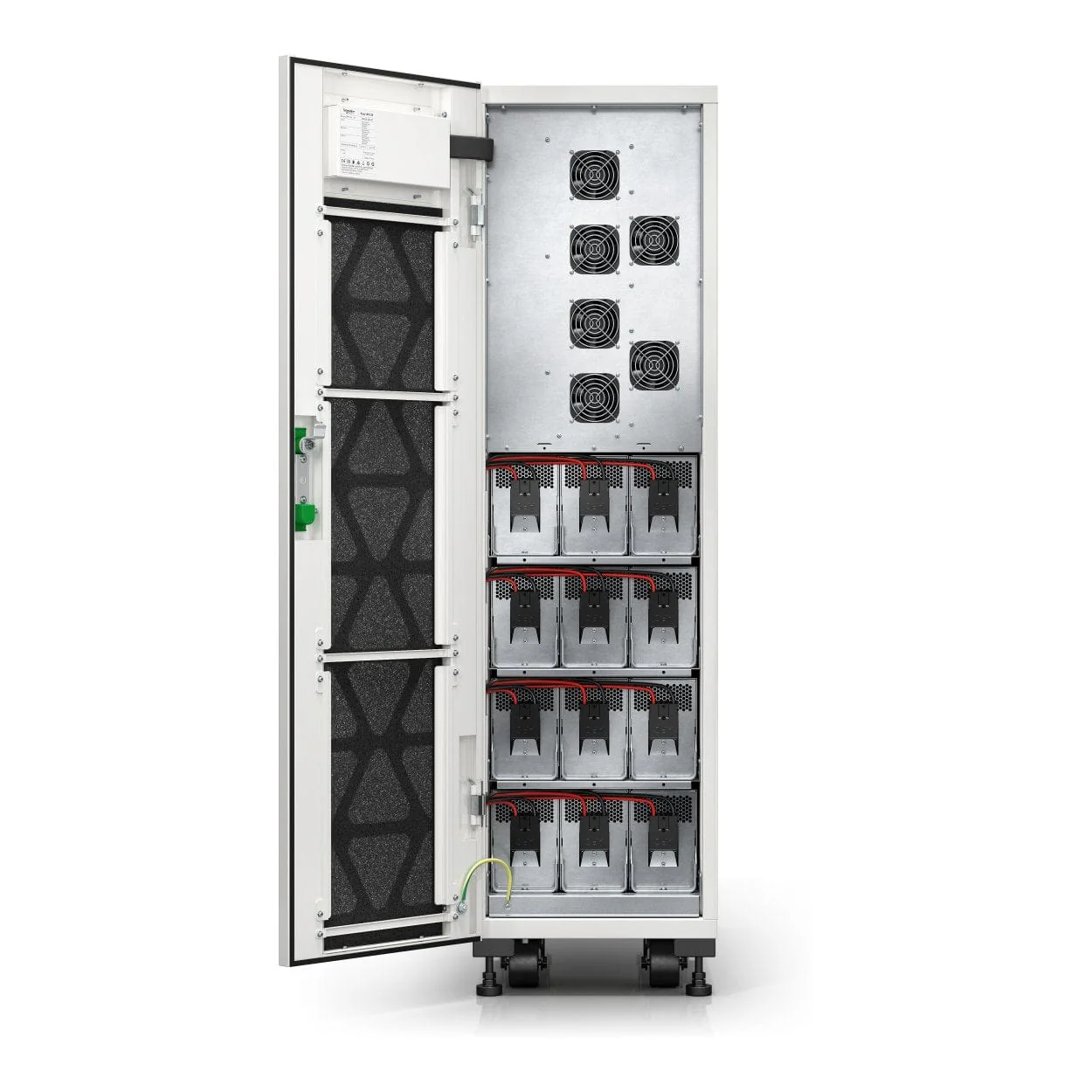

- 2 internal 7Ah modular battery strings, expandable to 3
- Double-conversion online topology
- Straightforward installation
- ECO Mode
- Intuitive user interface
- Front-access servicing
- Easy Loop Test
- Wide Input Voltage Window
- Replaceable dust filters
- Parallel capability
- Optional SNMP Card
- Includes: Dust filter, Installation guide
Specifications:
UPS topology: Double-conversion (Online)
Output power capacity: 20 kVA
Output power: 20000 W
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 240 V
Typical backup time at full load: 15 min
Form factor: Tower
Product colour: White
Display type: LED
Compliance certificates: RoHS
Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Width: 380 mm, Depth: 928 mm, Height: 1400 mm
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
APC Easy 3S 20kVA 20000W Double-conversion Online UPS E3SUPS20KHB1
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.
Features:
- 2 internal 7Ah modular battery strings, expandable to 3
- Double-conversion online topology
- Straightforward installation
- ECO Mode
- Intuitive user interface
- Front-access servicing
- Easy Loop Test
- Wide Input Voltage Window
- Replaceable dust filters
- Parallel capability
- Optional SNMP Card
- Includes: Dust filter, Installation guide
Specifications:
UPS topology: Double-conversion (Online)
Output power capacity: 20 kVA
Output power: 20000 W
Battery technology: Sealed Lead Acid (VRLA)
Battery voltage: 240 V
Typical backup time at full load: 15 min
Form factor: Tower
Product colour: White
Display type: LED
Compliance certificates: RoHS
Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Width: 380 mm, Depth: 928 mm, Height: 1400 mm
