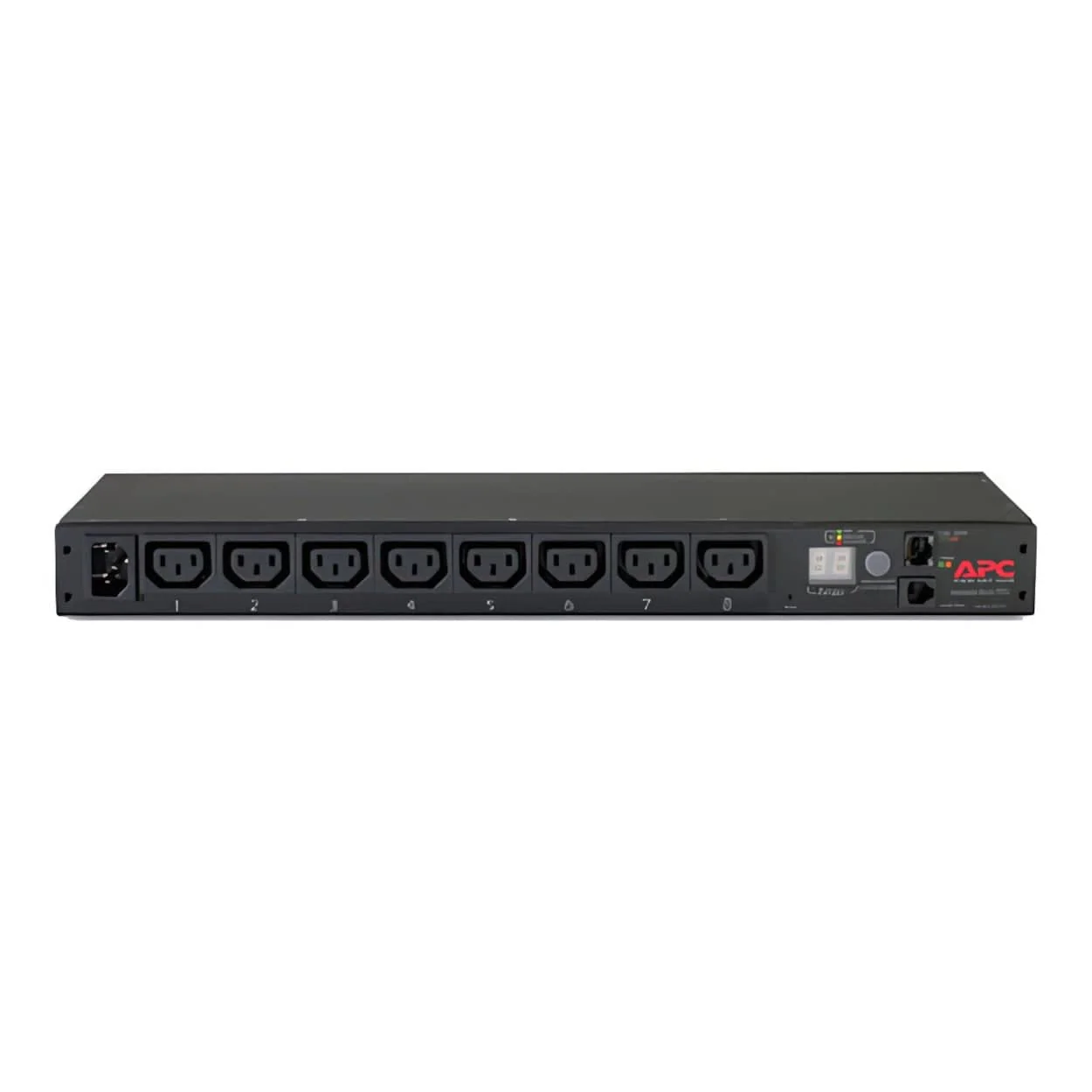

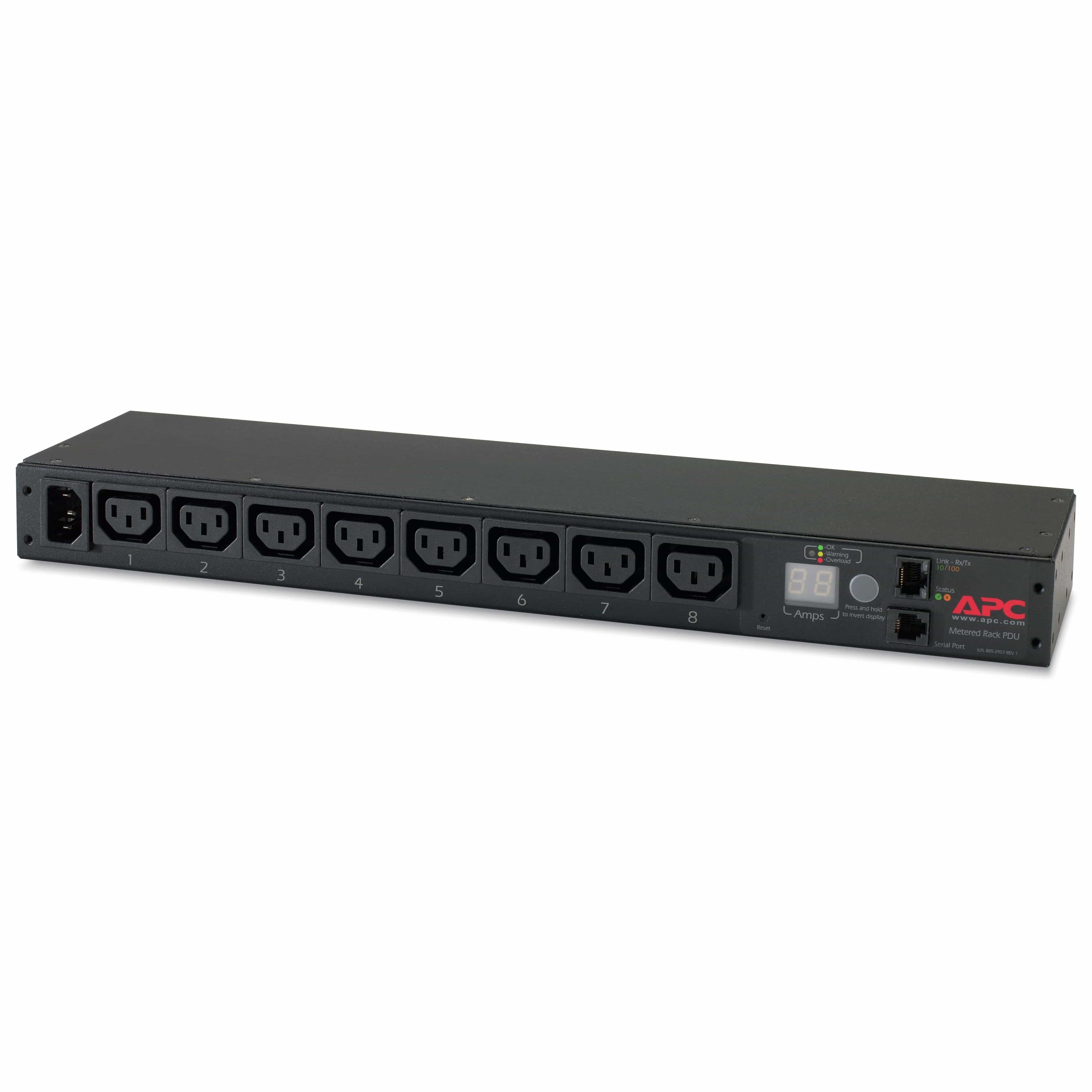

APC NetShelter 12A/208V 10A/230V 1U 8-outlet C13 Metered Rack PDU AP7820B

APC NetShelter 12A/208V 10A/230V 1U 8-outlet C13 Metered Rack PDU AP7820B

It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 12A at 208V and 10A at 230V. The PDU features 8 IEC 60320 C13 outlets and a 6.5-foot power cord with an IEC 60320 C14 plug. It has a load capacity of 2300 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.

Features:

• 8 IEC 60320 C13 outlets for extensive power distribution
• Horizontal mounting to fit various rack configurations, saving space
• Supports up to 12A at 208V and 10A at 230V, ensuring reliable power delivery
• Includes a cord retention bracket and toolless mounting kit for quick setup

Local Current Monitoring Display

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring

Status available to customers both in the data center and remotely

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Technical Specifications:

Main
Product or Component Type: PDU
PDU Type: Metered
Cord length: 6.50 ft (1.98 m)
Provided Equipment: Cord retention bracket(s), Installation guide, Rack Mounting brackets, User Manual

Complementary
Input Voltage: 200 V, 208 V, 230 V
Height: 1.7 in (44 mm)
Width: 17.5 in (444 mm)
Output Voltage: 208 V, 230 V
Depth: 4.02 in (102 mm)
Net Weight: 3.81 lb (1.73 kg)
Mounting Location: Front, Rear
Mounting preference: No preference
Input Plug Type: IEC 60320 C14
Mounting Mode: Rack-mounted
Rack units: 1U
Mounting position: Horizontal
Line Rated Current: 10 A
Input current limits: 15 A
Load Capacity: 2300 VA
Different voltages and corresponding amperages: 10 A - 230 V, 12 A - 208 V
Input Frequency: 50/60 Hz
Outlet type and quantity: 8 IEC 60320 C13

Environment
Product Certifications: cUL Listed, C-tick, CE, CSA, GOST, UL Listed, VDE, VCCI
Standards: FCC Part 15 class A, UL 60950
Ambient Air Temperature for Operation: 23…113 °F (-5…45 °C)
Relative Humidity: 5…95 %
Operating altitude: 0...10000 ft
Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
Storage Relative Humidity: 5…95 %
Storage altitude: 0…50000 ft (0…15240 m)

Ordering and shipping details
GTIN: 731304331506
Country of origin: IN
Packing Units: Unit Type of Package 1: PCE
Number of units in package: 1
Package 1 Height: 2.5 in (6.4 cm)
Package 1 Width: 13.3 in (33.7 cm)
Package 1 Length: 18.5 in (47 cm)
Package weight: 6.42 lb (2.91 kg)

Contractual warranty
Warranty (in months): 24
