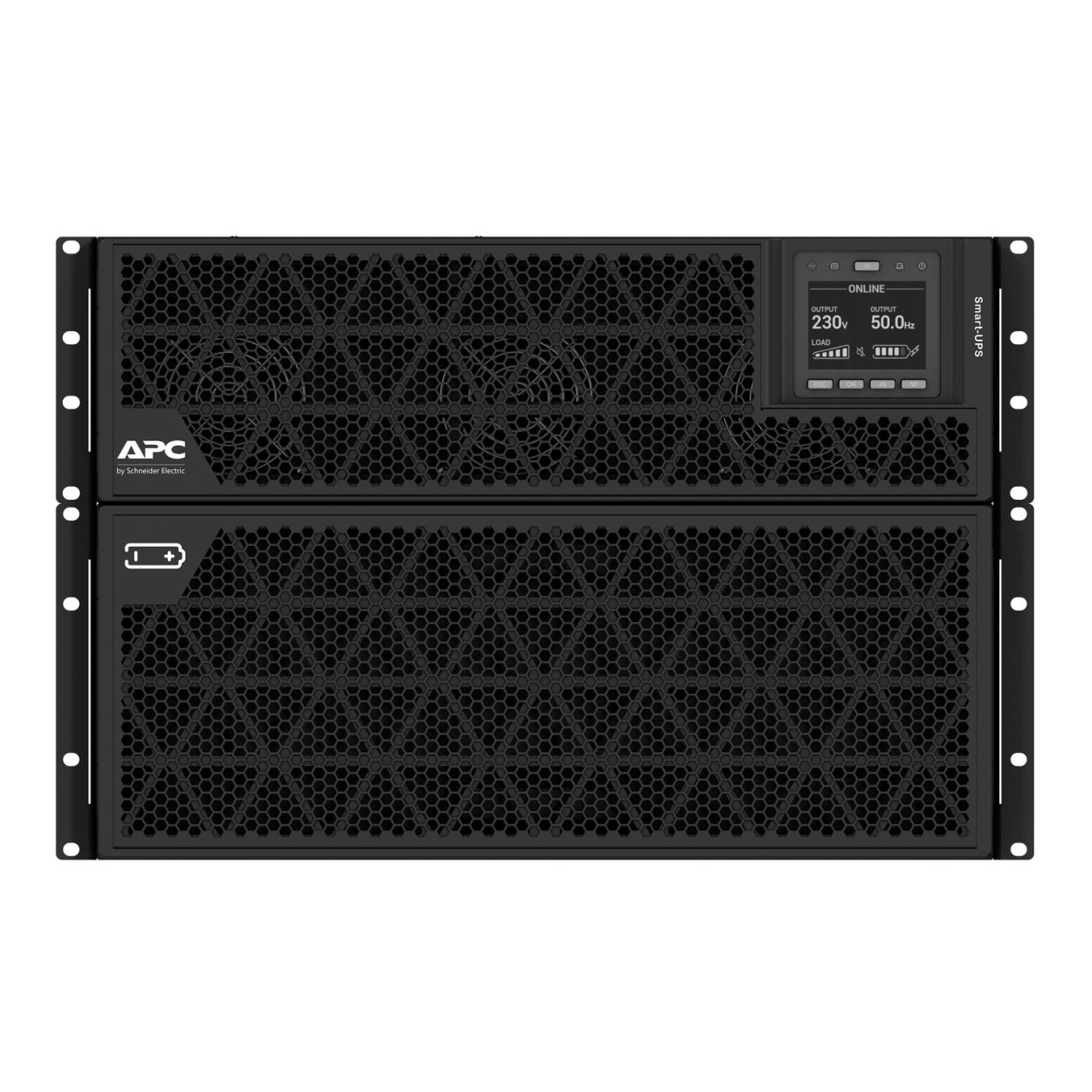

APC SRTG15KXLI 15kVA 15000W Double-conversion Online Uninterruptible Power Supply

APC SRTG15KXLI 15kVA 15000W Double-conversion Online Uninterruptible Power Supply

Serviceability

Audible alarms

Provides notification of changing utility power and UPS power conditions

Features:

• 15kVA/15kW double-conversion on-line pure sine wave rack/tower UPS
• Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
• Rack/tower convertible (SRTGRK1 rail kit sold separately)
• Delivers clean power with zero transfer time for critical or sensitive devices
• Add up to 4 external battery packs (SRTG192XLBP2) for extended runtime

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Manageability

Serial connectivity

Provides management of the UPS via a serial port.

SmartSlot

Customize UPS capabilities with management cards.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

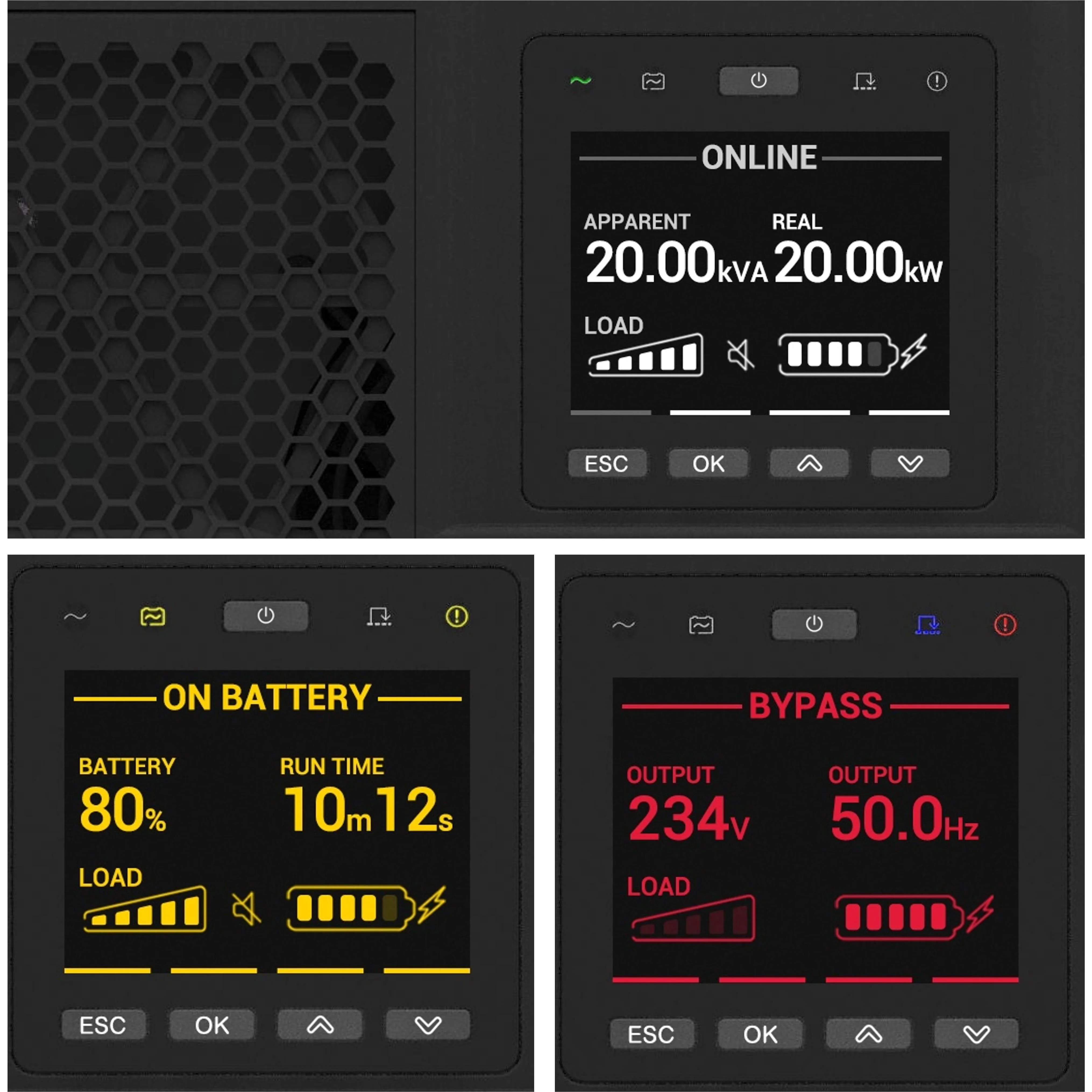

LED status indicators

Quickly understand unit and power status with visual indicators.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Marketing features

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Save time with easy and convenient remote/network accessibility.

Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data protected and available.

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Low operating and maintenance costs with proven reliability and intelligent battery management.

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Adaptability

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Protection

Cold-start capable

Provides temporary battery power when the utility power is out.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

AvailabilityScalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Technical Specifications:

Main
Run time for load: 15,000 W
Min-max: 1,500–15,000 W
Run time: 5 min 34 s
Max. Capacity Used: 100 %

Main Input Voltage
230 V AC 1 phase
400 V AC 3 phases

Input Voltage
380…415 V
220…240 V

Maximum Input Current: 66 A
Input Harmonic Distortion: Less than 5 % for full load
Load Power Factor: From 0.9 leading to 1 lagging
Switching Current Capacity: 100 A
Input Voltage Limits: 160…285 V full load, 100…285 V half load

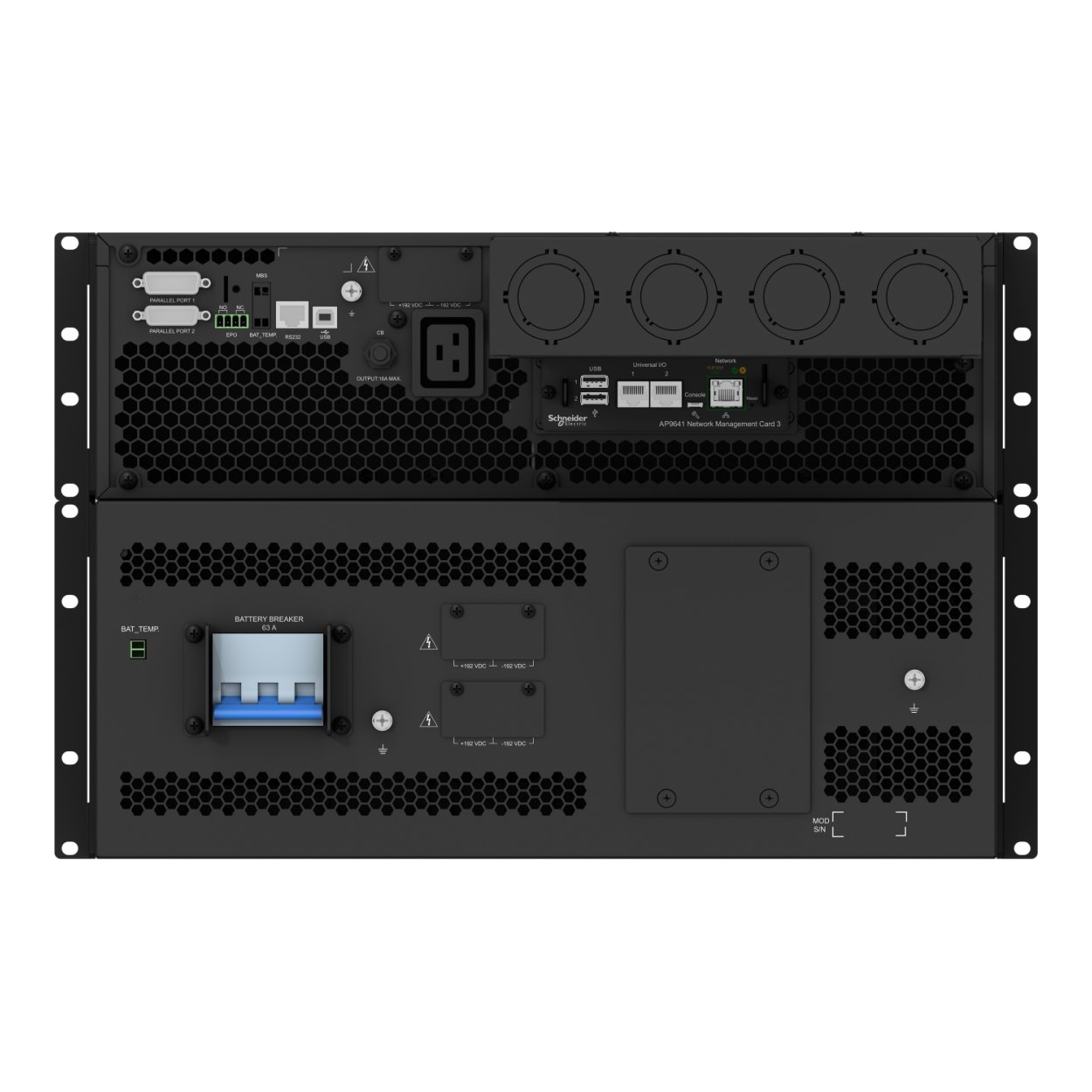

Number of Input Connectors: 1 hard wire 5-wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
Network Frequency: 40…70 Hz auto-sensing

Output Voltage
230 V AC 1 phase
400 V AC 3 phases
230 V rated

Rated Power
15000 W / 15000 VA

Output Connection Type: 1 IEC 60320 C19
Output Connector Type: Hard wire 5-wire (3P + N + E) for 1 zone, Hard wire 3-wire (1P + N + E) for 1 zone
Bypass Type: Internal bypass (automatic and manual)
Crest Factor: 3:1
Harmonic Distortion: Less than 2 %
Maximum Configurable Power: 15,000 W / 15,000 VA
Output Overload Operation: 60 s at 125% and 30 s at 150%
UPS Type: On-Line
Wave Type: Sine wave
Efficiency: 94.5 %
Output Frequency: 50/60 Hz ±4 Hz sync to mains
Replacement Battery: APCRBC172

Complementary Information
Configurable for 380 : 400 or 415 V 3-phase nominal output voltage
Configurable for 220 : 230 or 240 V nominal output voltage
Battery type: Lead-acid external included
Emergency Power Off: Yes
Free Slots: 0
Preinstalled Device: Network management card 3 with environmental monitoring
Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
UPS Connectivity: Serial port, USB port, pre-installed network management card 3
Surge Energy Rate: 600 J
Noise Suppression: Full-time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449

Physical
Number of Rack Units: 7U
Colour: Black (RAL 9005)
Height: 306 mm
Width: 440 mm
Depth: 835 mm
Net Weight: 142.5 kg
Mounting Location: Front
Mounting Preference: Lower
Mounting Mode: Rack-mounted
Two Post Mountable: 0
USB Compatible: Yes
Mounting Position: Horizontal
Rack-mounted with kit sold separately

Provided Equipment
1 x USB cable
1 x RJ45 cable
2 x rack mounting brackets
2 x stabilization/wall mounting feet
2 x installation manuals
1 x C13-C14 power cord
1 x external battery pack
1 x battery cable

Power Modules
Number of Filled Slots: 0
Number of Free Slots: 0
Redundant: No

Environment
Product Certifications: CE, UKCA, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient Air Temperature for Operation: 0–40 °C
Ambient Air Temperature for Storage: -15–45 °C
Storage Altitude: 0–15,000 m
IP Degree of Protection: IP20
Relative Humidity: 0–95 % non-condensing
Storage Relative Humidity: 0–95 % non-condensing
Acoustic Level: 58 dBA
Heat Dissipation: 2,866 Btu/h
Operating Altitude: 0–3,000 m

Batteries & Runtime
Battery Type: Lead-acid battery
Battery Voltage: ±192 V
Extended Runtime: 1
Number of Battery Filled Slots: 0
Number of Battery Free Slots: 0
Battery Recharge Time: 4 h
Number of Battery Replacement Quantity: 2
Battery Life: 3–5 years
Battery Charger Power: 2,160 W rated
