APC SRV2KRILRK 2kVA 1600W 4 AC Outlet Double-conversion Online UPS

APC SRV2KRILRK 2kVA 1600W 4 AC Outlet Double-conversion Online UPS

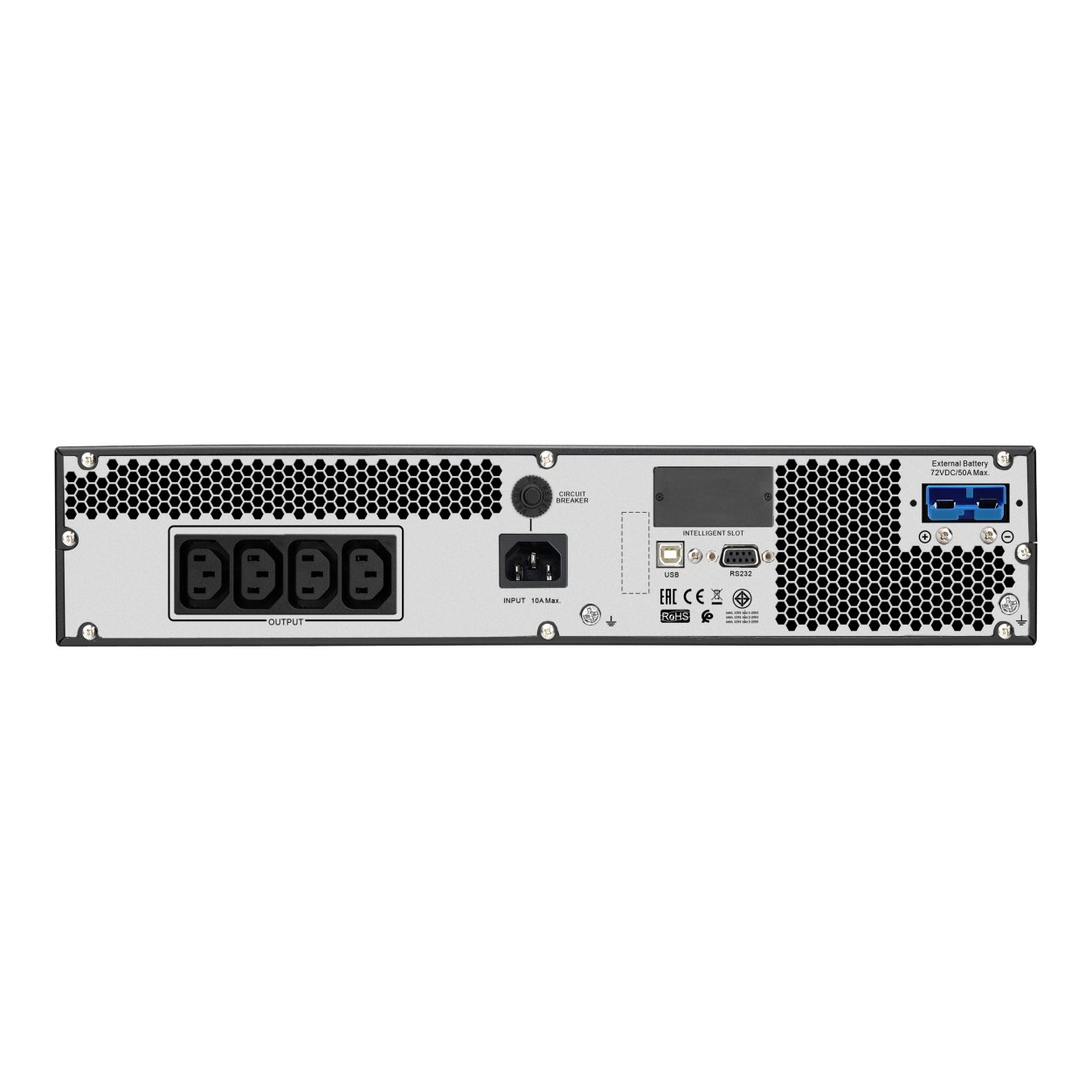

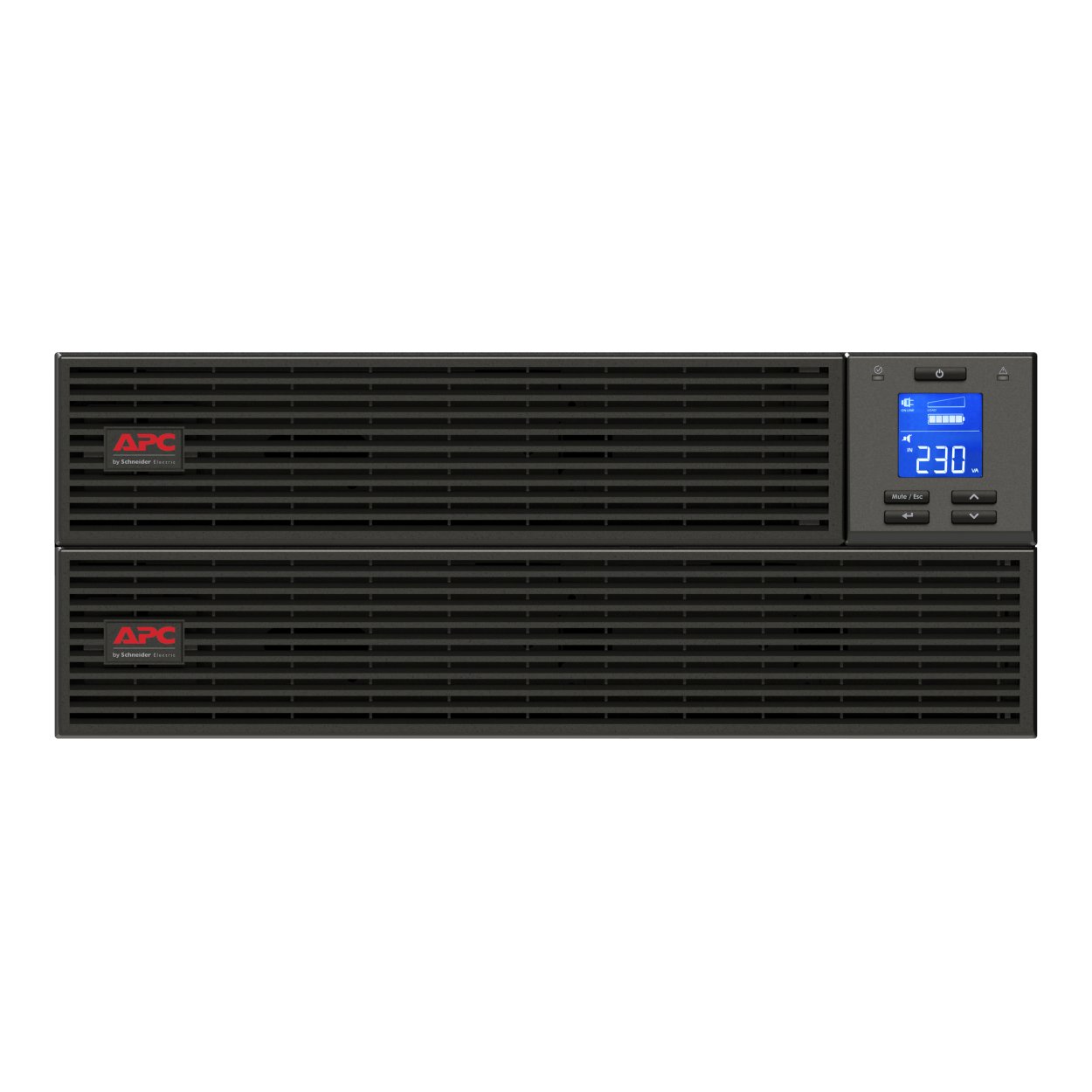

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Features:

• Double-conversion (Online)
• 2 kVA 1600 W
• Waveform: Pure sine
• 4 AC outlet(s)
• Rackmount Black

Technical Specifications:

Overview
Presentation: High quality, double-conversion on-line UPS designed for essential power protection needs even in the most unstable power conditions
Lead Time: Usually in Stock

Main
UPS Type: On-Line
Rated Power: 1600 W / 2000 VA
Maximum Configurable Power: 1600 W / 2000 VA
Run Time for Load:

• Load: 1600 W
• Range: 160–1600 W
• Runtime: 22 min 17 s

Half Load Runtime: 12 min (800 W)
Max Capacity Used: 100%
Wave Type: Sine wave
Efficiency: 88% (full load)
Crest Factor: 3:1
Harmonic Distortion: 3%

Input
Main Input Voltage: 230 V AC, 1-phase
Input Voltage Options: 220 V, 240 V
Input Voltage Limits:

• 110–285 V (half load)
• 160–280 V (full load)

Input Connection Type: IEC 60320 C14
Network Frequency: 40–70 Hz (auto sensing)

Output
Output Voltage: 230 V AC, 1-phase
Output Voltage Options: 220 V, 240 V
Output Frequency: 50/60 Hz ±3 Hz (sync to mains)
Output Connection Type:

• 4 × IEC 60320 C13

Bypass Type: Internal bypass (automatic and manual)

Complementary
Additional Information: Configurable for 220, 230, or 240 V nominal output voltage
Battery Type: Lead-acid external included
Control Panel: Multifunction LCD status and control console
Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
UPS Connectivity: Serial port, USB port
USB Compatible: No
Available Expansion Slot: Yes
Surge Energy Rate: 600 J

Mechanical & Mounting
Rack Units: 4U
Mounting Mode: Rack-mounted (with included kit)
Mounting Position: Horizontal
Mounting Location: Front
Mounting Preference: Lower
Colour: Black (RAL 7010)
Number of Cables: 1
Redundant: No

Dimensions & Weight
Height: 172 mm
Width: 437 mm
Depth: 632 mm
Net Weight: 51.7 kg

Environment
Operating Temperature: 0–40 °C
Storage Temperature: -20–50 °C
Operating Altitude: 0–3000 m
Storage Altitude: 0–15000 m
Relative Humidity: 0–95% non-condensing
IP Degree of Protection: IP20
Acoustic Level: 50 dBA
Heat Dissipation: 745 Btu/h

Standards & Certifications
Product Certifications: CE, UKCA, EAC, TISI
Standards:

• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Batteries & Runtime
Battery Type: Lead-acid battery
Battery Voltage: 72 V
Extended Runtime: 1
Battery Filled Slots: 1
Battery Free Slots: 0
Battery Recharge Time: 5.5 h
Battery Life: 3–5 years
Battery Charger Power: 350 W (rated)

Packing Units
Unit Type of Package 1: PCE
Number of Units in Package 1: 3
Package Dimensions (H × W × L): 48 × 60 × 70 cm
Package Weight: 66.5 kg

Warranty
Warranty Period: 24 months
