ASUS TUF Gaming B650M-E Wi-Fi AMD Socket AM5 m-ATX Motherboard 90MB1FV0-M0EAY0

ASUS TUF Gaming B650M-E Wi-Fi AMD Socket AM5 m-ATX Motherboard 90MB1FV0-M0EAY0

ASUS TUF GAMING B650M-E WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Features

• 8+2 power stages (rated 60A) with enlarged VRM heatsinks
• PCIe 5.0 for M.2 storage
• DDR5 memory module support
• USB 3.2 Gen 2 Type-C and a front-panel USB 3.2 Gen 1 Type-C port
• 2.5 Gb Ethernet
• Wi-Fi 6

Intelligent Control

Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost

AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

Armoury Crate

The ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 2+ and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.

Teamed Power Stages

8+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.

DRAM Overclocking Performance

DDR5 OC

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With TUF GAMING B650 motherboards, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

Cooler By Design

Enlarged VRM Heatsink

The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.

Optimized M.2 Heatsink Design

One M.2 slot has dedicated heatsink, keeping M.2 SSD at optimal operating temperature to ensure consistent performance and reliability.

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Safeslot Core+ & SafeDIMM

SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

This Changes Everything

From this new platform, you can see the future

Build your next rig with an AMD Ryzen™ 7000 Series processor and ASUS TUF GAMING motherboards to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.

You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.

Technical Specification

Product: TUF GAMING B650M-E WIFI

CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to www.asus.com for CPU support list.*

Chipset: AMD B650

Memory

• 4x DIMM slots, Max. 192GB
• DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered

Graphics

• 2x DisplayPort
• 1x HDMI port

Expansion Slots

• 1x PCIe 4.0 x16 slot (supports x16 mode) (AMD Ryzen™ 9000 & 7000 Series Desktop Processors) or 1x PCIe 4.0 x16 slot (supports x8/x4 mode) (AMD Ryzen™ 8000 Series Desktop Processors)
• 2x PCIe 4.0 x1 slots (AMD B650 Chipset)

Storage: 2x M.2 slots (Key M, type 2242/2260/2280) and 4x SATA 6Gb/s ports

Ethernet: 1x Realtek 2.5Gb Ethernet

Wireless: 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth: v5.2

Rear USB

• 2x USB 3.2 Gen 2 (10G) ports (1x Type-A + 1x USB Type-C)
• 2x USB 3.2 Gen 1 (5G) ports (2x Type-A)
• 4x USB 2.0 ports (4x Type-A)

Front USB

• 1x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
• 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support 4 additional USB 2.0 ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

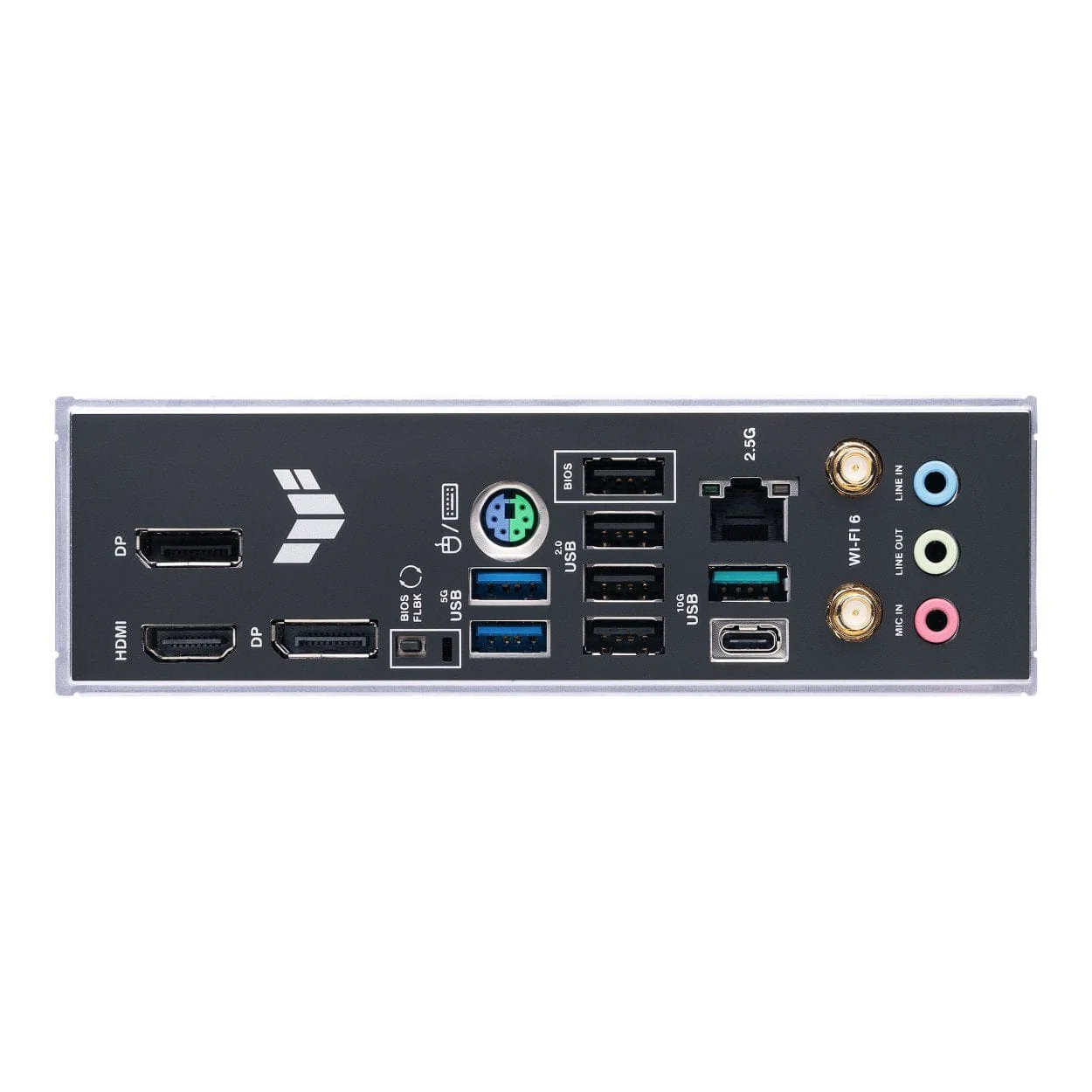

Back Panel I/O Ports

• 2x USB 3.2 Gen 2 (10G) ports (1x Type-A + 1x USB Type-C)
• 2x USB 3.2 Gen 1 (5G) ports (2x Type-A)
• 4x USB 2.0 ports (4x Type-A)
• 2x DisplayPort
• 1x HDMI port
• 1x Wi-Fi Module
• 1x Realtek 2.5Gb Ethernet port
• 3x Audio jacks
• 1x BIOS FlashBack button
• 1x PS/2 Keyboard/Mouse combo port

Operating System: Windows 11, Windows 10 64-bit

Form Factor: micro-ATX Form Factor (24.4 cm x 24.4 cm)
