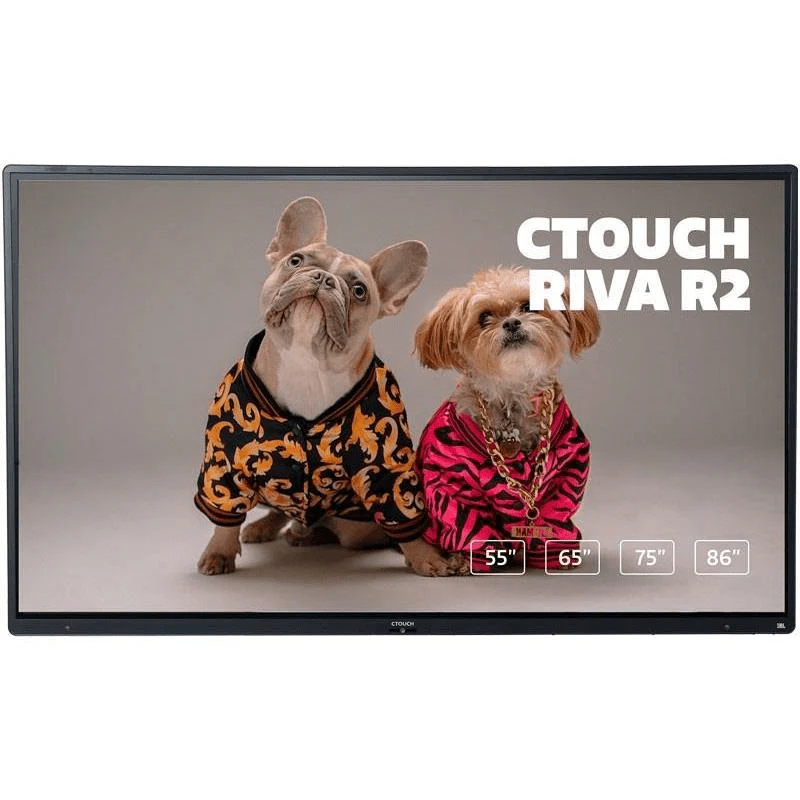

CTouch Riva R2 55-inch 4K Education Interactive Touch Presentation Panel 10052755

CTouch Riva R2 55-inch 4K Education Interactive Touch Presentation Panel 10052755

Schools looking for the latest and greatest when it comes to their teaching equipment can stop their search, CTouch Riva R2 10052755 55” Interactive Touchscreen is here! Jam-packed with powerful hardware, crystal-clear JBL® sound and a wonderful writing experience, Riva R2 is the perfect addition to the state-of-the-art school’s most modern classroom.

The successor of the massively successful CTOUCH Riva, CTOUCH Riva R2 brings all what made the first Riva popular to the table, and so much more. This allows teachers around the globe to stay on top of their teaching game.

CTOUCH Riva R2 is perfectly equipped for any teaching situation. It is built on an open platform, allowing any teaching software to run effortlessly. It packs the latest and greatest hardware available for lightning-fast, uninterrupted operation. It captivates students with crystal-clear JBL® audio. Add a lifetime of safe and supported usage thanks to CTOUCH Heartbeat and very low energy consumption to that and you have the perfect match for the classroom of today and tomorrow.

Experience the best handwriting experience

Combining zero air gap and TrueBeam Touch+ technology with our popular Triple S Glass, the CTOUCH Riva R2 delivers a writing experience that’s fast, clean and smooth. To try it is to believe it!

Earth-shattering audio

Whether watching a film with the students or having a pupil join classes remotely, the powerful 80W JBL® speakers will ensure the sound easily reaches even the farthest corner of the classroom.

ESharing is caring

Inviting up to 50 students to join a teaching session has never been easier, thanks to the pre-installed full version of EShare. Pupils can instantly share their Windows, Android or Apple device wirelessly to the touchscreen, posing no interruptions to the class at all.

Save Watts and Watts of money

Schools are not made of money. To combat high energy prices CTOUCH Riva R2 comes equipped with smart on/off. This turns the touchscreen on when someone enters the classroom and turns it off when there is no one there, only using energy when it is really needed. And when energy is consumed, this model already has one of the lowest energy consumptions in the market.

Enjoy Riva R2 for a lifetime with Heartbeat Safe –free for 1 year!

Want to enjoy Riva R2 even longer? Just enroll in the CTOUCH Heartbeat programme to receive a lifetime of security and functionality updates and access to remote management tools and trainings. At the end of its lifetime, we will repurpose the touchscreen. The CTOUCH Riva R2 even comes with 1 year Heartbeat Safe for free!

Touch System

• Touch system: TrueBeam Touch +

• Touch points: 40 on Windows, 20 on Android

• Touch tools: hands or other solid (soft tip) object

• Accuracy: ±1 mm

• Minimum response size: > 1.5 mm

• Touch resolution: 32.768 x 32.768 (pixels)

• Interface: USB 2.0 compatible (full speed) HID complaint, Plug & Play compatible. Backwards compatible with USB 1.1

• Supported OS: Windows, macOS, Chrome, Linux and Android

• Not required for 40 touch points (under Windows), macOS requires a driver for gestures

Panel

• Diagonal size: 54.64" (1.388 mm)

• Panel technology: TFT LCD

• Display resolution: 3.840 x 2.160

• Frame rate: 60 Hz

• Brightness: 400 cd/m²

• Aspect ratio: 16:9

• Contrast ratio (static): 1.200:1

• Contrast ratio (dynamic): 5.000:1

• Response time (gray to gray): 8 ms

• Display colours: 1.07 Billion (eq. 10 bits)

• Pixel pitch (W x H): 0.315 x 0.315 mm

• Viewing angle: 178° / 178°

• Backlight type: direct LED

• Service life: > 50.000 hours (16/7)

• Orientation: Landscape

• Warranty: Five Year Education Only / Three Year Businesses (Must Register Warranty, 2 Year Standard)

Glass

• Glass: Triple S Glass (Smooth, Stripeless, Safety)

• Type: heat tempered, anti glare, safety glass

• Air Gap: Zero air-gap

• Thickness: 3 mm

• Hardness: 7 Mohs

Connectivity

• Video input (digital): 3x HDMI 2.0, 1x DP 1.2, 2x USB-C 3.2 Gen 1x1 (1x100W, 1x 15W)

• Video output (digital): 1x HDMI out, 1x USB-C out

• Video input (analog): 1x VGA (including 1x Mini Jack)

• Audio input: 1x Mini Jack (dedicated audio source)

• Audio output: 1x Mini Jack, 1x S/PDIF Optical

• USB: 2x USB 3.0 (type A), 2x USB 2.0 (type A)

• Touch: 5x USB (2x USB 3.0 type B, 1x USB 2.0 type B, 2x USB-C)

• RS232C: 1x DE-9F

• LAN port: 2x RJ45 10/100/1000 BaseT

• WLAN: IEEE 802.11n/ac/ax (Wi-Fi 6)

• Bluetooth: 5.0

• Module-slot: 1x OPS-slot (UHD@60Hz)

• Dedicated Optional ports: 1x NFC Reader port(module is optional)

Video

• Eye comfort: blue light filter, eye protection mode

• Colour temperature: warm, cool, normal

• Picture modes: dynamic, standard, soft, user

• Sound: designed, tuned, built by HARMAN

• Transducers: 2 stereo JBL® 3-way speakers (tweeter, mid-range and woofer)

• Amplifier power: 80 Watts

• Frequency range: 60 Hz - 20 kHz

• Immersive JBL® back to front sound: Yes

• Microphone: 4-array far field

COS™ (CTouch Operating System)

• System version: Android 12.0

• Chipset: Rockchip RK3588

• CPU: 4x ARM Cortex A76, 4x Cortex A55

• GPU: ARM Mali-G610 MP4

• Memory: 8 GB

• On-board storage: 64 GB

OSD

• Languages: Danish, Dutch, English, French, Finnish, German, Norwegian, Spanish, Swedish

Power

• Power supply: AC 100-240 V 50 / 60 Hz

• Power consumption (in operation): 77 W

• Power consumption (in standby): <=0.5 W

• Ambient light sensor: Yes

• On-board Human Presence Detection: Yes

Quality approvals

• Regulatory approvals: CE, UKCA, FCC, RED, UKCA-RED, EU Ecodesign, RoHS & REACH compliant

• Green approval: WEEE

• ISO Standard: ISO9001 and ISO14001

Dimensions & Weight

• Product Dimensions (WxHxD): 1,272 x 761 x 98 mm

• Product weight: 28.3 Kg

• VESA mount (W x H): 400 x 400 mm M8 screw

Product accessories

• Accessories included: Power cable (3 m), USB touch cable (3 m), HDMI cable (3 m), USB-C cable (1 m), remote control (incl. batteries), 2 passive pens, quick start guide & warranty card

Logistics information

• Box size (W x H x D): 1,395 x 875 x 230 mm

• Gross weight: 34.3 Kg
