Cudy CD-HS105 5-port 2.5Gbps Ethernet Metal Desktop Switch

Cudy CD-HS105 5-port 2.5Gbps Ethernet Metal Desktop Switch

Cudy's CD-HS105 unmanaged switch features 5x 2.5Gbps Ethernet Ports and supports IGMP snooping, loop prevention, power saving and can be both desktop or wall mounted.

Features:

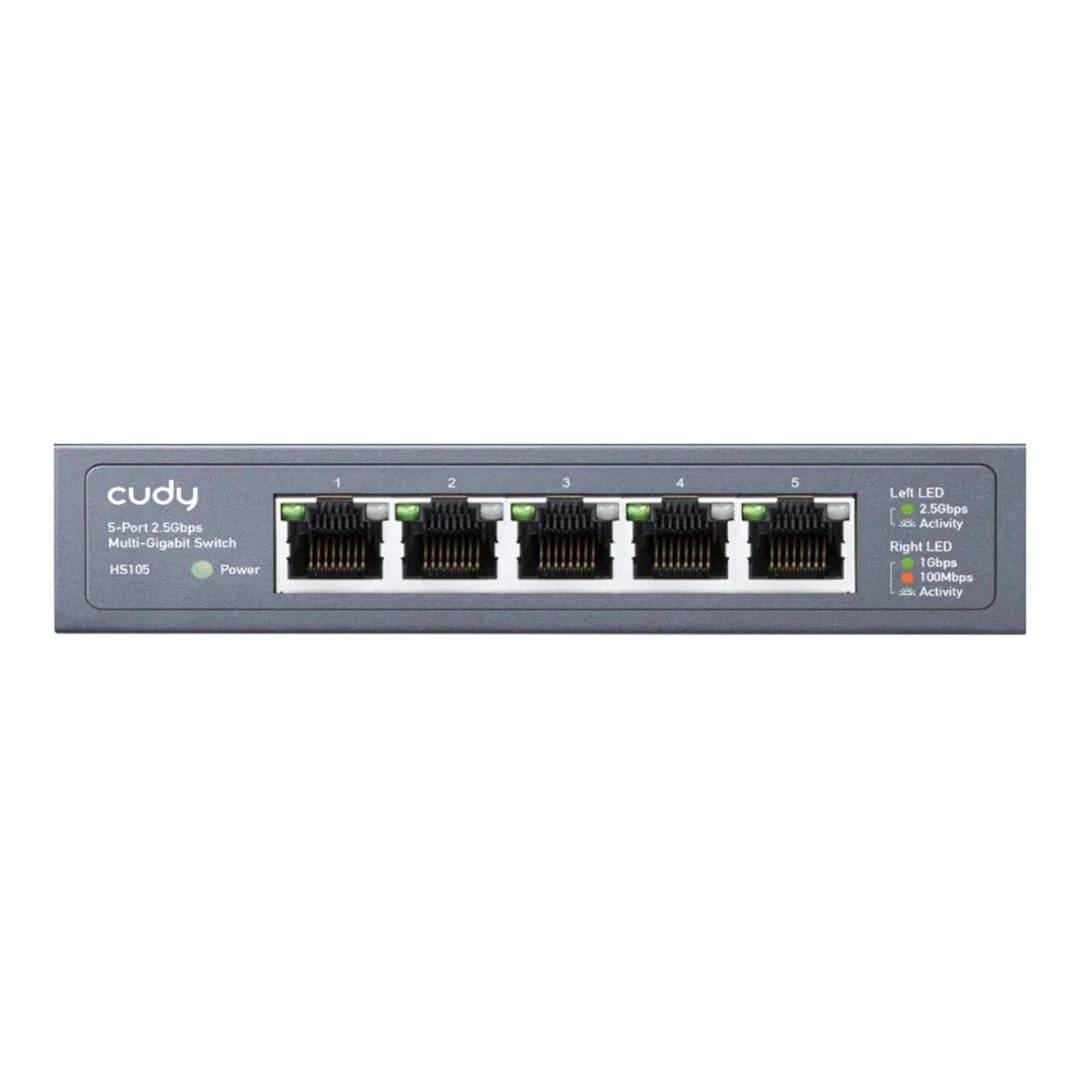

• 5x 100/1000/2500 Mbps Ethernet Ports
• Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
• Store-and-Forward switching method
• Packet Buffer prevents packet loss and improves performance
• Support 802.3x flow control
• IGMP for high-efficienct multi-cast transmitting
• Loop detection blocks loop automatically, improving reliability
• Desktop and Wall Mounting

Technical Specifications:

Chipset
Airoha EN8860D + EN8811H

Ethernet Ports
5x 100/1000/2500 Mbps Ports (Auto-Negotiation, Auto-MDI/MDIX)

LED Indicators
Power, Link/Act per port

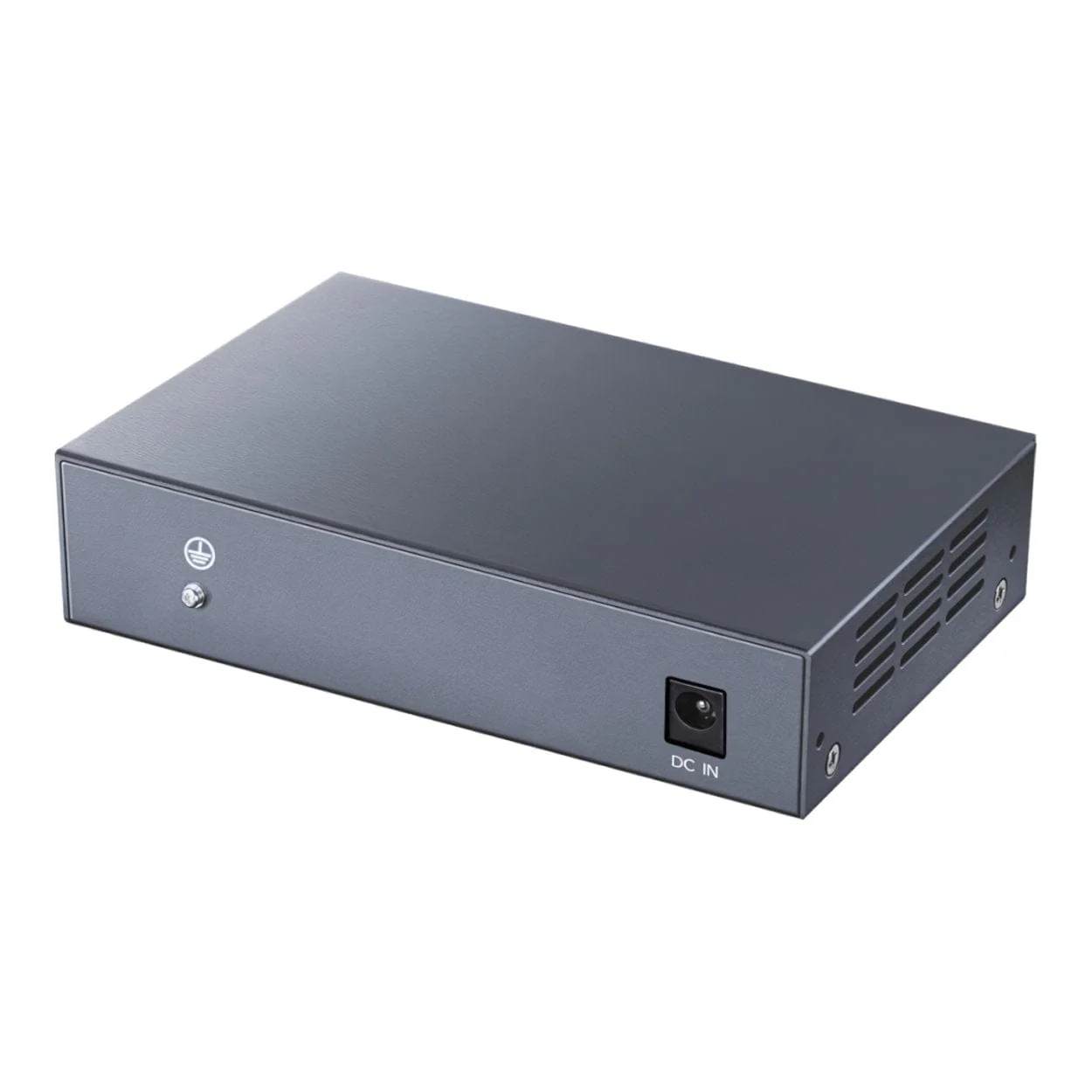

Grounding
1x Auxiliary grounding point

Network Media
2.5GBASE-T: UTP category 5e (max 50 m), Cat 6/6A (max 100 m)
1000BASE-T: UTP category 5, 5e, 6 (max 100 m)
100BASE-TX: UTP category 5, 5e (max 100 m)

Transfer Method
Store-and-Forward

MAC Address Table
8K

Switching Capacity
25 Gbps

Packet Forwarding Rate
18.6 Mpps

Packet Buffer
4 Mbit

Jumbo Frame
15 KB

Power Input
DC 12 V / 1 A

Dimensions (WxDxH)
119x85x28 mm (4.69x3.35x1.1 inches)

Environmental Requirements
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 0%~100% non-condensing
Storage Humidity: 10%~95% non-condensing

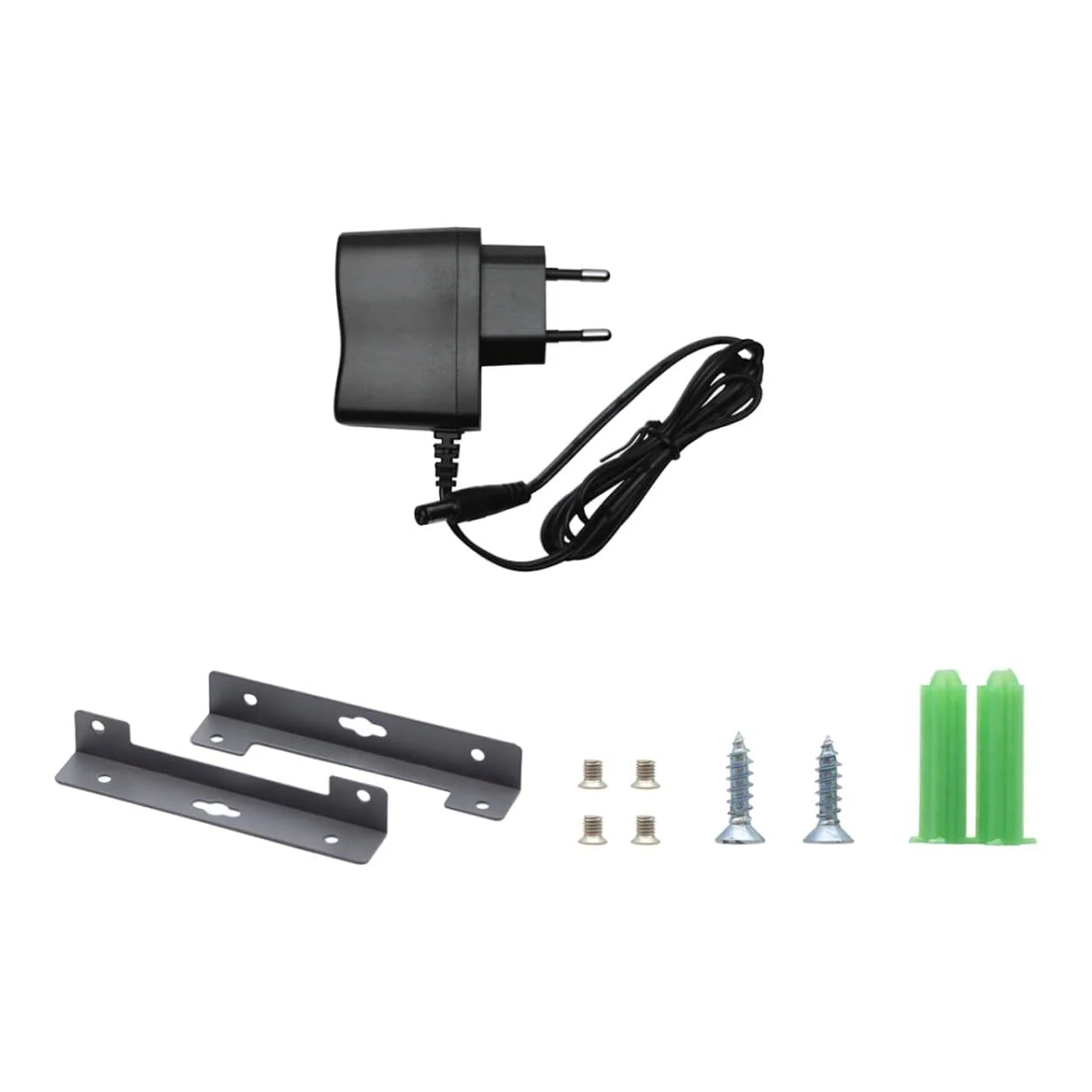

What's in the Box:

• 1x 2.5 Gbps Ethernet Switch
• 1x Power Adapter
• 1x Installation Guide
• 1x Mounting Kit
