Cudy GS1010PS2 8-port Gigabit PoE 110W 2SFP 2 Gigabit Ethernet Switch

Cudy GS1010PS2 8-port Gigabit PoE 110W 2SFP 2 Gigabit Ethernet Switch

A rack-mounted Gigabit PoE switch with a 120W power supply and a silent cooling system.

Features:

•  8x GbE with 802.3at/af Mode A PoE
•  2x Uplink GbE + 2x Uplink SFP
•  120W Power Supply
•  Extend for 250 meters Transmission
•  Watchdog under Extend Mode
•  Desktop, Rack-Mount
•  220x161x44 mm (8.66x6.34x1.73")

Technical Specifications:

Interfaces
1.25G SFP Slots: 2
Gigabit RJ45 Ports: 10
Gigabit RJ45 PoE Ports: #1~#8
Max Power on a Single PoE Port: 30W
PoE Port Notes: Complies with IEEE 802.3at/af standards. PoE priority ranks from #1~#8.
Extend Mode Ports: #7~#8

LED Indicators
Power
Link/ACT of Each Ethernet Port

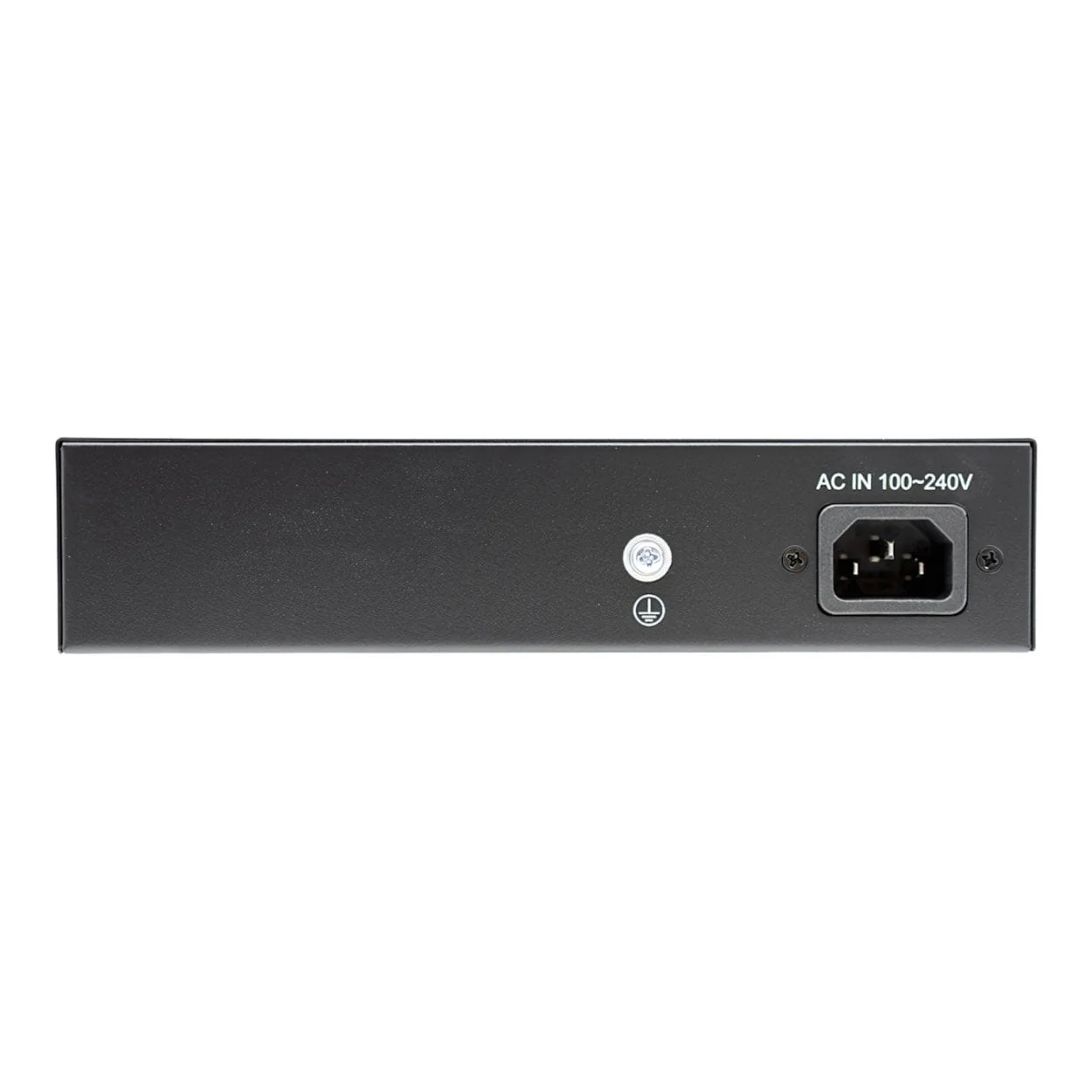

Power Input
AC Inlet

Physical Buttons
Default/Extend DIP switch
Physical Buttons Note: PoE Watchdog is on under Extend mode and will attempt to reboot the plugged-in but inactive client.

Performance
Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is only available on Extend Mode ports when Extend Mode is activated.
Optical Spec and Distance: Depends on the installed optical module
MAC Address Table: 2048
Max Switching Capacity: 24 Gbps
Max Forwarding Rate: 17.856 Mpps
Jumbo Frame: 2 KB
Packet Buffer: 448 Kbit

Power
Power Methods: AC
AC: 100-240V~, 50/60Hz
Power Supply: 120W
Max Power Excluding PoE: 10W

Switching
802.3 Protocols:
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
802.3z 1000BASE-X
802.3x Flow Control
802.3af PoE
802.3at PoE

Reliability
Grounding Methods: Three-Prong Plug
EMS: IEC/EN 61000-4-2 Level 3 ESD: Contact 6kV, Air 8kV
IEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Environment
Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing

Mechanical
Dimension: 220×161×44 mm (8.66×6.34×1.73 inches)
Product Weight: 934 g (32.95 oz.)
Casing Material: Metal
Installation: Desktop or Rackmount via brackets (brackets not included)

Ordering Information
Retail Package Dimension: 315×215×85 mm (12.4×8.46×3.35 inches)
Retail Package Weight EU: 1299 g (45.82 oz.)
Carton Net Weight EU: 13.0 kg (28.66 lbs)
Carton Gross Weight EU: 14.1 kg (31.09 lbs)

What's in the Box:

• GS1010PS2
• Power Cord
• Installation Guide
