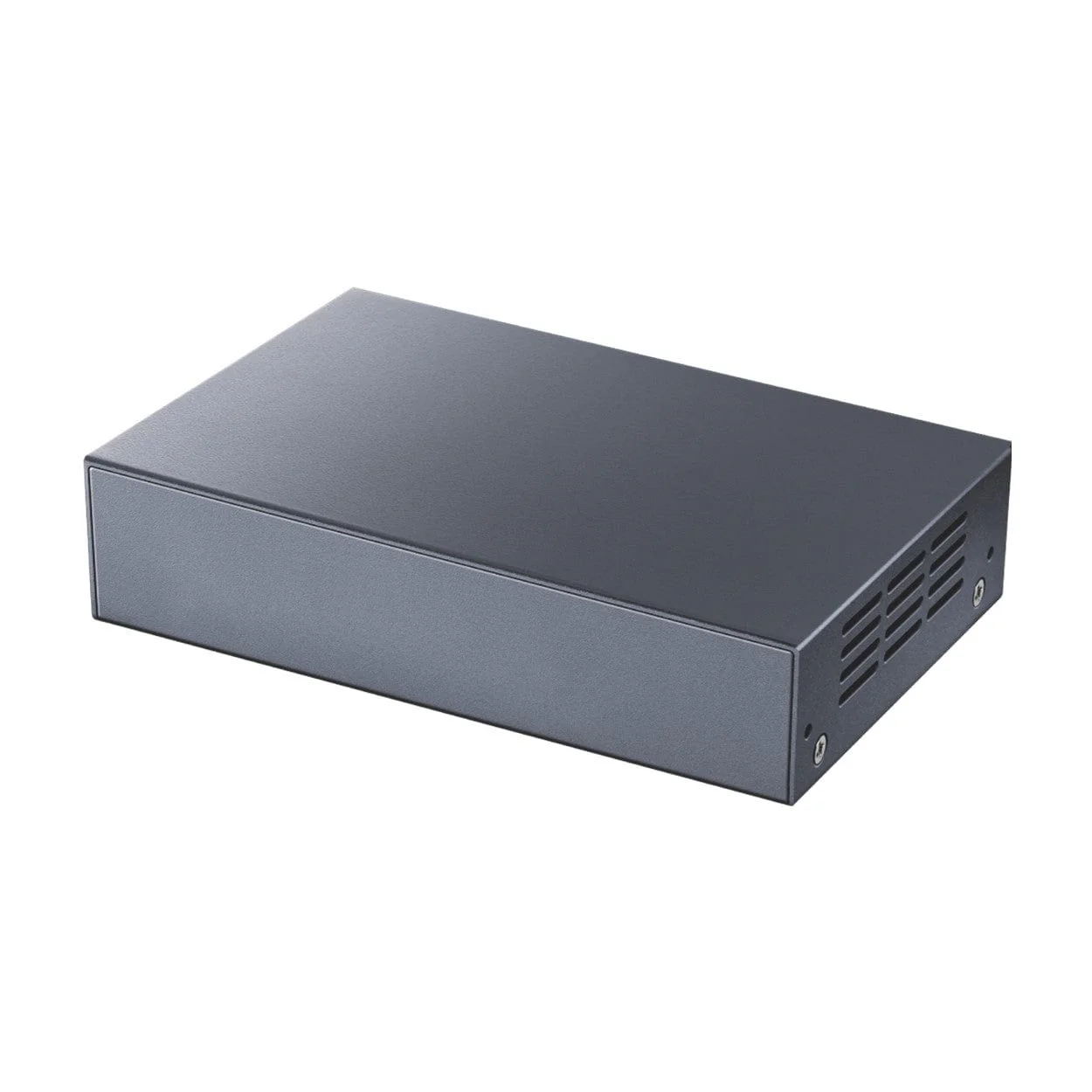

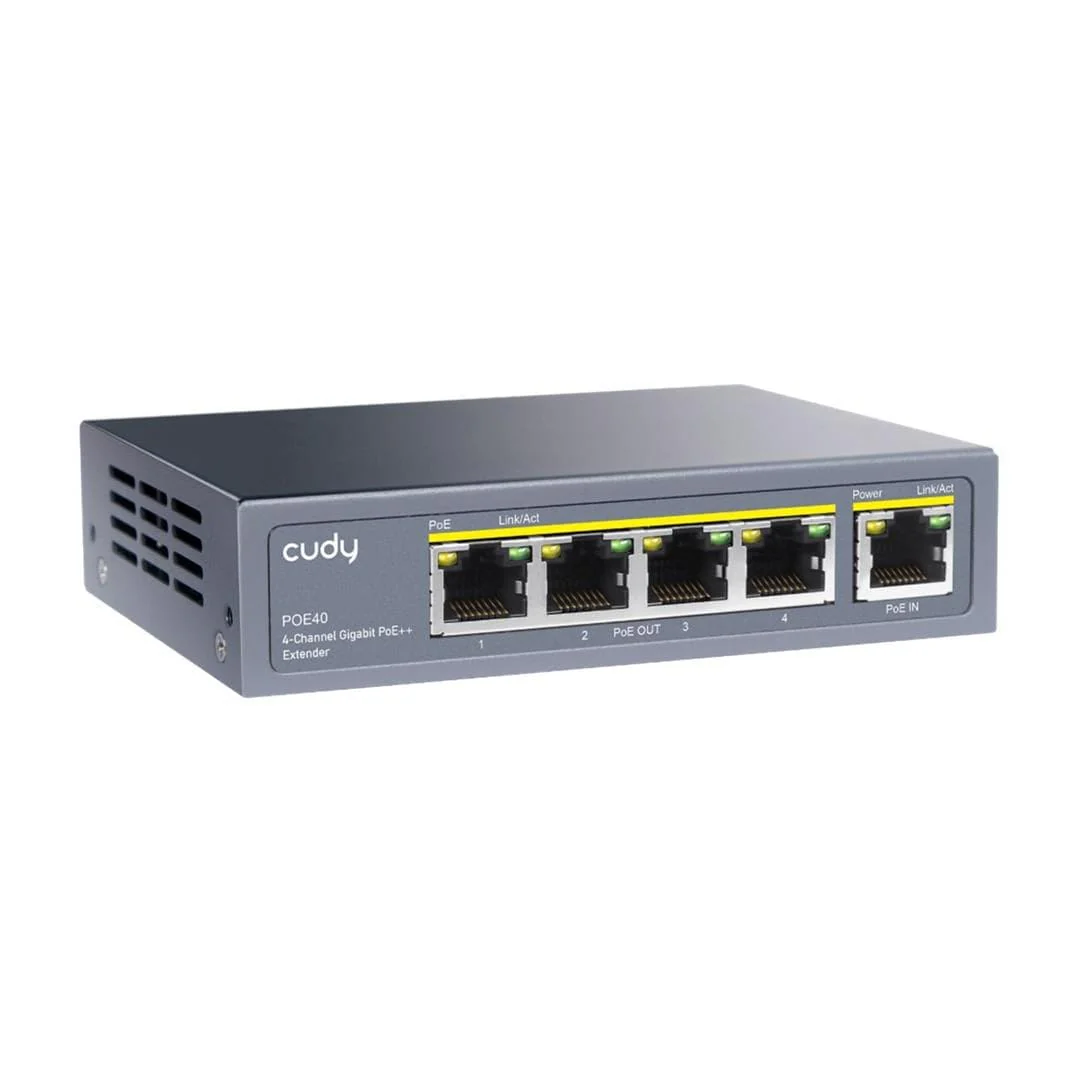

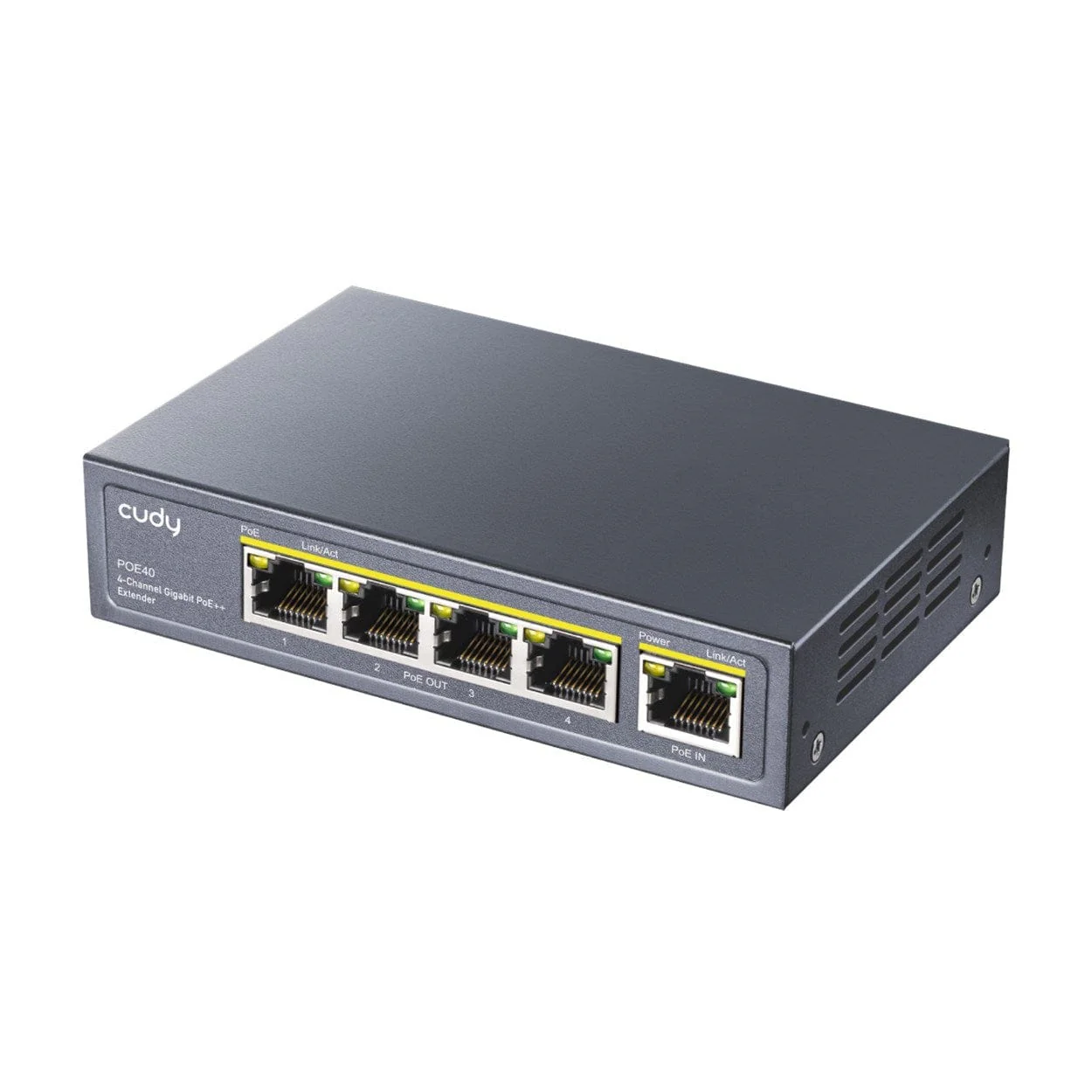

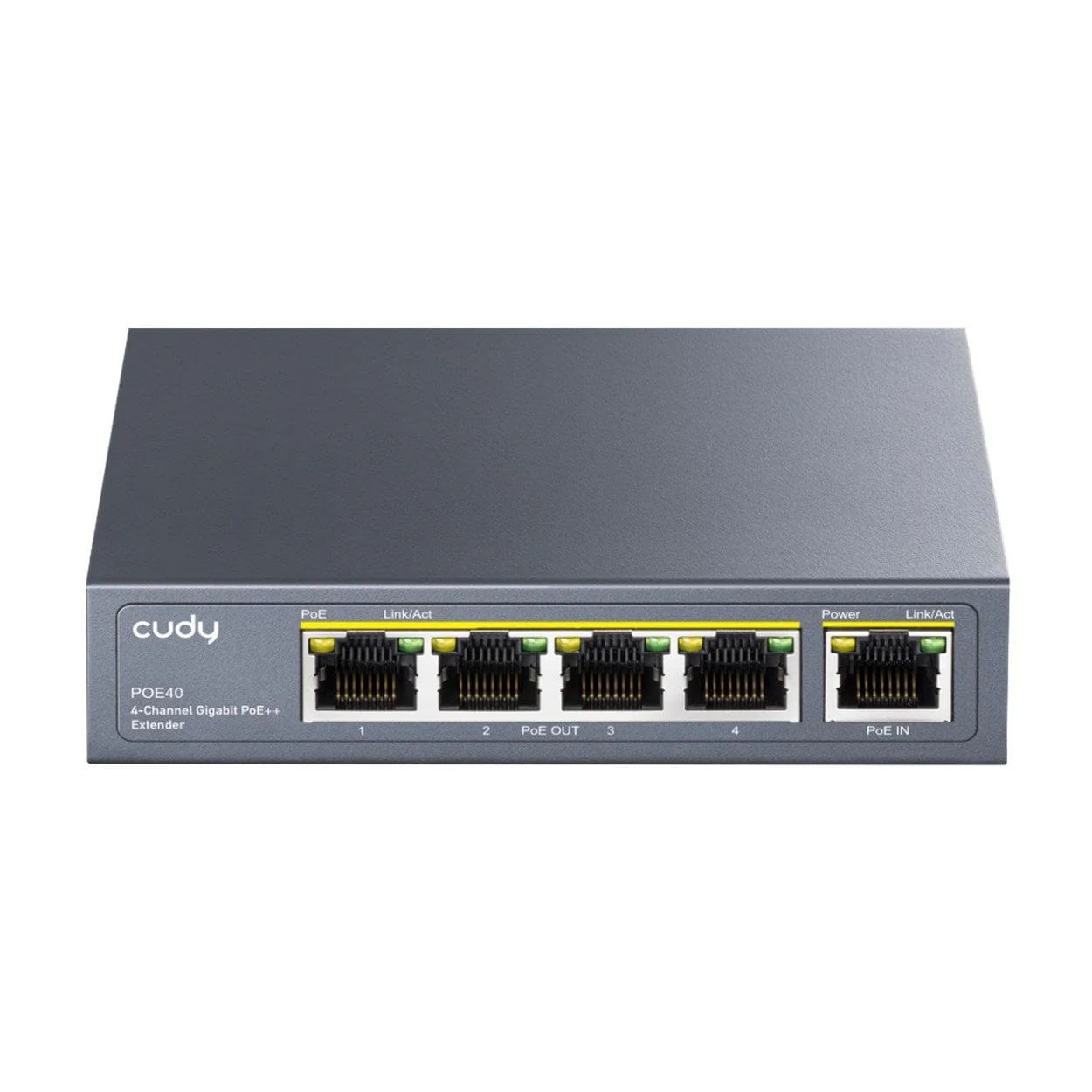

Cudy POE40 4-port Gigabit PoE Extender

Cudy POE40 4-port Gigabit PoE Extender

Features

A 4-channel PoE extender that extends the PoE distance by 100m.

•  GbE In, 4× GbE Out
•  802.3bt/at/af Max 60W Input
•  4× 802.3at/af Max 25.5W Output
•  Wall-Mount

Technical Specification

Product: Cudy POE40 4-port Gigabit PoE Extender

Ethernet Ports: 5x 10/100/1000

802.3 Protocols

• 802.3i 10 Mbps over Twisted Pair
• 802.3u 100 Mbps over Twisted Pair
• 802.3ab 1 Gbps over Twisted Pair
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE
• 802.3bt PoE

PoE In: 1× GbE, 802.3bt/at/af

PoE Out: 4× GbE, 802.3at/af

Pin Assignment: 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)

Transimission Distance: Class 1 (Extra 100m)

Max Power Input: 60W

Max Power Output: 2× 25.5W or 4× 12.95W

Lightning/Surge Protection: 6kV

ESD Contact Protection: 6kV

ESD Air Protection: 8kV
