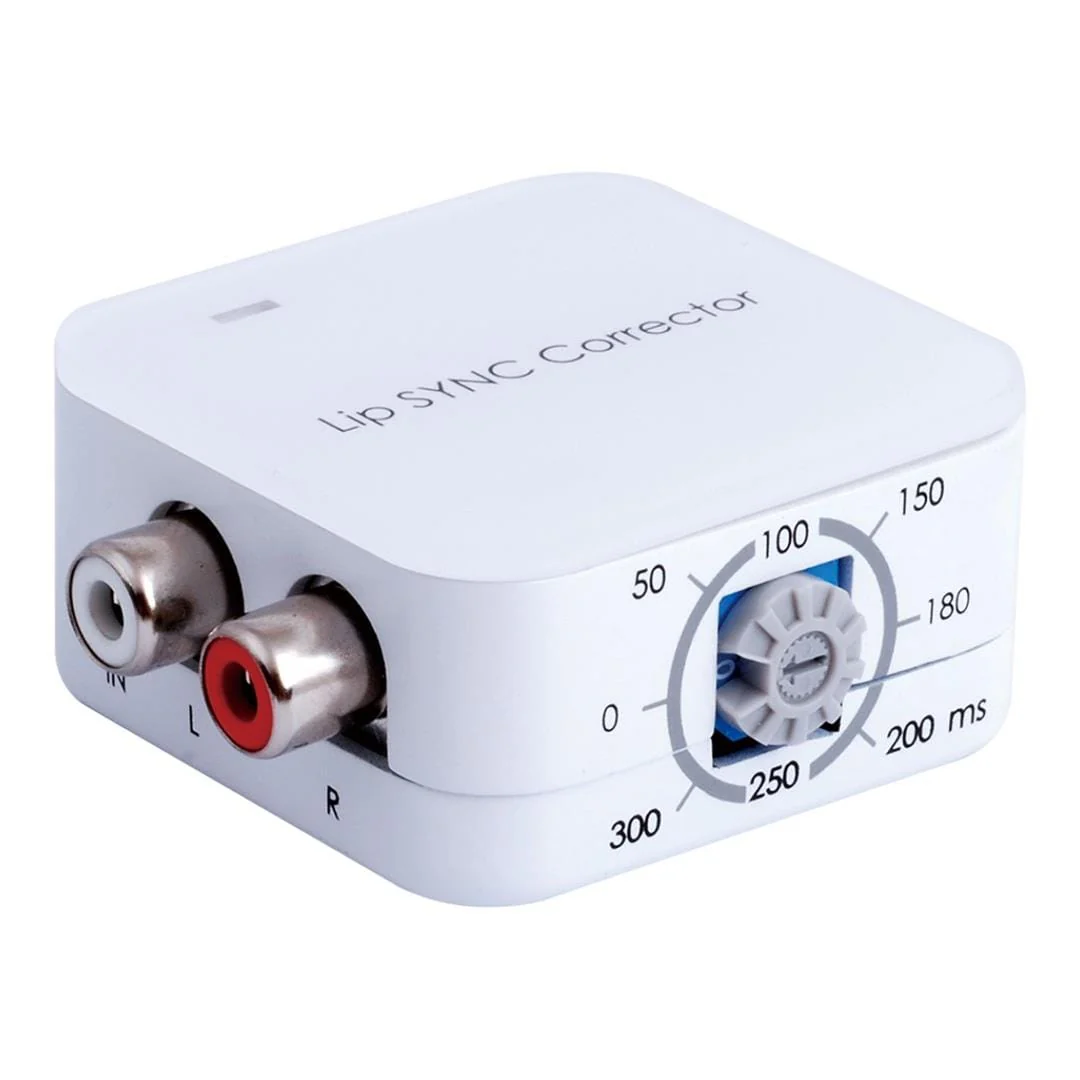

Cypress Analog Stereo Lip Sync Corrector DCT-18N

Cypress Analog Stereo Lip Sync Corrector DCT-18N

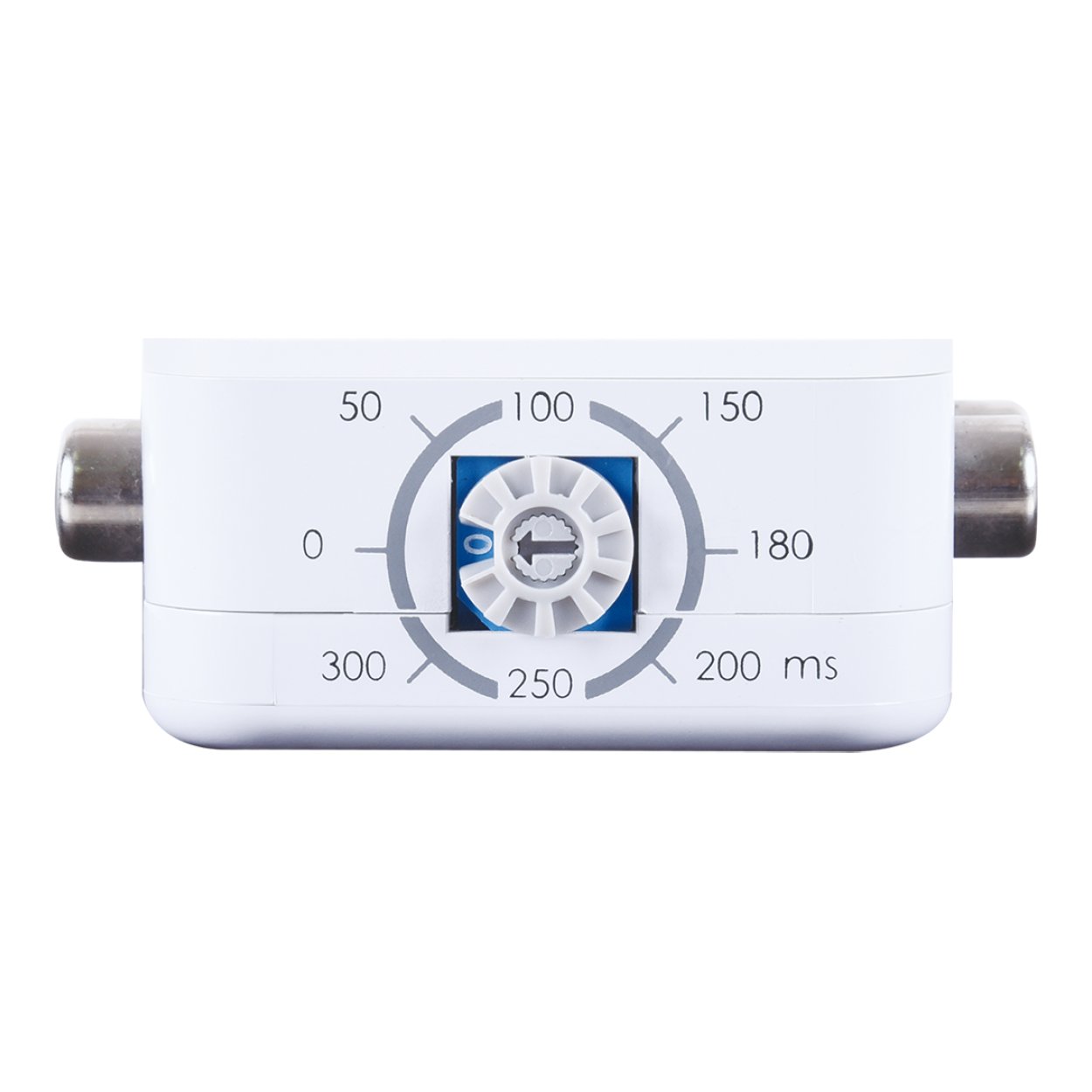

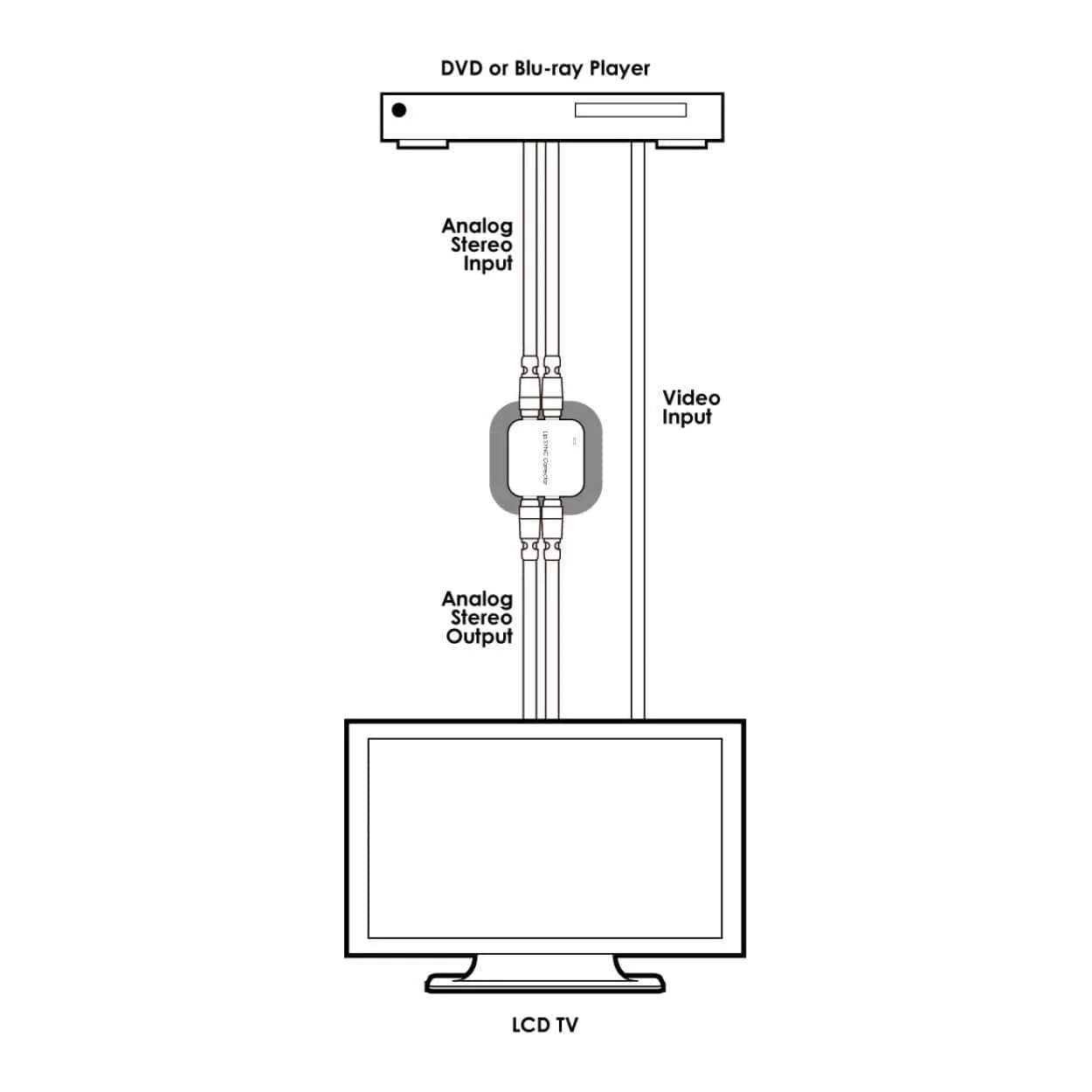

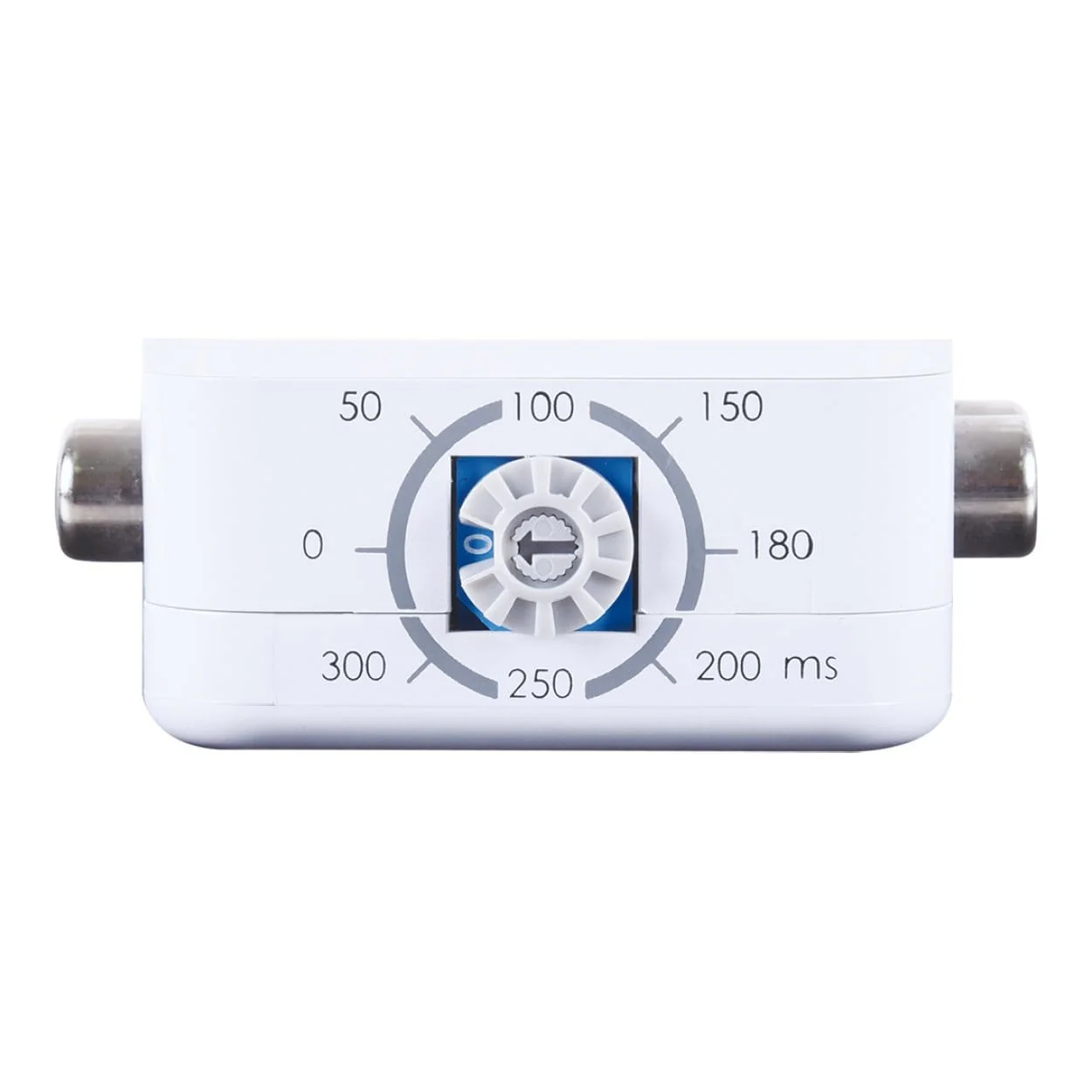

The Analog Stereo Lip Sync Corrector is a compact device that can correct audio delays between audio and video. When distributing video over long distances through multiple devices like distribution amplifiers and set-top boxes there can sometimes be a noticeable delay which results in audio being played before the video. This device allows you to manually adjust the audio delay from 0 ~300ms ms allowing you to perfectly synchronize your audio and video, eliminating any mismatch.

Features:

• Analog to analog signal bypass
• 8 different sectors adjustment on audio delay time
• Low power consumption

Technical Specifications:

Interfaces

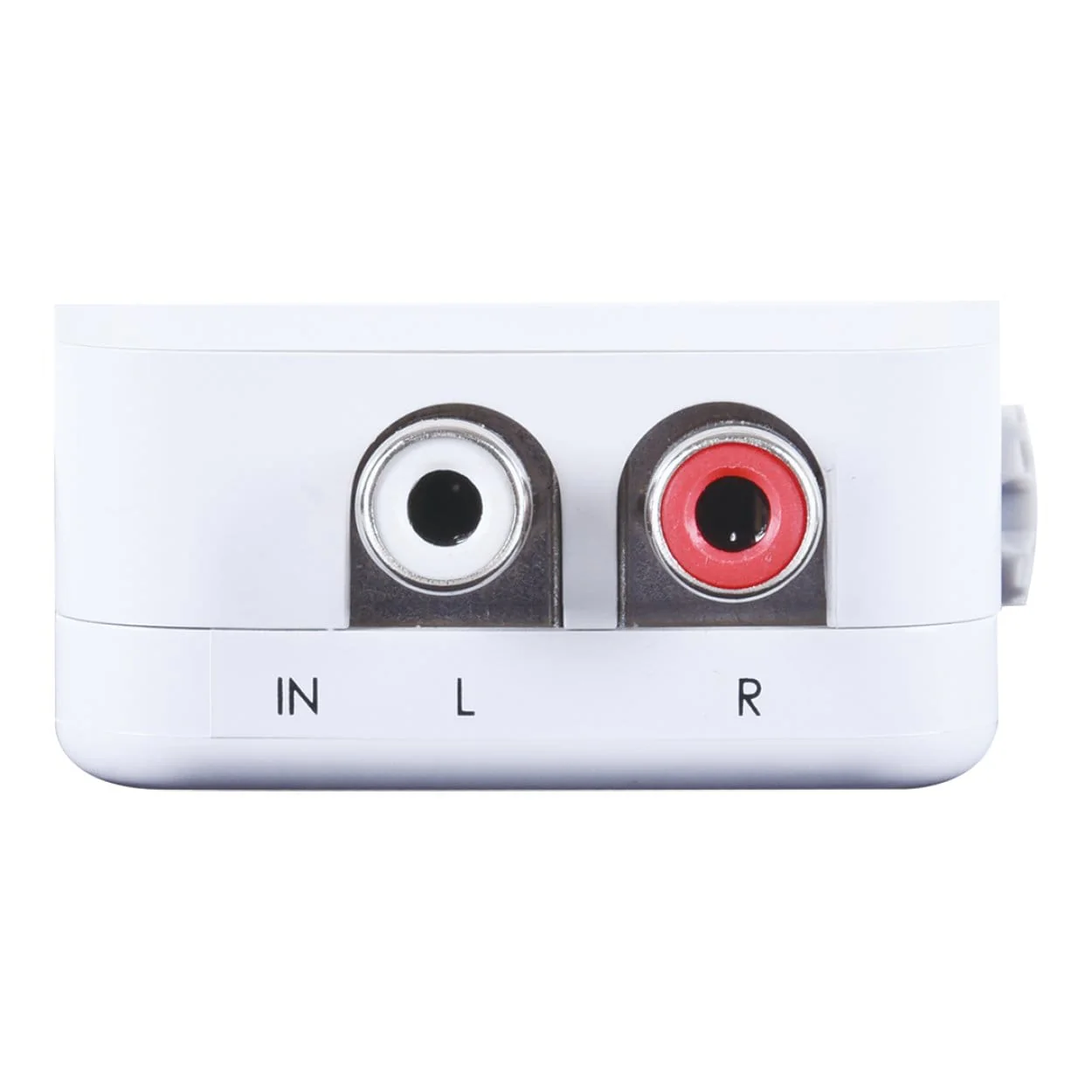

Input Port: 1 Analog Stereo (2 RCA)

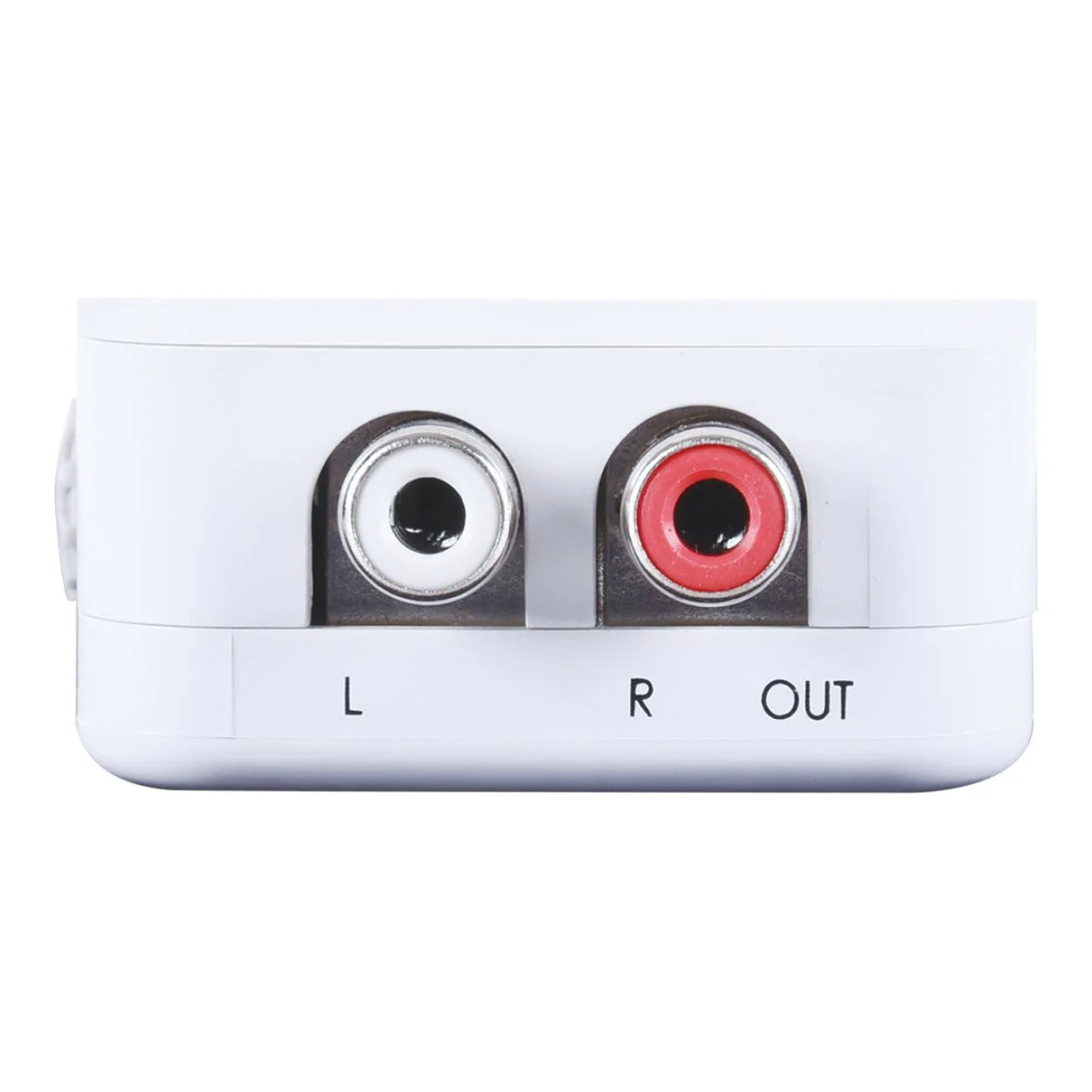

Output Port: 1 Analog Stereo (2 RCA)

Video
HDMI Compliance: HDMI 2.0 (DVI 1.0)
HDCP Compliance: 2.X
Input Signal Types: 4096×2160p @60 YUV 4:4:4
Output Signal Type: 4096×2160p @60 YUV 4:4:4

Audio
Line Level
Frequency Response: < ±1 dB (20 Hz to 20 kHz)
THD: < 0.01% (20 Hz to 20 kHz)
S/N Ratio: > 80 dB (1 kHz with 0 dBFS)
Crosstalk: < −80 dB (10 kHz, Vin=0 dBFS)

Power
Power Supply: 5V / 1.2A DC
Power Consumption: 0.5 W

Enclosure
Chassis Material: Plastic
Chassis Color: White
Dimensions: 46 mm × 23.5 mm × 45.5 mm [Case Only], 55.6 mm × 23.5 mm × 47.5 mm [All Inclusive]
Weight: 380 g

Ordering Information
Model No.: DCT-18N
Product Description: Analog Stereo Lip Sync Corrector
