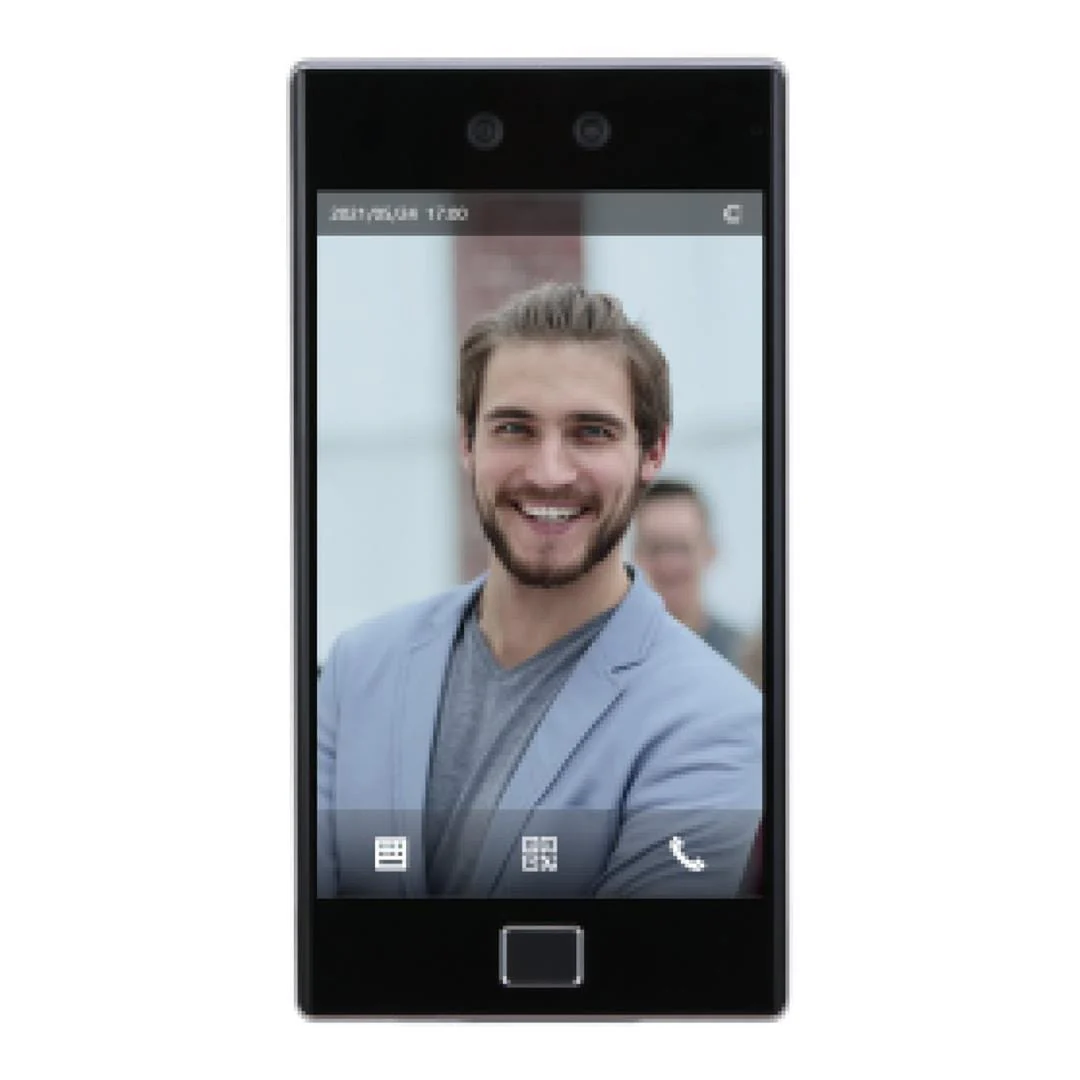

Dahua ASI8214S-W 8-inch Face Recognition Access Controller 1.0.01.25.12144

Dahua ASI8214S-W 8-inch Face Recognition Access Controller 1.0.01.25.12144

Specifications:

Main Processor: Embedded Processor

Network Protocol: UDP;TCP;IPv6;IPv4;RTSP;SIP;P2P;RTP

OSDP Protocol: Yes

SDK and API: Yes

Product Type: Standalone

Display Screen: 8" LCD

Screen Type: Capacitive Touchscreen

Screen Resolution: 1280 (V) × 800 (H)

Camera: 1/2.7" 2MP CMOS HD camera with WDR

WDR: 120 dB

Light Compensation: Auto IR

Voice Prompt: Yes

Speaker: Yes

Casing Material: PC

Verification Method: Card, password, face, fingerprint, QR code and remote

Unlock Mode: Unlock through card, password, face, fingerprint, QR code and remote unlock. You can also combine them to create your own personal unlock methods.

Card Type: IC card; Desfire card (EV3,Compatible with Dahua card by default)

Frequency Range: 13.560 MHz

Period List: 128

Holiday Period: 128

Network Update: Yes

First User Unlock: Yes

Remote Verification: Yes

Restricted List/Trusted List: Yes

Wi-Fi: Yes

Wireless Standard: IEEE802.11b/802.11g/802.11n

Wireless Frequency Range: 2.4 GHz

Max Transmission Power: ≤20 [email protected] MHz

Wireless Security Encryption: WPA/WPA2;WPA-PSK/WPA2-PSK

Advertisement Playing: Support graphic advertisement play

Peripheral Card Reader: 1 × RS-485 card reader, and 1 × Wiegand card reader

Multi-user Authentication: Yes

Real-time Monitoring: Yes

Multi-factor Authentication: Yes

Capture Function: Yes

Web Configuration: Yes

Auto Registration: Yes

Encryption: Yes

Card Reading Distance: 4 cm–6 cm (1.57"–2.36")

Face Recognition Height Range: 0.9 m–2.4 m (2.95 ft–7.87 ft)

Face Recognition Distance: 0.3 m–3 m (0.98 ft–9.84 ft)

Face Recognition Accuracy: 99.9%

Face Recognition Time: 0.2 s

User Capacity: 100000

Face Image Capacity: 100000

Fingerprint Capacity: 10000

Card Capacity: 500000

Password Capacity: 100000

Record Capacity: 300,000 unlock records

RS-485: 1

RS-232: 1

Wiegand: 1, input and output port

USB: 1 × USB 2.0 port

Network Port: 1 × 10 Mbps/100 Mbps Ethernet port

Alarm Input: 2 (On/off signal)

Alarm Output: 2 (Relay)

Alarm Linkage: Yes

Exit Button: 1

Door Status Detection: 1

Lock Control: 1

Anti-pass Back: Yes

Tamper Alarm: Yes

Duress Alarm: Yes

Door Sensor Timeout: Yes

Intrusion: Yes

Illegal Card Exceeding Threshold: Yes

Duress Fingerprint: Yes
