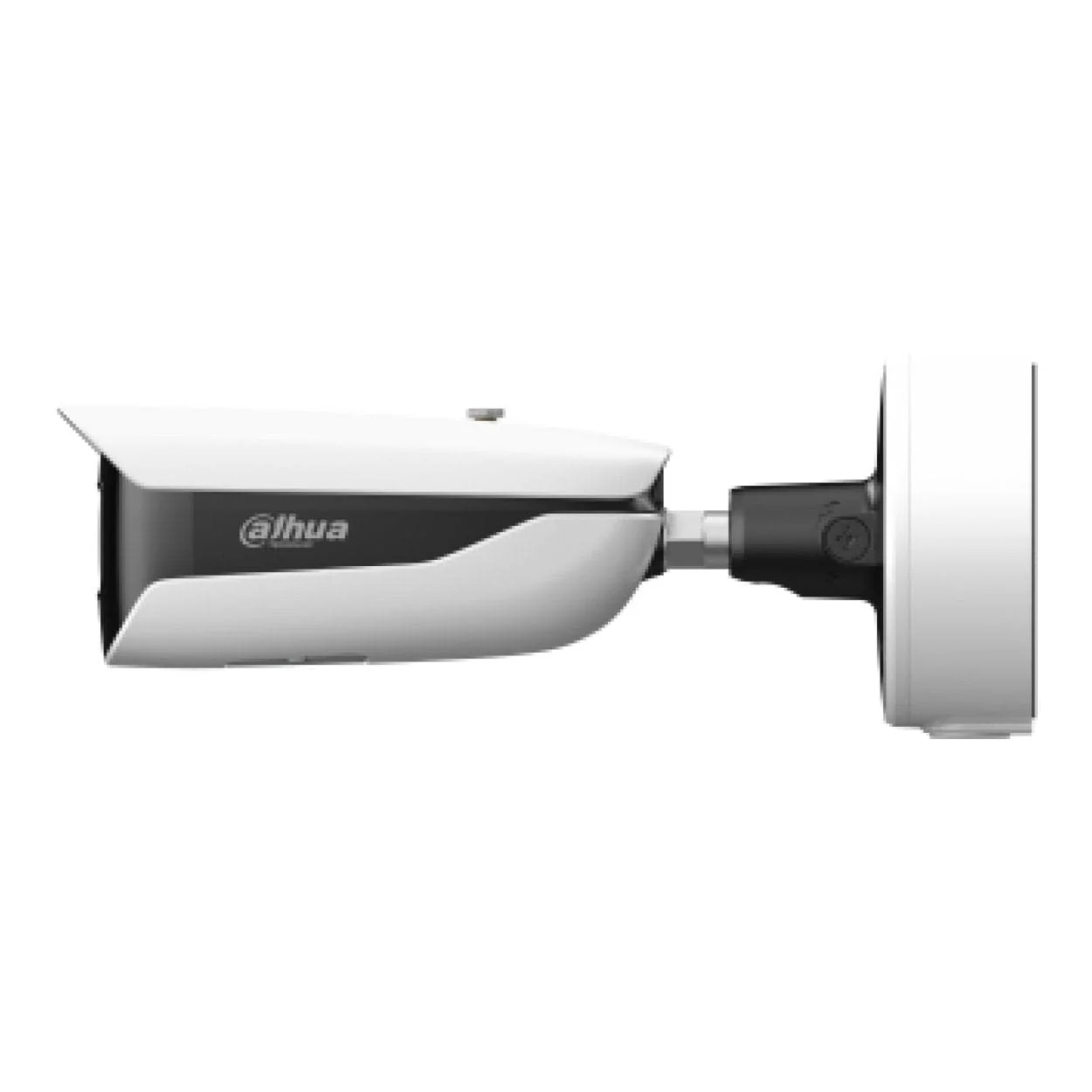

Dahua IPC-HFW7842H-Z4-X WizMind 8MP 120m IR Network Bullet Camera

Dahua IPC-HFW7842H-Z4-X WizMind 8MP 120m IR Network Bullet Camera

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 3840 (H) × 2160 (V)

ROM: 8 GB

RAM: 4 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.0007 [email protected] (Color, 30 IRE)
• 0.0004 [email protected] (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56dB

Illumination Distance: Up to 120 m (393.70 ft) (IR LED)

Illuminator On/Off Control: Auto

Illuminator Number: 4 (IR LED)

Angle Adjustment

• Pan: 0-360°
• Tilt: 0-90°
• Rotation: 0-360°

Lens Type: Motorized vari-focal

Lens Mount: Module

Focal Length: 8 mm–32 mm

Max. Aperture: F1.6

Field of View: H: 42°–15°; V: 23°–9°; D: 48°–17°

Iris Control: Auto

Iris Control Type: P-Iris

Close Focus Distance: 1.5 m (4.92 ft)

IVS: Abandoned object; missing object

Bit Rate Control: CBR/VBR

Video Bit Rate: H.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 140 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Image Stabilization: Electronic Image Stabilization (EIS)

Smart Illumination: Yes

Defog: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror: Yes

Privacy Masking: 8 areas

Network Port: RJ-45 (10/100/1000 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Interoperability: ONVIF (Profile S/Profile G/Profile T/Profile M); CGI

User/Host: 20 (Total bandwidth: 340 M)

Storage: FTP;SFTP; Micro SD card (support max. 1 TB); NAS

Browser: IE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later;

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: iOS;Android

Security: Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification

RS-485: 1 (baud rate range:1200 bps–115200 bps)

Audio Input: 1 channel (RCA port)

Audio Output: 1 channel (RCA port)

Alarm Input: 3 channels in: wet contact, 5 mA 3–5 VDC

Alarm Output: 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Analog Output: 1 channel (CVBS output: BNC)

Power Output: 12 VDC power output, max. current 165 mA, peak current 700 mA
