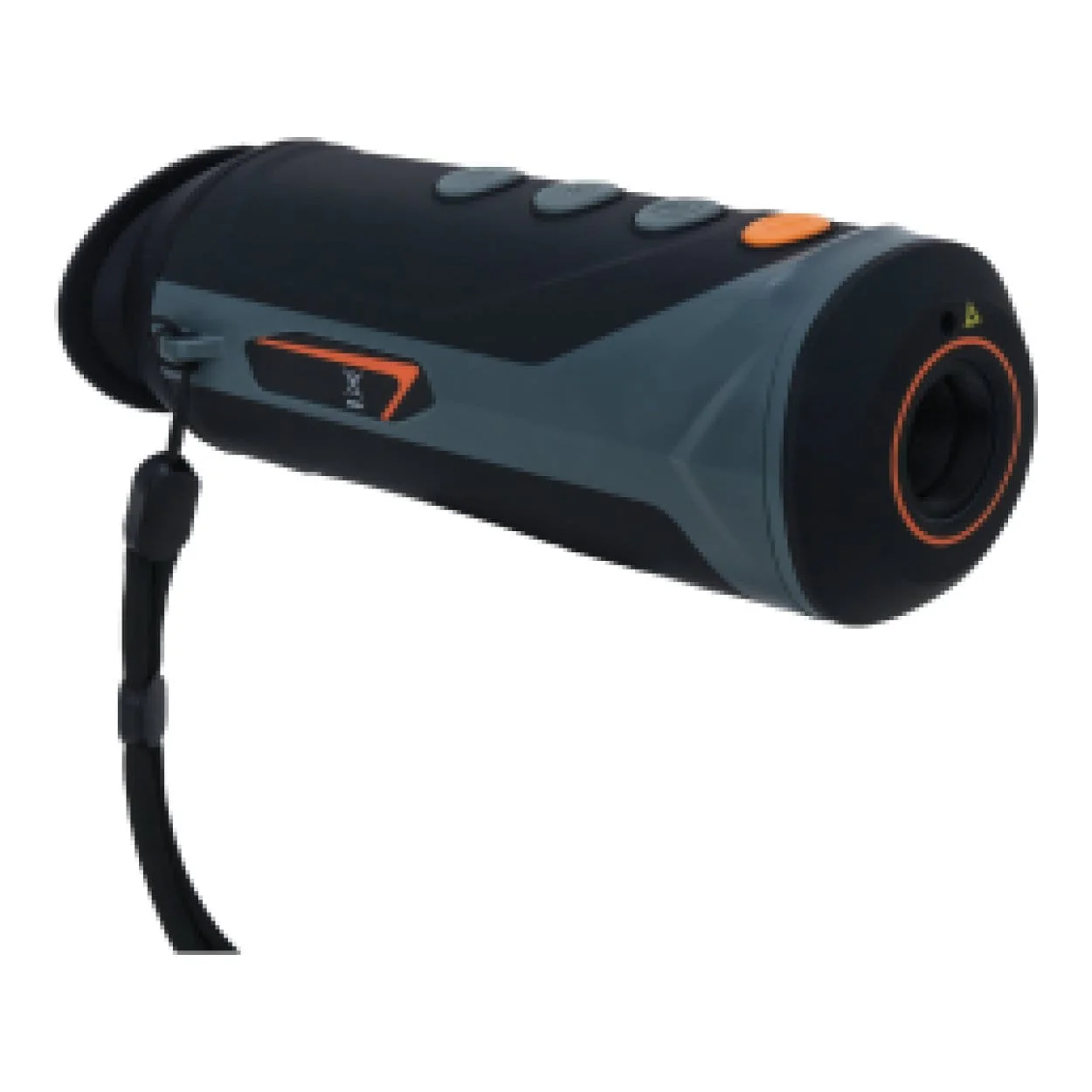

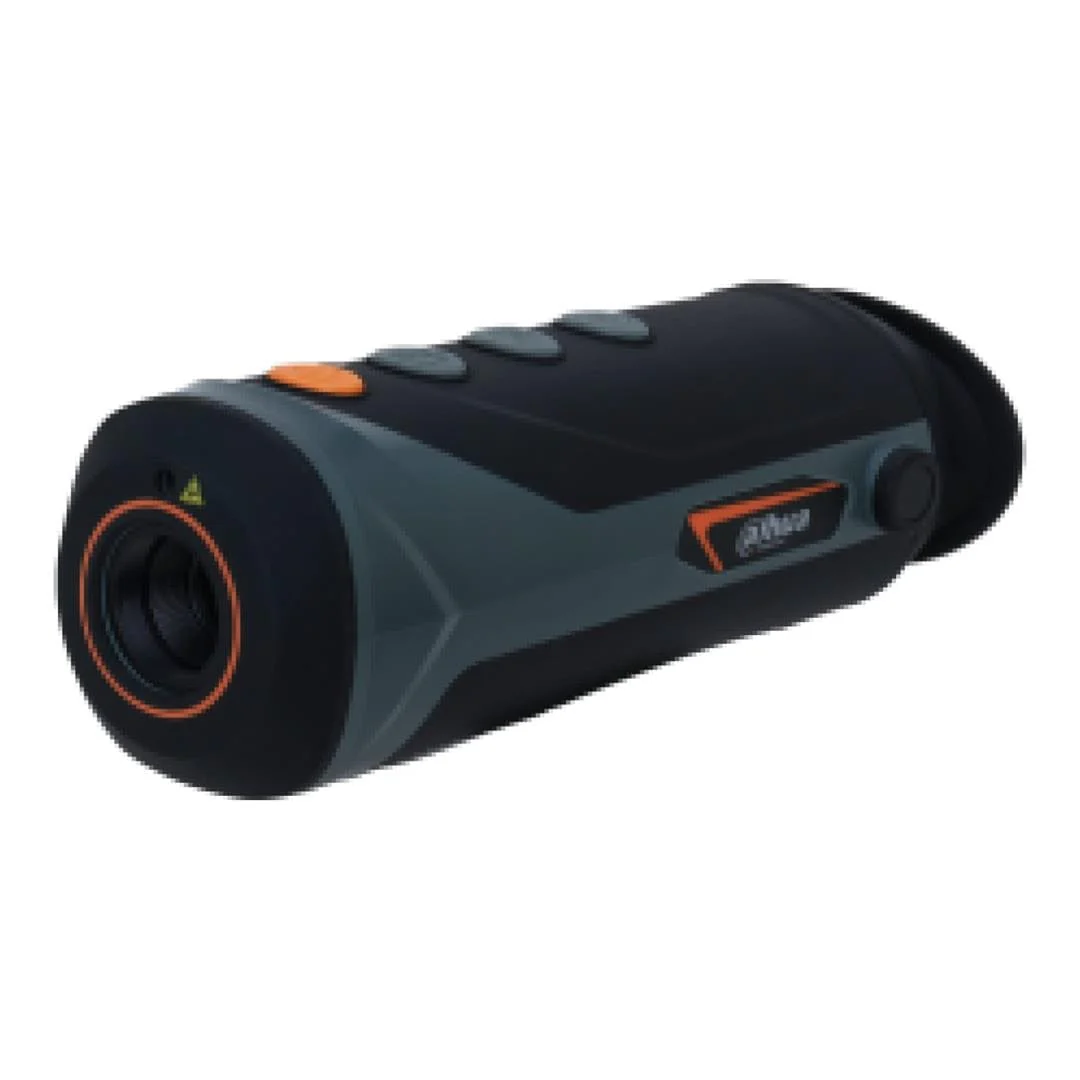

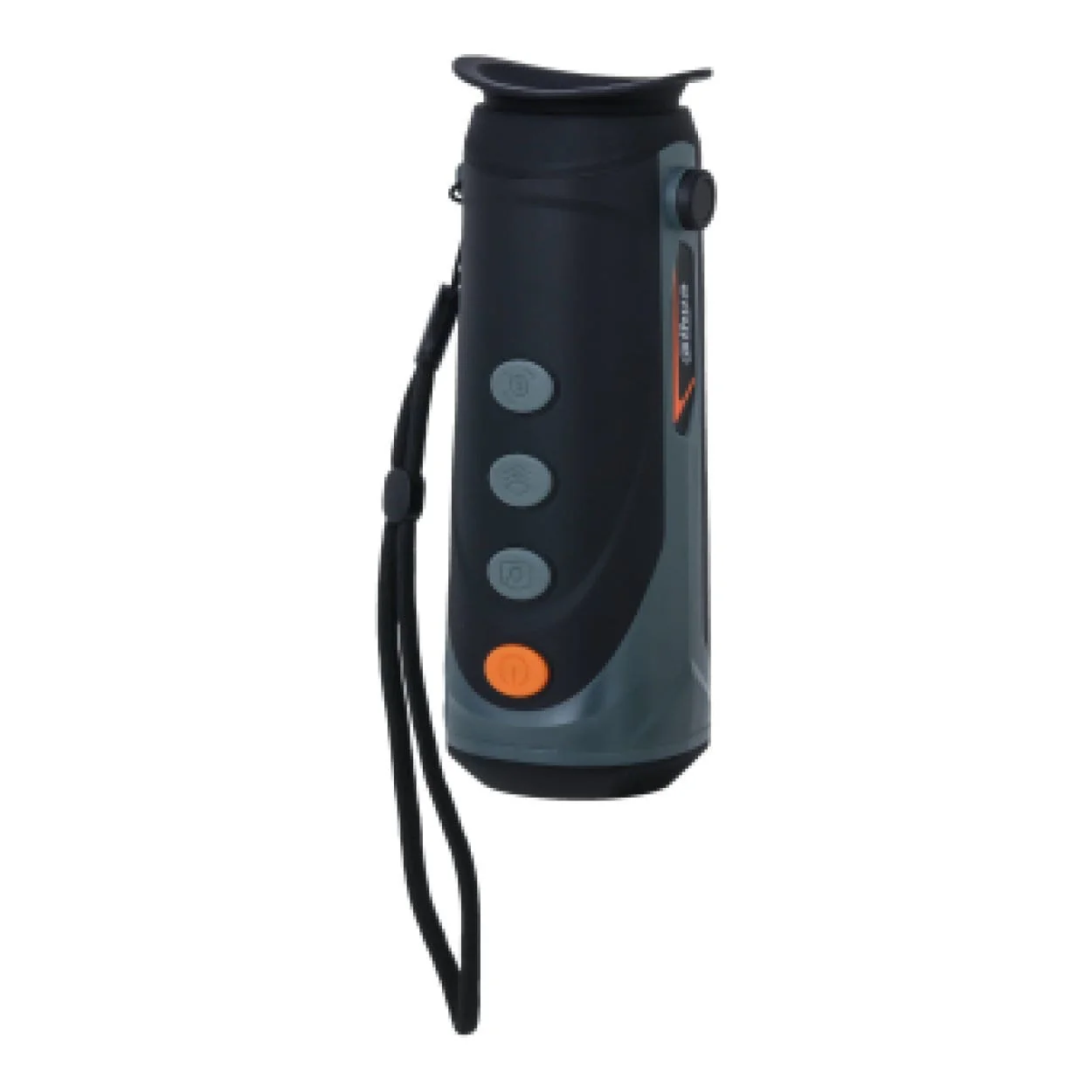

Dahua TPC-M20 10mm Thermal Monocular Camera

Dahua TPC-M20 10mm Thermal Monocular Camera

M20 captures sharp thermal images of running targets and moving vehicles at a fast frame rate. It clearly displays targets in high resolution, even if they are moving quickly. Designed to increase situational awareness at any time of day, M20 can detect humans, animals, and objects in complete darkness, haze, or through glaring light, equipping law enforcement professionals, hunters, and outdoor enthusiasts with reliable thermal imaging in tough conditions.

Advanced Image Processing

Designed to be precise, this monocular produces vivid video images through its enhanced detector and Dahua-developed image processing algorithm.

Video Ranging

With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.

Fire Detection

Fire detection is now available for the first time with this monocular through Dahua's core technology. The monocular can automatically detect fires that break out in the scene and track them in real time.

Simultaneous Multi-user Connections

Multiple phones can connect to the monocular through the Wi-Fi at the same time. Through the mobile phone, you can watch the live view, capture images, record videos and configure parameters.

Diopter Adjustment

By using the diopter adjustment knob, the monocular can be set to match the eyesight of different users, ensuring that each user sees a clear image.

Laser Eye Protection

The laser pointer is used to indicate a position. To protect the eyes from being injured, the laser pointer is automatically disabled after 10 s.

Portable and Low Power Consumption

With its small and lightweight design, it functions for longer periods while remaining fully charged, making long-term outdoor use more convenient.

Thermal Monocular Camera

• Vanadium oxide uncooled focal plane detector.
• Ultra-low power consumption.
• Fire detection and alarm.
• Connects to the mobile app through Wi-Fi.
• Connects to the external display through the CVBS port.
• Provides a laser for aiming.
• Calculates distance using video analysis.
• Lightweight and portable.
• IP67 rated.

Specifications:

Appearance: Thermal Monocular Camera

Type: Monitor

Detector Type: Vanadium oxide uncooled focal plane detector

Effective Pixels: 256 × 192

Pixel Pitch: 12 μm

Spectral Range: 8 μm–14 μm

Sensitivity (NETD): ≤40 mK@f/1.0

Focal Length: 10 mm

Aperture: F1.0

Field of View: 10 mm: (H: 17.3°; V: 13.1°)

Focus Control: Fixed-focal

Close Focus Distance: 10 mm: 2 m (6.56 ft)

Detection Range: 10 mm: 460 m (1,509.19)

Digital Zoom: 4 levels

Colour Palettes: 4 (white hot; alarm; black hot; iron red)

Video Compression: H.265

Frame Rate: 50 Hz

Display Screen Dimensions: 0.2 inch

Resolution: 720 × 540

Storage: Micro SD card (Max. 256G)

Laser Aiming: 180 m (590.55 ft), Class 2 (IEC 60825-1)

Buzzer: Yes

Fire Detection: Yes

Cold/Hot Spot Trace: Yes

Analog Output: 1 × CVBS output

Wi-Fi Hotspot: Yes

USB: Micro USB
