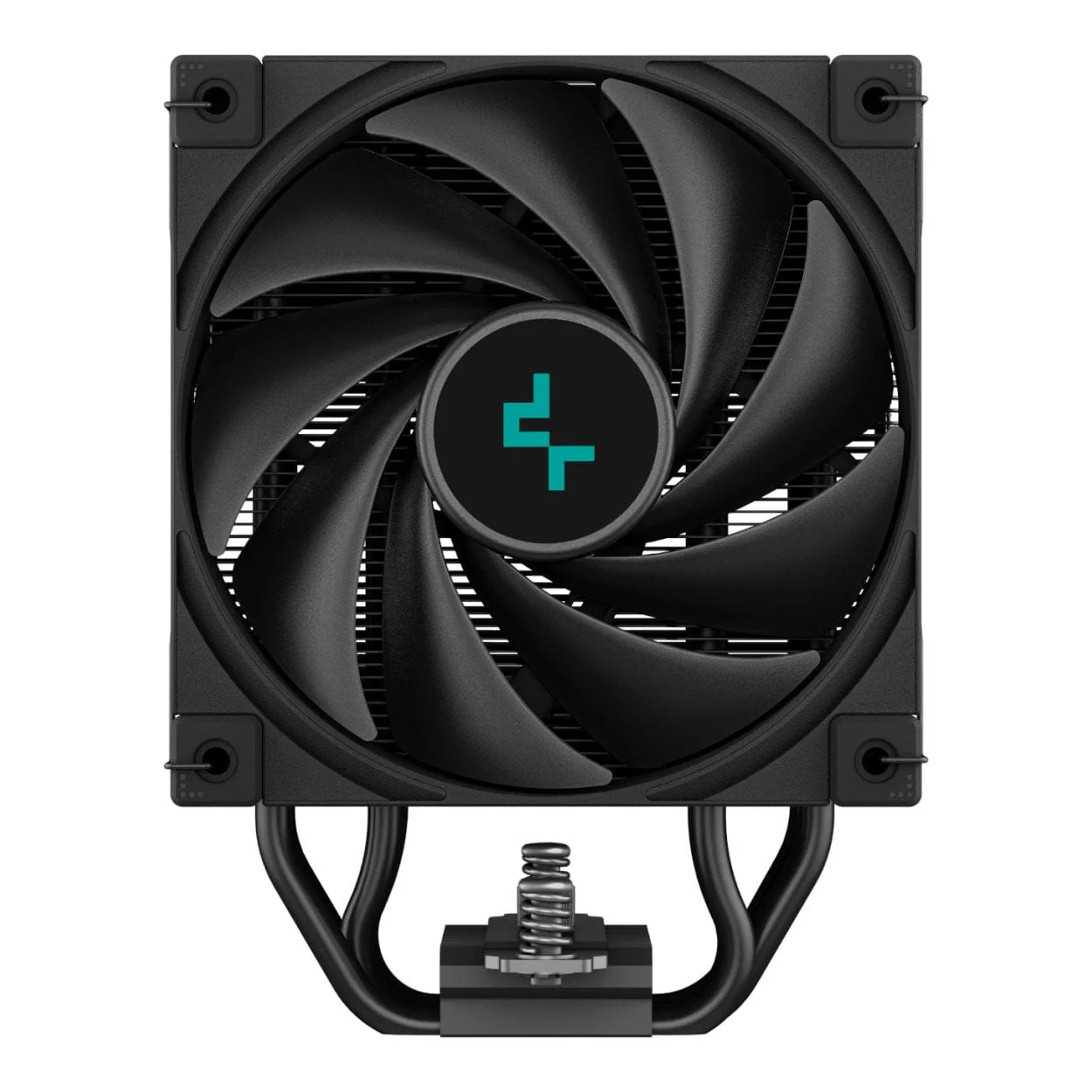

DeepCool AK500S Digital SE 120mm CPU Air Cooler Black R-AK500S-BKADMN-GJD
The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK500S DIGITAL SE. Everything you loved about the AK500, but with a sleek low-profile status display, ARGB LED strips, and a slimmer profile fin stack.
Features:
- Dissipate heat efficiently with five high-performance Ø6 mm copper heatpipes, ensuring your CPU remains cool under pressure.
- Experience optimal airflow and quiet operation thanks to the 120mm PWM fan, capable of delivering 68.99 CFM at a mere 28 dB(A).
- Enhance your build’s aesthetics with vibrant, addressable RGB lighting controllable via a standard 3-pin connector for personalised visual effects.
- Ensure reliable, long-lasting performance with a fluid dynamic bearing fan designed for durability and smooth operation.
- Mount with confidence due to broad compatibility with current Intel and AMD CPU sockets and a refined black finish.

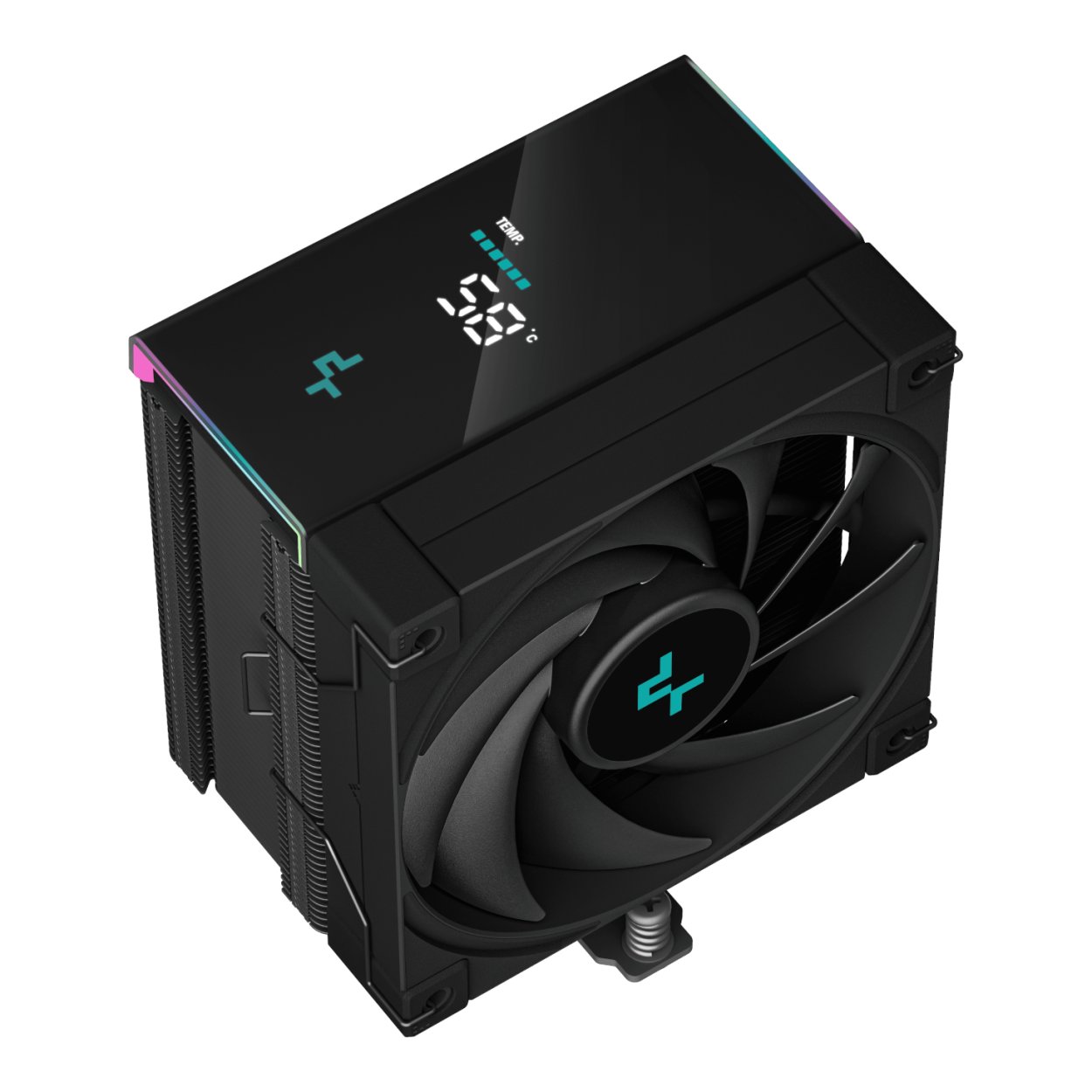

REAL-TIME STATUS SCREEN
The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.
PROVEN AK SERIES DESIGN

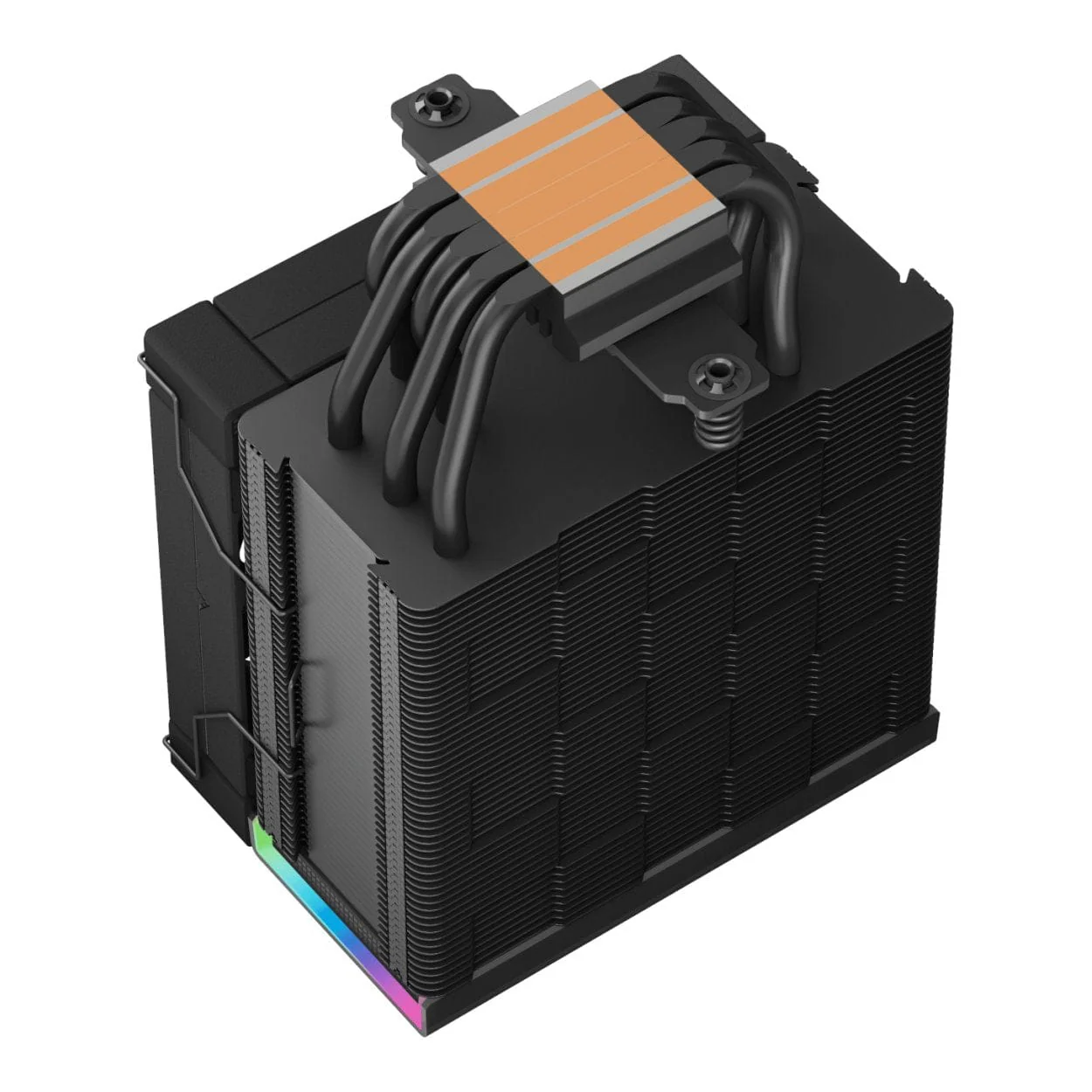

A slim variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, five heat pipe tower layout, a unique matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.
COOL, QUIET, AND POWERFUL
Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.
SIMPLE AND SECURE INSTALLATION
The durable mounting hardware provides a simple installation process that ensures proper contact and equal pressure on mainstream Intel and AMD platforms.
Technical Specifications:
Heatpipe: Ø6 mm×5 pcs
Fan Dimensions: 120×120×25 mm
Fan Speed: 500~1850 RPM±10%
Fan Airflow: 68.99 CFM
Fan Air Pressure: 2.19 mmAq
Fan Noise: ≤28 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Fluid Dynamic Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.12 A
Fan Power Consumption: 1.44 W
LED Type: Addressable RGB LED
LED Connector: 3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage: 5 VDC
LED Power Consumption: 3.75 W
CPU Compatibility:
- Intel LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
- AMD AM5 / AM4
Product Dimensions: 12.5 x 9.6 x 16 cm
Heatsink Dimensions: 12 x 6 x 15.5 cm
Product Weight: 904 g

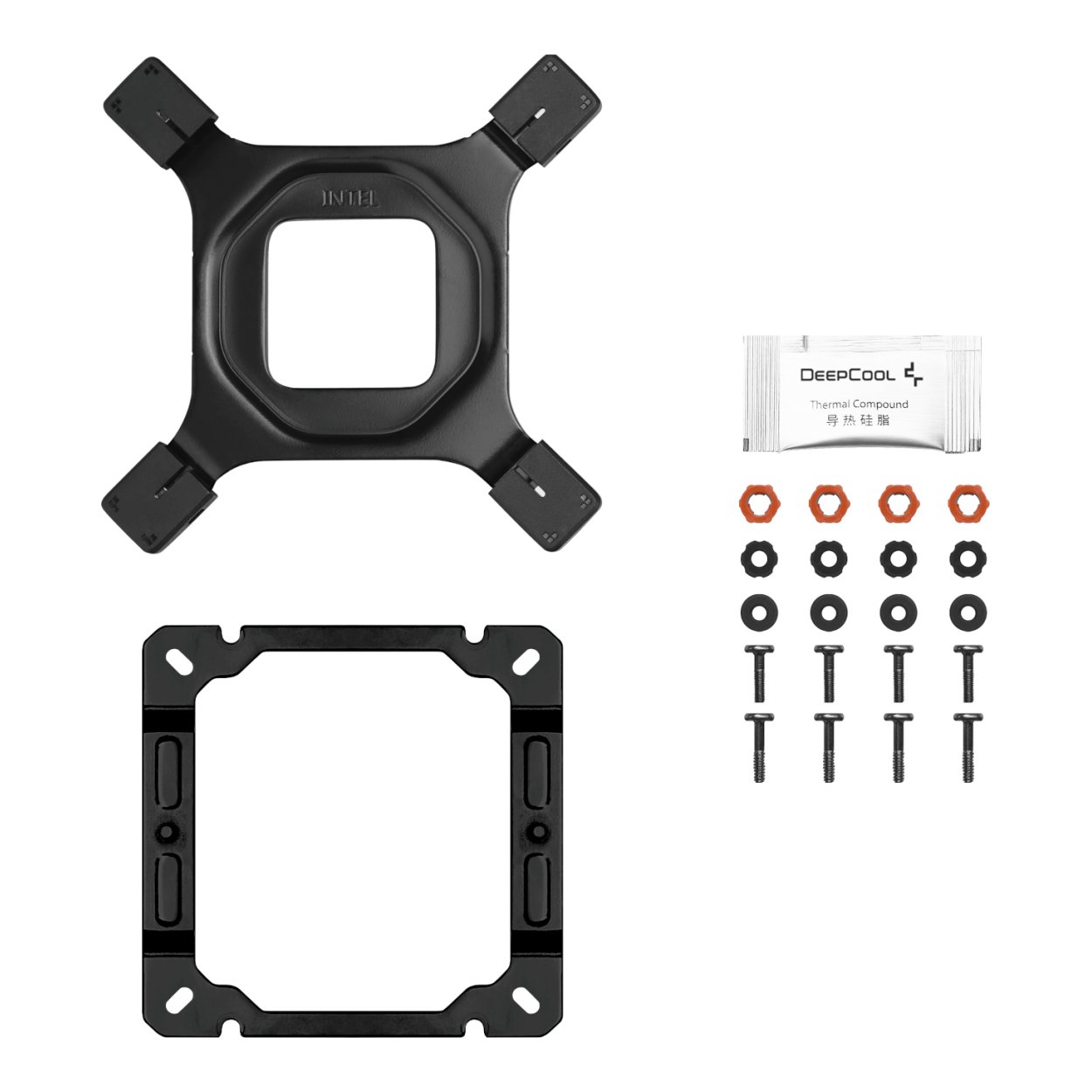

What's in the Box:
- DeepCool AK500S Digital 120mm Air CPU Cooler – Black x1
- Mounting Brackets x1
- Mounting Screws Pack x1
- Thermal Compound x1
