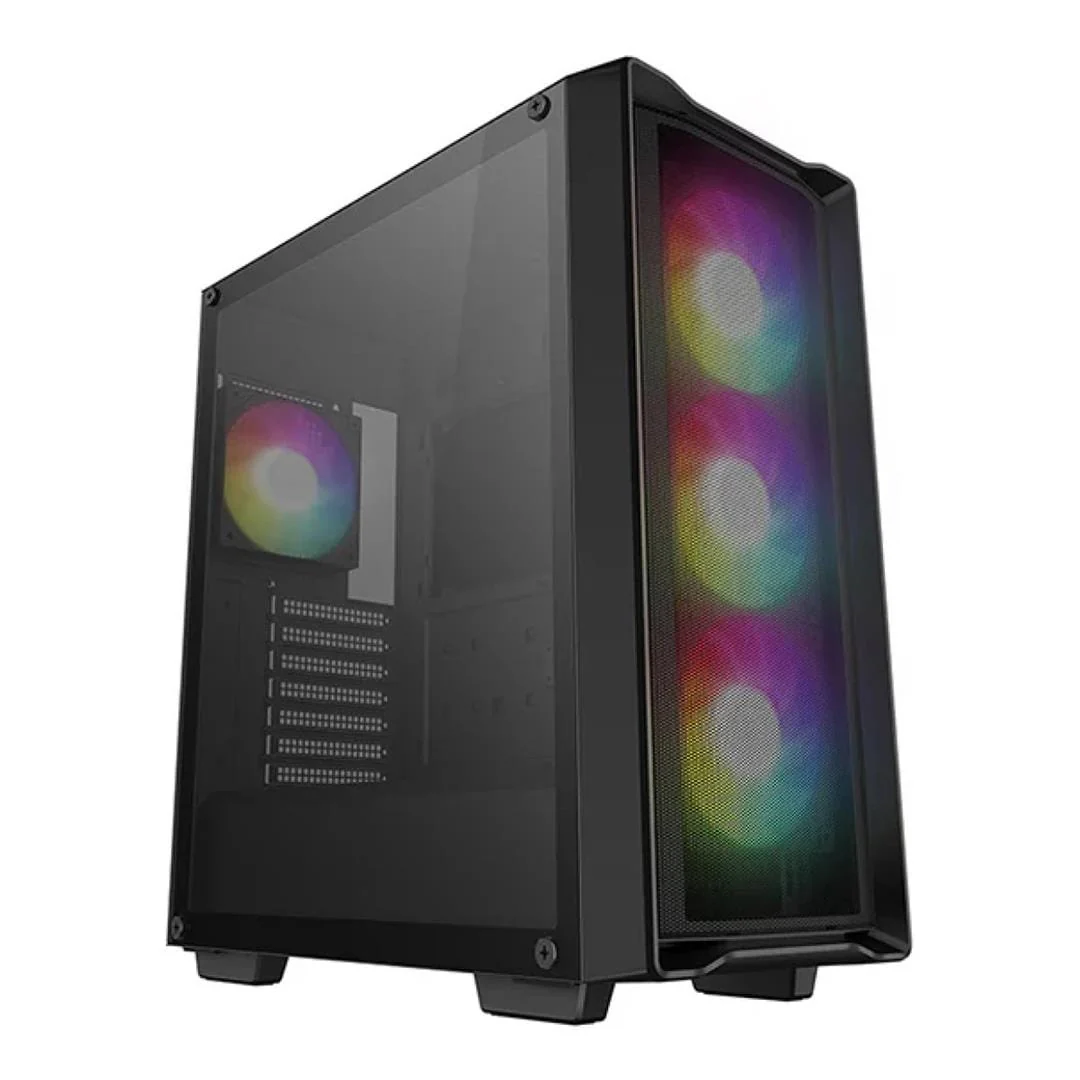

DeepCool CC560 Mesh V2 ATX Mid Tower Black PC Case R-CC560-BKAMA4-G-2

DeepCool CC560 Mesh V2 ATX Mid Tower Black PC Case R-CC560-BKAMA4-G-2

The DeepCool CC560 MESH V2 WH mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, a fine mesh front panel, and a total of four pre-installed ARGB fans that get any build started right. The V2 model builds upon the success of the previous generation and raises the bar.

Features:

• Form factor : ATX
• Case type : Premium Quality
• Color : Black
• Side panel type : Tempered Glass
• PSU : Nav
• Max. CPU cooler height, mm : 165
• Max. radiator size, mm : 360
• Max. Video card length, mm : 370
• 2.5" internal HDD/SSD bays : 2
• 3.5" internal HDD bays : 2
• 5.25" external drive bays : 0
• 3.5" FDD drive bays : 0
• USB 2.0 Ports : Nav
• USB 3.0 ports : 2
• USB Type-C ports : Nav
• Number of fans : 4

UNRESTRICTED AIRFLOW

Well ventilated throughout the entire chassis, the CC560 MESH V2 upgrades the front panel to a new free-flowing fine mesh, has support for fans on the PSU shroud, and has a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY

Four pre-installed ARGB fans deliver big airflow performance, ensuring any system build receives top-notch cooling capacity.

WIDE COOLING SUPPORT

There is enough space to support high-performance AIO liquid coolers, with room for a 360mm radiator in front or 280mm on top. Cooling fan support for up to 8x120mm or 5x140mm fans. The PSU shroud can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!

COMPATIBILITY

With the ability to support up to ATX motherboards, 165mm tall CPU coolers, 370mm GPUs, and 170mm PSUs; the CC560 MESH V2 can be configured with a wide range of high end components.

STORAGE SOLUTIONS

Support for 2x 2.5” SSDs and 2x 3.5” HDDs. One of the HDD bays can be utilized for a third 2.5"" drive if the need arises.

REINFORCED AND CONVENIENT

The chassis and side glass panel have been upgraded and reinforced for extra durability, and the magnetic top dust filter makes cleaning a breeze. The 20mm of cable management space behind the motherboard tray provides adequate space to arrange all your wires.

TOP I/O PANEL

Features two easily accessible USB 3.0 ports and a combo audio jack.

Technical Specifications:

Product Dimensions
432×215×483mm (L×W×H)

Net Weight
5.7Kg

Materials
ABS + SPCC + Tempered Glass

Motherboard Support
Mini-ITX / Micro-ATX / ATX

Front I/O Ports
USB3.0×2, Audio×1

3.5" Drive Bays
2

2.5" Drive Bays
2+1

Expansion Slots
7 Slots

Pre-Installed Fans
Front: 3×120mm ARGB
Rear: 1×120mm ARGB

Fan Support
Front: 3×120mm / 3×140mm
Top: 2×120mm / 2×140mm
Rear: 1×120mm
PSU Shrouded: 2×120mm

Radiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280mm
Rear: 120mm

CPU Cooler Height Limit
165mm

GPU Length Limit
370mm

Power Supply Type
ATX PS2 (maximum length: 170mm)
