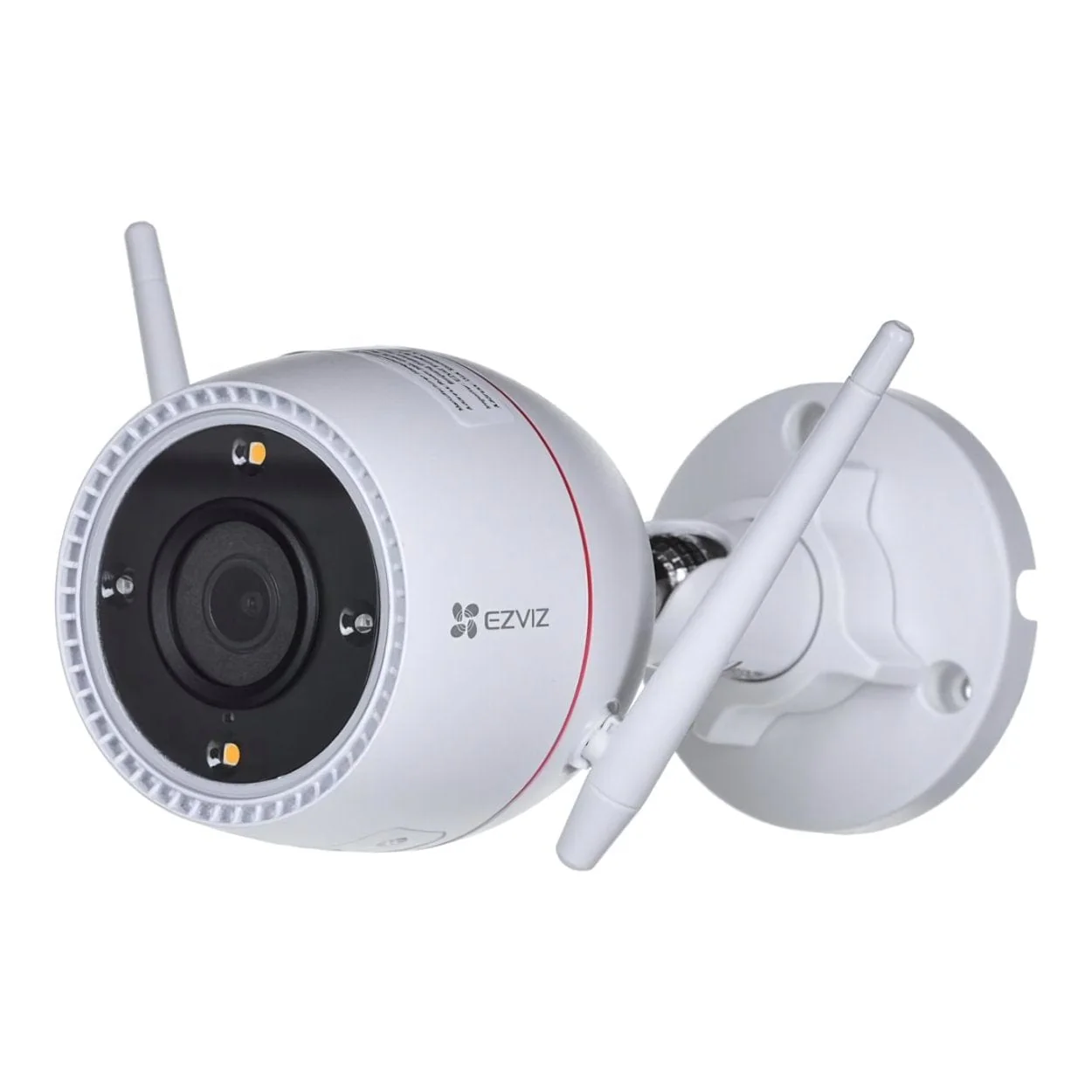

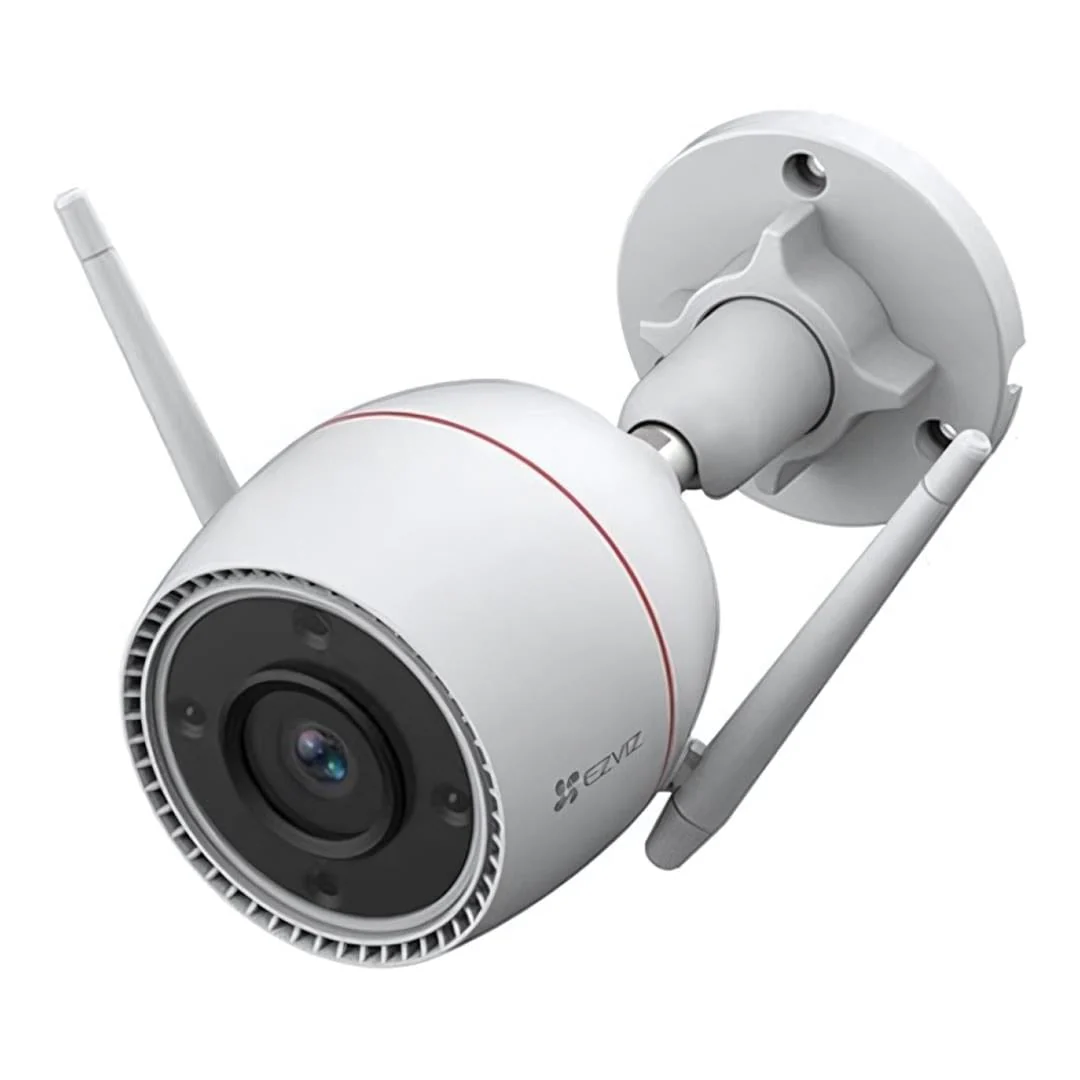

EZVIZ H3c 2K+ 4MP Wi-Fi Smart Home Camera CS-H3C-R100-1J4WKFL(2.8mm)

EZVIZ H3c 2K+ 4MP Wi-Fi Smart Home Camera CS-H3C-R100-1J4WKFL(2.8mm)

Simply smart outdoor protection with a sharper view

The camera captures everything in 2K⁺ clarity and sees color at night. The H3c 2K⁺ adds more smartness to an essential camera, it’s made to meet all outdoor security requirements, both during the day and at night. Waving hands recognition, two-way conversation, human motion detection, and other incredible yet unique functions are all packed into this device.

Make every detail count with impressive 2K⁺ resolution

When it comes to reliable home protection, details always come first. The H3c 2K⁺ offers superior video quality in stunning 2K⁺ resolution. It ensures that you stay well informed of every important activity happening at home.

See in color, even at night

Unsatisfied with blurry, overexposed black-and-white images during the nighttime? The H3c 2K⁺ makes late-night protection easier by restoring colors and details. In addition to a pretty sharp IR night vision, the camera can light up the environment with two built-in spotlights to render color night vision.

Receive smarter notifications

The camera’s on-board AI algorithm helps distinguish and detect moving people in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone enters your property area.

Ring up a call by simply waving your hand

Your family members or visitors can initiate a video call to your phone³ by waving at the camera. Whenever your kids come home from school, they can let you know.

Communications can be this easy

Enjoy two-way audio by simply using your smartphone. Or, pre-record a 10-second voice message that automatically plays upon human motion detection.

A vigilant guard who works around the clock

The H3c 2K⁺ integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights⁴ to warn them away.

Protection lasts, even in harsh weathers

Thanks to its well-built camera body, the H3c 2K⁺ is IP67-rated to withstand even the toughest weather conditions – whether it’s rainy, stormy or snowy.

Smart integration, hands-free control

You can integrate the H3c 2K⁺ to your existing smart home system. Voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance: Up to 98 ft / 30 m
Shutter Speed: Self-adaptive shutter
Lens:

• 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

• 2.8mm @ F2.0, view angle: 100° (Horizontal), 125° (Diagonal)
  Lens Mount: M12
  DNR: 3D DNR
  WDR: Digital WDR
  Day / Night Switch: IR-Cut filter with auto-switching

Video & Audio
Max. Resolution: 4MP, 2560 × 1440
Frame Rate: Max: 30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2 Mbps

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function
Detection: Human Shape Detection, Motion Detection, Waving-Hand Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant, IFTTT
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

General
Operating Conditions: -30 °C to 50°C (-22 °F to 122 °F), humidity 95% or less (non-condensing)
IP Grade: IP67
Power Supply: DC 12V / 1A
Power Consumption: MAX. 9W
Dimensions: 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight: 330 g (11.64 oz)
Weight (With Package): 539 g (19.01 oz)

Certifications
CE / FCC / UKCA / UL / WEEE / RoHS / REACH

What's in the Box:

• H3c 2K+ Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
