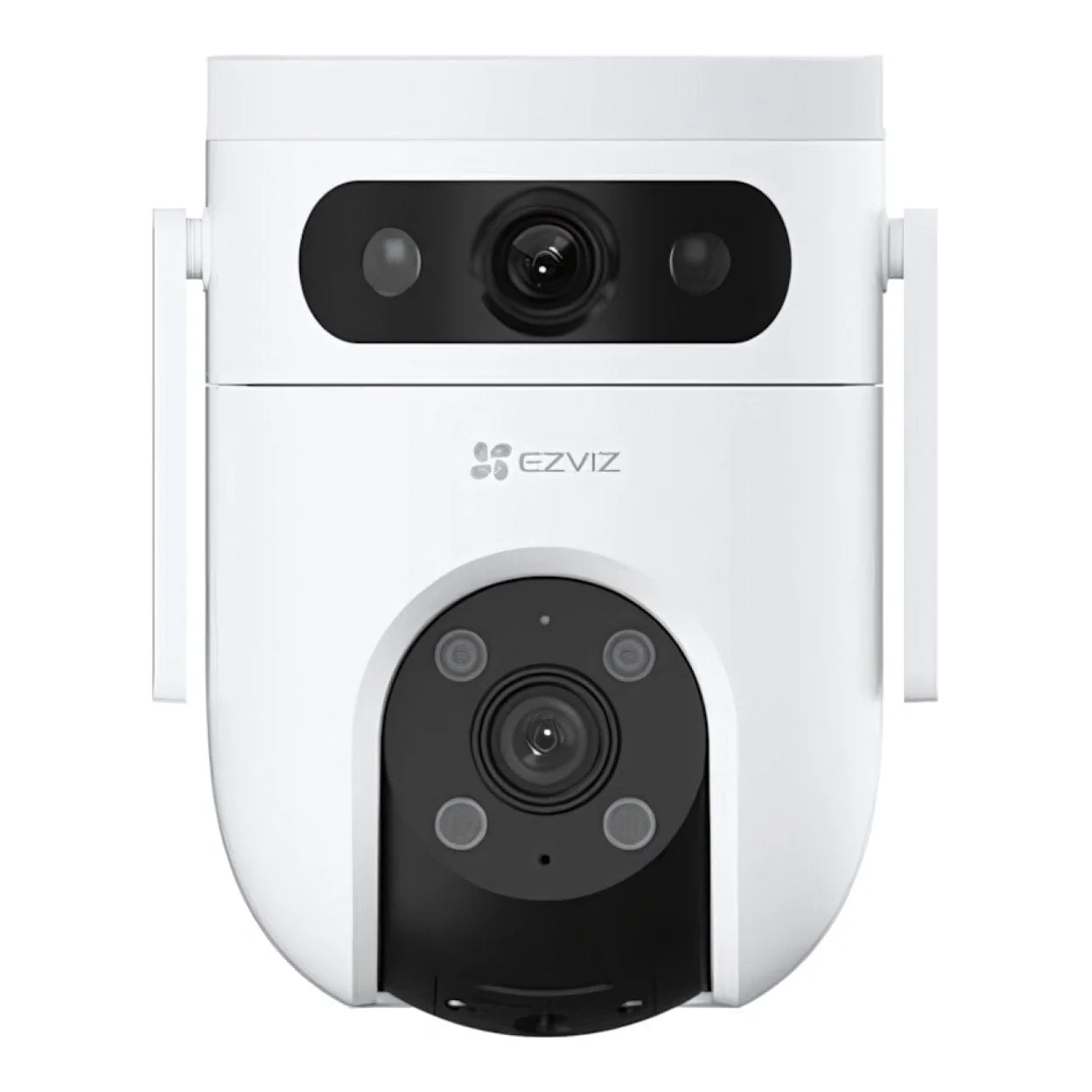

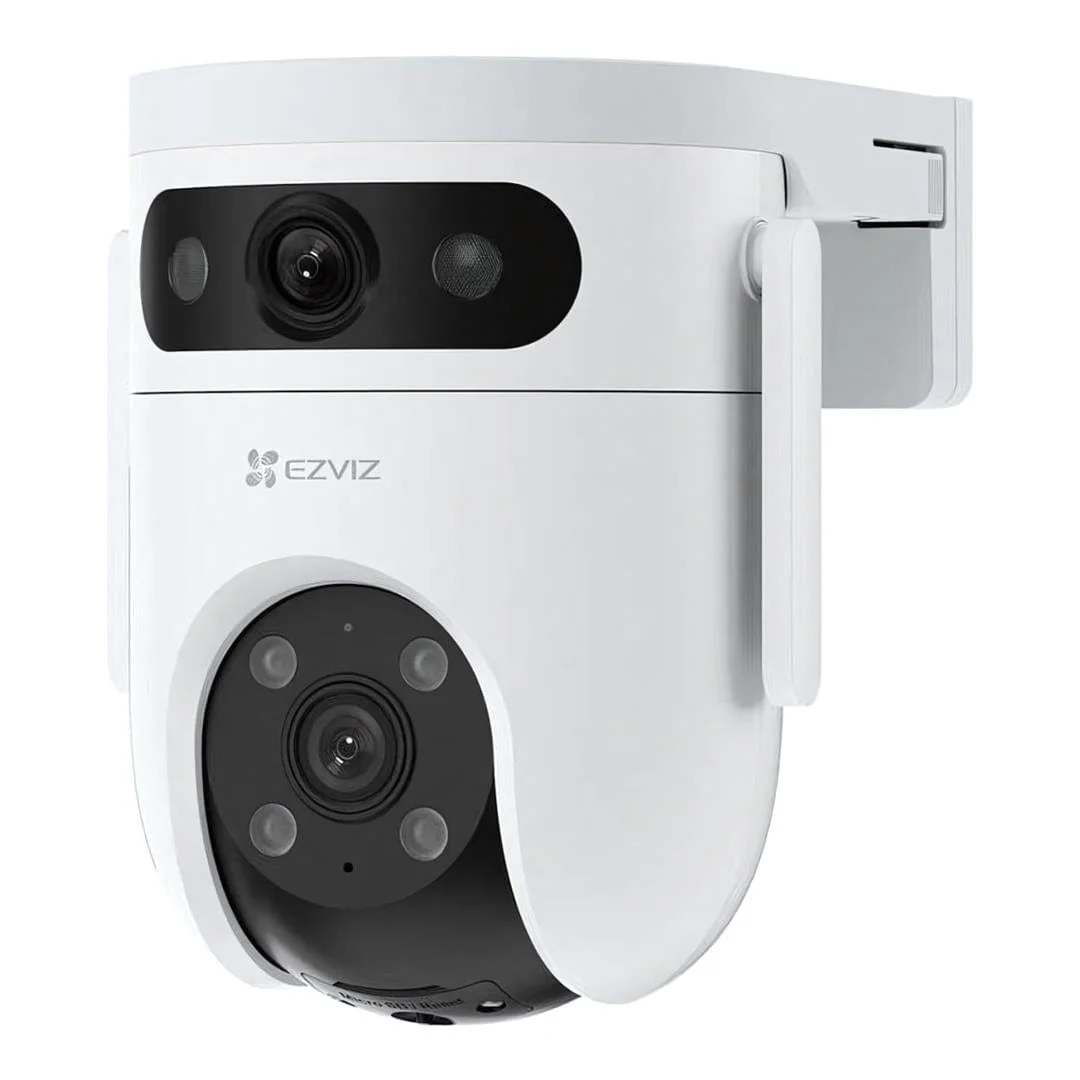

EZVIZ H9c Dual 5MP Dual-Lens Pan and Tilt Wi-Fi Camera CS-H9C-R100-8G55WKFL

EZVIZ H9c Dual 5MP Dual-Lens Pan and Tilt Wi-Fi Camera CS-H9C-R100-8G55WKFL

Security That Sees More, Protects Better

Experience the future of security automation with the H9c 3K Dual-Lens Smart Wi-Fi Camera. This advanced camera system provides even clearer and more detailed images than its predecessor with its 3K resolution. The dual-lens design ensures comprehensive coverage of large areas, reducing the need for multiple cameras. It also has advanced features like AI-powered human, vehicle shape detection, and smart tracking.

Dual lenses. Double security.

With EZVIZ’s unique dual-lens technology, the H9c provides unparalleled protection that’s beyond professional. It uses a wide-angle lens on top of a telephoto pan-and-tilt lens – the duo works independently or together in a way that is much smarter than your ordinary camera.

Next-level detection, unparalleled protection

The H9c is equipped with dual-lens, co-enabled detection technology to safeguard even the most complex environments in a way that is tailored to your needs. You can use these advanced features at any time without committing to a subscription plan.

Face two directions, but follow the same activity

Even if the two lenses are set on opposite viewing angles to secure two different areas, they can complete a single smart tracking task through teamwork. When a human is detected by the upper lens, the PT lens will automatically rotate to such angle to lock on the person and record the whole activity.

Smarter alerts with upgraded vehicle detection

It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

See much more than you can imagine

A bigger space needs a wider view. That’s where the H9c 3K comes in handy. It can pan and tilt to take in a 360-degree field-of-view, and render details in 3K resolution to capture crucial moments clearly.

Technical Specifications:

Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens:

• Fixed Lens: 2.8 mm @ F1.6, Viewing Angle Diagonal 132°, Horizontal 110°, Vertical 58°
• Pan & Tilt Lens: 6 mm @ F1.6, Viewing Angle Diagonal 64°, Horizontal 56°, Vertical 29°
• PT Angle: Pan 350°, Tilt 80°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data from EZVIZ laboratories)
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR
• WDR: Digital WDR
• Black & White Night: 30 m / 98 ft

Video & Audio
Max Resolution: 2880 × 1620
Frame Rate: Max 15 fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra-HD; Hi-Def; Standard (Adaptive bit rate)
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b / g / n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security: WPA-PSK / WPA2-PSK

Functions
Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage

General
Operating Conditions: -30°C to 50°C (-22°F to 122°F), Humidity ≤95% (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V / 1.5A
Power Consumption: Max 12W
Dimensions: 145 × 116 × 142 mm (5.71 × 4.57 × 5.59 in)
Packaging Dimensions: 150 × 150 × 194 mm (5.90 × 5.90 × 7.64 in)
Weight: Net 668 g, With Package 960 g

Certifications
CE / UKCA / WEEE / RoHS / REACH

What's in the Box:

• H9c Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information x 2
• Quick Start Guide
