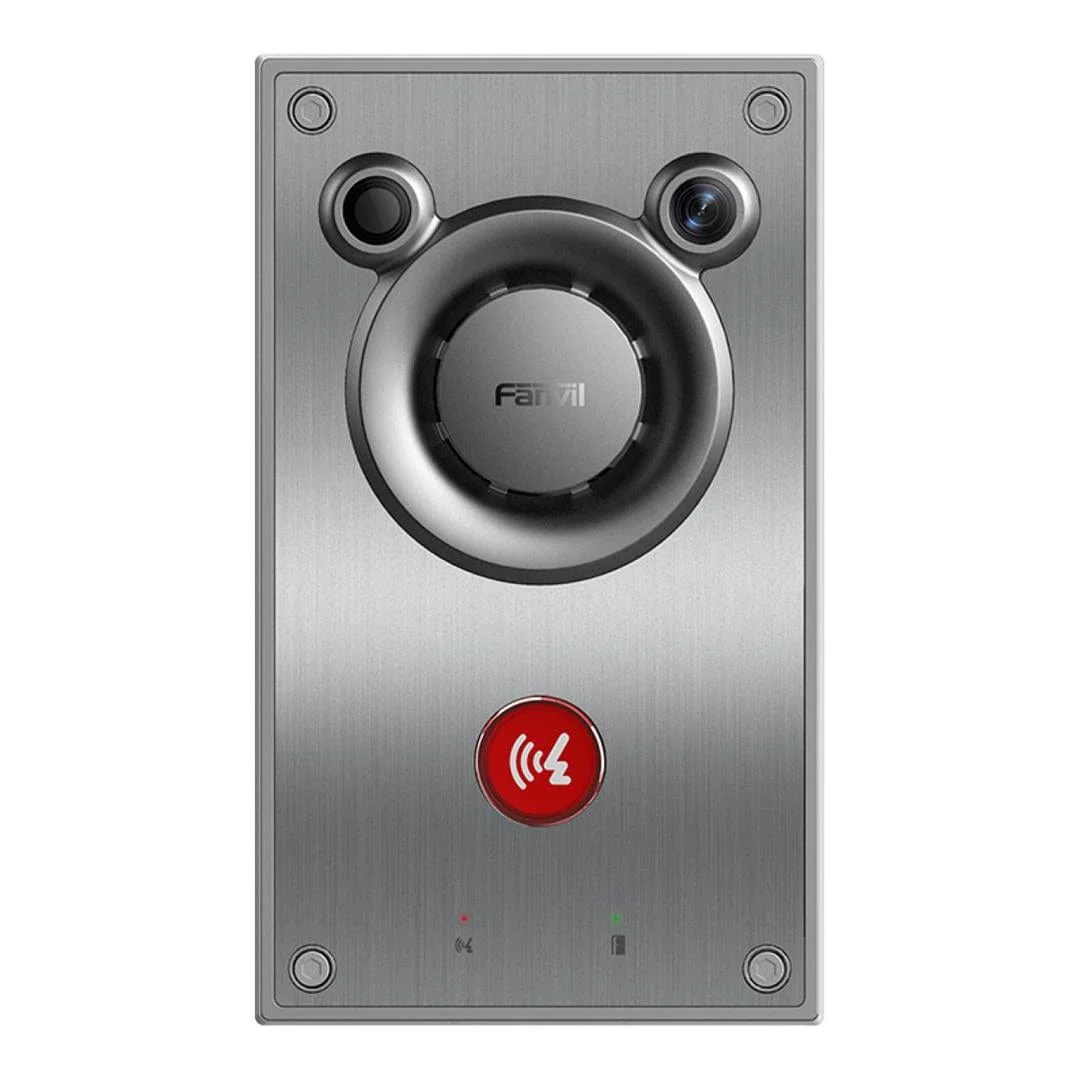

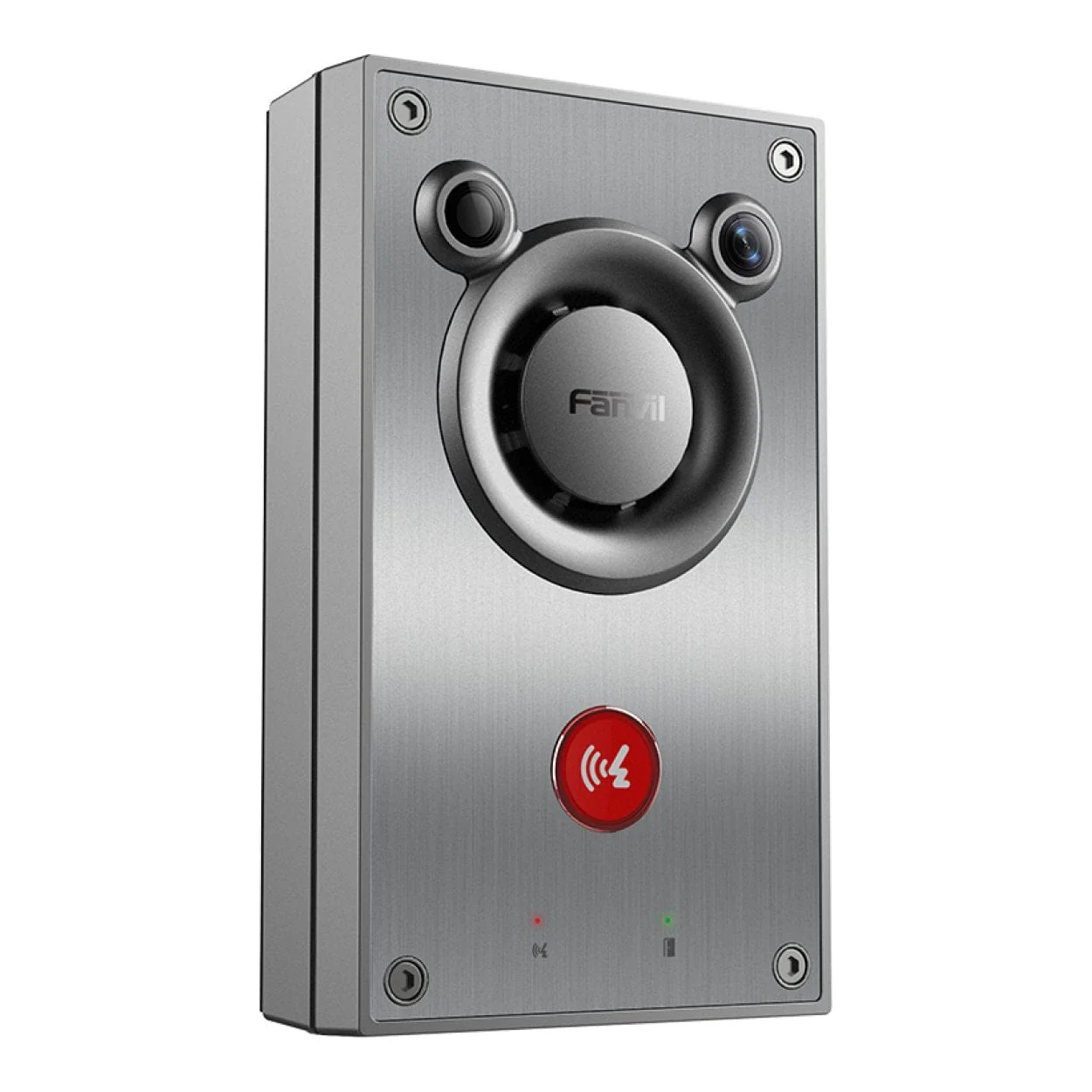

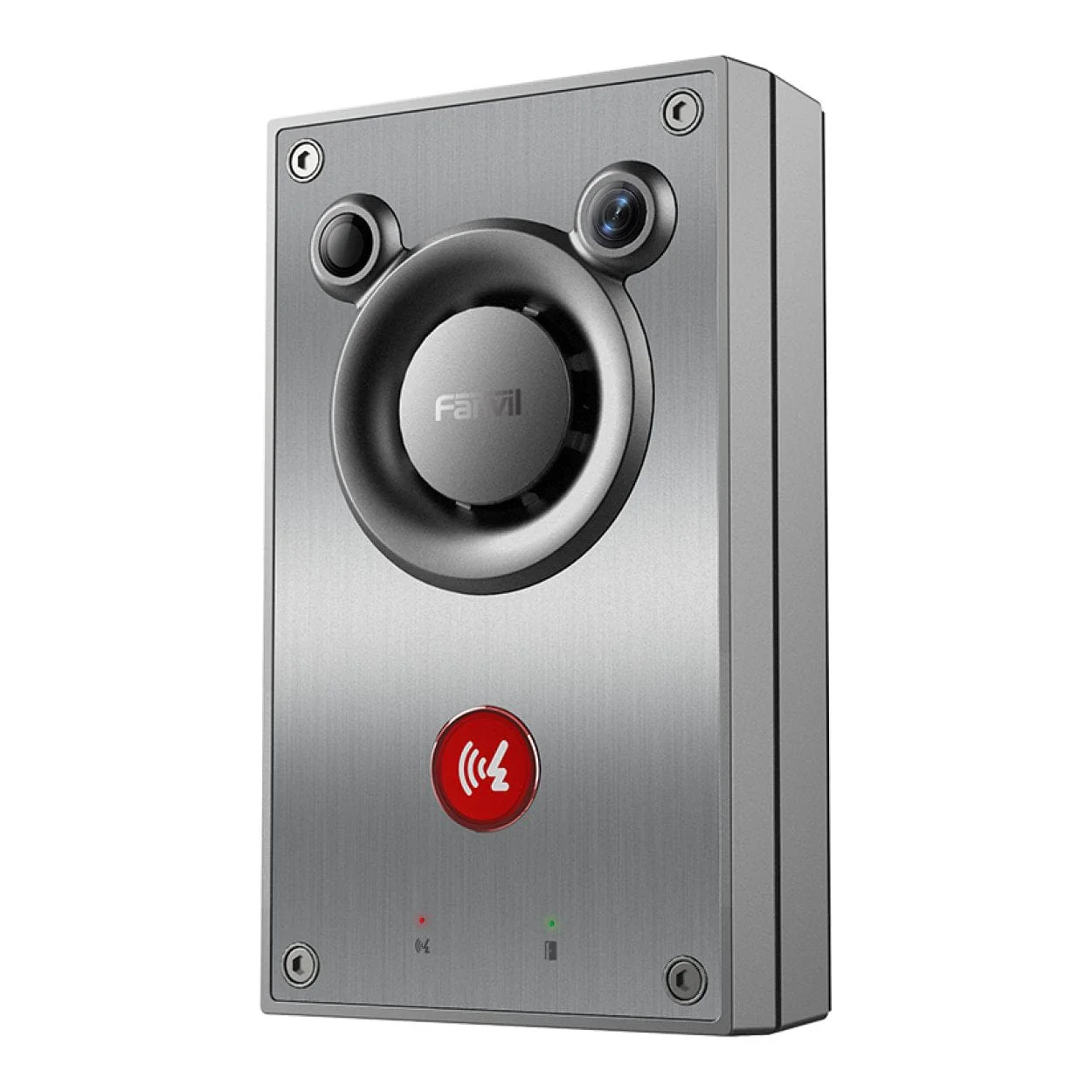

Fanvil A12V IP Video Intercom

Fanvil A12V IP Video Intercom

Fanvil A12V | 4MP Outdoor Video Intercom with 10W Speaker

Fanvil A12V Video Intercom is a brand-new intercom featuring a 10W speaker and turbo sound chamber for powerful sound quality. With Fanvil’s advanced dual-microphone noise reduction and voice enhancement technology, it captures clear audio even in challenging environments. Equipped with a 4MP starlight wide-angle camera, built-in infrared lighting and HDR technology, it ensures excellent imaging. Designed with a unique combination of a stainless-steel panel and integrated aluminium-alloy structure, the A12V stands out with exceptional corrosion resistance and a high protection rating, making it highly durable and adaptable to diverse environments.

• HD Video - Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
• Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
• Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
• Loud Sound - 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
• Remote Pickup - Remote pickup can reach up to 5m and accurately captures every word
• Self-Check Function - Voice loop self-check, simplify maintenance, reduce costs
• Recording Broadcast - Built-in SD card slot supports recording and preset broadcast, flexible and diverse
• Beautiful and Durable - Stainless steel panel with aluminium-alloy structure, corrosion resistance, up to IK10 anti-theft
• Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
• Friendly Interaction - 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
• High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
• Alarm Light - Built-in 1× wet node output, can drive the external alarm light
• Rich Interfaces - Audio line output, short-circuit input / output, Wiegand, USB, RS485, to meet diverse needs

Specifications

OS: Linux

SIP Line: 2×

Tamper-Proof: Yes

Link with Third Party System: Yes

Integration with Third Party Systems: Yes

Auto-Provisioning via DHCP / TR069 / SIP PNP: Yes

AUDIO FUNCTION

HD Audio: Yes

Wideband Codec: G.722, Opus

Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K

Power Amplifier: 10W

Noise Reduction: Yes

SPL: 100dB (1m/1W)

1m Full-Duplex: 90dB

1m Half-Duplex: 100db

1m Broadcast: 100db

AVC: Yes

AEC: Yes

ONVIF: Yes

RTSP: Yes

VIDEO FUNCTION

Image Sensor: 1/2.9” Colour CMOS

Video Codec: H.264

Built-In Camera: Yes (4MP)

Lens: F2.0, Fixed Iris

Resolution: 720p / 1080p

Minimum Illumination: 0.05 Lux

Fill Light: Infrared Lighting

Field of View: Horizontal: 103°; Vertical: 54.8°

HARDWARE

PoE Power Supply: Yes

DC Power Port: DC12~24V 2A

TF Card Slot: Yes

USB Interface: Yes

Button Backlight: Yes

Microphone: Dual Microphone

Audio Line-Out: 1×

Short-Circuit Output Interface: 2×

Short-Circuit Input Interface: 2×

RS485 Interface: 1×

Ethernet Interface: RJ45 PoE
