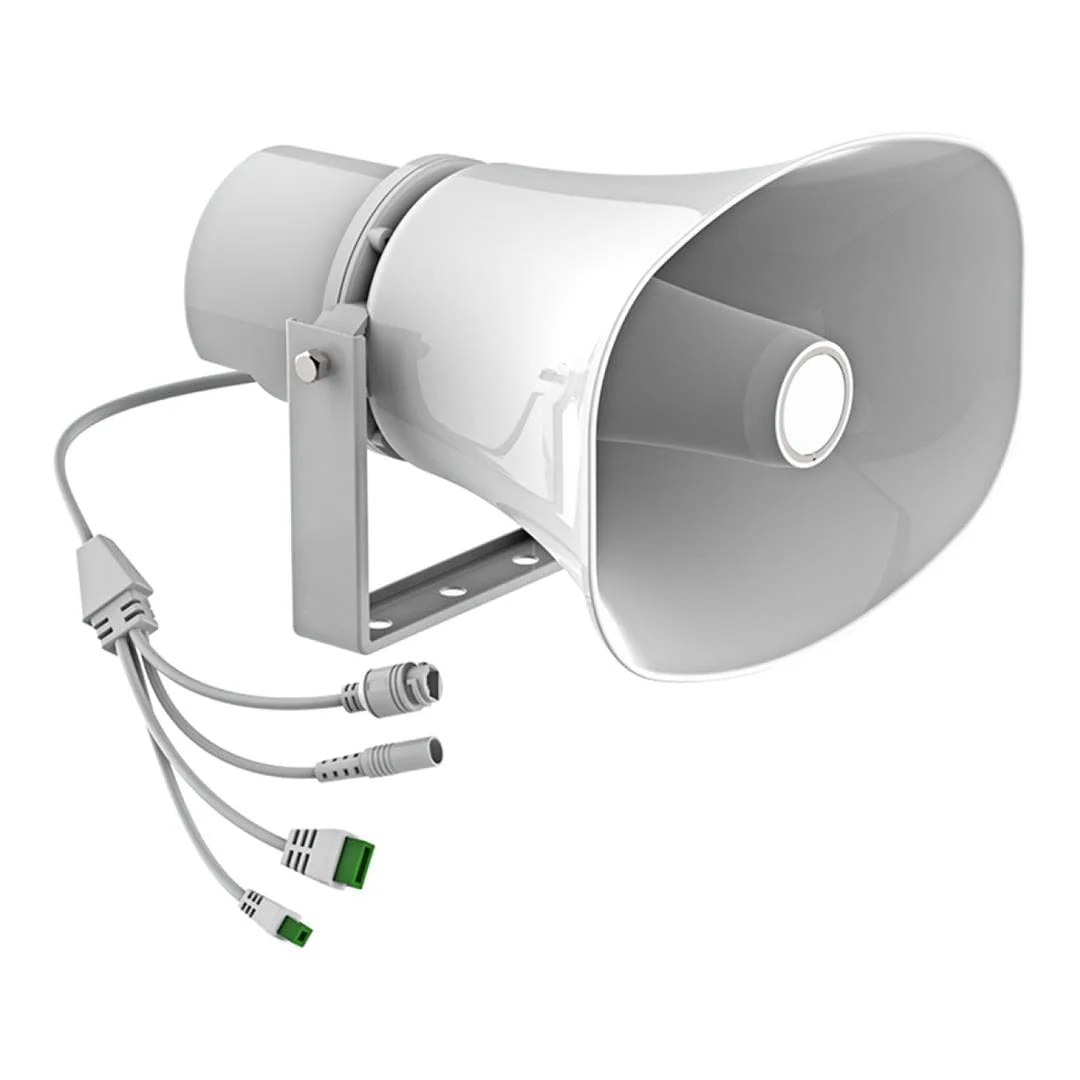

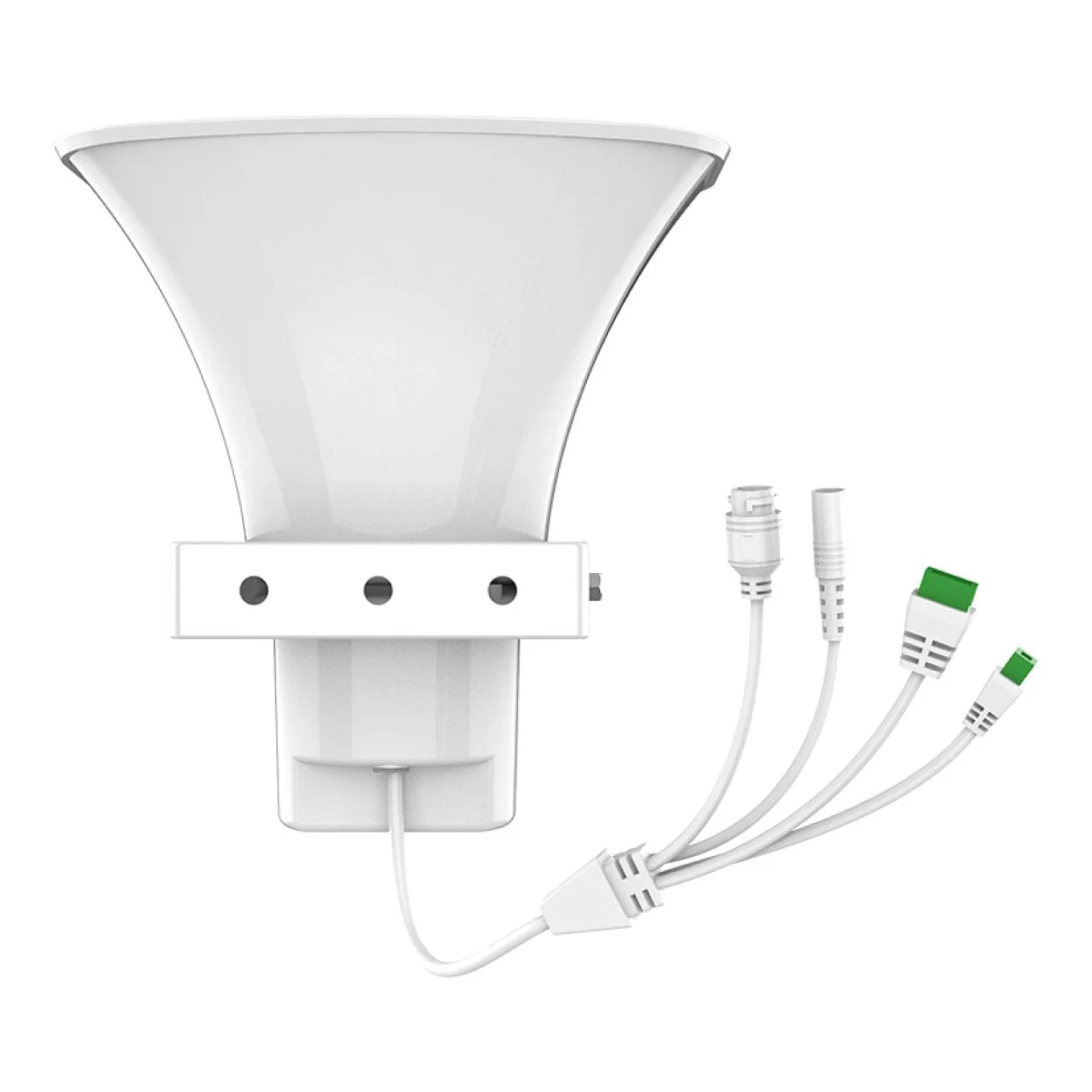

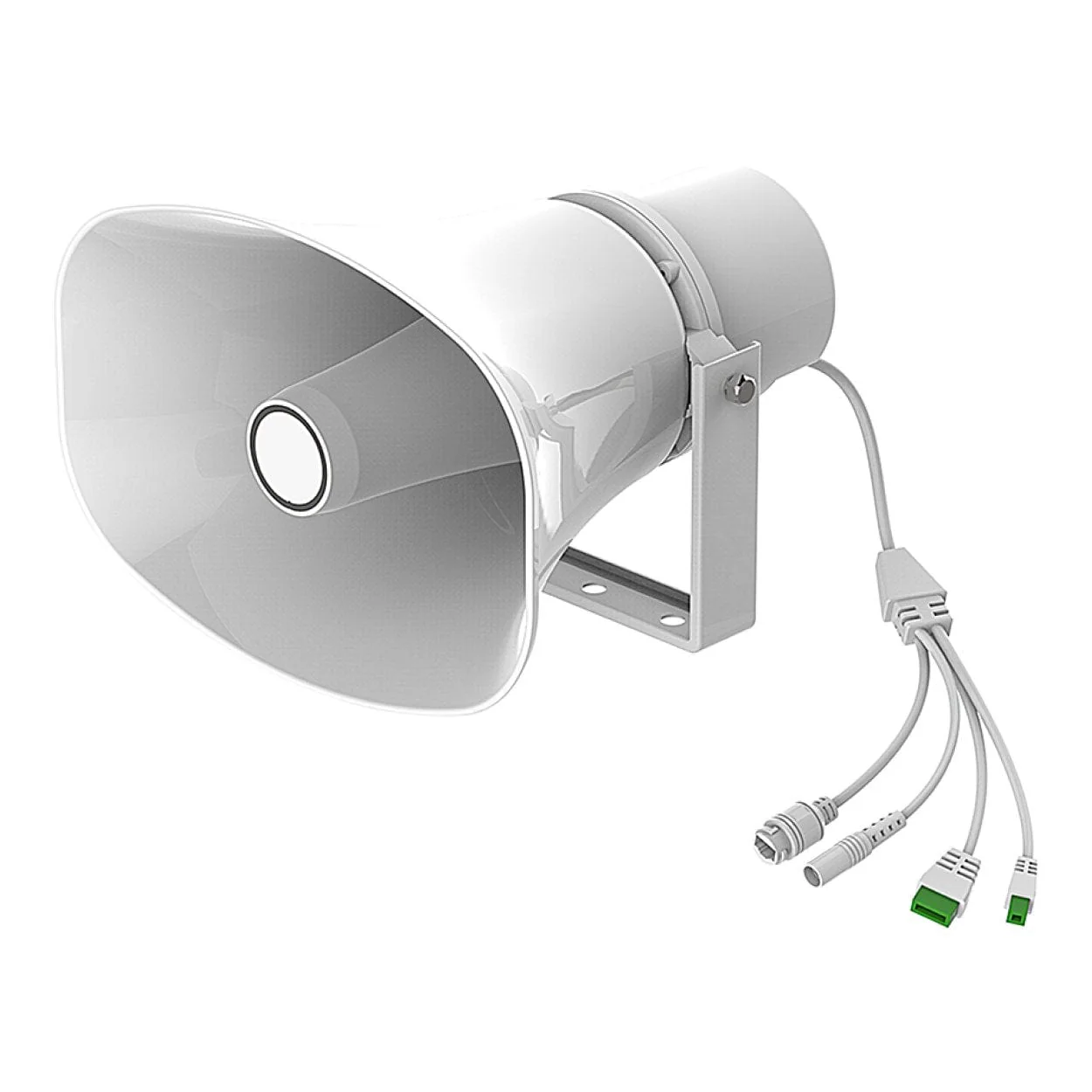

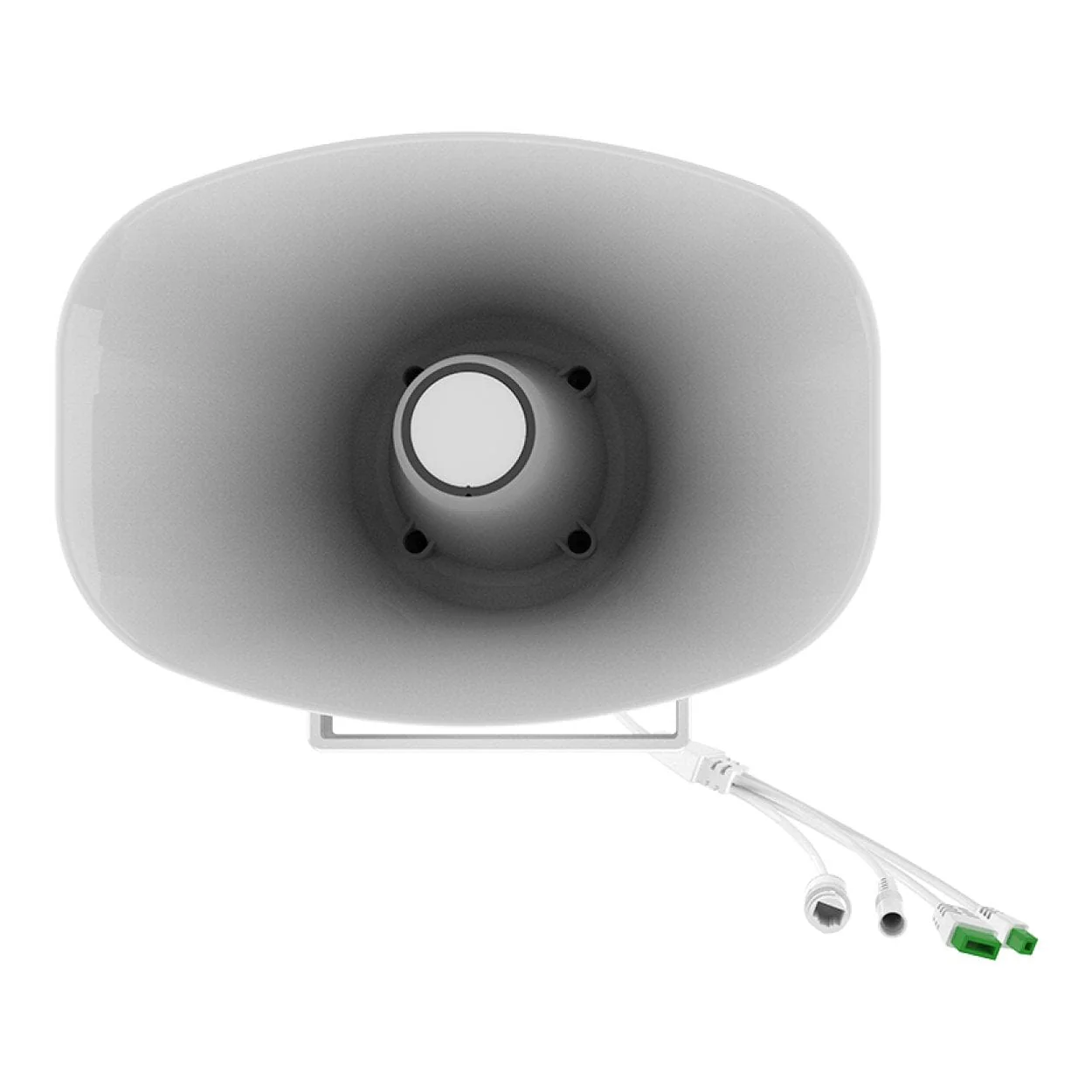

Fanvil A233 | SIP Horn Speaker with PoE+ Support

The Fanvil A233 horn speaker is a commercial-grade IP audio terminal. It can function independently as an audio system or integrate with external systems such as unified communication systems, video surveillance systems, Fanvil broadcast and intercom system, access control systems, digital billboards and fire alarm systems, facilitating unified configuration and operation. The IP66 protection rating ensures effective waterproofing and dustproofing, making it suitable for most outdoor environments.

• Excellent Sound Quality - Support HD intercom, lossless music broadcast
• Flexible Integration - Supports standard SIP protocol, HTTP API, short-circuit input and output and video linkage, easy to integrate with third-party systems
• Easy to Manage - Support Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
• Functional Integration - Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check / monitoring, priority management and other functions in one
• Multi-Mode - Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode
• Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments

Specifications

Protection Level: IP66

Installation and Accessories: U-Bracket

Microphone: Yes

Speaker Power: 15W PoE+ / 30W DC24V

Frequency Response: 300~7.5KHz

Sensitivity: 107 ±3dB (1M/1W)

Audio Files Storage: 24MB

Support Protocol: SIP, ONVIF

Maximum SPL: 120dB, 1m

Short-Circuit Input and Output Interface: 1×; 1×

Power Supply: PoE+ (IEEE 802.3at) / DC24V 2A

Operating Temperature: -30~60°C

Weight: 1.9kg

Dimensions (W × H × D): 285 × 285 × 205mm
