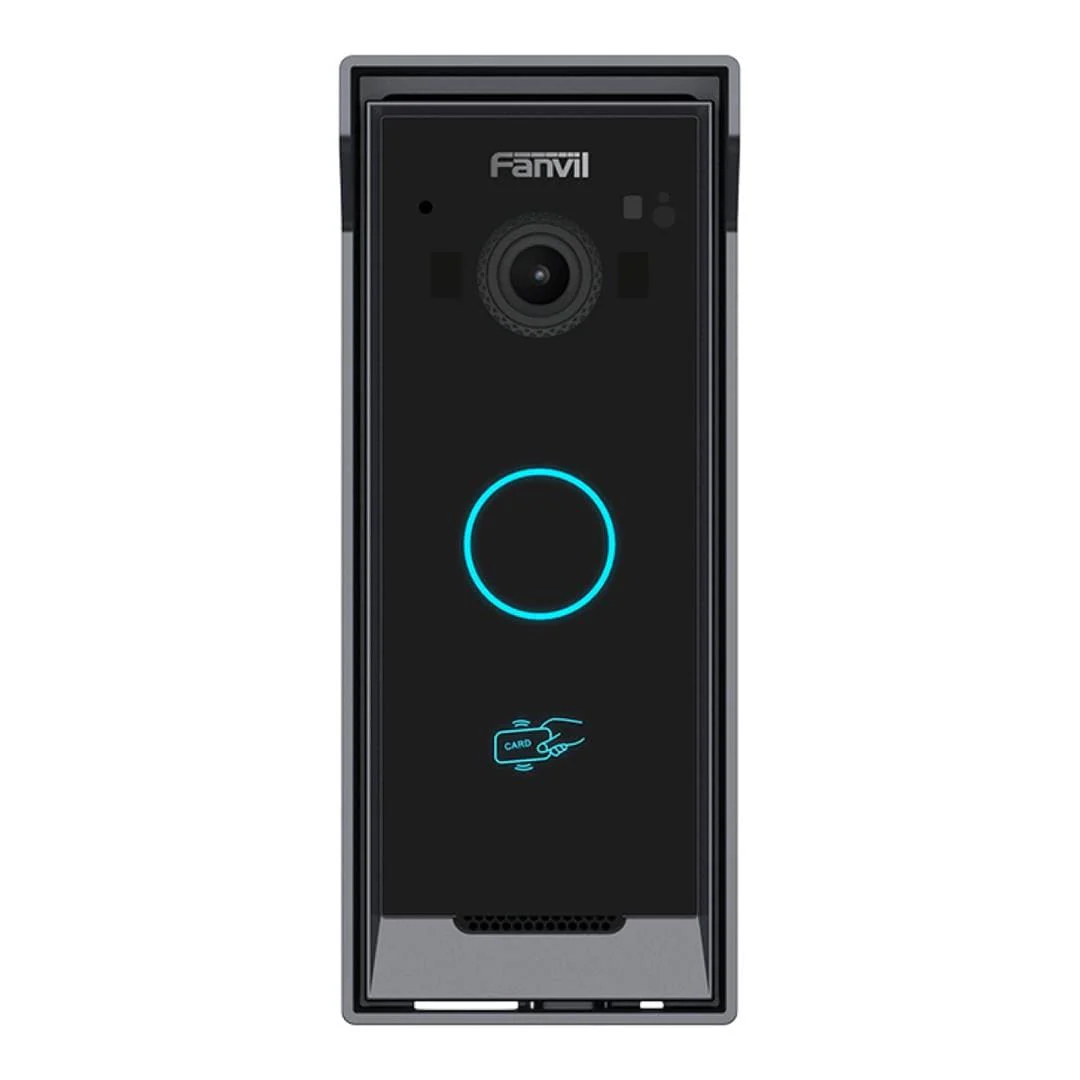

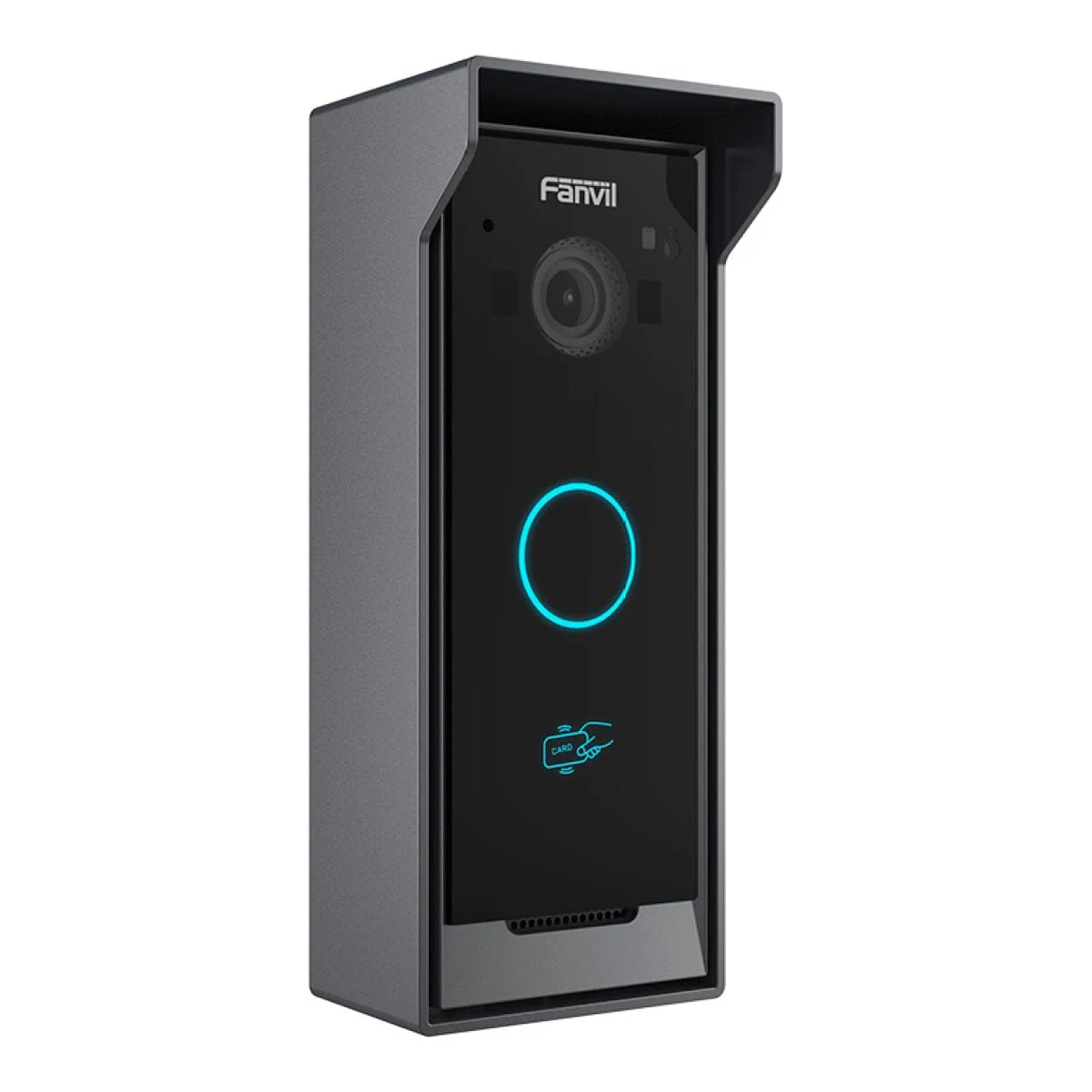

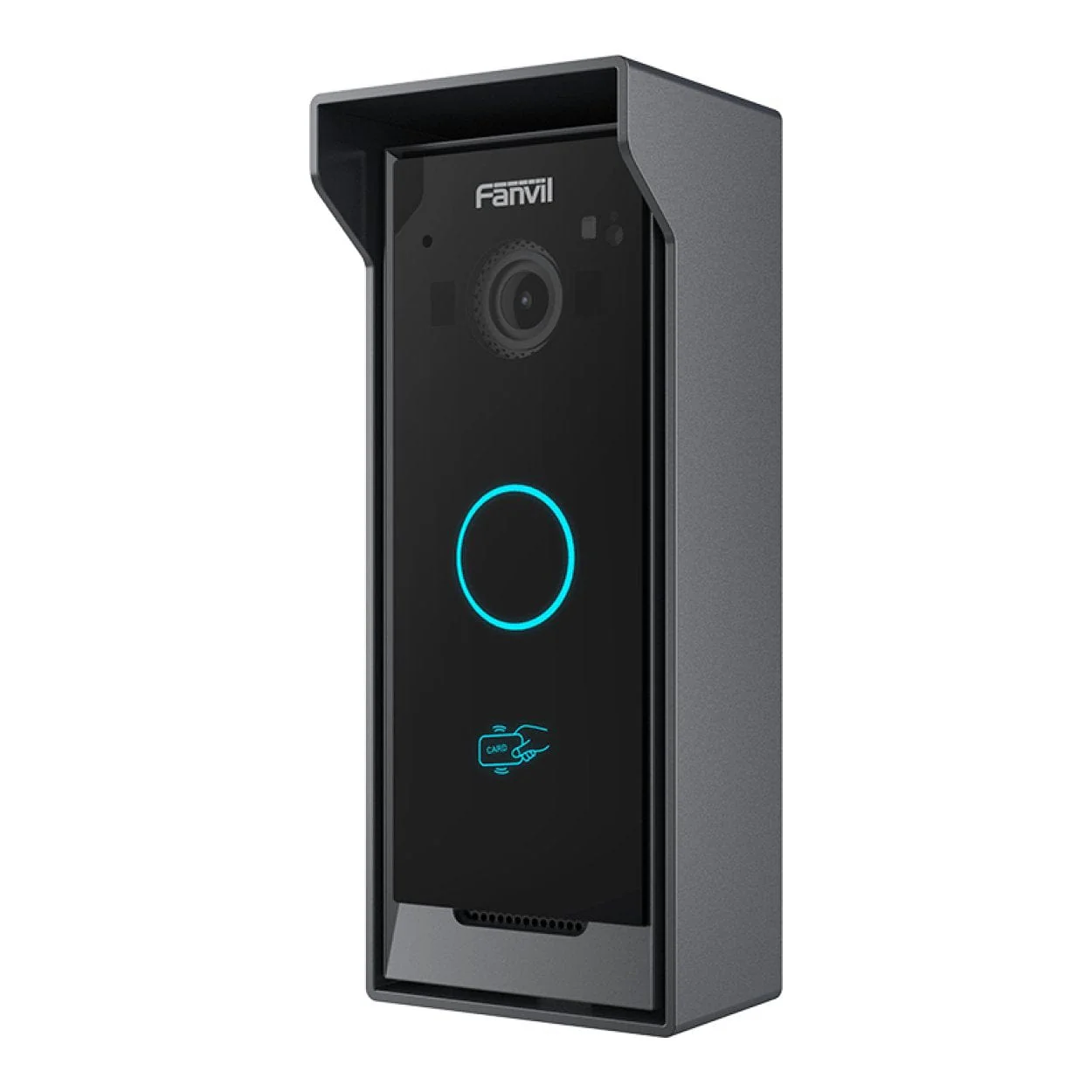

Fanvil i60 Video Door Phone

Fanvil i60 Video Door Phone

Fanvil i60 is a compact video door phone with a speed dial button and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as BLE, IC cards, remote DTMF and indoor switches for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

Specifications:

Keyboard: 1 Speed dial Button

Body: ABS+PC

Colours: Panel: black, Housing: Gunmetal

Sensor: 1/2.9-inch，CMOS

Camera: 2 Mpx, Support infrared

Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)

Output video: H.264 (Baseline, Main Profile)

Light Sensitivity: 0.1Lux, (Infrared/White light fill light)

Card Storage: 1,0000

Power Consumption: PoE:1.63~6.93W

Adapter: 1.51~6.16W

Power Supply: DC 12V / 1A, PoE 802.3af Class 3

Working Temperature: -40℃~+70℃

Storage temperature: -40℃~+70℃

Size of the Panel (LWH): (LWH) 50 x 130 x 30mm

IP / IK Level: IP65

Installation: Wall-mounted

Rain cover: Flush-mounted(Need to Purchase Accessories Separately：EX101)

Functional Capabilities: Supported Protocols, SIP 2.0 over UDP/TCP/TLS

Lock Opening: IC Card，By DTMF Code，Remote Door Opening, BLE

Interface: Wiegand Input/Output, Short Circuit Input/Output

Supported Wiegand Types: 26, 34 bit

Supported ONVIF Types: Profile S

Supported Standards: DTMF, IC Card, Indoor Switch, BLE, Cards 13.56 MHz

Talking Mode: Full duplex (High-definition Audio)

Additionally: Built-in relay，Motion detection，Tamper Alarm，TF Card，Open API
