Fanvil VIK-01 Dual Band Video Intercom Kit

Fanvil VIK-01 Dual Band Video Intercom Kit

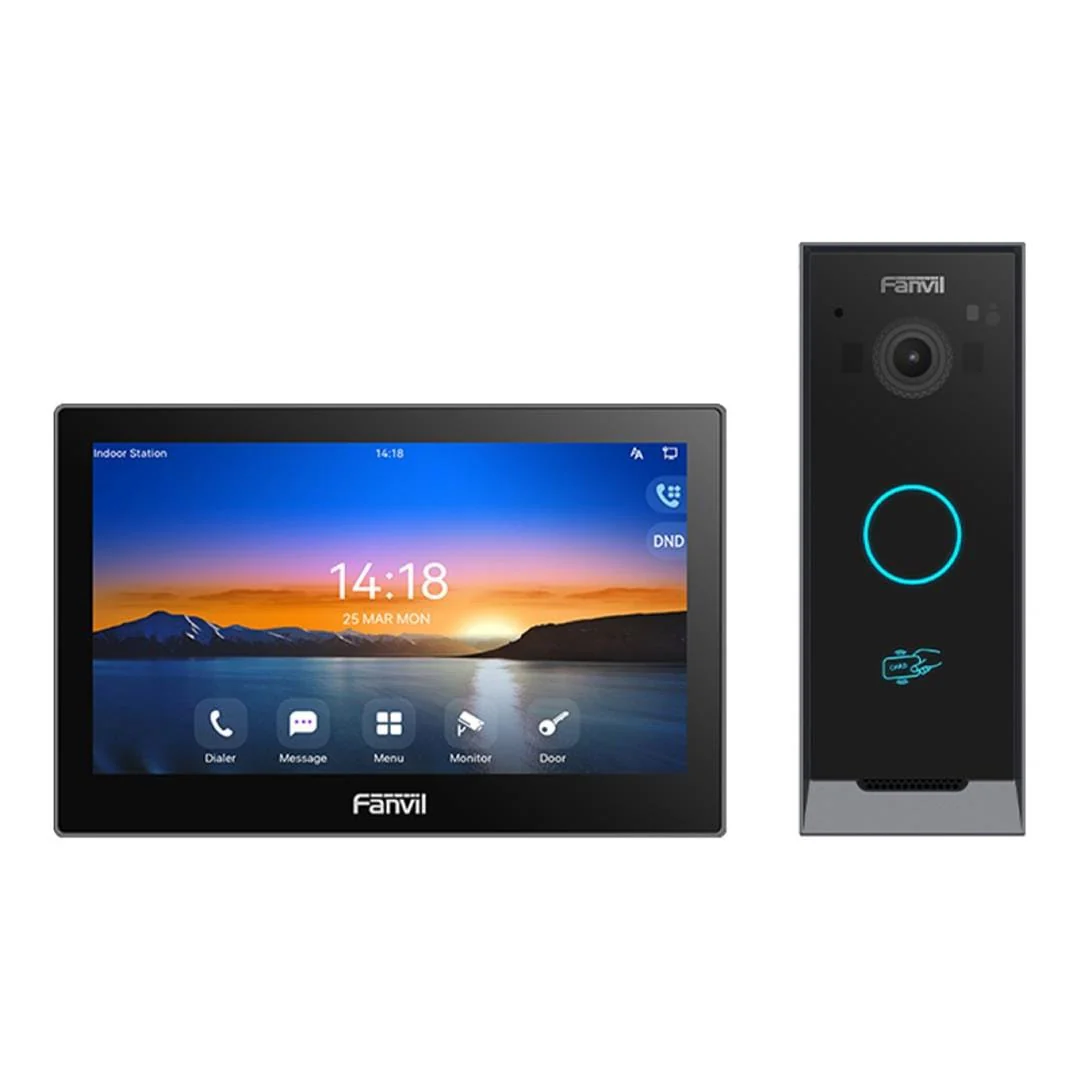

Fanvil's FAN-VIK1 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone, and Fanvil Link App for the ideal video intercom solution. It has a built in relay to directly support door or gate unlocking with control via the indoor panel or through Fanvil's app. It supports 2.4G/5G Wi-Fi or cabled installation for flexible deployment.

Specifications

i504W
Ethernet Ports: 1x 10/100
Interface: 8x Alarm Input, 1x Short Circuit Output, 1x Doorbell Input, 1x RD485 (Reserved)
Mounting: Wall Mount
Operating Temperature: -10°C to 50°C
PoE Input: 802.3af/at
Power Input: 12V 1A
Screen: 7-inch color capacitive touch screen 1024×600
Speaker: 2W
WiFi: Dual Band
Dimensions: 177.38 x 113.99 x 22.5mm

i60
Camera: 2 MP, Supports infrared
IP Rating: IP65
Mounting: Wall Mount (Rain Cover)
Power Input: 12V 1A or PoE 802.3af
Sensor: 1/2.9-inch，CMOS
Viewing Angle: 140°(FOV) 100°(Horizontal) 57°(Vertical)
Dimensions: 50 x 130 x 30 mm
