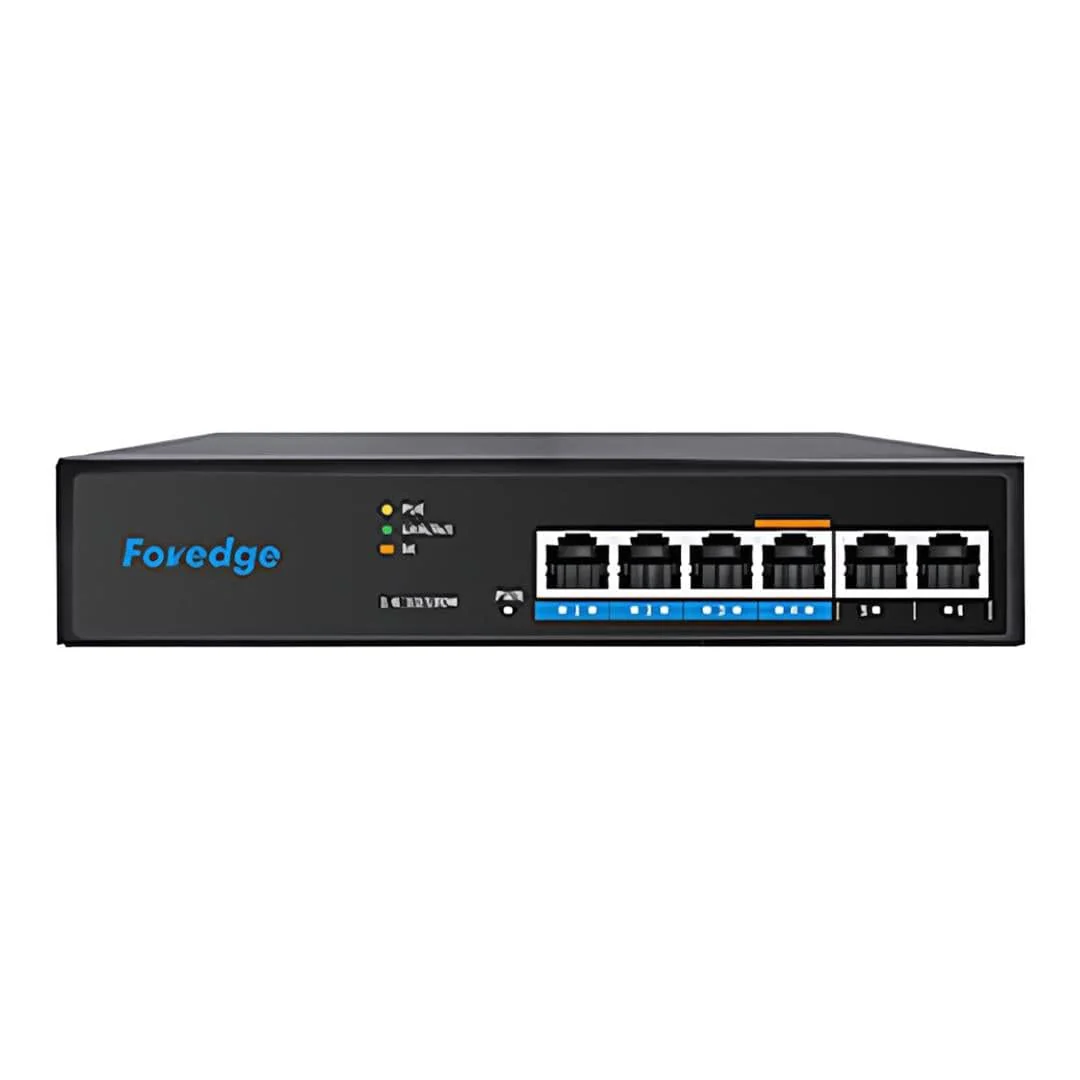

Foredge AI806M 6-port 100M AI PoE Unmanaged Switch

Foredge AI806M 6-port 100M AI PoE Unmanaged Switch

6 -port 100M built-in power POE switch that supports AI intelligent recognition and long-distance mode recognition.

Features:

• 4*RJ-45 100M Port(PoE)
• 2*RJ-45 100M Port(Up-link)
• Maximum power of power supply：65W
• Provide two 10/100M RJ45 uplink simultaneously
• All ports support 6KV lightning protection

Technical Specifications:

Networking Ports

4 × RJ-45 100M PoE Ports

2 × RJ-45 100M Up-link Ports

Networking Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Performance

Bandwidth: 1.2 Gbps

Packets Forwarding Rate: 0.89 Mpps

MAC Table Size: 1K

Forwarding Type: Store and Forward

LED Indicators

Power Indicator

PoE Indicator

LINK/ACT Indicator

PoE

Pin Assignment: 1/2 (+), 3/6 (–)

Power

Maximum PoE Power: Port 4 up to 60 W, Ports 1–3 up to 30 W

Maximum Power Supply: 65 W

Dimensions

190 × 131 × 40 mm (W × D × H)

Environment

Working Temperature: 0 °C ~ 40 °C

Storage Temperature: –40 °C ~ 70 °C

Working Humidity: 10%–90% RH (non-condensing)

Storage Humidity: 5%–90% RH (non-condensing)

Safety Compliance

CE, RoHS, FCC
