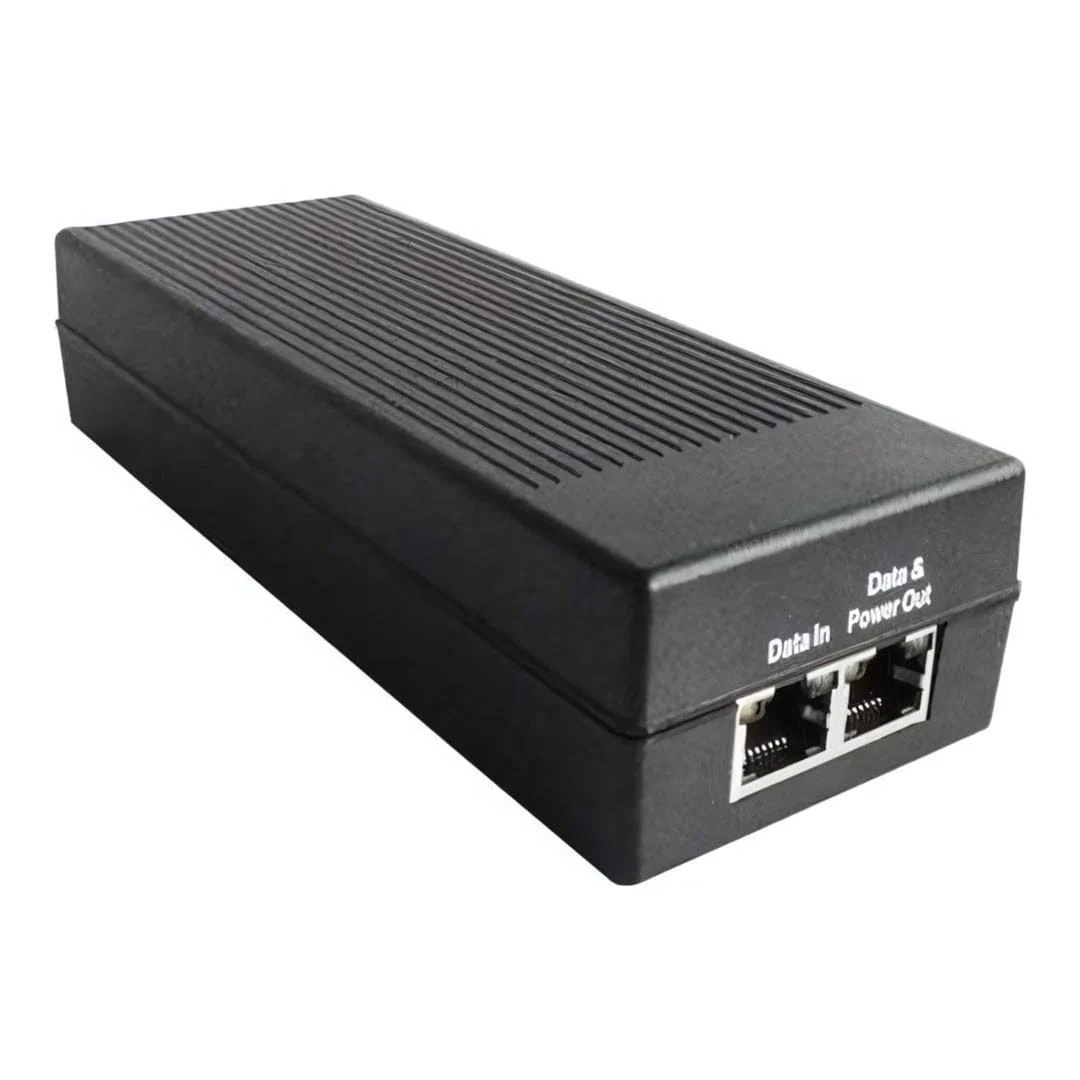

Foredge PSE803 30W Gigabit PoE Injector

Foredge PSE803 30W Gigabit PoE Injector

Is a single -port Gigabit PoE power supply device that fully complies with the IEEE 802. 3af/at/bt standard

Features:

• 1 10/100M/1000M adaptive RJ45 port (Data)
• 1 10/100M10/100M/1000M adaptive RJ45 port (Data&Power) (Auto MDI/MDIX)
• Single port maximum 75W
• 12&36 Transmission of data and electricity

Technical Specifications:

Input Power: 100-240VAC @ 50/60Hz
Transmission Rate: 10/100/1000 Mbps
Transmission Distance: Max 100 meters
PoE Power Supply: Middle jumper method, end jumper method
PoE Output Voltage: 54VDC
PoE Output Power: Max 75W
PoE Pin: 4Pair: 3/6/4/5 (+), 1/2/7/8 (–)
LED Indicator: Power (yellow), PoE (green)
Protection Level: Surge: Common mode of network port ±6KV; Electrostatic (ESD): Air ±8KV, Contact ±6KV

Environmental Specifications:
Working Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Working Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing

Physical Specifications:
Dimensions (L×W×H): 165 × 62 × 38.5 mm
Shell Material: Black ABS fireproof

Install and Use: Plug and play; automatically detects the device and provides the required power

Safety Regulations: CE, FCC, RoHS, CCC
