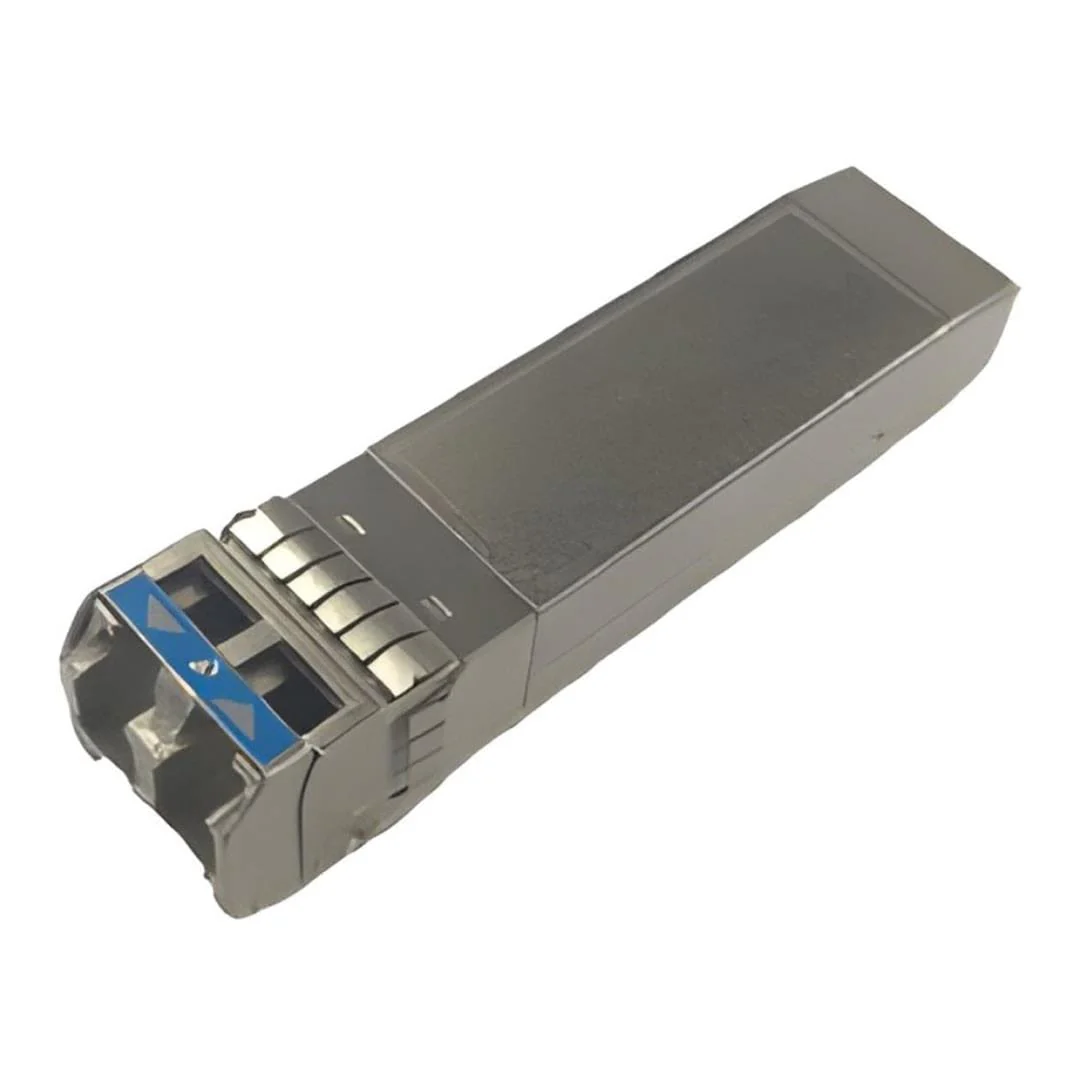

Globalsix Compatible Finisar 10G SFP+ SR MM 850nm 300m LC Transceiver Module 1PFTLX8574D3BCL

Globalsix Compatible Finisar 10G SFP+ SR MM 850nm 300m LC Transceiver Module 1PFTLX8574D3BCL

Globalsix's FTLX8574D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF- 84725. The FTLX8574D3BCL is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module.

Features:

• SFP+ transceiver module
• 10GBase-SR
• up to 1310 ft
• 10 GigE
• LC multi-mode
• 850 nm

Technical Specifications:

Cable Type: Ethernet 10GBase-SR

Connectivity Technology: Wired

Data Link Protocols: 10 Gigabit Ethernet

Data Transfer Rate: 10.5 Gbps

Form Factor: Plug-In Module

Max Transfer Distance: 1310 ft

Optical Wavelength: 850 nm

Product Type: SFP+ Transceiver Module

Interface Provided: 1 × Ethernet 10GBase-SR – LC multi-mode × 2

Left Connector SD Type: LC multi-mode

Max Operating Temperature: 158°F

Min Operating Temperature: 23°F

Packaged Quantity: 1

ENERGY STAR Certified: No

EPEAT Compliant: No

TCO Certified: No
