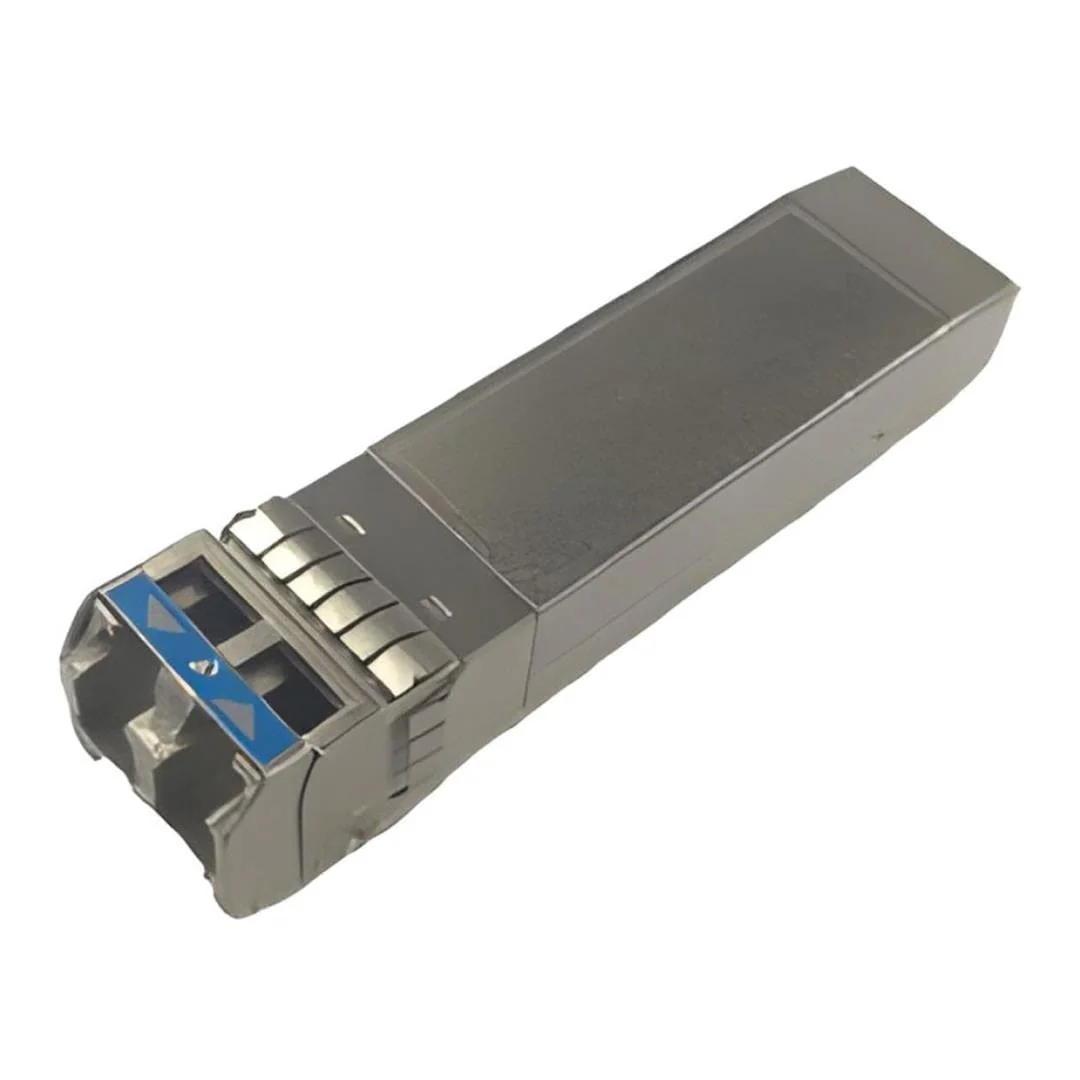

Globalsix Compatible Juniper 1.25G SFP 850nm MM 550m LC Transceiver Module 1PSFP1GESXD

Globalsix Compatible Juniper 1.25G SFP 850nm MM 550m LC Transceiver Module 1PSFP1GESXD

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the VCSEL laser and the PIN photo-detector. The module data link up to 550m in 50/125um multimode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

• Up to 1.25Gb/s data links with DDM
• VCSEL laser transmitter and PIN photo-detector
• Hot-pluggable SFP footprint
• Duplex LC/UPC type pluggable optical interface
• Low power dissipation
• Metal enclosure, for lower EMI
• RoHS compliant and lead-free
• Single +3.3V power supply
• Compliant with SFF-8472
• Case operating temperature Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C

Specifications:

Product: 1.25Gb/s 850nm Multi-mode SFP Transceiver

Data Rate (Mbps): 1250

Media: Multi mode fiber

Wavelength (nm): 850

Transmission Distance(m): 550

Temperature Range(Tcase): 0~70, commercial
