Grandstream Enterprise GWN7670WM In-Wall Wi-Fi 7 Wireless Access Point

Grandstream Enterprise GWN7670WM In-Wall Wi-Fi 7 Wireless Access Point

The GWN7670WM is a new generation enterprise-grade 802.11be IN-Wall Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks.

Features:

• 3.6Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

State-of-the-Art Wi-Fi 7 Connectivity

The GWN7670WM is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

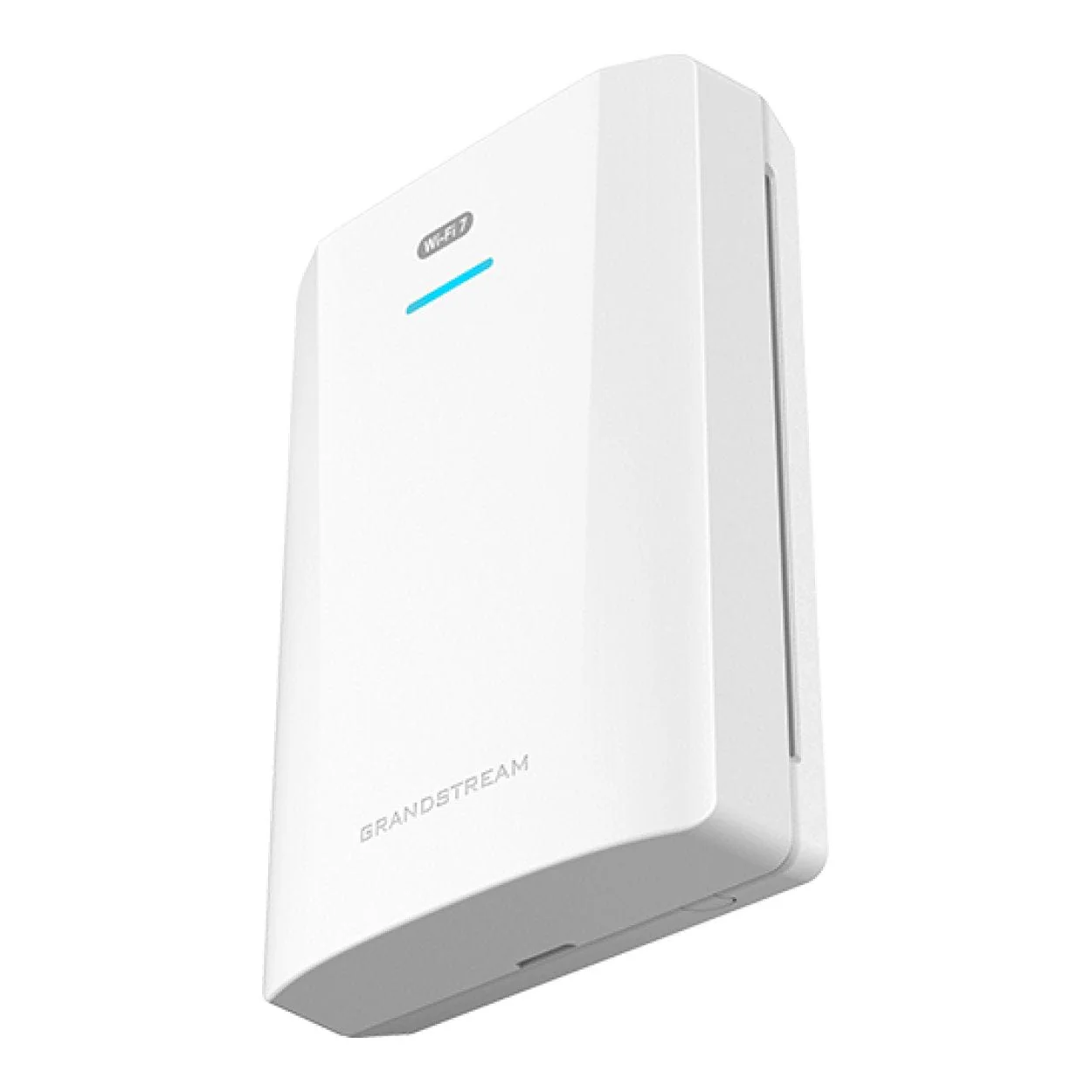

Designed for Seamless Wall Mounting

The GWN7670WM provides clean design and a paintable shell, allowing it to easily match any environment and integrate into any space.

Ideal for Environments with Medium User Density

The GWN7670WM provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6

Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity

Easy and Free Management

Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Technical Specifications:

Client Devices: Up to 256
2.4G Throughput: 688 Mbps (2x2:2 MIMO)
5G Throughput: 2882 Mbps (2x2:2 MIMO)
6G Throughput: N/A
Range: Up to 175 meters
Network Interfaces: 1x 2.5G Ethernet WAN/LAN
PoE/PoE+: Supports PoE 802.3af / 802.3at; Maximum Power Consumption: 15.5W
Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be
SSIDs: 32 total, 16 per radio (2.4GHz & 5GHz)
Antennas: 5 single frequency antennas
Wi-Fi and Security Systems: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3; anti-hacking secure boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device
Dimensions: 150 × 106 × 34.1 mm

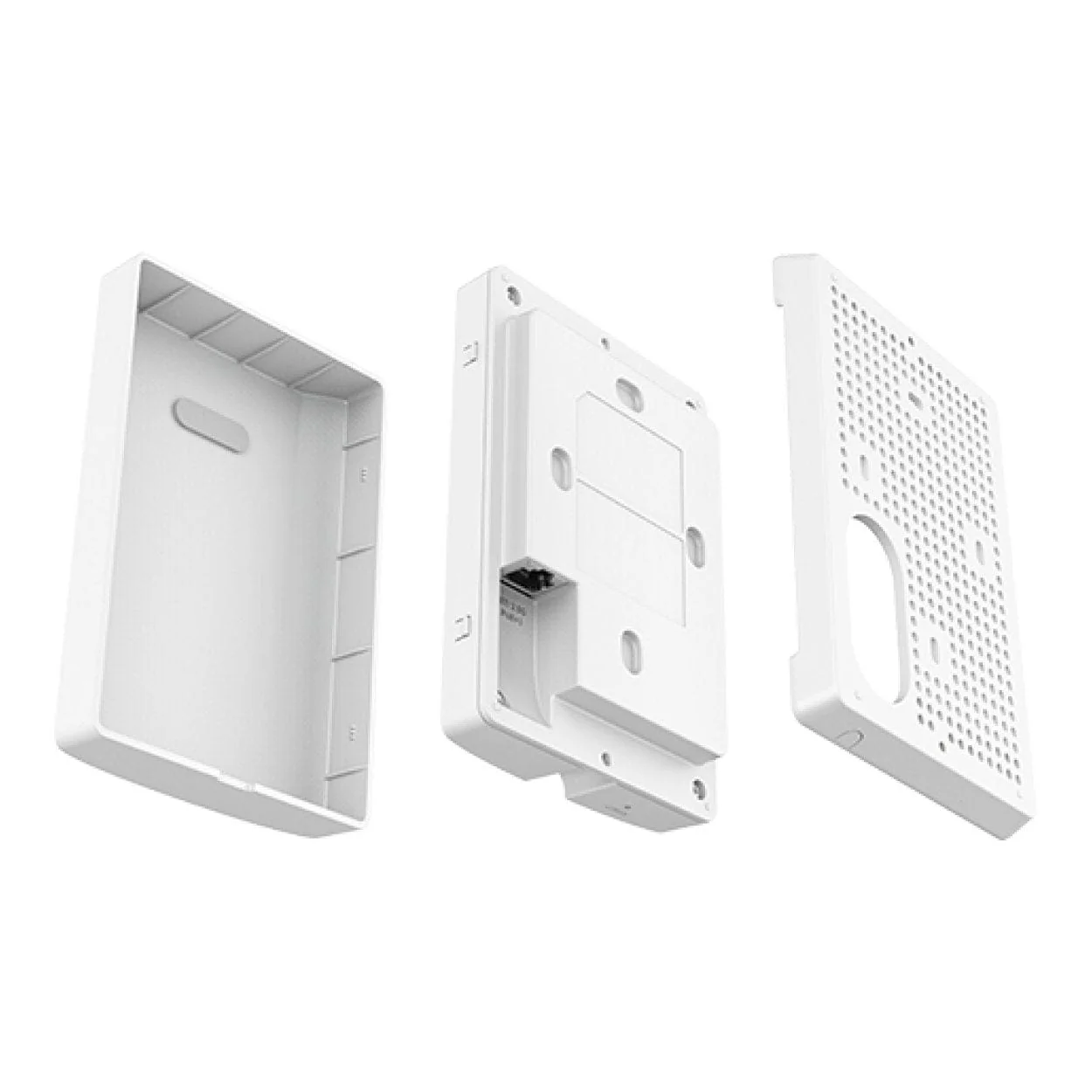

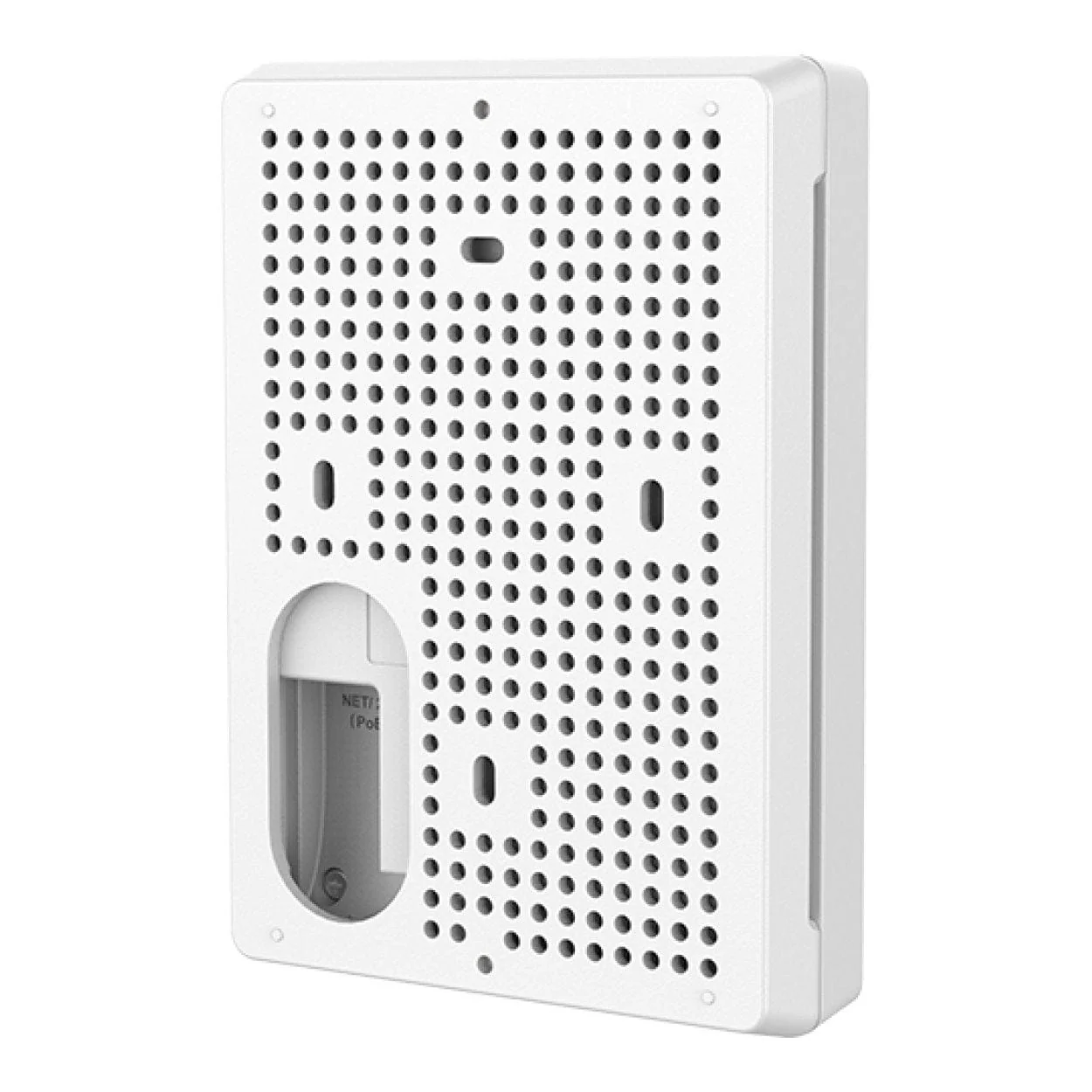

Mounting: Indoor wall mount or ceiling mount, kits included
