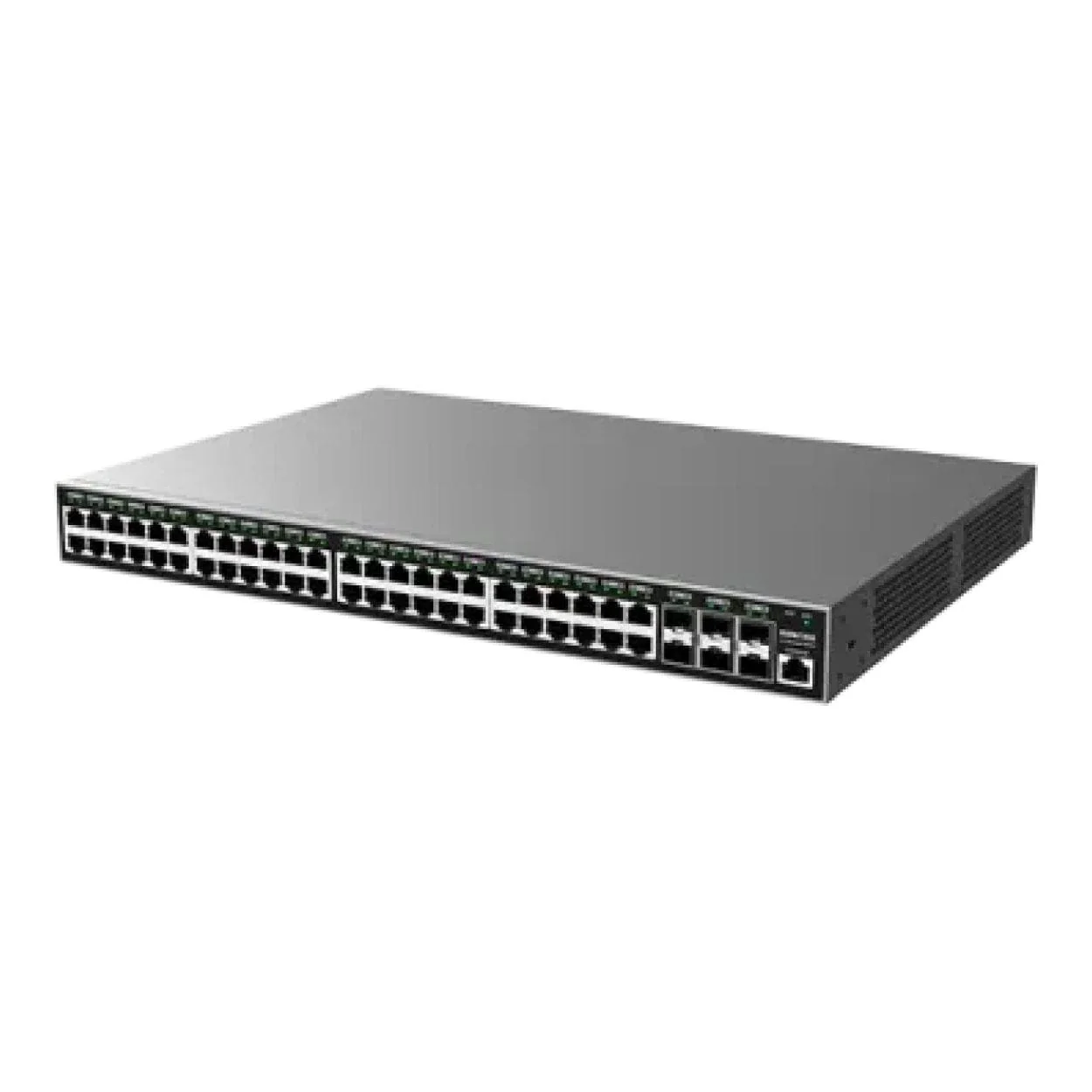

Grandstream Enterprise GWN7806PH Pro 48-port GbE L2++ Managed PoE Switch

Grandstream Enterprise GWN7806PH Pro 48-port GbE L2++ Managed PoE Switch

The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.

Enterprise Layer 2++ Managed Network Switches

The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.

The Next Generation of Grandstream Switches

The new generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

Maximum Network Speeds

With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.

Double the Power and Memory

The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches

Intelligent and Efficient Power Management

Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

Setup in Seconds

Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.

Specifications:

Gigabit RJ45 Ethernet Ports: 48

Gigabit SFP+ Ports: 6

Serial Console Port: 1

Number of PoE Ports: 48

Layer Tier: L2++ with static routing; IPv4/IPv6 unicast

PoE Standard: IEEE 802.3af/at/bt

Auxillary Ports: 1x reset pinhole

Total Non-Blocking Throughput: 108 Gbps

Switching Capability: 216 Gbps

Forwarding Rate: 160.704 Mpps

Packet Buffer: 8.4 Mb

Switch Configuration: Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), 32K MAC addresses

QoS/ACL: Yes

Fan: 4 Fans

Stacking: Yes

Dimensions: 440mm(L) × 300mm(W) × 44mm(H)
