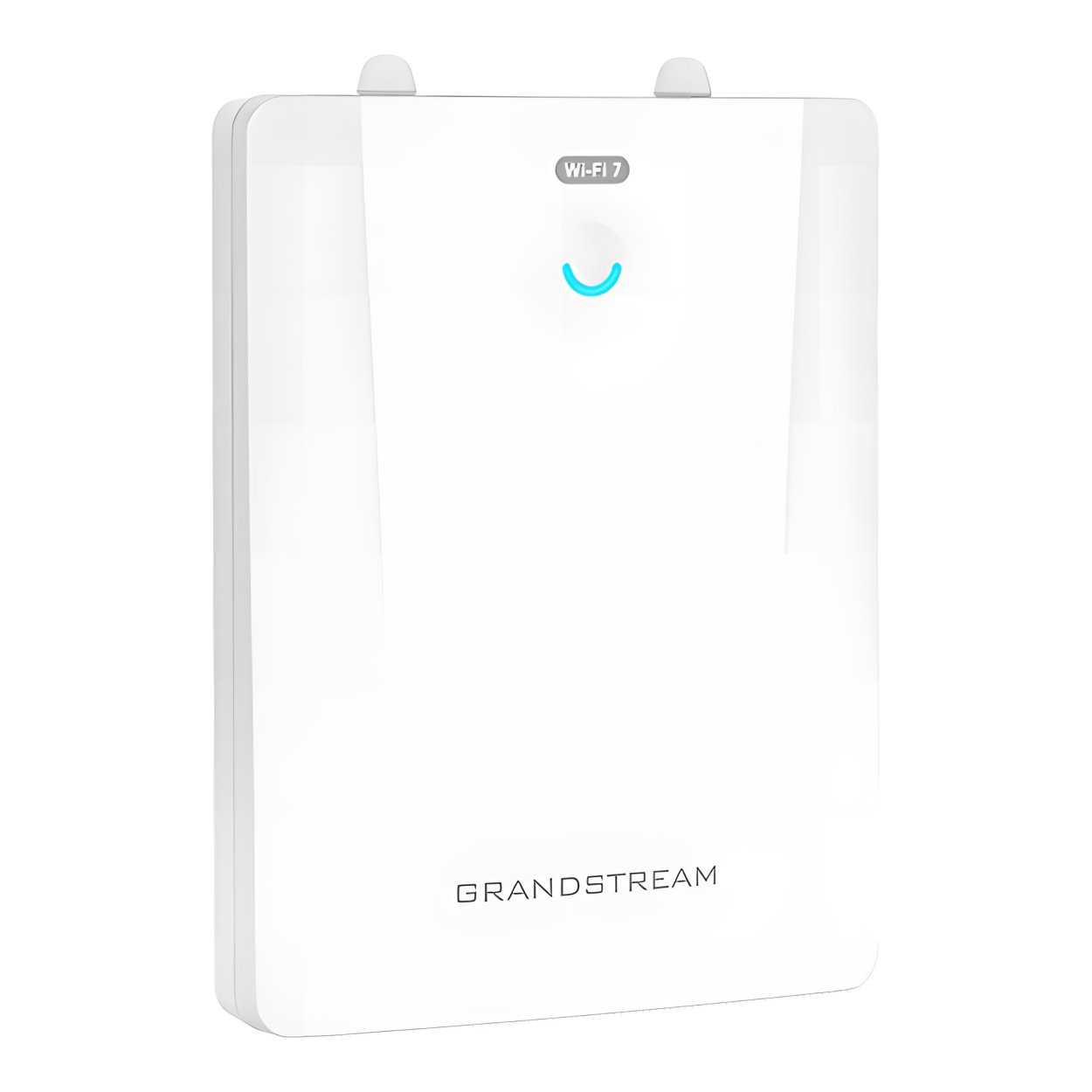

Grandstream GWN7670LR Long-Range Dual-Band Wi-Fi 7 PoE Wireless Access Point

Grandstream GWN7670LR Long-Range Dual-Band Wi-Fi 7 PoE Wireless Access Point

The GWN7670LR is a long-range Wi-Fi 7 access point, ideal for medium-to-large businesses that need to provide long-range coverage.

Features:

• 3.6Gbps aggregate wireless throughput, 2.5Gigabit Ethernet Port, and 2.5Gigabit SFP Port
• Integrated Wi-Fi 7 and Dual band 2x2:2 MIMO with DL/UL OFDMA technology
• Up to 350-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

State-of-the-Art Wi-Fi 7 Connectivity

The GWN7670LR is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

Ideal for Environments with Medium User Density

The GWN7670LR provides speeds up to 3.6Gbps while supporting up to 256 clients per AP, making it ideal for environments with medium user density.

Twice as Fast as Wi-Fi 6

Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.

Easy and Free Management

Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Free Network Management Options

GDMS Networking

GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

GWN Manager

GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

Embedded Controller

Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

Technical Specifications:

Client Devices
Maximum Supported: 256

Range
350 Meters

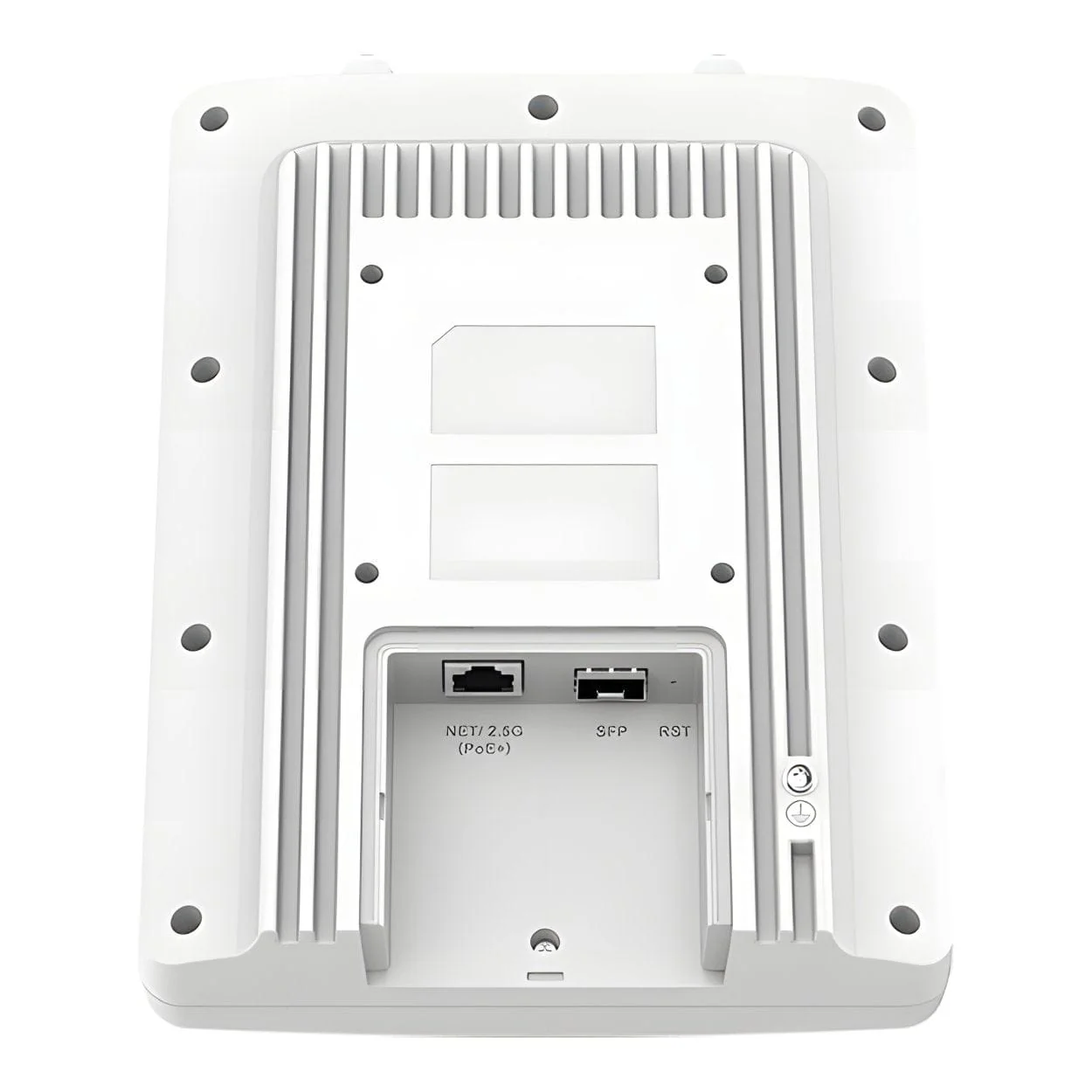

Network Interfaces

• 1 x 2.5G Ethernet WAN/LAN, RJ-45, PoE input
• 1 x 2.5G SFP

PoE/PoE+
Supports PoE 802.3at
Maximum Power Consumption: 15.5 W

Wi-Fi Throughput
2.4 GHz: 688 Mbps (2x2:2 MIMO)
5 GHz: 2882 Mbps (2x2:2 MIMO)

Wi-Fi Standards
IEEE 802.11 b/g/n/ac/ax/be

SSIDs
32 total, 16 per radio

Antennas
2.4 GHz: Directional internal 8 dBi / External omni 3.5 dBi
5 GHz: Directional internal 13.5 dBi / External omni 3.5 dBi
Bluetooth: 5.0 dBi

Wi-Fi and Security Systems
Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3
Anti-hacking secure boot and critical data/control lockdown via digital signatures
Unique security certificate and random default password per device
MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules
Rogue AP detection and containment, ARP attack defense, ND attack defense

Dimensions (W x D x H)
223.2 mm x 169.9 mm x 53.9 mm
