Grandstream High-Performance Tri-Band Wi-Fi 7 Access Point GWN7674

Grandstream High-Performance Tri-Band Wi-Fi 7 Access Point GWN7674

High-Performance Tri-Band Wi-Fi 7 Access Point

The GWN7674 is a powerful enterprise-grade Wi-Fi 7 access point that provides wireless speeds up to 21Gbps (BE21000), ideal for medium-sized businesses and large enterprises with medium to high user density.

• 21Gbps aggregate wireless throughput, 12.5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 4x4:4 MU-MIMO on 5G and 6G band and 2x2:2 MU-MIMO on 2.4G band with MLO, 4KQAM, MRU, Premable Puncturing Technology
• Up to 175-meter coverage range
• Supports 768 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE++
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

State-of-the-Art Wi-Fi 7 Connectivity

The GWN7674 is built on Wi-Fi 7, which provides faster speeds, lower latency, and increased capacity compared to previous Wi-Fi standards.

Tri-Band Maximizes Speeds and Clients

The GWN7674 provides three bands to fully utilize spectrum resources while maximizing device support and speeds.

Ideal for Demanding Environments

The GWN7674 provides speeds up to 21Gbps while supporting up to 768 clients per AP, making it an ideal solution for high-usage environments.

High-Performance, Maximum Efficiency

Devices can connect on multiple bands to ensure that high-priority data gets transmitted without delay while providing faster speeds through aggregation.

Twice as Fast as Wi-Fi 6

Wi-Fi 7 channels are twice the size of Wi-Fi 6 channels, allowing Grandstream’s Wi-Fi 7 APs to provide maximum speeds and capacity.

Easy and Free Management

Manage Grandstream Wi-Fi APs for free from the cloud (GDMS), software (GWN Manager), app (GDMS app), and the AP itself using its built-in controller.

Specifications:

Client Devices: 768

2.4G Throughput: 688Mbps (2x2:2 MU-MIMO)

5G Throughput: 8647Mbps (4x4:4 MU-MIMO)

6G Throughput: 11529Mbps (4x4:4 MU-MIMO)

Range: Up to 175 Meters

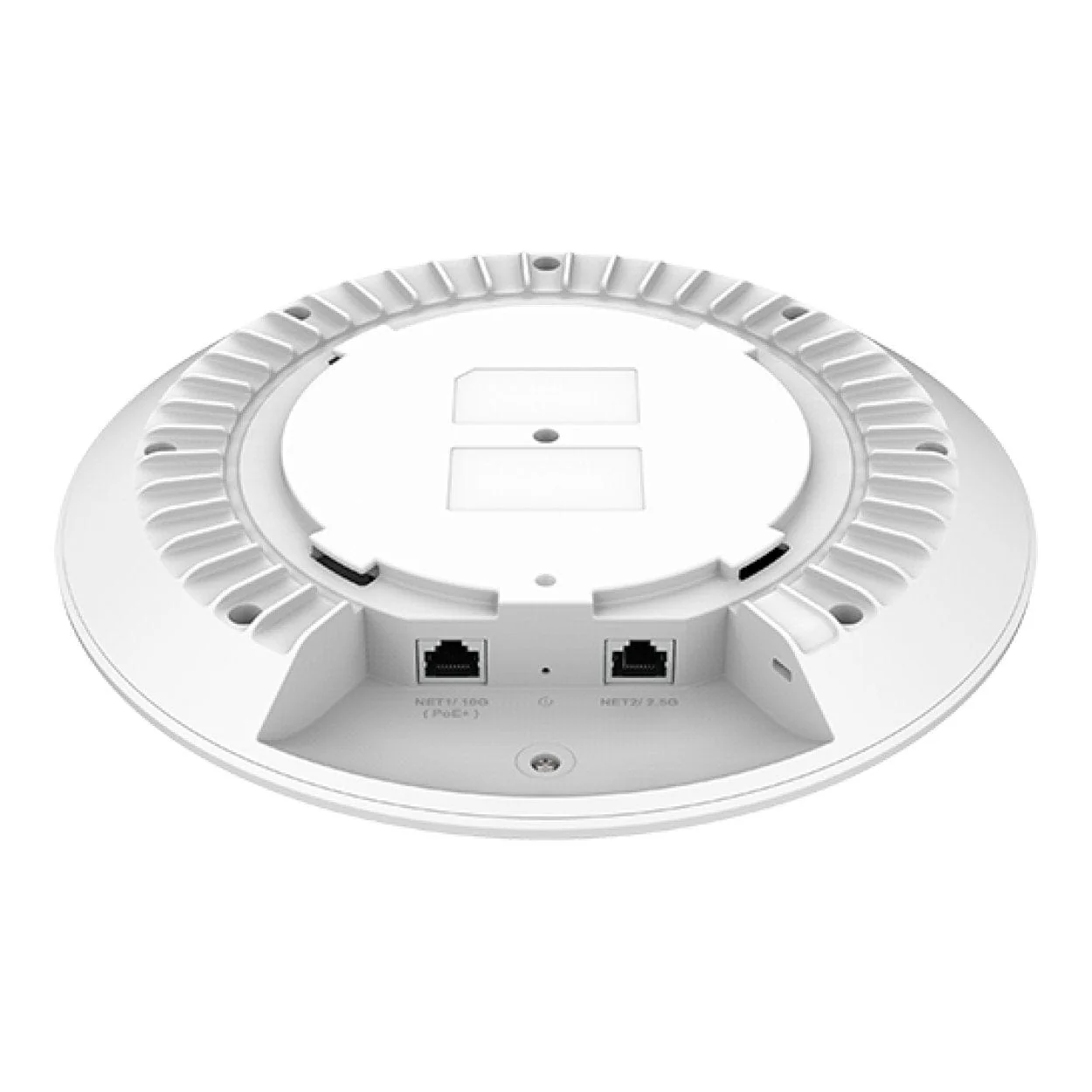

Network Interfaces: 1x 10G Ethernet WAN/LAN, 1x 2.5G Ethernet WAN/LAN

PoE/PoE+: Supports PoE 802bt; Maximum Power Consumption: 36W

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be

SSIDs: 48 SSIDs total, 16 per radio (2.4GHz, 5GHz, and 6GHz)

Antennas: 12 single built-in antennas

Wi-Fi and Security Systems: Open system, OSEN, WPA2-PSK (personal), WPA2-802.1x (enterprise), WPA3-SAE (personal), WPA3-802.1x (enterprise), WPA/WPA2, WPA2/WPA3, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, MAC filtering, Client isolation, OS filtering, Inbound/outbound traffic rules, Rogue AP detection and containment, ARP attack defense, ND attack defense

Dimensions: 250mmx250mmx54.5mm

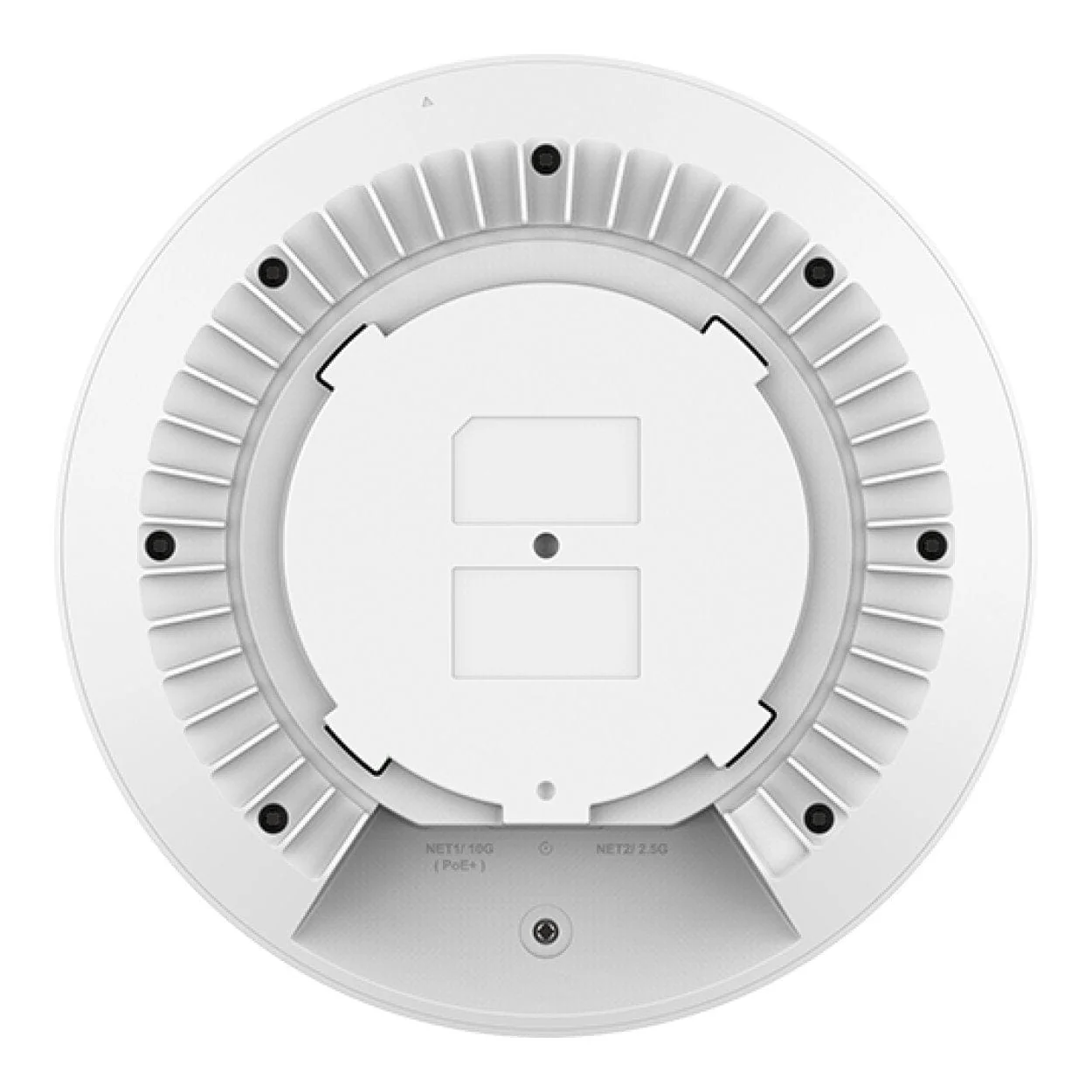

Mounting: Indoor wall mount or ceiling mount, kits included
