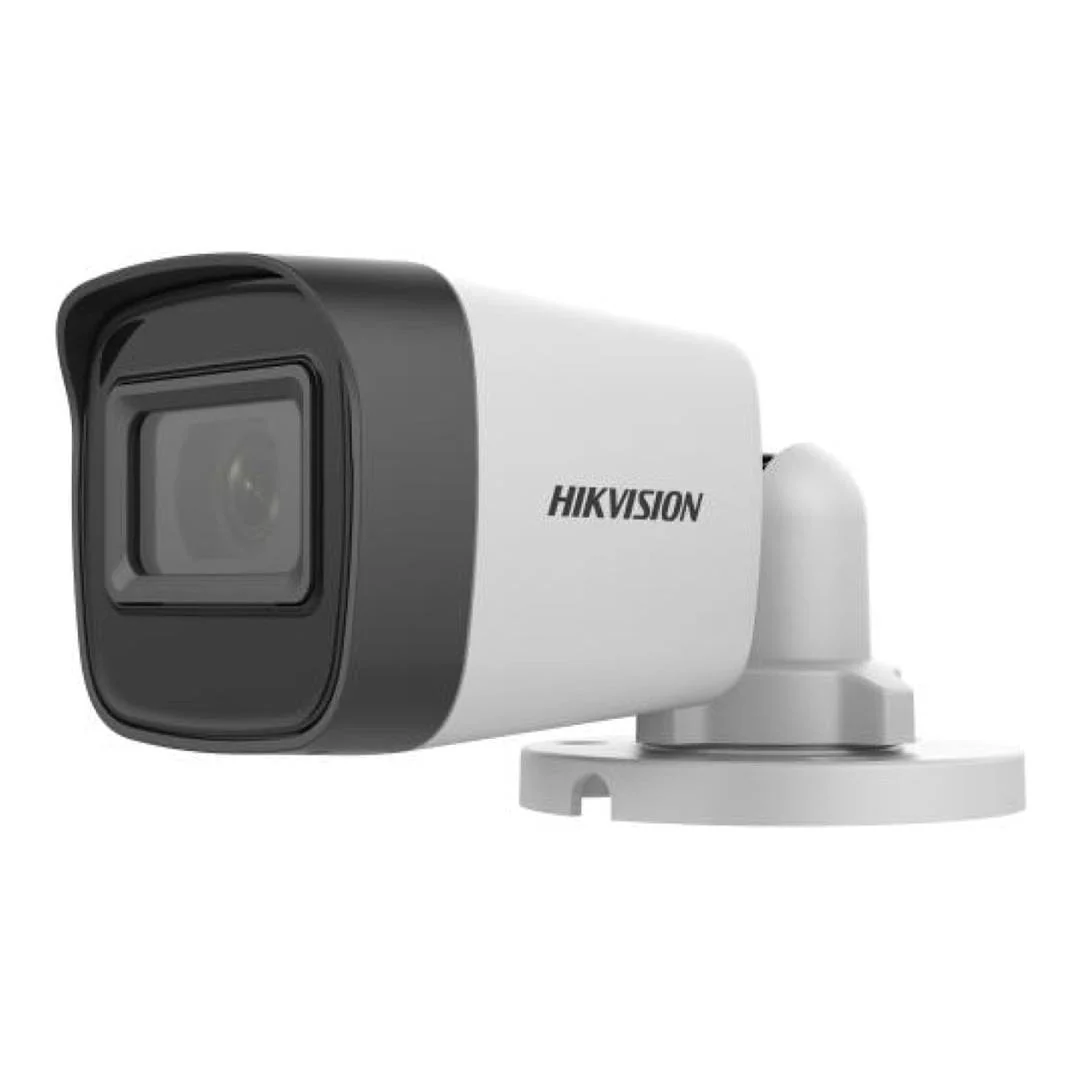

Hikvision 2MP 3.6mm Fixed Mini Bullet Camera DS-2CE16D0T-EXIF(3.6mm)

Hikvision 2MP 3.6mm Fixed Mini Bullet Camera DS-2CE16D0T-EXIF(3.6mm)

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 2.8 mm, 3.6 mm fixed lens
• Up to 20 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Technical Specifications:

CAMERA
Image Sensor: 2 MP CMOS
Signal System: PAL/NTSC
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: IR Cut Filter
Angle Adjustment: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°

LENS
Lens Type: 2.8 mm / 3.6 mm Fixed Lens
Focal Length & FOV:

• 2.8 mm: H 96.5°, V 48.9°, D 120.5°
• 3.6 mm: H 76.9°, V 40.6°, D 92.0°
• Lens Mount: M12

ILLUMINATOR
Supplement Light Range: Up to 20 m

Frame Rate:

• TVI: 1080p @ 25/30fps
• AHD: 1080p @ 25/30fps
• CVI: 1080p @ 25/30fps
• CVBS: PAL/NTSC
• Wide Dynamic Range (WDR): Digital WDR
• Image Parameters Switch: STD / HIGH-SAT
• Day/Night Mode: Auto / Color / B&W
• White Balance: Auto
• Image Enhancement: DWDR, BLC, Global
• Noise Reduction: 2D DNR
• Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC

INTERFACE
Video Output: Switchable TVI/AHD/CVI/CVBS

GENERAL
Language: English
Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity ≤ 90% (non-condensing)
Material: Metal
Communication: HIKVISION-C
Dimensions: 138.8 × 60.9 × 57.9 mm (5.465" × 2.389" × 2.278")
Weight: Approx. 260 g (0.57 lb)

POWER
Power Supply: 12 VDC ± 25%
Power Consumption: Max. 3.3 W

APPROVAL
Protection: IP67
