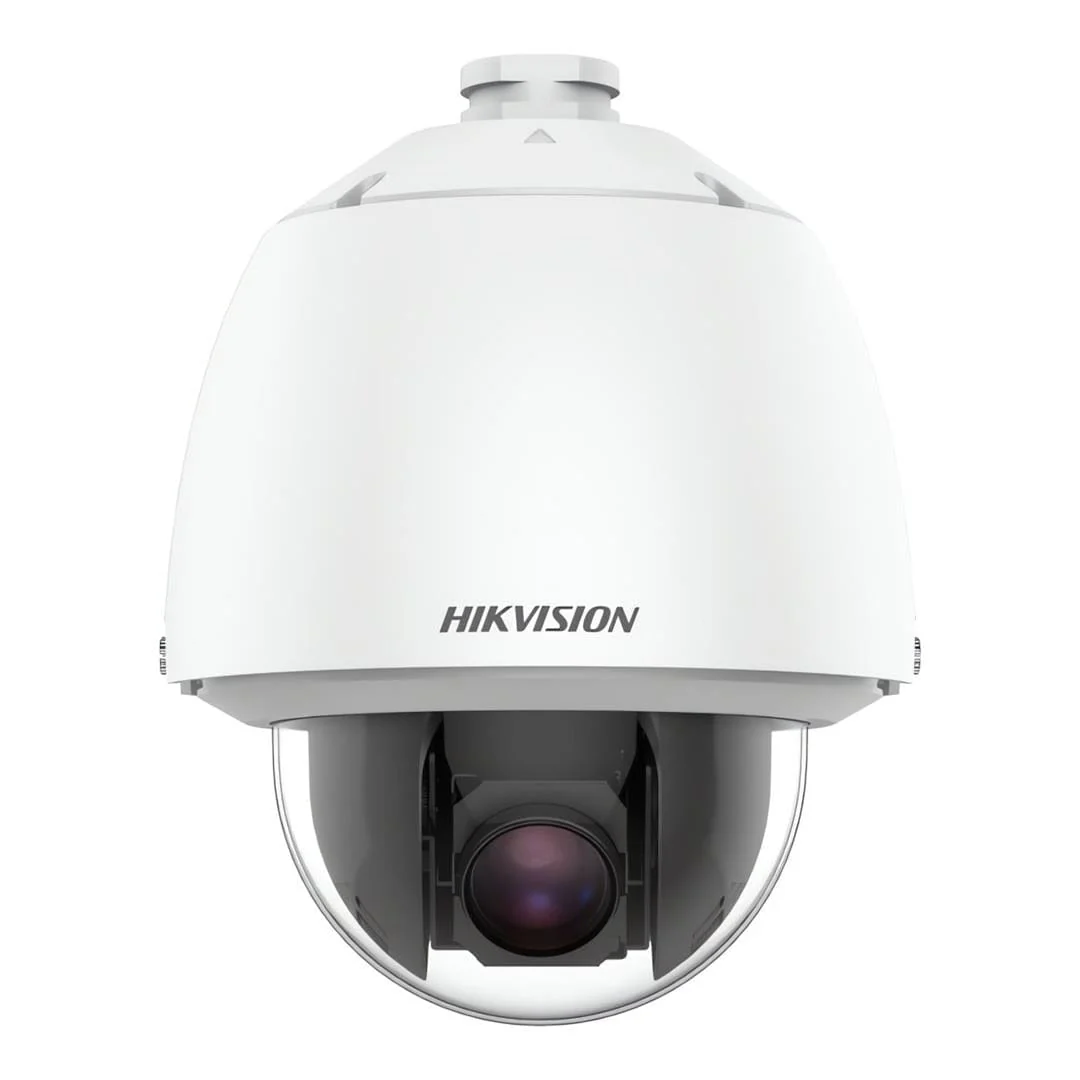

Hikvision 2MP 32X Powered by DarkFighter Network Speed Dome DS-2DE5232W-AE

Hikvision 2MP 32X Powered by DarkFighter Network Speed Dome DS-2DE5232W-AE

Features

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 32x optical zoom allows for closer viewing of subjects in expansive areas
• Water and dust resistant (IP66) and vandal resistant (IK10)
• TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Technical Specification

Image Sensor: 1/2.8" progressive scan CMOS

Max. Resolution: 1920 × 1080

Focal Length: 4.8 mm to 153 mm, 32× optical zoom

Digital Zoom: 16×

FOV

• Horizontal field of view: 55.6° to 2.04° (Wide-Tele)
• Vertical field of view: 32.4° to 1.14° (Wide-Tele)
• Diagonal field of view: 63° to 2.34° (Wide-Tele)

Zoom Speed: Approx. 5.6 s (optical lens, wide-tele)

Working Distance: 10 mm to 1500 mm (wide-tele)

Focus Mode: Auto / Semi-automatic / Manual

Movement Range (Pan): 360° endless

Pan Speed: Configurable, from 0.1°/s to 250°/s, Preset speed: 300°/s

Movement Range (Tilt): From -5° to 90° (auto-flip)

Tilt Speed: Configurable, from 0.1°/s to 150°/s,Preset Speed: 200°/s

Proportional Zoom: Support

Alarm Output: 1-ch alarm output

Alarm Input: 2-ch alarm input

Audio Input: 1-ch audio input

Audio Output: 1-ch audio output

Network Interface: 1x RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)

Power: 24 VAC or PoE+ (802.3 at, class4), Max.: 22 W

• Please note: Power supply is not included
