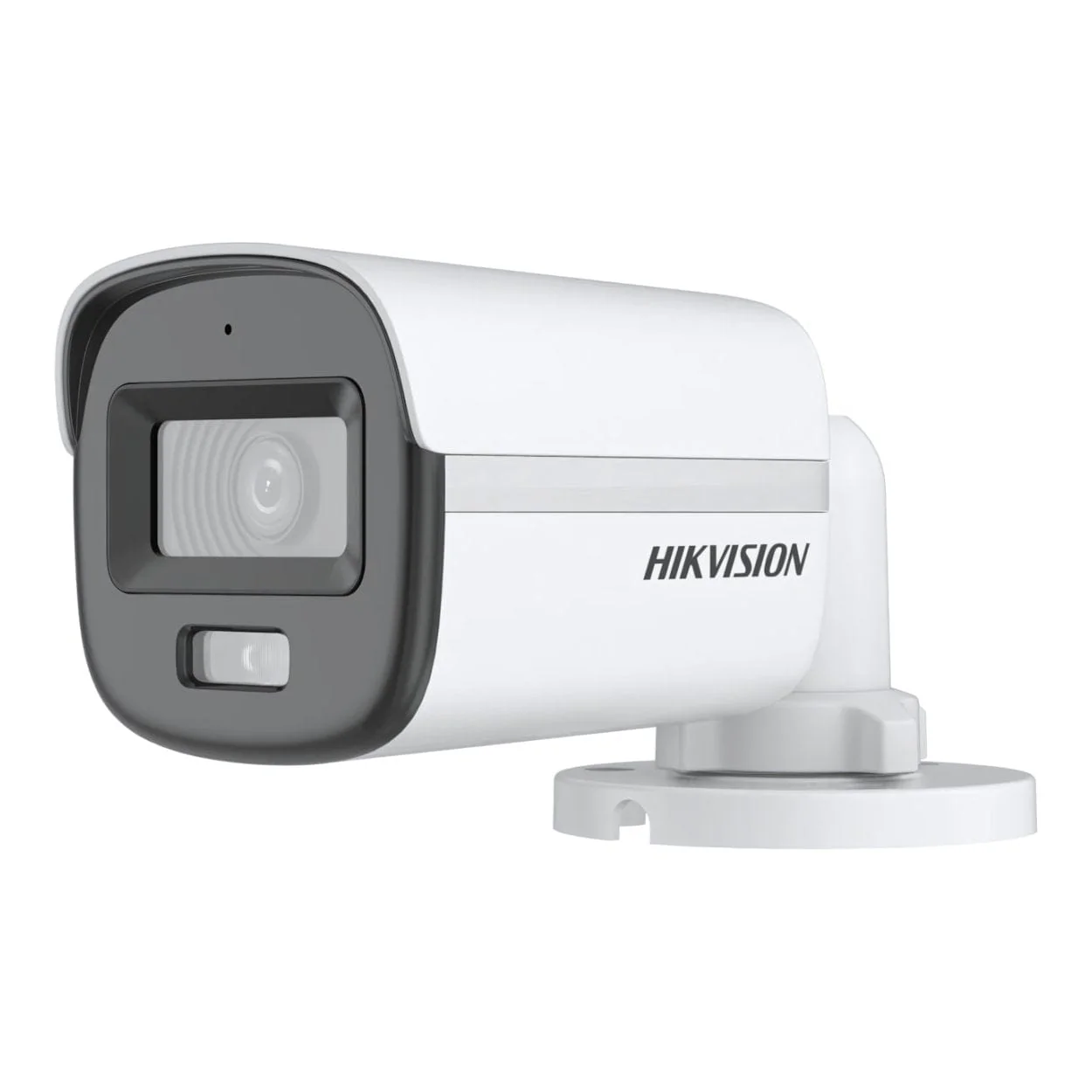

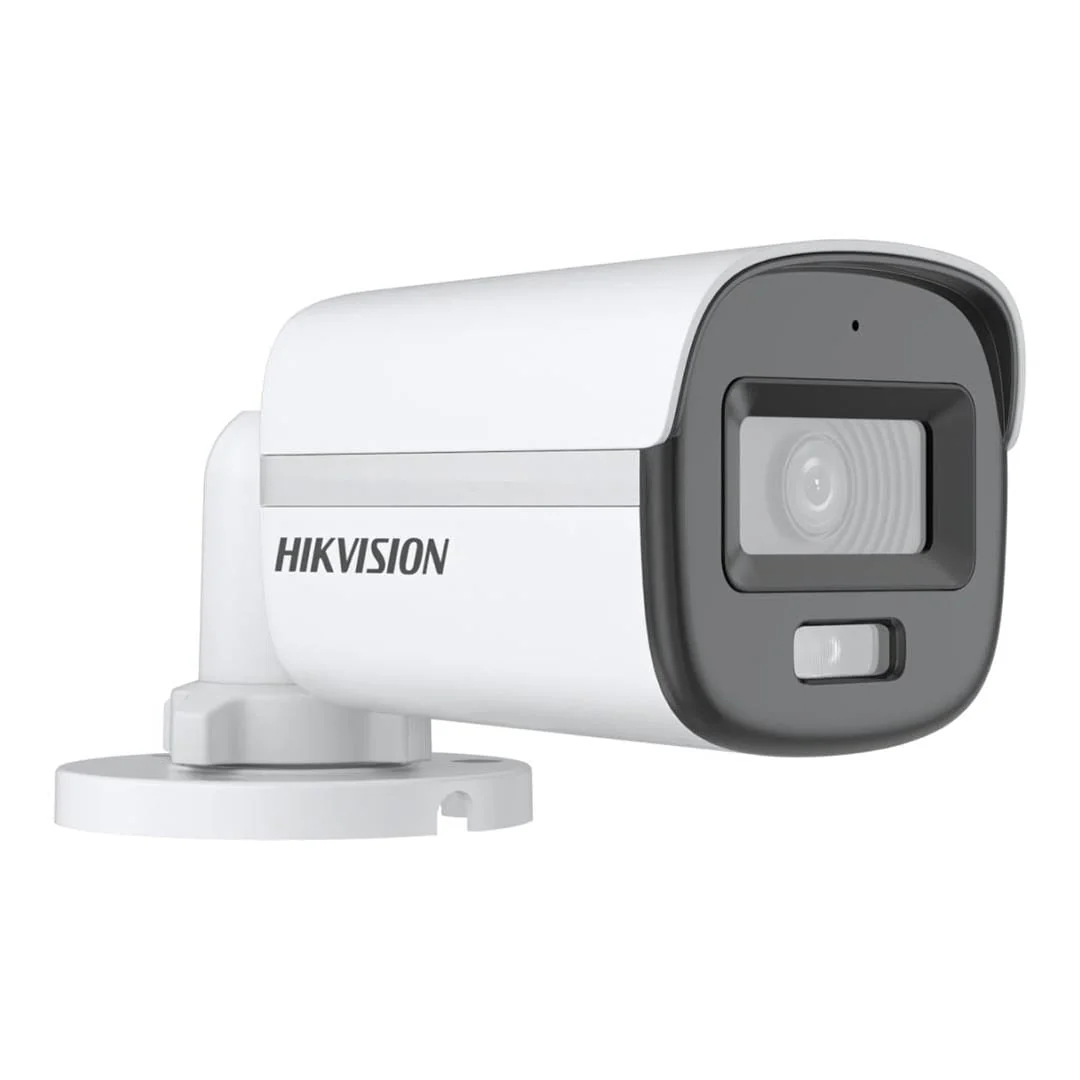

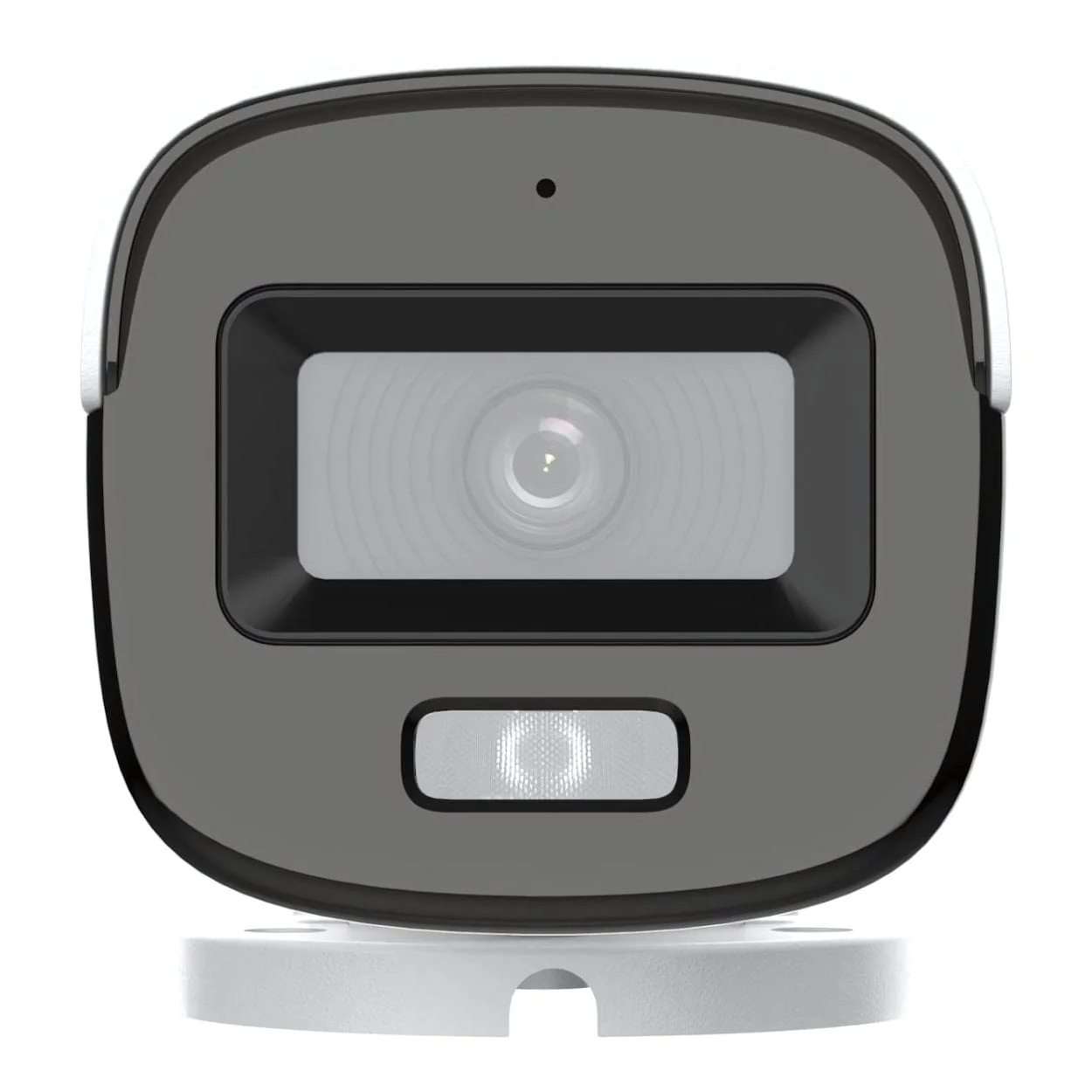

Hikvision 2MP ColorVu Audio Fixed Mini Bullet Camera DS-2CE10DF0T-PFS(2.8mm)

Hikvision 2MP ColorVu Audio Fixed Mini Bullet Camera DS-2CE10DF0T-PFS(2.8mm)

The Hikvision DS-2CE10DF0T-PFS (2.8 mm) is a 2 MP ColorVu fixed mini bullet camera designed to deliver high-quality imaging with 1920 × 1080 resolution. Featuring an F1.0 large aperture and advanced sensor technology, it provides vivid full-color images even in extremely low-light environments. The built-in warm supplemental light extends visibility up to 20 meters, ensuring clear details at night without infrared.

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

This model includes a fixed 2.8 mm lens offering a wide 105° field of view, with an optional 3.6 mm lens available. Integrated audio is supported via a built-in microphone, transmitting sound over coaxial cable for efficient installation. Multiple video formats are available with TVI, AHD, CVI, and CVBS switchable outputs, providing flexibility for different systems.

Engineered with 3D DNR for noise reduction and digital image enhancements, the DS-2CE10DF0T-PFS maintains sharp image quality across varied environments. The durable IP67-rated housing ensures reliable outdoor performance, protecting the camera against water and dust for long-term operation in challenging conditions.

Technical Specifications:

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL 1/25–1/50,000 s, NTSC 1/30–1/50,000 s
• Angle Adjustment: Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°
• Signal System: PAL/NTSC

Lens

• Type: Fixed, 2.8 mm / 3.6 mm
• FOV: 2.8 mm – H: 105°, V: 55°, D: 125° / 3.6 mm – H: 84°, V: 45°, D: 99°
• Mount: M12

Illuminator

• Light: White Light
• Range: Up to 20 m
• Smart Supplement: Yes


• Modes: STD / HIGH-SAT / HIGHLIGHT
• Settings: Brightness, Sharpness, Anti-banding, AGC
• Frame Rate: TVI/CVI/AHD – 1080p @ 25/30 fps, CVBS – PAL/NTSC
• Day/Night: Color
• WDR: Digital WDR
• Enhancement: DWDR, BLC, HLC, Global
• Noise Reduction: 2D/3D DNR
• White Balance: Auto / Manual

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

Alarm

• Solid Light Alarm: White Light

General

• Material: Plastic
• Power: 12 VDC ± 25%, max. 2 W (1 adapter per camera recommended)
• Dimensions: 161.1 × 68.4 mm (6.34" × 2.69")
• Weight: Approx. 389 g (0.86 lb.)
• Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), ≤90% RH (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Protection: IP67
