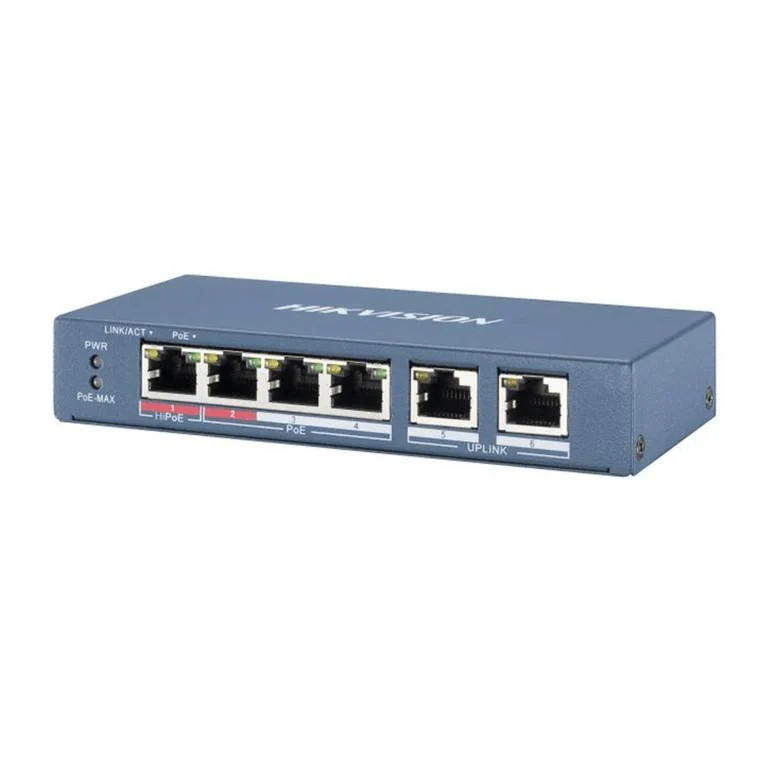

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E
HomeStore

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E

$15.16

Original: $50.54

-70%
Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E—

$50.54

$15.16

The Story

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E

Features

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Technical Specification

Ports: 4x 10/100Mbps (Fast Ethernet) PoE port, 2x 10/100Mbps (Fast Ethernet) RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1.20 Gbps
Packet Forwarding Rate: 0.89 Mpps
Internal Cache: 768 Kbits
PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
  • Hi-PoE: Port 1
  • PoE: Ports 2 to 4
Max. Port Power
  • Port 1: 60 W
  • Ports 2 to 4: 30 W
PoE Power Budget: 60 W
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Power Consumption In Idle: 5 W
Installation Mode: Desk-Mounted, Wall-Mounted
Surge Protection: 6 KV
Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Hikvision 4-port FE PoE Unmanaged Switch with 2x FE Uplink Ports DS-3E0106HP-E

Features

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Technical Specification

Ports: 4x 10/100Mbps (Fast Ethernet) PoE port, 2x 10/100Mbps (Fast Ethernet) RJ45 port
MAC Address Table: 2 K
Switching Capacity: 1.20 Gbps
Packet Forwarding Rate: 0.89 Mpps
Internal Cache: 768 Kbits
PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port
  • Hi-PoE: Port 1
  • PoE: Ports 2 to 4
Max. Port Power
  • Port 1: 60 W
  • Ports 2 to 4: 30 W
PoE Power Budget: 60 W
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Power Consumption In Idle: 5 W
Installation Mode: Desk-Mounted, Wall-Mounted
Surge Protection: 6 KV
