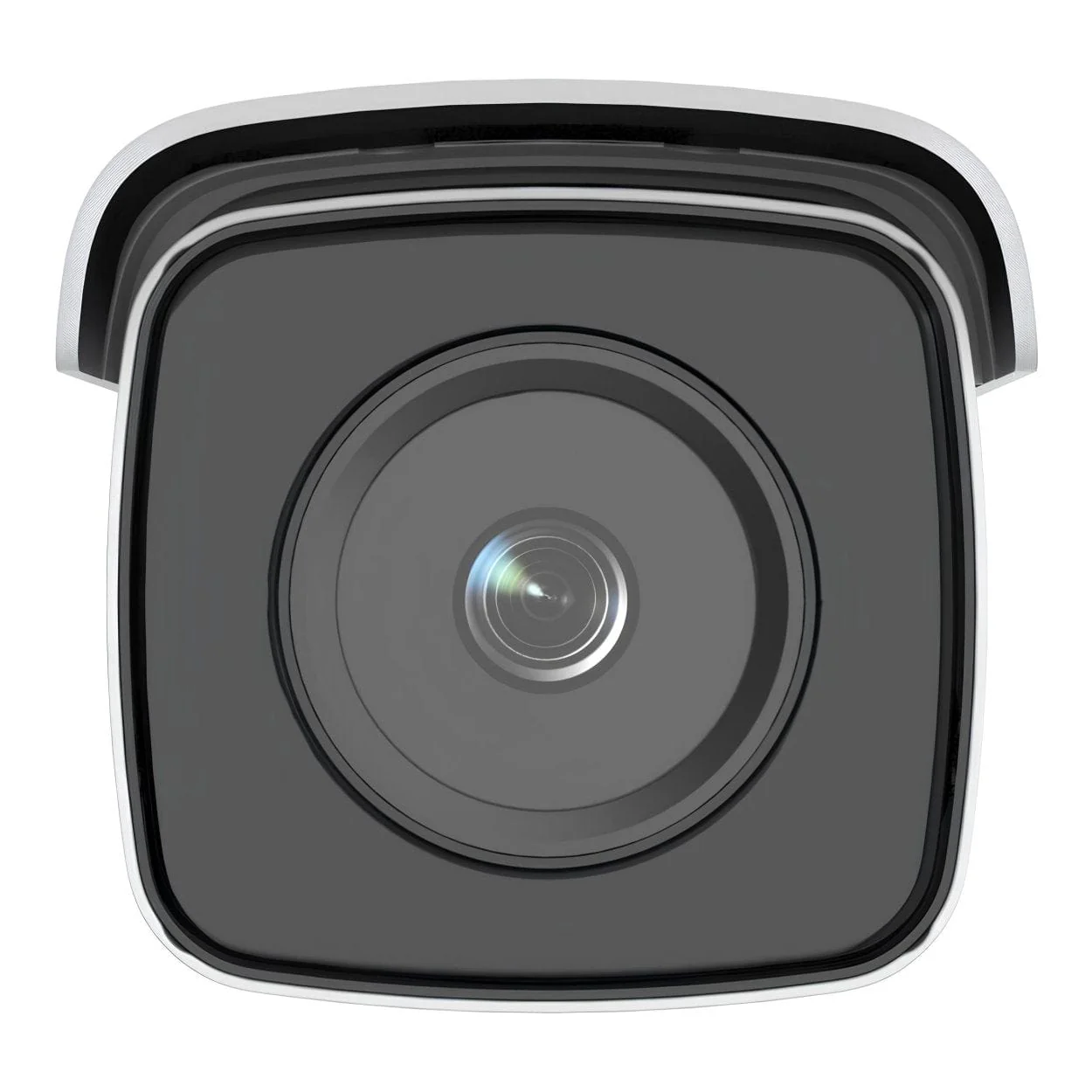

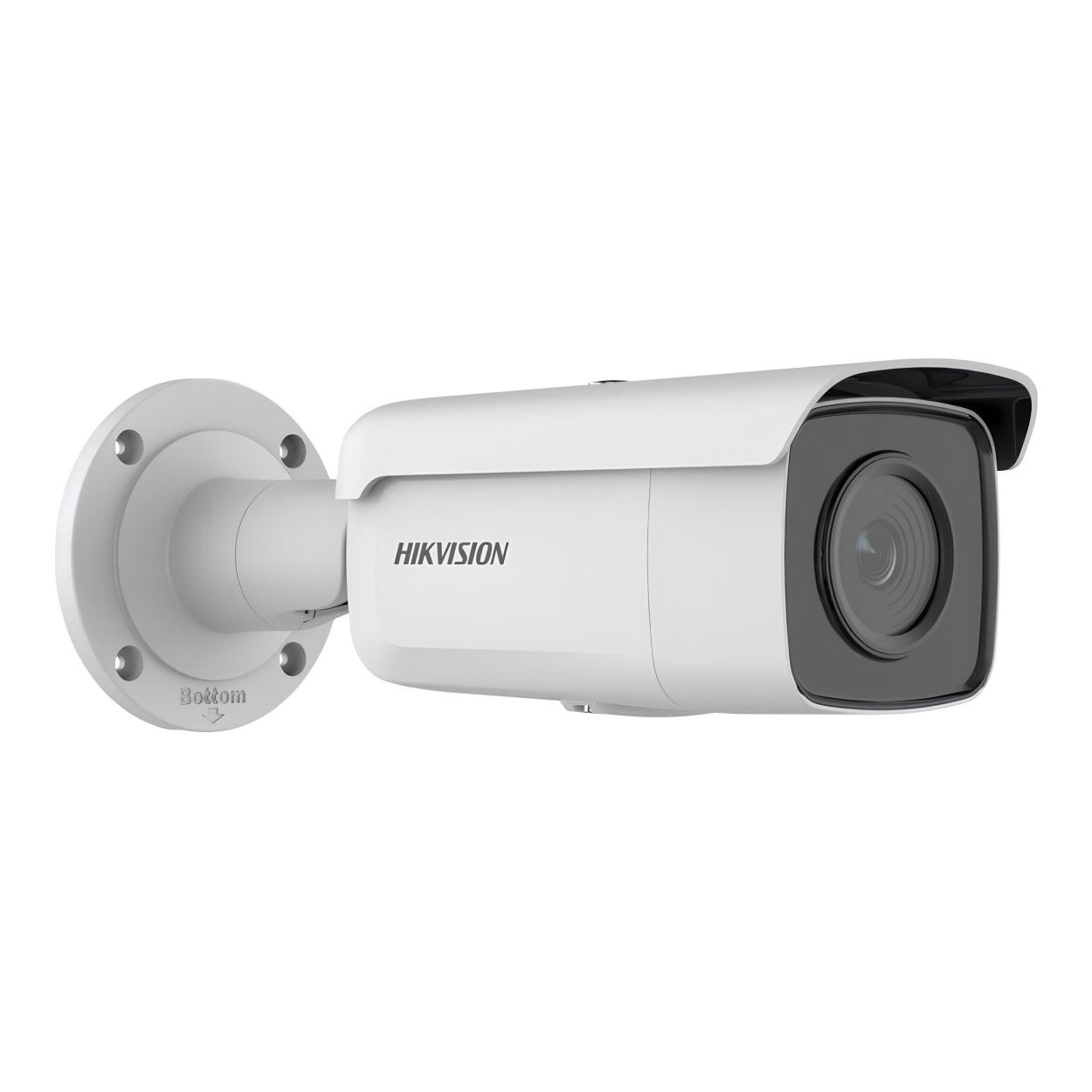

Hikvision 4MP 4mm AcuSense Fixed Bullet Network Camera Powered by DarkFighter DS-2CD2T46G2-2I(4mm)

Hikvision 4MP 4mm AcuSense Fixed Bullet Network Camera Powered by DarkFighter DS-2CD2T46G2-2I(4mm)

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Features:

• High quality imaging with 4MP resolution
• 1/3" Progressive Scan CMOS Image Sensor
• 2688 x 1520 Max. Resolution
• 4mm Fixed focal lens
• Horizontal FOV 83°, Vertical FOV 45°, Diagonal FOV 98°
• D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
• Excellent low-light performance with powered-by-DarkFighter technology
• Supplement Light TypeIR
• Up to 60m Supplement Light Range
• 850nm IR Wavelength
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)
• 1x RJ45 10/100Mbps self-adaptive Ethernet port
• 12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection ; PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 103°, Vertical FOV 55°, Diagonal FOV 123°
• 4 mm: Horizontal FOV 83°, Vertical FOV 45°, Diagonal FOV 98°
• 6 mm: Horizontal FOV 53°, Vertical FOV 28°, Diagonal FOV 62°

Lens Mount: M12
Iris Type: Fixed
Aperture: F1.4

DORI

• 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
• 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
• 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator
Supplement Light Type: IR
Supplement Light Range:

• 2I: Up to 60 m
• 4I: Up to 80 m

Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Third stream supported under certain settings.
Video Compression:

• Main stream: H.265 / H.264 / H.265+ / H.264+
• Sub-stream: H.265 / H.264 / MJPEG
• Third stream: H.265 / H.264

Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile / Main Profile / High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR / VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users, 3 user levels: administrator, operator, user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
(Supports high-end Hikvision memory card, memory card encryption, and health detection)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Reset Key: Yes

Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function: Face Capture: Yes

General
Power:

• 2I: 12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
• 4I: 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W

Dimension: Ø105 mm × 289.5 mm (Ø4.1" × 11.4")
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight: Approx. 1075 g (2.4 lb.)
With Package Weight: Approx. 1584 g (3.5 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% (non-condensing)
Language: 33 languages

General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1)
Environment: CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)
