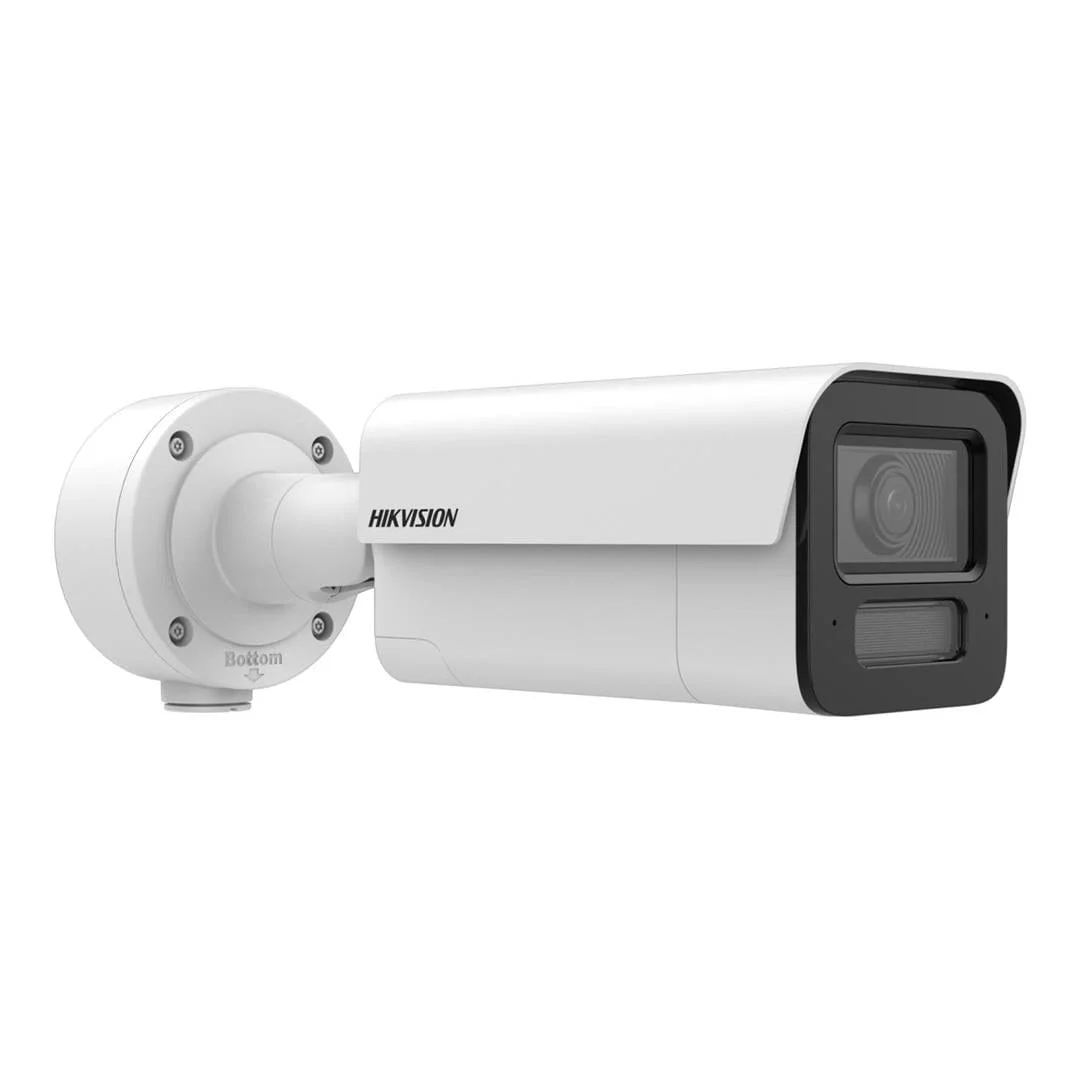

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection IDS-2CD5T47G2/V-XHSY(4MM)

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection IDS-2CD5T47G2/V-XHSY(4MM)

Features:

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter2.0 technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
• Built-in front window heater to ensure clear image under rainy or snowy weather
• Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Technical Specifications:

Image Sensor

• 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination:
  • Color: 0.0014 Lux @ (F1.0, AGC ON)
  • B/W: 0.0005 Lux @ (F1.0, AGC ON)
• 0 Lux with IR / light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter, blue glass module (less ghost phenomenon)

Lens Options

• 2.8 mm: FOV H 104° / V 54° / D 127°
• 4 mm: FOV H 89° / V 46° / D 108°
• Iris: Fixed | Aperture: F1.0

DORI (EN 62676-4)

• 2.8 mm: Detect 61 m, Observe 24 m, Recognize 12 m, Identify 6 m
• 4 mm: Detect 75 m, Observe 30 m, Recognize 15 m, Identify 7 m

Illuminator

• Supplement Light: IR & White Light
• Range: Up to 80 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps @ 2688×1520, 2560×1440, 1920×1080, 1280×720
• 60 Hz: 30 fps same resolutions

Sub-Stream:

• 50 Hz: 25 fps @ 1280×720, 704×576, 640×480
• 60 Hz: 30 fps @ 1280×720, 704×480, 640×480

Third Stream:

• 50 Hz: 25 fps up to 1920×1080
• 60 Hz: 30 fps up to 1920×1080

Compression

• Main: H.265+/H.265/H.264+/H.264
• Sub: H.265/H.264/MJPEG
• Third: H.265/H.264
• Bitrate: 32 Kbps – 8 Mbps
• Profiles: H.264 Baseline/Main/High, H.265 Main
• Control: CBR / VBR
• SVC: H.264 & H.265
• ROI: 8 regions per stream

Audio

• Type: Mono
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 – 320 Kbps (codec dependent)
• Sampling: 8 / 16 / 32 / 48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, SNMP, RTP/RTSP, IPv4/IPv6, QoS, ONVIF, etc.
• Simultaneous Live View: Up to 20 channels
• API: ISAPI, SDK, ISUP, OTAP, ONVIF (Profiles S/G/T/M)
• Users: Up to 32 (admin, operator, user)
• Security: Password protection, HTTPS, 802.1X, TLS 1.2/1.3, AES128/256, watermark, IP filter, security audit log
• Storage: NAS (NFS, SMB/CIFS), ANR, encrypted Hikvision memory cards supported
• Client Software: iVMS-4200, Hik-Connect, Hik-Central

Web Browsers:

• Plug-in: IE 10/11
• Plug-in free: Chrome 57+, Firefox 52+, Edge 89+, Safari 11+


• Settings: Rotate, saturation, brightness, contrast, sharpness, WB, AGC
• Day/Night Switch: Auto / Schedule / Alarm / Manual
• WDR: 120 dB
• Enhancement: BLC, HLC, 3D DNR, Defog, Distortion correction
• Privacy Mask: Up to 8 polygons
• SNR: ≥52 dB
• Overlay: Logo (128×128 BMP)
• Stabilization: EIS

Interface

• Ethernet: 1 × RJ45 10M/100M self-adaptive
• Storage: microSD/SDHC/SDXC up to 1 TB
• Alarm I/O: 1 in, 1 out (24 VDC/24 VAC, 1 A)
• Audio:
  • 1 in (3.5 mm line in)
  • 1 out (3.5 mm line out)
• Microphone: Built-in
• Speaker: Built-in (max 1.5 W)
• RS-485: Yes (Pelco-P/D, self-adaptive)
• Reset Key: Yes
• Power Output: 12 VDC, max 100 mA

Events & Smart Features

• Basic: Motion detection, tampering, video quality, network issues
• Smart: Scene change, audio exception, defocus, loitering, people gathering, fast moving, parking, unattended baggage, object removal
• Deep Learning – Perimeter Protection: Line crossing, intrusion, region entrance/exit, human & vehicle classification, reduced false alarms (90%)

VCA Range:

• 4 mm lens: 5–80 m day / 5–60 m night
• 2.8 mm lens: 3–70 m day / 3–50 m night

General

Power:

• 12 VDC ±20%, 1.4 A, max 16.8 W
• PoE: IEEE 802.3at, Type 2, Class 4, max 17.1 W
• Material: Aluminum alloy body
• Dimensions: 323.4 × 114.5 × 114.5 mm (12.73" × 4.51" × 4.51")
• Package: 386 × 156 × 155 mm (15.3" × 6.2" × 6.2")
• Weight: 1370 g (net), 2084 g (with package)
• Operating Temp:
  • With -H: -40 °C to 65 °C
  • Without -H: -30 °C to 65 °C
• Storage Temp: -30 °C to 60 °C
• Humidity: ≤95% (non-condensing)
• Language: 33 languages supported
• Functions: Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
• Heater: Yes | Demist: Yes

Approvals

• EMC: CE, RCM, IC
• Safety: CB, CE-LVD, LOA
• Environment: CE-RoHS, WEEE, REACH
• Protection: IP67, IK10
• Anti-Corrosion: -Y models: NEMA 4X
