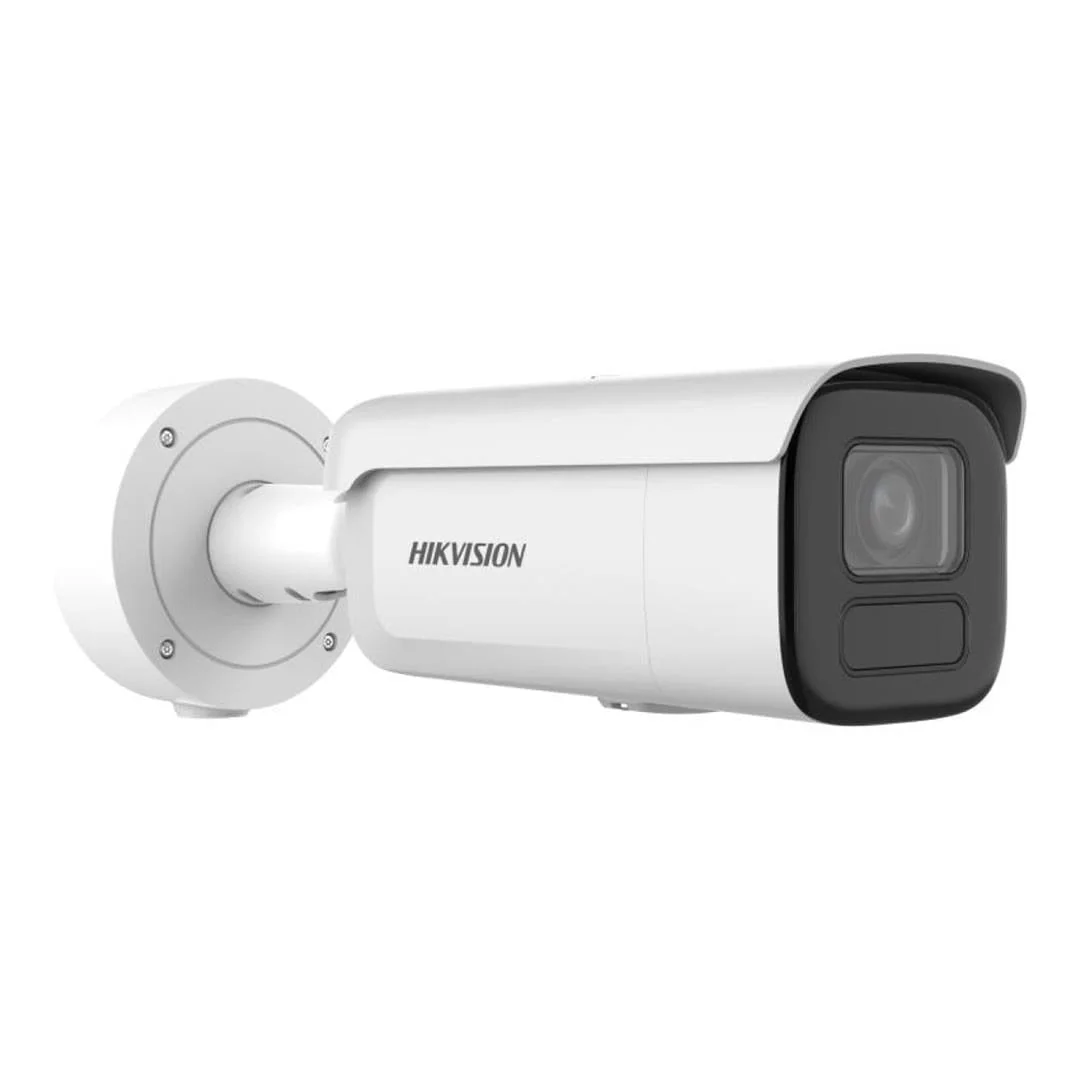

Hikvision 4MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera DS-2CD2646G2H-IZS(2.8-12mm)

Hikvision 4MP Powered by Darkfighter Motorized Varifocal Bullet Network Camera DS-2CD2646G2H-IZS(2.8-12mm)

Features:

• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)

Technical Specifications:

Camera

Image Sensor: 1/3" Progressive Scan CMOS

Max. Resolution: 2688 × 1520

Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time: 1/3 s to 1/100,000 s

Day & Night: IR cut filter

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens

Lens Type: Varifocal lens, motorized, 2.8 to 12 mm

Focal Length & FOV: 2.8 to 12 mm, H: 105.4°–34.3°, V: 56.1°–19.3°, D: 125.8°–39.4°

Lens Mount: Ø14

Iris Type: Fixed

Aperture: F1.0

Depth of Field: 1 m to ∞

DORI

Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m

Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m

Illuminator

Supplement Light Type: IR

Range: Up to 60 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Video

Main Stream:

• 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:

• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:

• 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

(Supported under certain settings)

Compression:

• Main: H.265/H.264/H.264+/H.265+
• Sub: H.265/H.264/MJPEG
• Third: H.265/H.264
• Bit Rate: 32 Kbps to 8 Mbps
• H.264: Baseline/Main/High Profile
• H.265: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265
• ROI: 1 fixed region (main & sub stream)

Audio

Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit Rate: 64 Kbps (G.711ulaw/alaw) / 16 Kbps (G.722.1, G.726) / 32–192 Kbps (MP2L2) / 8–320 Kbps (MP3) / 16–64 Kbps (AAC-LC)

Sampling Rate: 8/16/32/44.1/48 kHz

Noise Filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View: Up to 6 channels

API: ONVIF (Profiles S/G/T), ISAPI, SDK, ISUP

User/Host: Up to 32 users (3 levels: admin/operator/user)

Security: Password, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, TLS 1.1/1.2/1.3, MAC authentication, audit log, RTP/RTSP over HTTPS, timeout control

Network Storage: NAS (NFS, SMB/CIFS), ANR

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in: IE 10, IE 11
• Plug-in free: Chrome 57+, Firefox 52+, Edge 89+
• Local service: Chrome 57+, Firefox 52+, Edge 89+


Parameters Switch: Yes

Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (via client/web)

Day/Night Switch: Day, Night, Auto, Schedule

Enhancement: BLC, HLC, 3D DNR

SNR: ≥ 52 dB

WDR: 120 dB

Privacy Mask: 4 programmable polygon masks

Interface

Ethernet: 1 × RJ45 10/100M self-adaptive

On-Board Storage: microSD/SDHC/SDXC up to 512 GB

Audio: 1 in (line), 1 out (line)

Alarm: 1 in, 1 out (max. 24 VDC/24 VAC, 1 A)

Reset: Yes

Event

Basic: Motion detection (human/vehicle), exception

Smart: Scene change detection

Linkage: Upload to FTP/NAS/memory card, notify center, send email, trigger alarm output, recording, capture, audible warning

Deep Learning Functions

Face Capture: Yes

Perimeter Protection: Line crossing, intrusion, region entrance/exit (human/vehicle filtering)

General

Power: 12 VDC ±25%, 1.21 A (max. 14.5 W); PoE IEEE 802.3at, Class 4 (max. 18 W)

Material: Front cover – Metal; Body – Metal; Bracket – Metal

Dimensions: Ø140 × 333.8 mm (Ø5.5" × 13.1")

Package Dimensions: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")

Weight: 1490 g (3.3 lb); With Package: 2349 g (5.2 lb)

Conditions: –30 °C to 60 °C (–22 °F to 140 °F), Humidity ≤ 95% (non-condensing)

Functions: Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Languages: 33 supported (English, Russian, German, French, Spanish, Portuguese, Italian, Japanese, Korean, Chinese, etc.)

Approvals

EMC: CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021), ICES-003, RCM

Safety: CB (IEC 62368-1), CE-LVD (EN 62368-1)

Environment: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (EC 1907/2006)

Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
