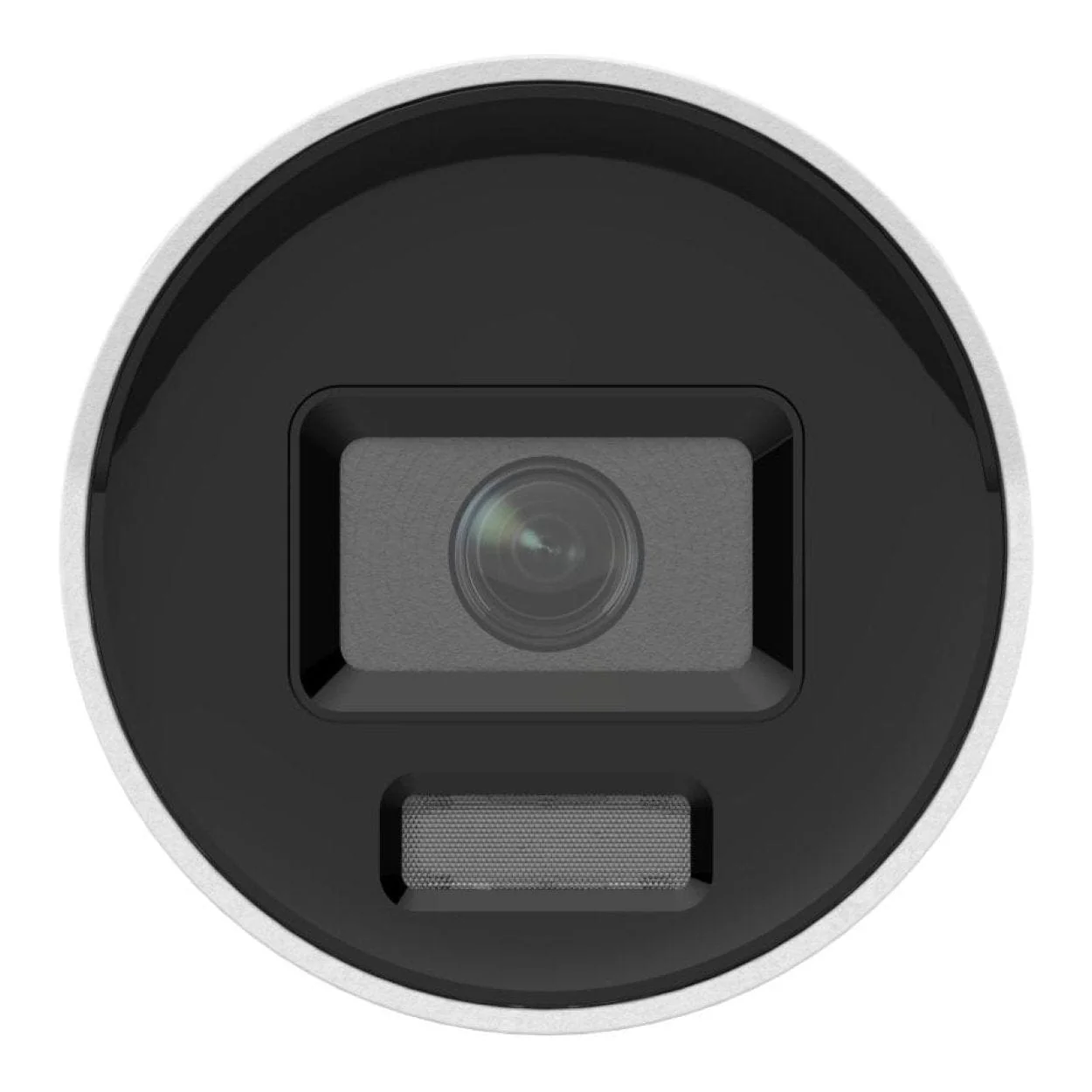

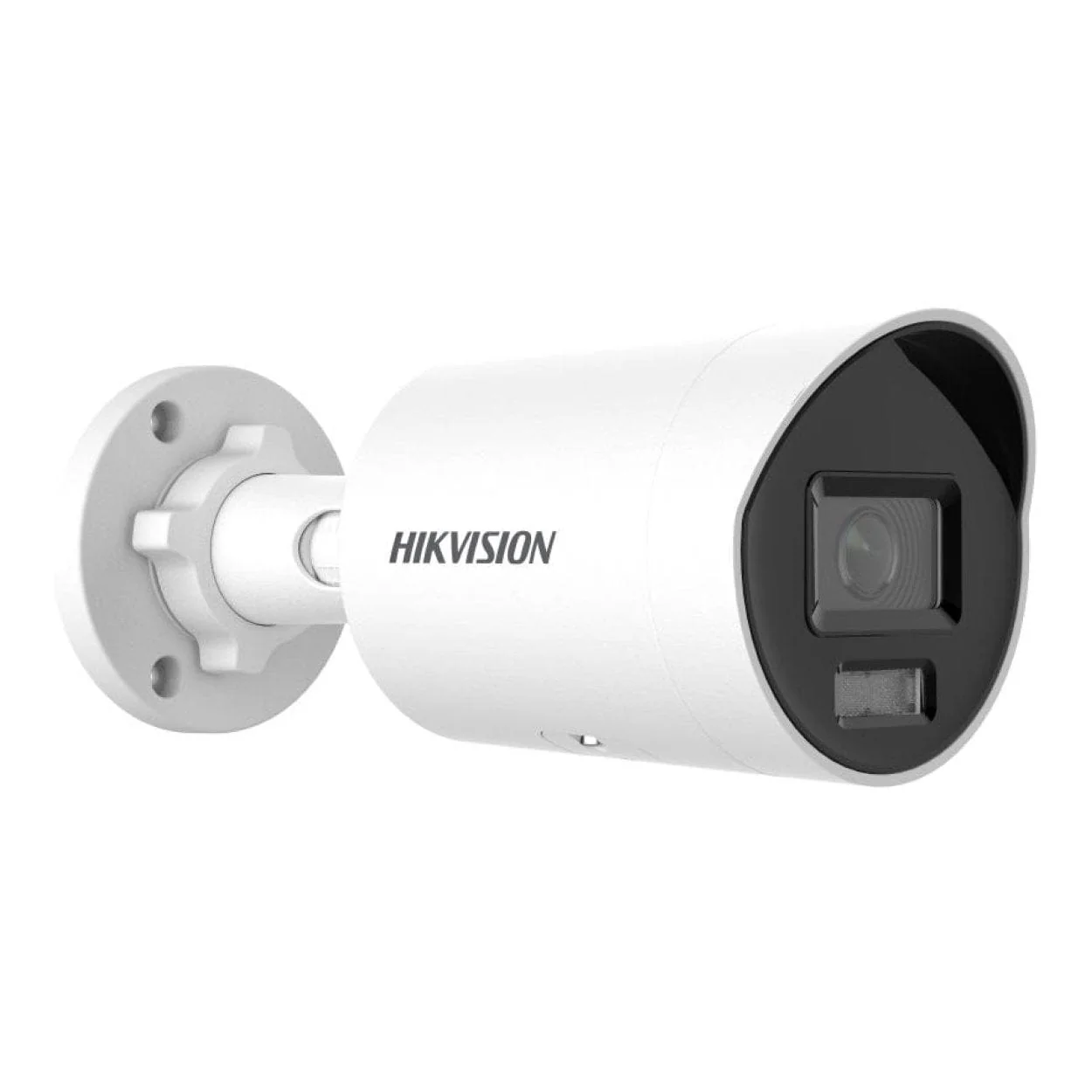

Hikvision 4MP Smart hybrid light with Darkfighter S Fixed Mini Bullet Network Camera

Hikvision 4MP Smart hybrid light with Darkfighter S Fixed Mini Bullet Network Camera

Features:

• Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
• Supports 1.5 Tops computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
• Smart Dual-Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• High quality imaging with 4 MP resolution
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Technical Specifications:

Camera

Image sensor: 1/3" Progressive Scan CMOS

Max. resolution: 2688 × 1520

Min. illumination: Color 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter time: 1/3 s to 1/100,000 s

Day & night: IR cut filter

Angle adjustment: Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360°

Lens

Lens type: Fixed focal lens, 2.8 mm and 4 mm optional

Focal length & FOV:

2.8 mm – horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°

4 mm – horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°

Lens mount: M12

Iris type: Fixed

Aperture: F1.0

Depth of field: 2.8 mm – 1.9 m to ∞, 4 mm – 2.5 m to ∞

DORI

2.8 mm – Detect 63 m, Observe 25 m, Recognize 12 m, Identify 6 m

4 mm – Detect 78 m, Observe 31 m, Recognize 15 m, Identify 7 m

Illuminator

Supplement light type: IR, White light

Range: Up to 40 m

Smart supplement light: Yes

IR wavelength: 850 nm

HEOP

Open resources: Memory 60 MB, Smart RAM 400 MB, eMMC 2 GB

Computing power: 1.5 TOPS

Open capability: HEOP 2.0 OpendevSDK

Deep learning structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX

Programming language: C, C++

Video

Main stream:

50 Hz – 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz – 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream:

50 Hz – 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz – 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third stream:

50 Hz – 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz – 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Supported under certain settings

Fourth stream:

50 Hz – 10 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz – 10 fps (1280 × 720, 640 × 480, 640 × 360)

Supported under certain settings

Video compression: H.265/H.264/H.264+/H.265+ (main), H.265/H.264/MJPEG (sub), H.265/H.264 (third), H.265/H.264/MJPEG (fourth)

Video bit rate: 32 Kbps to 8 Mbps

H.264 type: Baseline, Main, High profile

H.265 type: Main profile

Bit rate control: CBR, VBR

SVC: H.264 and H.265 encoding

ROI: 5 fixed regions (main and sub-stream)

Target cropping: Yes

Audio

Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC

Bit rate: 64 Kbps (G.711ulaw/alaw), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)

Sampling rate: 8/16/32/44.1/48 kHz

Noise filtering: Yes

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP

Simultaneous live view: Up to 6 channels

API: ONVIF (Profiles S, G, T), ISAPI, SDK, ISUP

Users: Up to 32 (administrator, operator, user)

Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP filter, HTTP/HTTPS authentication, WSSE, RTP/RTSP over HTTPS, TLS 1.1/1.2/1.3, MAC authentication, audit log

Network storage: NAS (NFS, SMB/CIFS), ANR, Hikvision memory card with encryption and health detection

Clients: iVMS-4200, Hik-Connect, Hik-Central

Web browsers: IE 10/11 (plug-in), Chrome 57+, Firefox 52+, Edge 89+ (plug-in free and local service)


Parameters switch: Yes

Settings: Rotate, saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client or browser)

Day/night switch: Day, Night, Auto, Schedule

Enhancement: BLC, HLC, 3D DNR, Defog

SNR: ≥ 52 dB

WDR: 130 dB

Privacy mask: 4 programmable polygon masks

Interface

Ethernet: 1 × RJ45 10/100 Mbps self-adaptive port

On-board storage: microSD/microSDHC/microSDXC, up to 512 GB

Built-in microphone: Yes

Reset key: Yes

Events

Basic: Motion detection (human/vehicle filtering), tampering, exception

Smart: Unattended baggage, object removal, scene change, audio exception, defocus

Linkage: Upload to FTP/NAS/memory card, notification, email, recording, capture

Deep Learning

Face capture: Yes

People counting: Yes

Perimeter protection: Line crossing, intrusion, region entrance/exit (with human/vehicle filtering)

General

Power: 12 VDC ±25% (max. 8.5 W), PoE IEEE 802.3af Class 3 (max. 10 W)

Material: Metal housing (front cover, body, bracket)

Dimensions: Ø74.4 × 179.2 mm

Package dimensions: 234 × 120 × 117 mm

Weight: 525 g (net), 750 g (with package)

Operating/storage conditions: –30 °C to 60 °C, ≤95% RH (non-condensing)

Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Languages: 33 supported

Approvals

EMC: CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014), RCM (AS/NZS CISPR 32:2015), IC (ICES-003 Issue 7)

Safety: UL 62368-1, CB (IEC 62368-1:2014+A11), CE-LVD (EN 62368-1:2014/A11:2017), BIS (IS 13252 Part 1:2010/IEC 60950-1:2005), LOA (IEC/EN 60950-1)

Environment: CE-RoHS (2011/65/EU)

Protection: IP67 (IEC 60529-2013)
