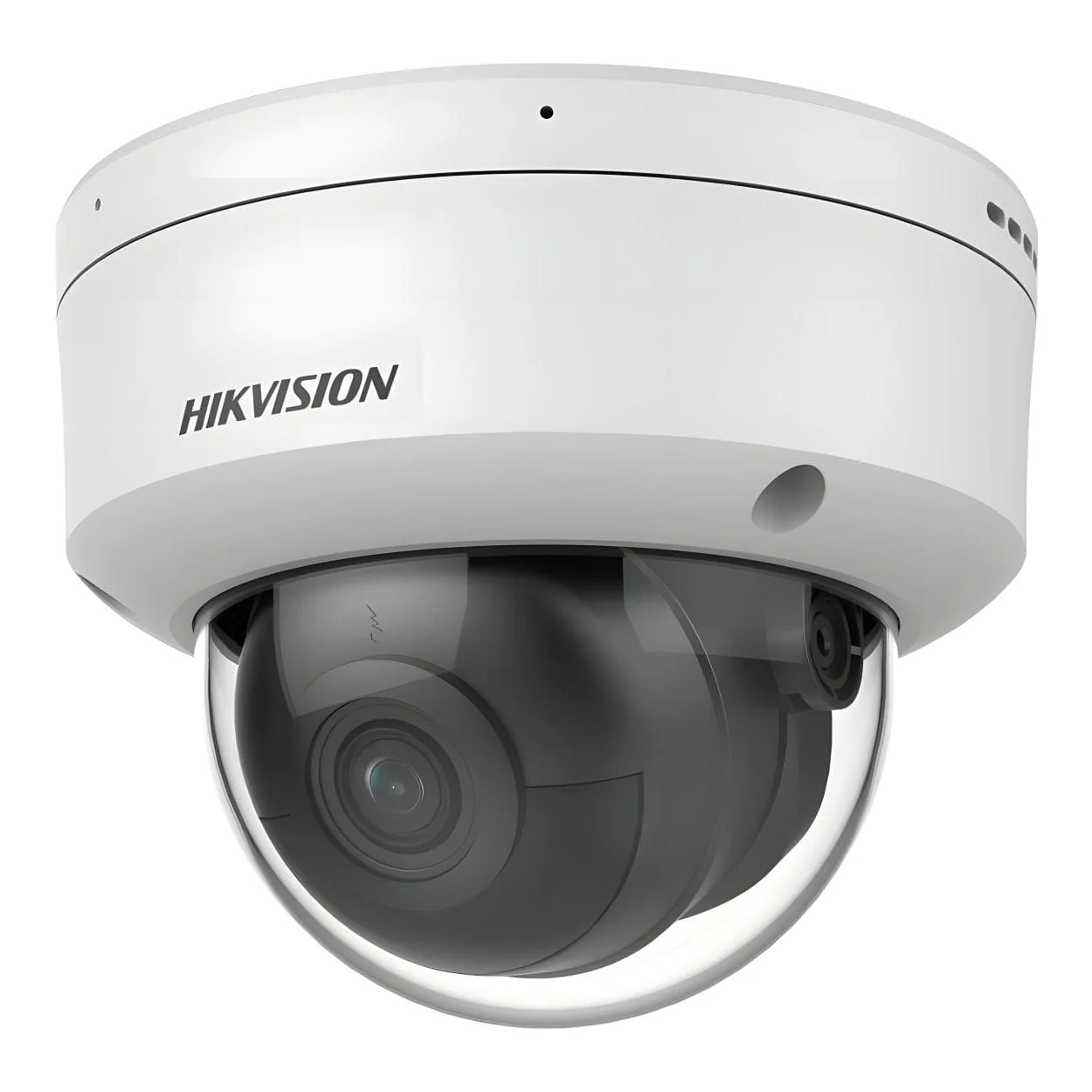

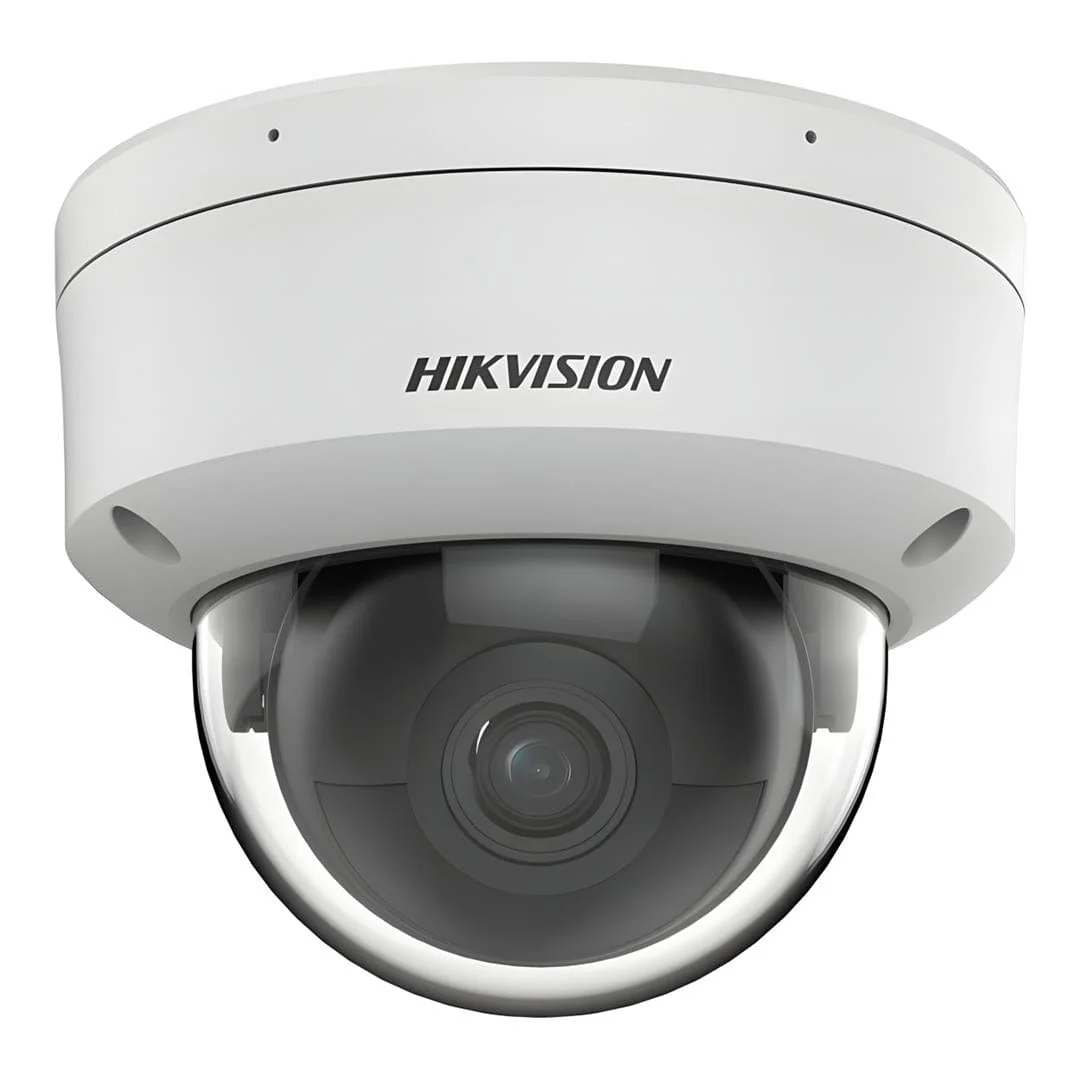

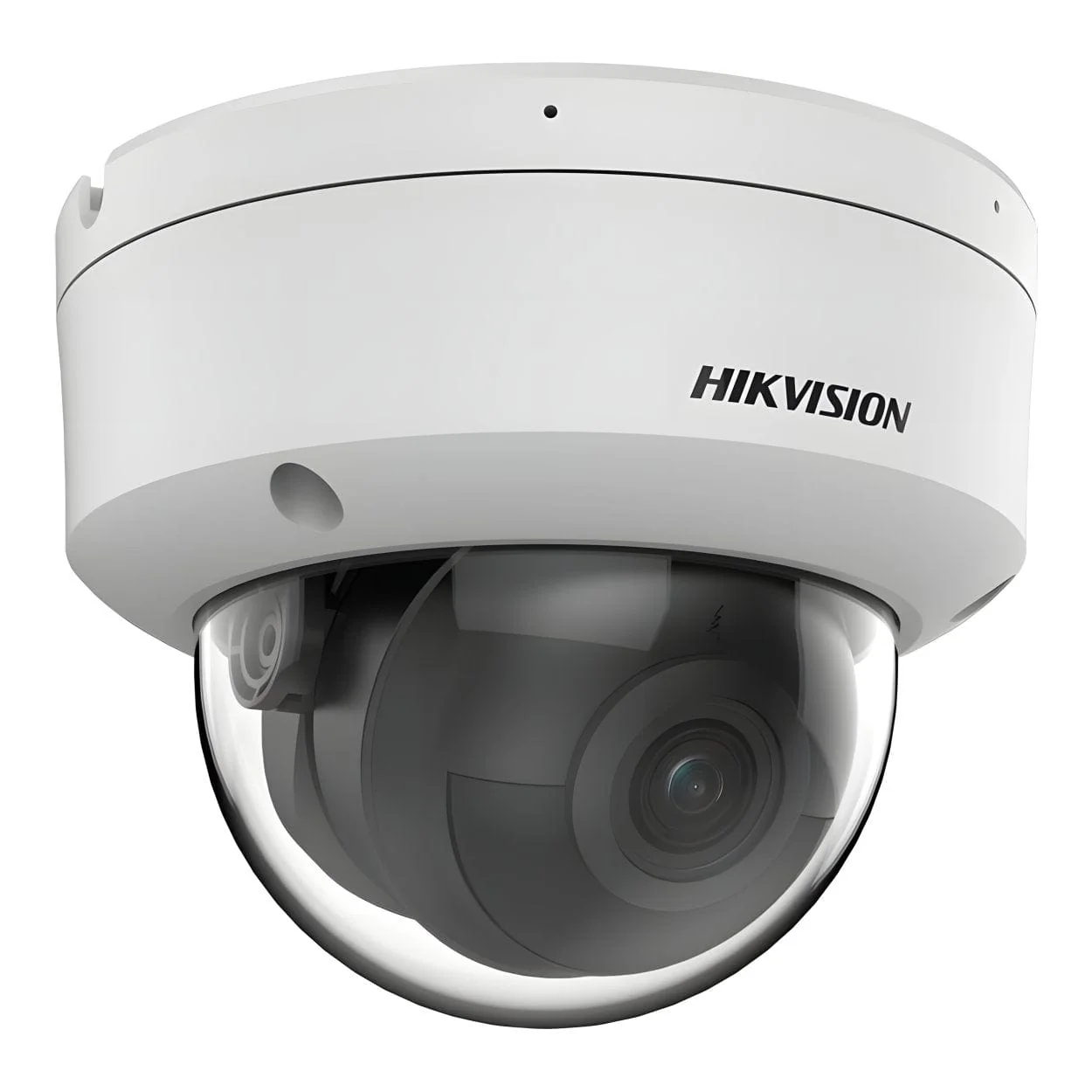

Hikvision 6MP 6mm AcuSense Fixed Dome Network Camera DS-2CD3166G2-IS(6mm)

Hikvision 6MP 6mm AcuSense Fixed Dome Network Camera DS-2CD3166G2-IS(6mm)

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. Hikvision has been dedicated to develop products with security since established. Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.

Features

• Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
• Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
• High quality imaging with 6 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Focus on human and vehicle target classification based on deep learning
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Technical Specification

Image Sensor: 1/2.4" Progressive Scan CMOS

Max. Resolution: 3200 x 1800

Lens Type: 6mm Fixed focal lens

Focal Length & FOV: Horizontal FOV 51°, Vertical FOV 26°, Diagonal FOV 59°

DORI: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Supplement Light Type: IR

Supplement Light Range: Up to 40 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Ethernet Interface: 1x RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone: No

Audio

• 1x input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
• 1x output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1x inputs, 1x outputs (max. 12 VDC, 30 mA)

Power: 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection or PoE: IEEE 802.3af, Class3, max. 9.5 W

• Please note: Power supply is not included
