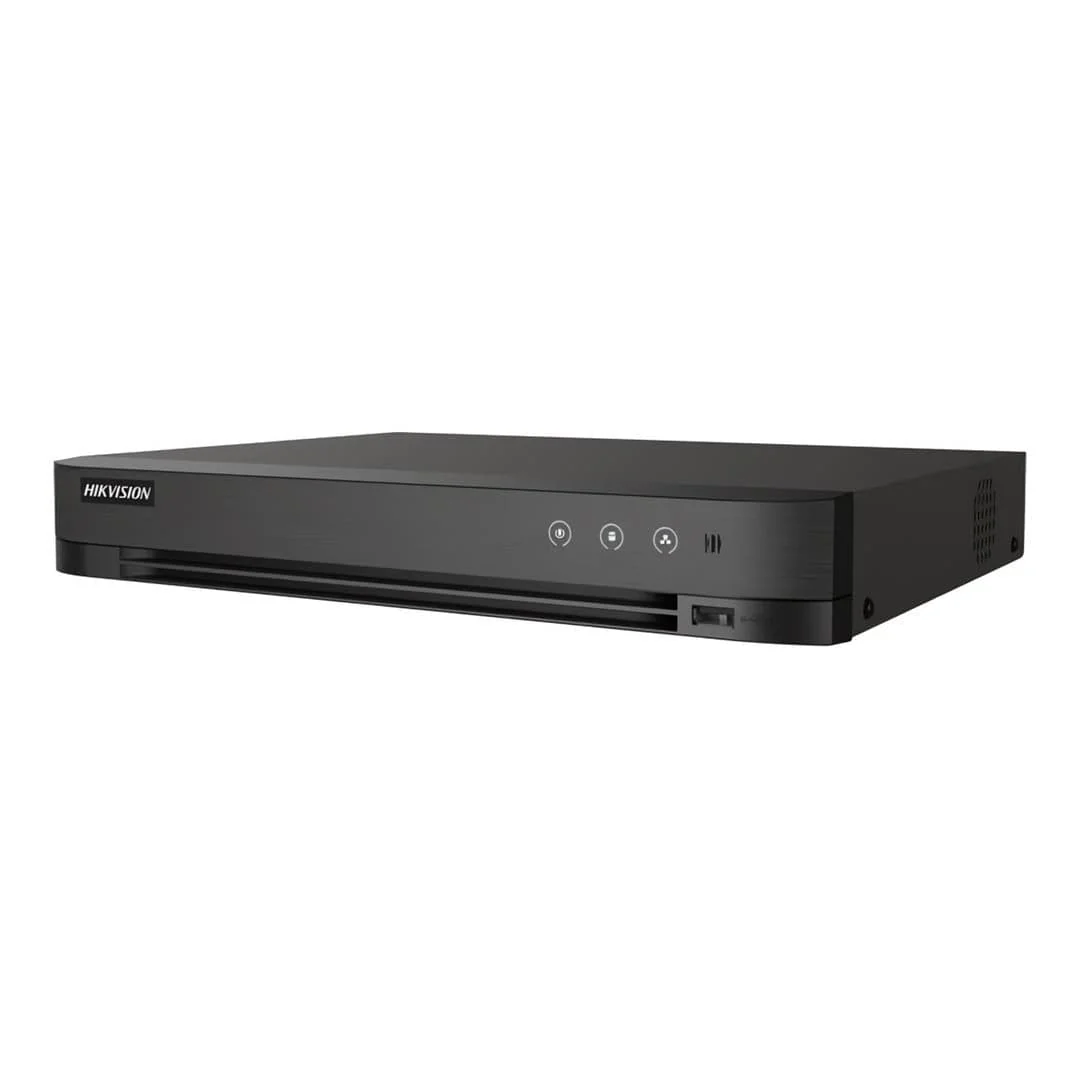

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR with 4-ch Audio 8-ch Alarm In and 4-ch Alarm Out IDS-7208HQHI-M1/XT/4A+8/4ALM

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR with 4-ch Audio 8-ch Alarm In and 4-ch Alarm Out IDS-7208HQHI-M1/XT/4A+8/4ALM

Features

• 8 channels and 1 HDD 1U AcuSense DVR
• Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 4-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12-ch network cameras can be connected
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

Technical Specification

Face Picture Library: Up to 16 face picture libraries

Human/Vehicle Analysis: Up to 4-ch

IP Video Input: 4-ch (up to 12-ch), Up to 6 MP resolution

Analog Video Input: 8-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output

VGA Output: 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Alarm Input: 8 alarm inputs

Alarm Output: 4 alarm outputs

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface

Serial Interface: RS-485 (half-duplex)

SATA: 1x SATA interface, up to 10 TB capacity

USB Interface: 1x USB 2.0 (Front), 1x USB 2.0 (Rear)

Power Supply: 12 VDC, 1.5 A
