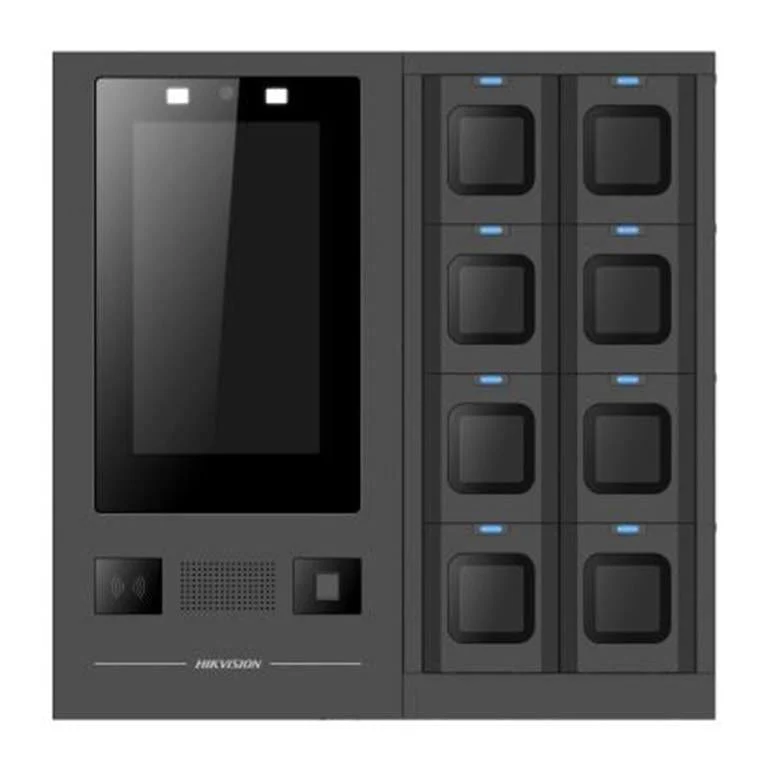

Hikvision 8-port Dual System Touchscreen Dock Station DS-MDS005/2T/8/FP/IC

Hikvision 8-port Dual System Touchscreen Dock Station DS-MDS005/2T/8/FP/IC

Features

• Dual system design which is highly stable.
• Supports wall mount, mobile mount, and desktop mount.
• 13.3-inch ultra-large touchscreen with 1920 x 1080 resolution and convenient operation.
• Unlocks body camera bin by recognizing face to guarantee safe device storage.
• Supports auto uploading of body camera data (picture, video, and audio), and clearing the storage space of body camera automatically.
• Locks important data of body camera to avoid being deleted.
• Supports data protection in sudden power cutoff.
• ANR for data uploading to prevent data loss.
• Local upgrade.
• Multi-user management. Multi-users can be associated with one dock station.
• *Wall-mount bracket and bracket assembly are required for the dock station DS-MDS003/DS-MDS005.
• *Wall-mounted: need to order bracket (DS-MH1901 or DS-MH1902)
• *Desktop and Mobile-mount: need to order bracket (DS-MH1901 or DS-MH1902) and bracket assembly (DS-MH1601 or DS-MH1602)

Technical Specification

Camera

• White Light: Supported

Lens

• Focal Length: 4.3 mm
• FOV: 79°
• Aperture: F 2.5

Screen

• Screen Type: TFT
• Resolution: 1920 x 1080
• Screen Size: 13.3"
• Touchscreen: Supported

Storage

• HDD: Up to 4 disks (Max. 8 TB for each disk) and default 2TB
• RAM: Android: 2 GB and Linux: 2GB, 4GB in total

Wireless Network - NFC

• Working Frequency: 13.56 MHz
• Protocol Standard: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
• Label Standard: M1 card (S50, S70), CPU card, NFC label, etc.

Interface

• Body Camera Access Number: 8x body cameras
• Indicator: 1x indicator for power, every dock has 1 tricolor indicator.
• Button: Power
• Ethernet: 1x RJ45 10M/100M/1000M self-adaptive ethernet port(s)
• USB: 1x for USB 2.0, 1x for USB 3.0
• Charging Interface: Type-C
• Fingerprint Module: Supported

General

• Speaker: 1x Built-in speaker, Max. power consumption: 2 W, Max. sound pressure level: 99dB (10 cm)
• Installation Method: Desk-Mounted, Wall-Mounted, Cell-Mounted, Movable Bracket
• Power: 100 V AC ~ 240 V AC, max. 420 W
