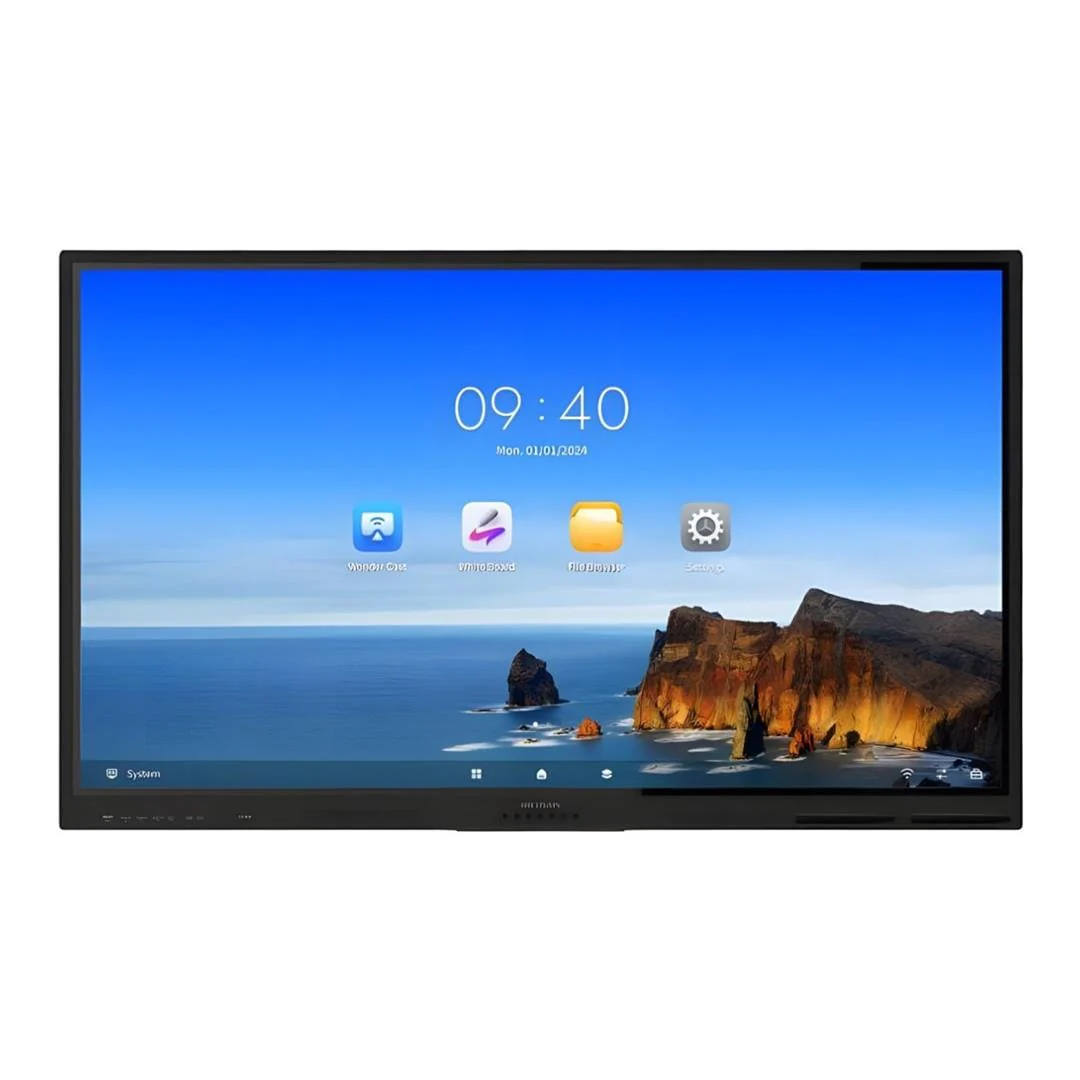

Hikvision 86-inch 4K Interactive Display DS-D5B86RB/EL
Features:
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
- Quick response, at most 40-point touch controls and smooth writing experience.
- Multi-button front design for convenient classroom use.
Technical Specifications:
Display
Screen Size: 86 inch
Backlight: DLED
Pixel Pitch: 0.165 (H) × 0.494 (V) mm
Resolution: 3840 × 2160 @60 Hz
Brightness: 400 cd/m² (Typ.)
Color Depth: 10 bit (8 bit + FRC)
Display Color: 1.07 billion
Response Time: 5 ms
Panel Type: VA
Contrast Ratio: 5000:1 (Static), 30,000:1 (Dynamic)
Color Gamut: 72% NTSC (CIE1931) (Typ.)
Refresh Rate: 60 Hz
Viewing Angle: 178° (H) / 178° (V)
Aspect Ratio: 16:9
Surface Haze: 25%
Display Area: 1895.04 mm × 1065.96 mm
Working Duration: 7 × 16 hours
Surface Hardness: 9H (Pencil), 7 (Mohs)
Surface Glass: 3.2 mm Anti-Glare Glass
Transmittance: 88% ± 3
Lifespan: 50,000 hours
Touch
Type: Infrared Touch Screen
Touch Points: 40-point multi-touch
Touch Response Time: < 5 ms
Minimum Touch Object: ≥ 2 mm (≥ 90% touching area)
Touch Precision: ± 1 mm (≥ 90% touching area)
Touch Resolution: 32767 × 32767
Built-in System
Operating System: Android 13.0
Memory: 8 GB
Storage: 64 GB
CPU: Cortex-A55 × 4 (1.92 GHz)
GPU: Mali-G52 MP2 (2EE)
HDCP Version: Supports 1.4 / 2.2 / 2.3
Internal Functions
Loudspeaker: Built-in 2 × 20 W
Speaker Frequency: 200 – 20 kHz
Bluetooth: Bluetooth 5.2 (BLE)
NFC: Supported (card reader)
Light Sensor: Yes
Interface
Video & Audio Input: HDMI 2.0 × 2, Audio In × 1
Video & Audio Output: Audio Out × 1
Control Interface: TOUCH-USB 2.0 × 1, RS232 × 1
Network Interface: LAN (100 Mbps) × 2
Wireless:
Wi-Fi AP & Station, 2.4 GHz / 5 GHz
Wi-Fi AP: IEEE 802.11 a/b/g/n/ac 2×2 MIMO (WEP, WPA, WPA2, PSK, 802.1X EAP)
Wi-Fi Station: IEEE 802.11 a/b/g/n/ac/ax 1×1 MIMO (WEP, WPA, WPA2, PSK, 802.1X EAP)
Data Ports: USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (USB 2.0 supported)
Power
Power Supply: 100 – 240 VAC, 50/60 Hz
Standby Consumption: ≤ 0.5 W
Maximum Consumption: 326 W
Average Consumption: 268 W
Working Environment
Operating Temperature: 0 °C to 40 °C
Operating Humidity: 10% – 90% RH
General
Product Dimensions: 1960.44 × 1164.69 × 82.5 mm
Package Dimensions: 2157 × 1345 × 223 mm
VESA Mount: 800 × 600 mm (4 × M8-25 mm)
Net Weight: 59.71 kg
Gross Weight: 79.0 kg
Accessories
Included: Wall mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m power cable (EU), remote controller
