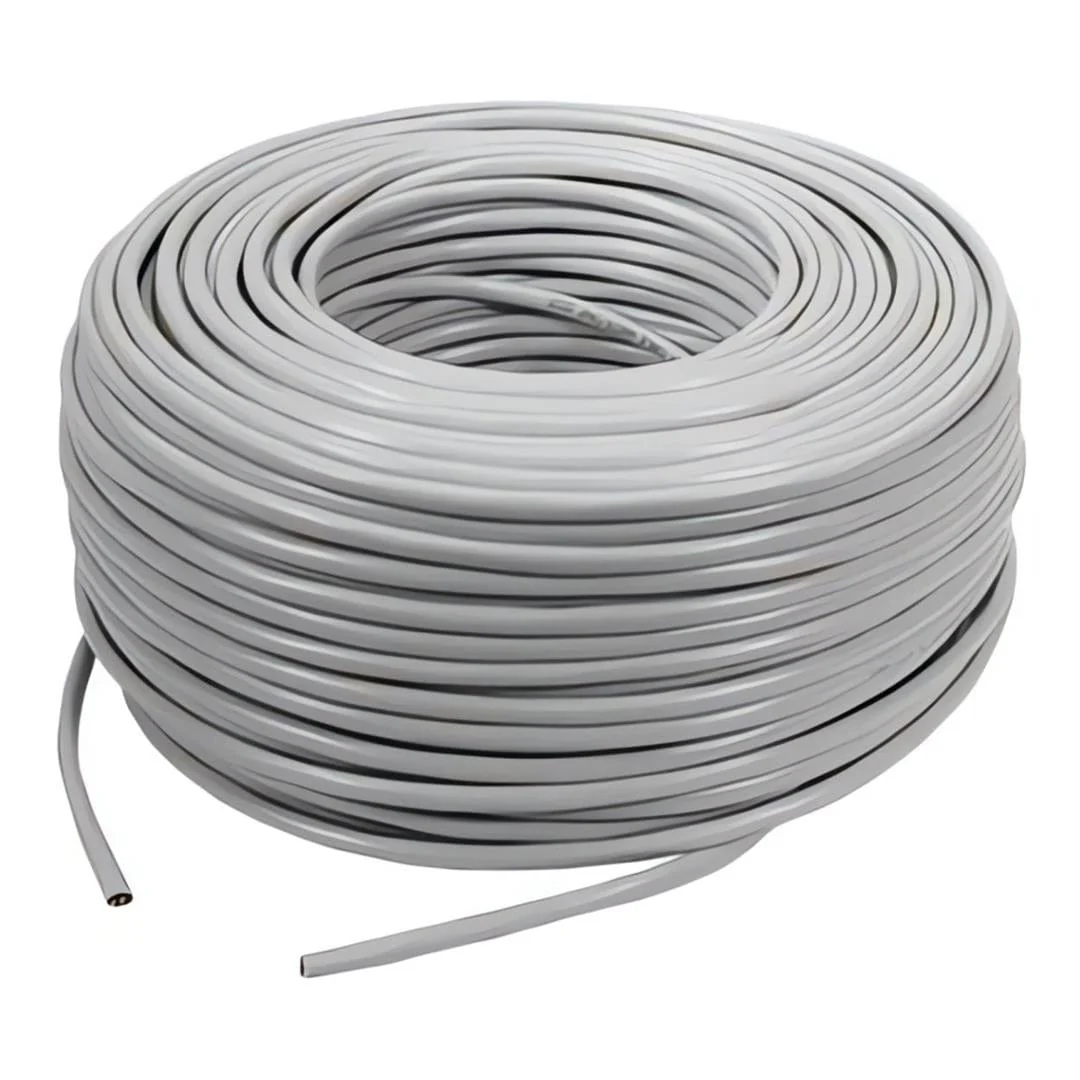

Hikvision CAT6 U/UTP Solid Copper Indoor Network Cable 305m Grey DS-1LN6UTC0

Hikvision CAT6 U/UTP Solid Copper Indoor Network Cable 305m Grey DS-1LN6UTC0

Features

• Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
• Compliant with RoHS 2.0.

Technical Specification

Category: Cat 6

Structure: U/UTP

Fire Resistance: CPR Fca

Usage Scenario: Indoor

Conductor Material: Solid-Bare Copper

Conductor Diameter: 0.515 ± 0.005 mm 24AWG

Insulation Diameter: 0.93 ± 0.05mm

Sheath Material: PVC

Sheath Colour: Grey

Length: 305 ± 1.5 m

Rip Cord: Yes

Separator: Yes
