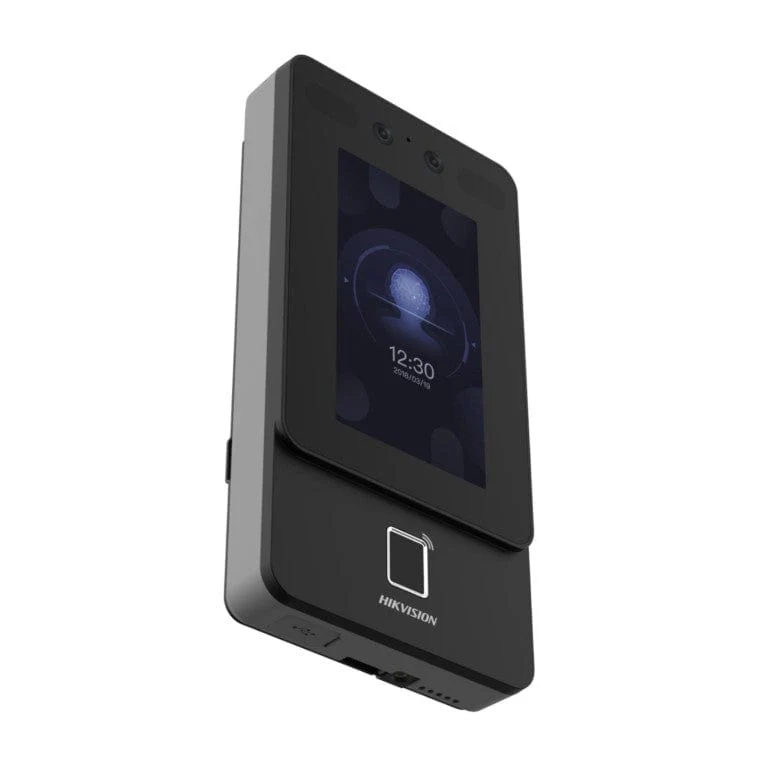

Hikvision Face Recognition Access Control Terminal with Fingerprint Reader DS-K1T342MFWX-E1

Hikvision Face Recognition Access Control Terminal with Fingerprint Reader DS-K1T342MFWX-E1

Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

Features

• Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
• Supports face with mask recognition
• Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
• Supports platform-applied personal PIN and device-set personal PIN

Technical Specification

• Operation System: Linux

• Dimensions: 4.3-inch
• Resolution: 272 x 480
• Type: LCD
• Operation Method: Capacitive touch screen

• Pixel: 2MP
• Lens: 2x
• Video Standard: PAL (Default) and NTSC

• Wired Network: 10/100Mbps self-adaptive
• Wi-Fi: Support

• PoE: IEEE802.3at, standard PoE
• Network Interface: 1
• RS-485: 1
• Wiegand: 1
• Lock Output: 1
• Exit Button: 1
• Door Contact Input: 1
• TAMPER: 1
• USB: 1

• Card Capacity: 3,000
• Face Capacity: 1,500
• Fingerprint Capacity: 3,000
• Event Capacity: 150,000

• Card Type: M1 card
• Card Reading Frequency: 13.56 MHz
• Face Recognition Duration:＜ 0.2 s
• Face Recognition Accuracy Rate:＞99%
• Face Recognition Distance: 0.3 to 1.5 m
• Fingerprint Recognition Duration:＜1 s

• Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
• Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
• Dimensions: 91.3 mm x 181.3 mm x 24.5 mm
• Installation: Wall Mounting
• Protective Level: IP65

• Face Anti-Spoofing: Support
• Audio Prompt: Support
• Time Synchronization: Support
