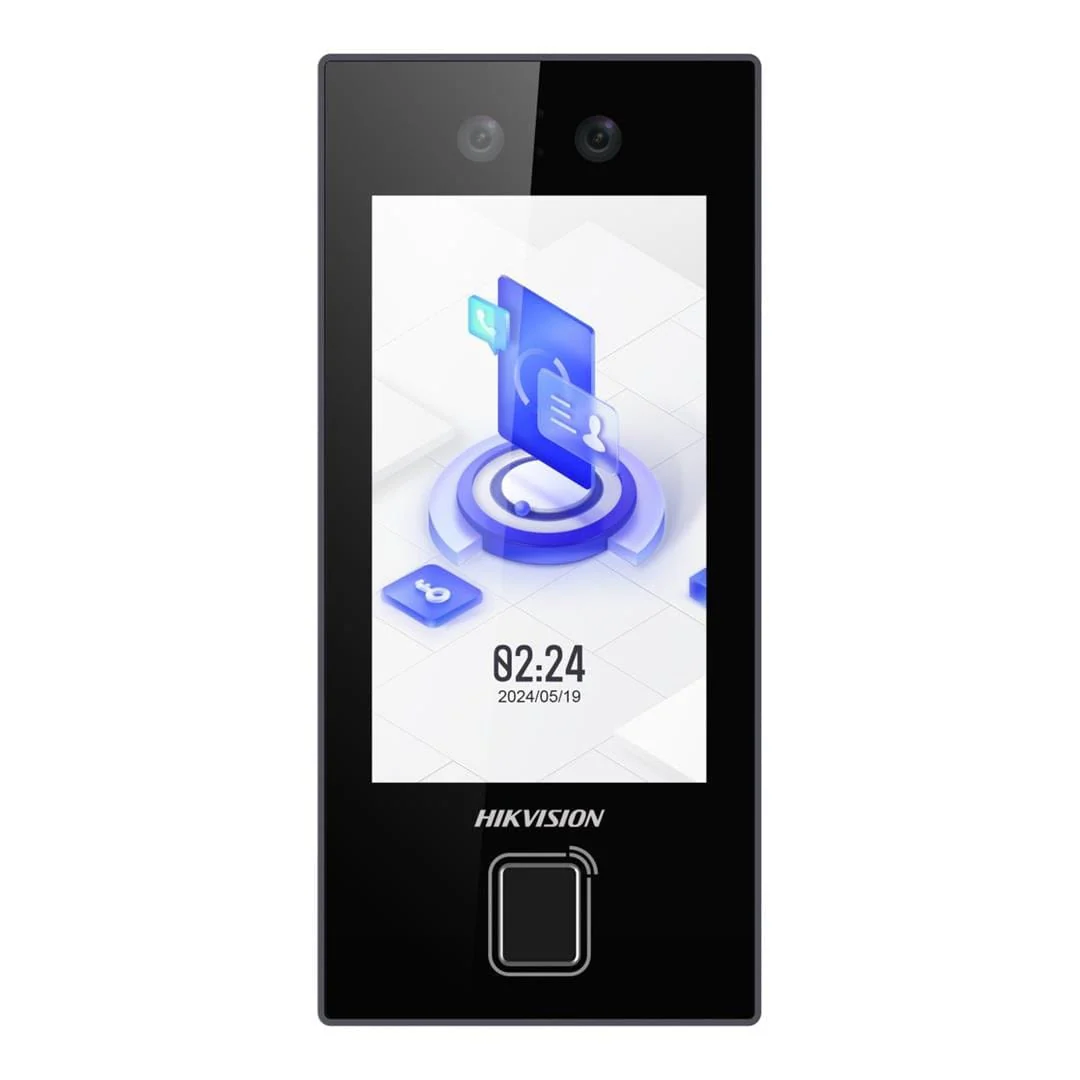

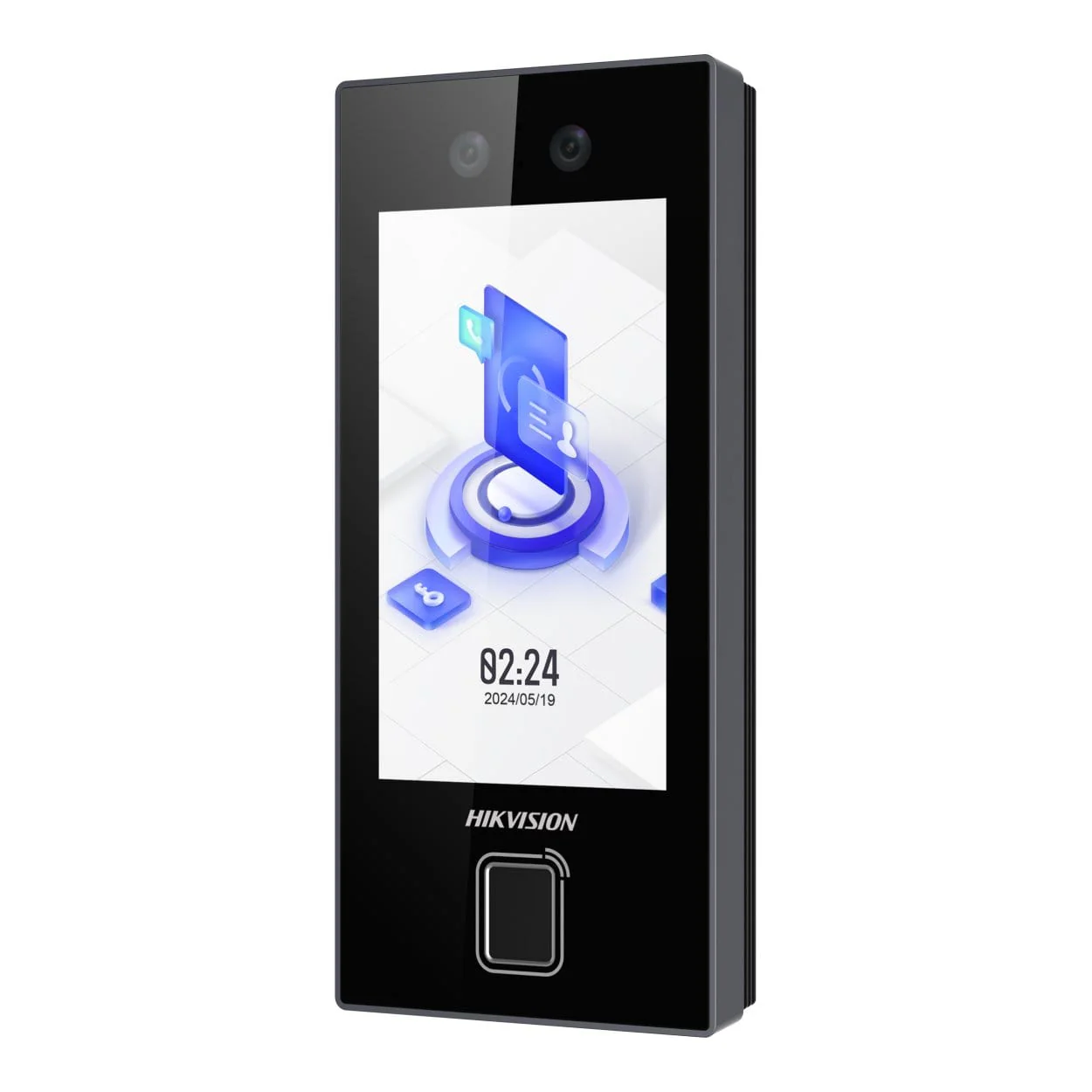

Hikvision Face Recognition Access Terminal with 4.5-inch Screen DS-K1T344MBFWX-E1

Hikvision Face Recognition Access Terminal with 4.5-inch Screen DS-K1T344MBFWX-E1

Features

• Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module
• Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Distance: 0.3 m to 1.5 m; Duration < 0.2 s/User; Accuracy rate ≥ 99%
• Supports face, card, PIN, and fingerprint authentication
• Two-way audio with client software, indoor station, and main station.
• Supports mobile web and PC web for configuration
• Supports powered by 12 VDC or PoE and supports powering for device and door lock.

Technical Specification

System

• Operating system: Linux

Display

• Screen size: 4.5-inch
• Resolution: 480 × 854
• Type: LCD
• Operation method: Touchable

Video

• Lens: 2x
• Video standard: PAL (Default) and NTSC

Network

• Bluetooth: Support
• Wired network: 10/100 Mbps self adaptive
• Wi-Fi: Support

Interface

• Alarm input: 2x
• Alarm output: 1x
• PoE: IEEE802.3at, standard PoE
• Network interface: 1x
• RS-485: 1x
• Wiegand: 1x, supports Wiegand input, single direction
• Lock control: 1x
• Exit button: 1x
• Door contact input: 1x
• TAMPER: 1x
• USB: 1x

Capacity

• User capacity: 3000
• Card capacity: 3000
• Face capacity: 3000
• Fingerprint capacity: 3000
• Event capacity: 150000

Authentication

• Card type: M1 card
• Card reading frequency: 13.56 MHz
• Face recognition duration: <0.2 s
• Face recognition accuracy rate: >99%
• Face recognition distance: 0.3 to 1.5 m

General

• Button: No physical call button
• Power supply: 12 VDC, 1 A, standard PoE
• Dimensions: 165.2 mm × 75.7 mm × 25 mm
• Installation: Wall mounting
• Protective level: IP65
• Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French
• Weight: 0.30 kg

Function

• QR code recognition: Support scan QR code via camera
• Face anti-spoofing: Support
• Two-way audio: Support
• Audio prompt: Support
• Time synchronization: Support
