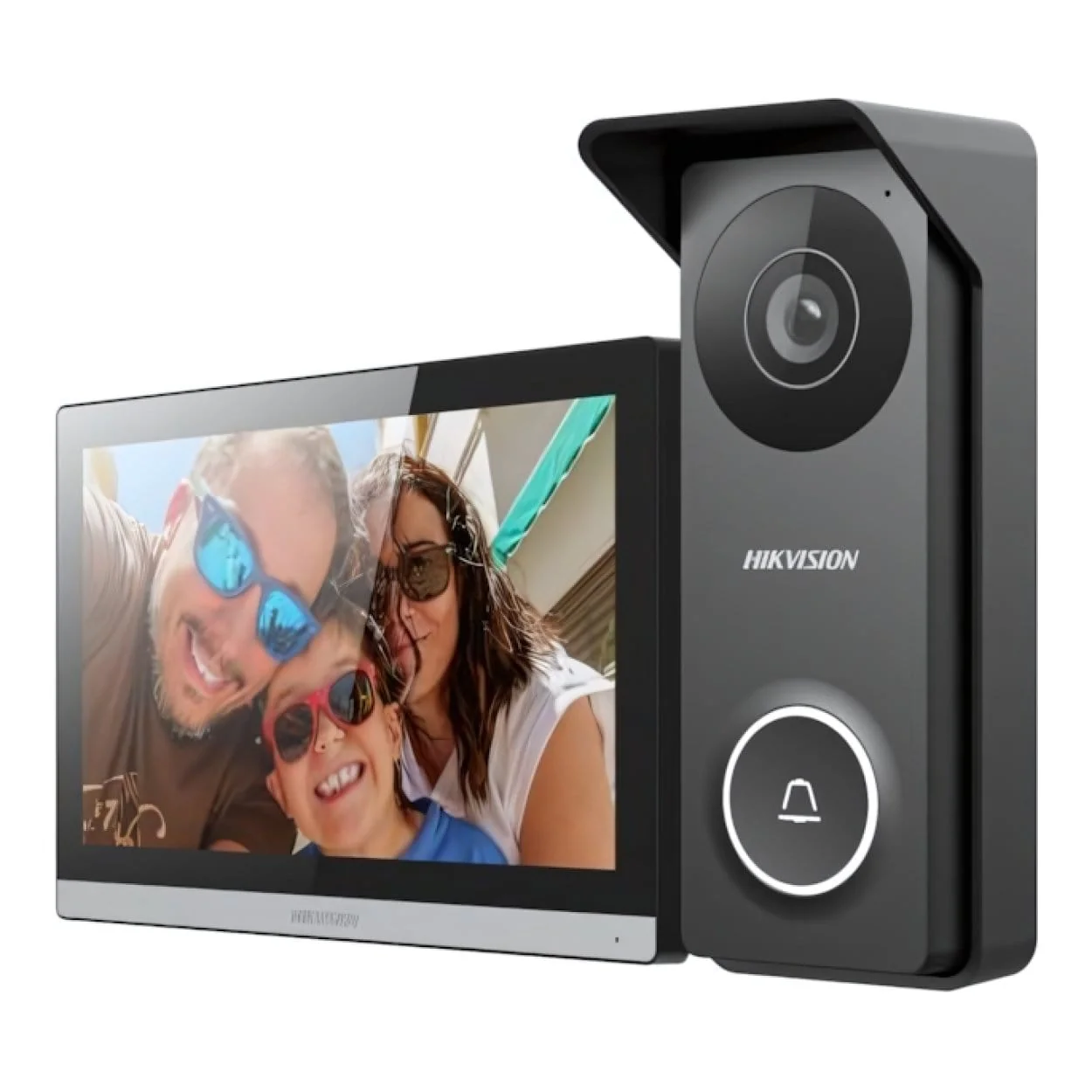

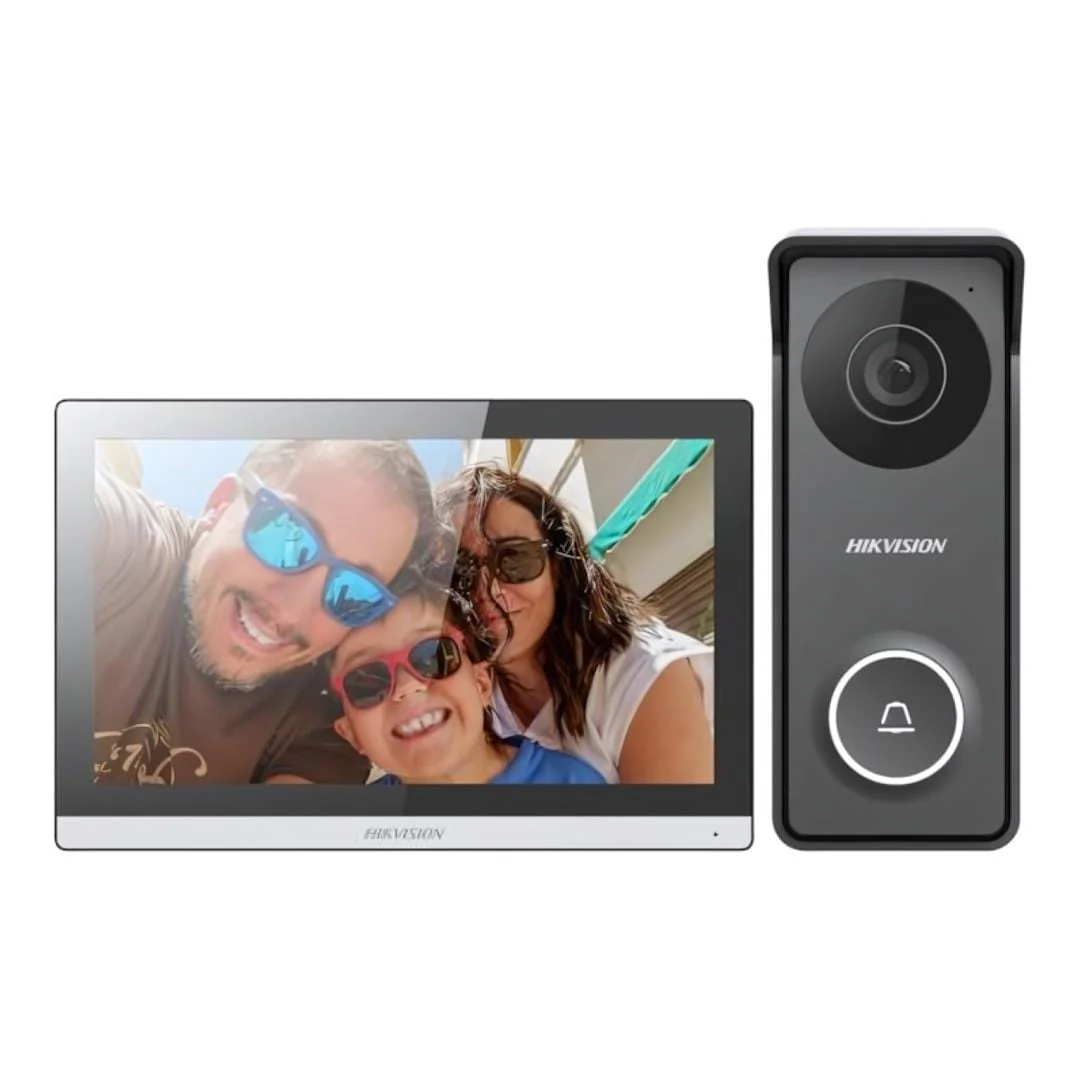

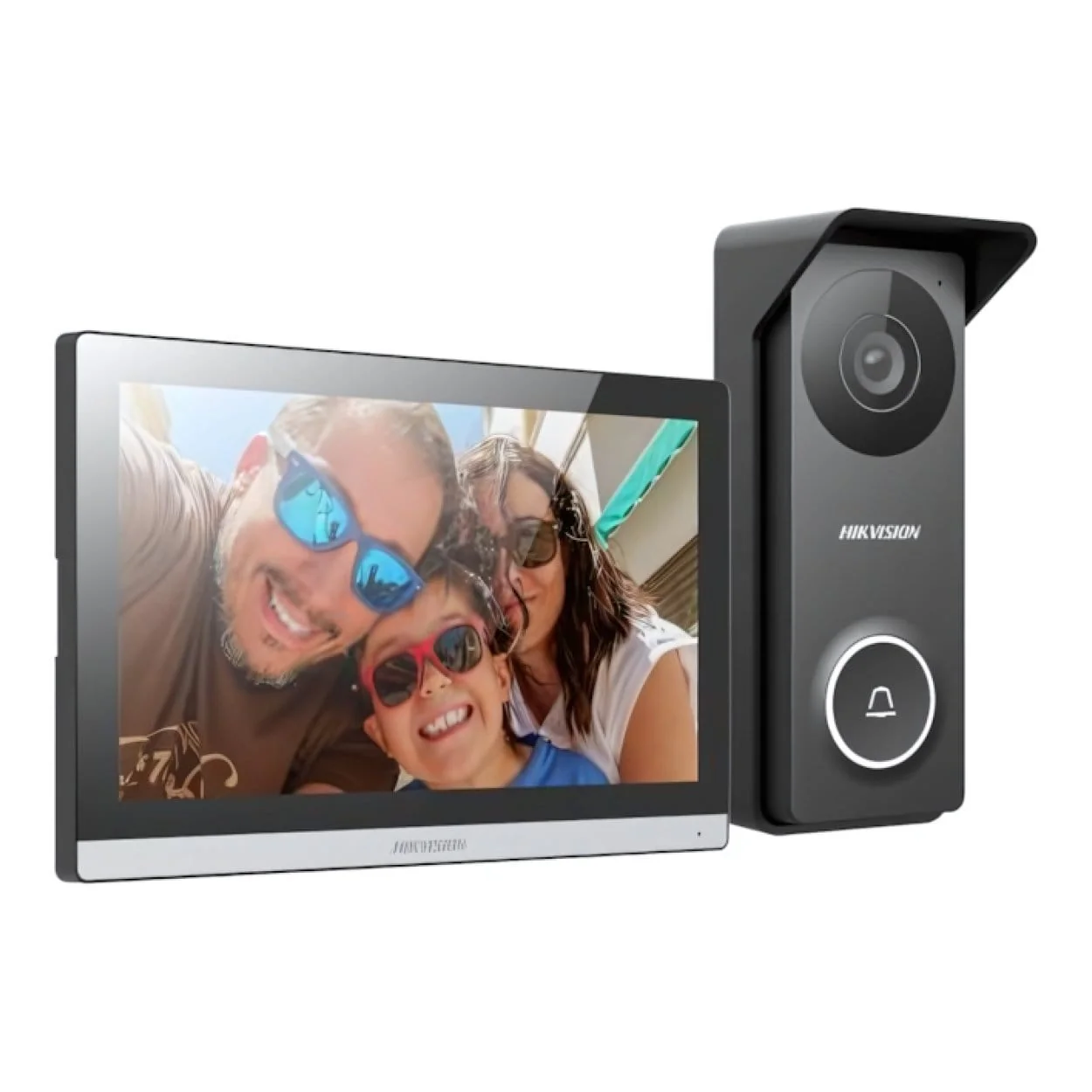

Hikvision Hybrid HD Intercom Kit DS-KIS313-P

Hikvision Hybrid HD Intercom Kit DS-KIS313-P

The Hikvision Hybrid HD Intercom Kit DS-KIS313-P is a comprehensive door-entry solution combining a weather-resistant outdoor door station with an indoor touch-screen monitor - ideal for homes or small offices. The system gives you HD video feeds, night-vision via IR illumination, and two-way audio communication with built-in mic and speaker. Its hybrid design supports both analog (4-wire) wiring and modern IP/HD-TVI video streams, making it suitable for new installs or upgrades to existing wiring. The 7" indoor monitor offers intuitive touch control and can support multiple indoor or sub-stations, giving flexibility for expansion.

• Hik-Connect mobile control
• HD TVI video quality
• 7 inch touch screen
• Plug & Play

Specifications:

Door Station - Camera & Video

• Supplement Light: IR, up to 3 m
• Resolution: 1280 × 720 @ 60 fps
• FOV: Horizontal 117°, Vertical 70°, Diagonal 141°

Door Station - Audio

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker

Door Station - Capacity

• Linked Indoor Stations: 3
• Sub Door Stations: 1
• Card Capacity: Not supported

Door Station - Interfaces

• Lock Control: 1 relay (max 30 V, 1 A)
• Power Input: 12 VDC
• Debug Port: 1
• Four-Wire Interface: 1

Door Station - General

• Button: 1 physical button
• Indicator: Not included
• Power Supply: 12 VDC
• Power Consumption: ≤ 4 W
• Working Temperature: -30 °C to 60 °C
• Working Humidity: 10%–90% (non-condensing)
• Environment: Outdoor
• Dimensions (W × H × D): 55 × 145 × 24 mm
• Installation: Surface mounting
• Protection Rating: IP65, IK08
• Material: Aluminum alloy + Plastic
• Weight: 200 g

Indoor Station - System

• Operating System: Embedded Linux
• RAM: 128 MB
• ROM: 32 MB
• Processor: Embedded high-performance processor

Indoor Station - Display

• Screen Type: Color TFT
• Resolution: 1024 × 600
• Viewing Angle: Horizontal 160°, Vertical 130°
• Contrast: 700 (Typ)
• Brightness: 250 cd/m² (Typ)
• Touch Input: Capacitive touch
• Screen Size: 7-inch

Indoor Station - Audio

• Audio Input: 1 built-in omnidirectional microphone
• Audio Output: 1 built-in loudspeaker
• Audio Bitrate: 64 Kbps
• Compression: G.711U / G.711A
• Audio Quality: Noise suppression & echo cancellation

Indoor Station - Capacity

• Linked Indoor Extensions: 2
• Linked Doorphones: 2
• Linked Analog Cameras: 1

Indoor Station - Network

• Wi-Fi: 802.11 b/g/n

Indoor Station - Interfaces

• Alarm Inputs: 2
• TF Card: Supports up to 128 GB
• Debug Ports: 2
• Four-Wire Interface: 4

Indoor Station - General

• Buttons: None (0 physical buttons)
• Power Supply: 12 VDC
• Power Consumption: ≤ 5 W
• Working Temperature: -10 °C to 50 °C
• Working Humidity: 10%–90% (non-condensing)
• Environment: Indoor
• Dimensions (W × H × D): 175 × 113.5 × 18.1 mm
• Installation: Surface mounting
• Weight: 260 g
