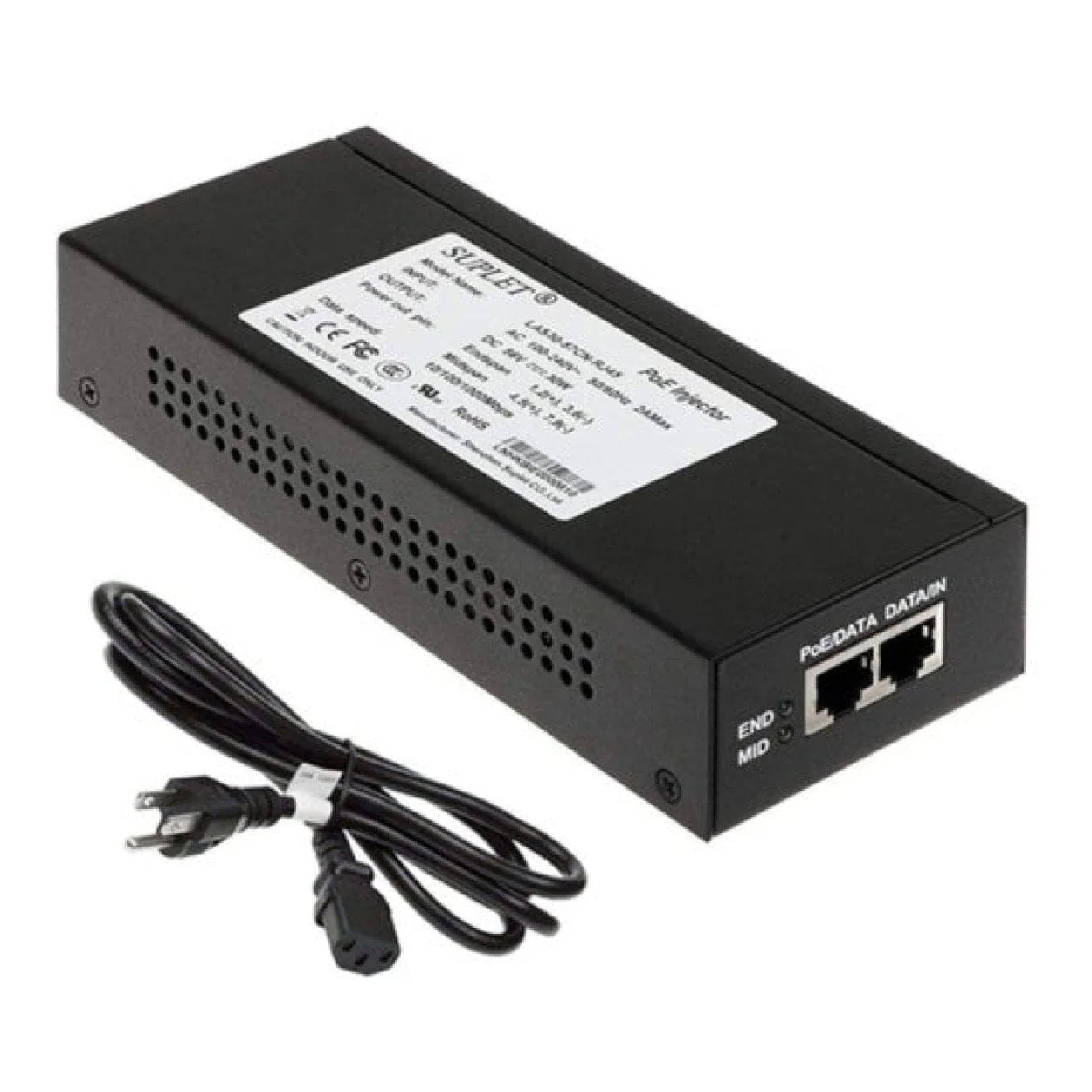

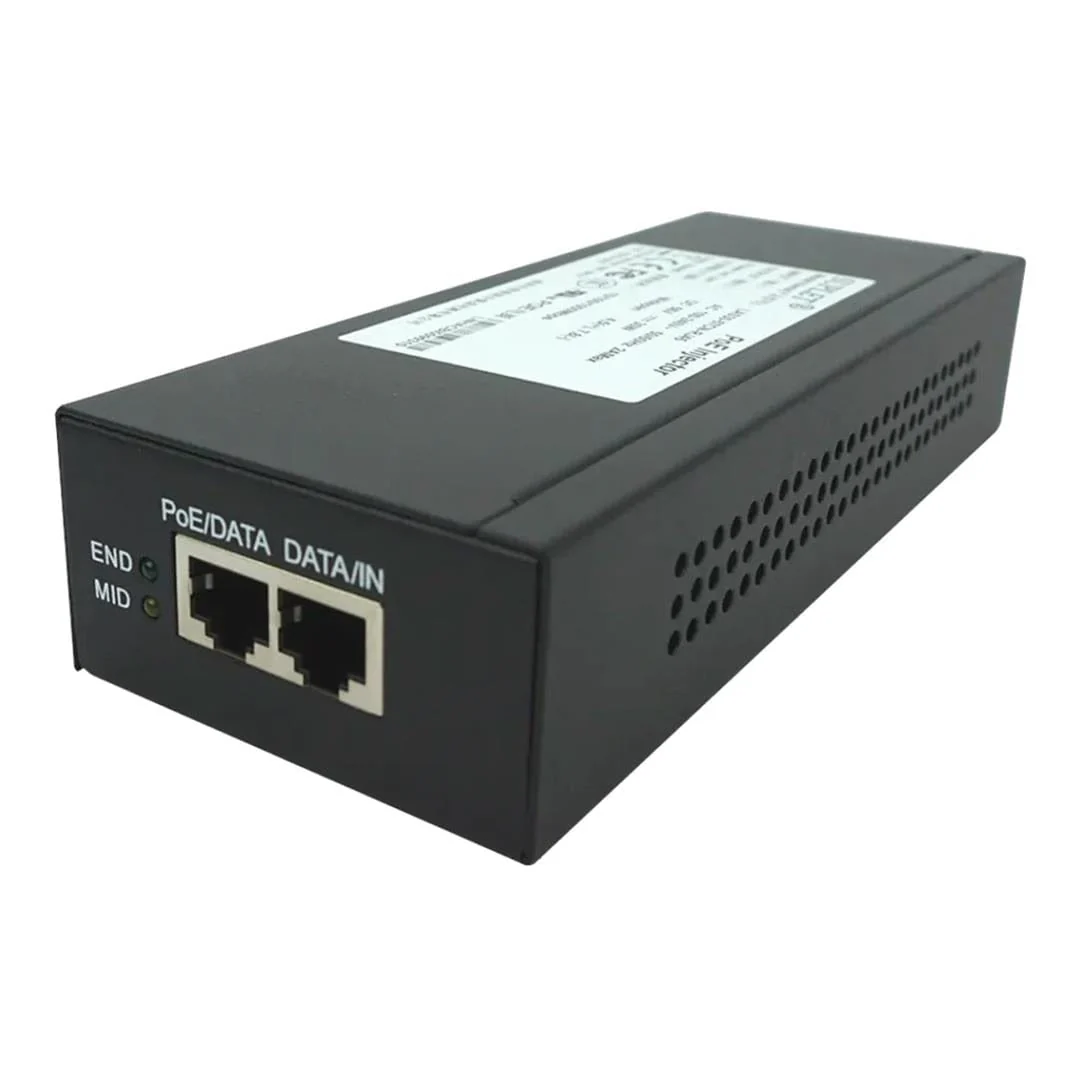

Hikvision Single Port POE Midspan Ethernet Adapter LAS30-57CN-RJ45

Hikvision Single Port POE Midspan Ethernet Adapter LAS30-57CN-RJ45

Hikvision POE midspan is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at Power-over-Ethernet (PoE) standard. The converter signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 30W power to the port.

• RoHS compliant
• Compatible With All IEEE pre 802.3af, 802.3at and Legacy Powered Devices
• Input voltage:90Vac~264Vac
• Support 300Vac input for long time work
• Output over current protection
• Short circuit protection
• Surge protection
• CE mark

Specifications:

Product: Hikvision LAS30-57CN-RJ45

Ethernet interface type: Gigabit Ethernet

Ethernet LAN data rates: 10,100,1000 Mbit/s

Networking standards: IEEE 802.3af, IEEE 802.3at

Product colour: Black

LED indicators: Power

Safety: UL60950-1, EN60950-1

AC adapter input voltage: 100 - 240 V

AC adapter frequency: 50 - 60 Hz

AC adapter output voltage: 56 V

Compliance certificates: RoHS

Certification: FCC, EN, EN55024, VCCI

Weight: 473 g

Dimensions (WxDxH): 185 x 70.8 x 37 mm
