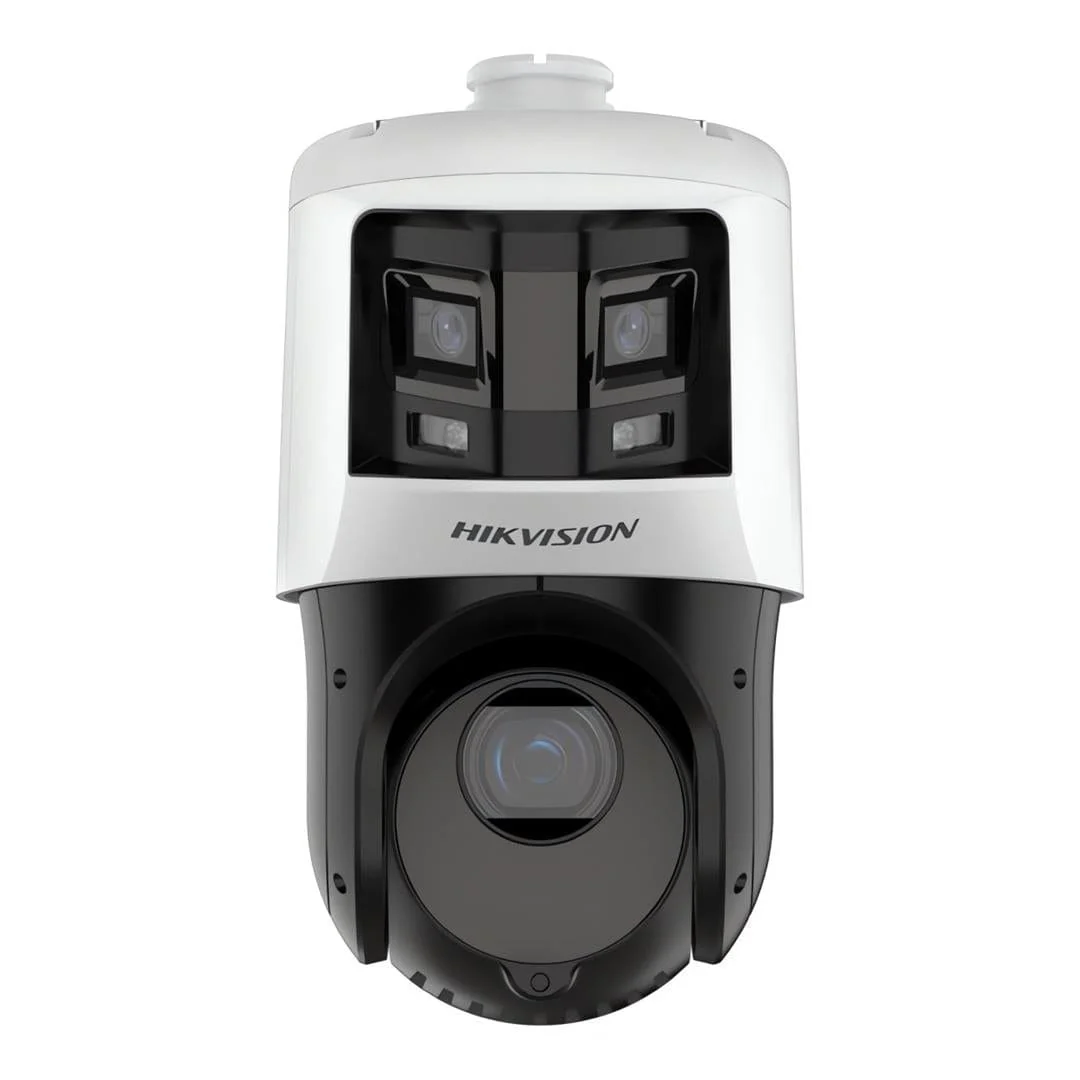

Hikvision TandemVu 6+4MP 25X ColorVu and IR Acusense Panoramic Network Speed Dome DS-2SE4C425MWG-E/26(F0)

Hikvision TandemVu 6+4MP 25X ColorVu and IR Acusense Panoramic Network Speed Dome DS-2SE4C425MWG-E/26(F0)

Features

• Captures a large area and great details at the same time
• High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning
• IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection

Technical Specification

Image Sensor

• [Bullet channel]: 1/2.5" Progressive Scan CMOS
• [PTZ channel]: 1/2.8" progressive scan CMOS

Max. Resolution

• [Bullet channel]: 3632 × 1632
• [PTZ channel]: 2560 × 1440

Zoom [PTZ channel]: 25 × optical, 16 × digital

Focal Length

• [Bullet channel]: 2.8 mm
• [PTZ channel]: 4.8 to 120 mm, 25 × optical

FOV [Bullet channel]

• Horizontal field of view: 180±10°
• Vertical field of view: 80±5°

FOV [PTZ channel]

• Horizontal field of view: 55° to 2.4° (wide-tele)
• Vertical field of view: 33° to 1.4° (wide-tele)
• Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus: Semi-auto, Manual, Auto

Zoom Speed [PTZ channel]: approx. 3.6 s

Supplement Light Type: [PTZ channel]: IR ; [Bullet channel]: White Light

Supplement Light Range: [PTZ channel]: up to 100 m ; [Bullet channel]: up to 30 m

Smart Supplement Light: Yes

Movement Range (Pan): 360°

Movement Range (Tilt): -15° to 90° (auto flip)

Audio: 1x audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% ; 1x audio output, line level, impedance: 600 Ω

Alarm: 1x alarm input ; 1x alarm output

Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port

Power: 12VDC or PoE+

• Please note: Power supply is not included
